Transaxle Side Seals, M/T

DIFFERENTIAL OIL SEAL
1. Remove drain plug and drain gear oil from transaxle.
2. Remove drive shafts.

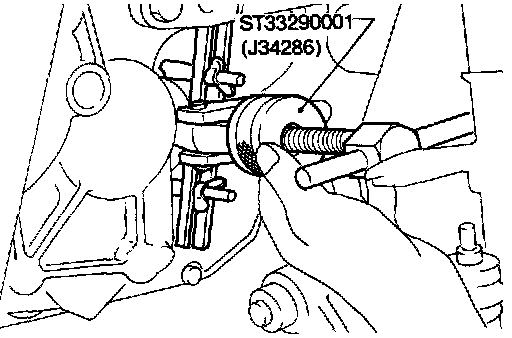

3. Remove differential oil seal using Tool.

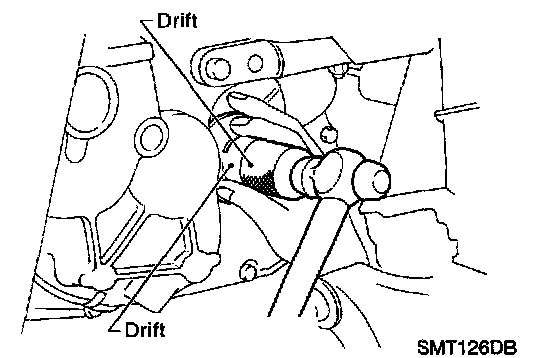

4. Install differential oil seal with a suitable tool.
- Apply multi-purpose grease to seal lip of oil seal before installing.
5. Install drive shafts.

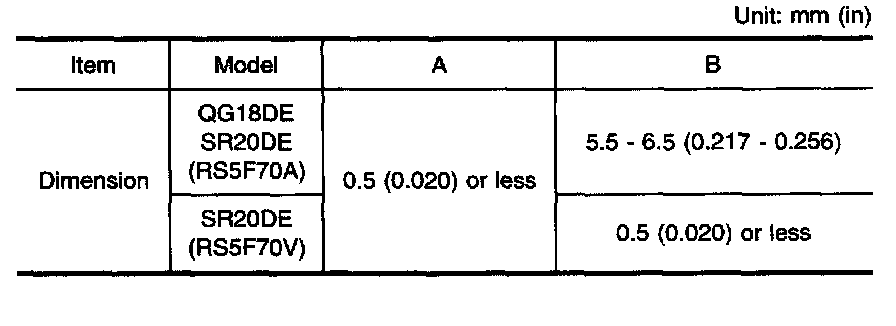

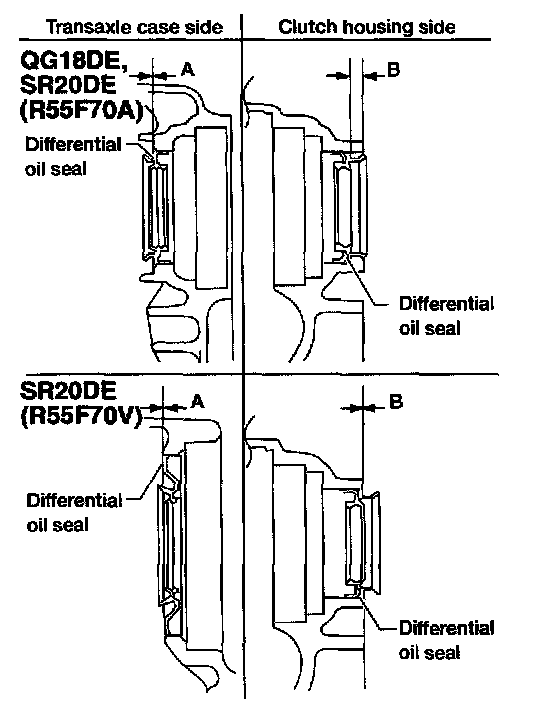

- Install differential oil seal so that dimension "A" and "B" are within specifications.
