Shift Shaft Seal, M/T

STRIKING ROD OIL SEAL
1. Remove transaxle control rod from yoke.

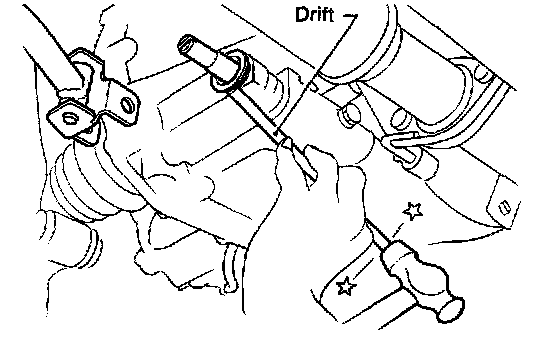

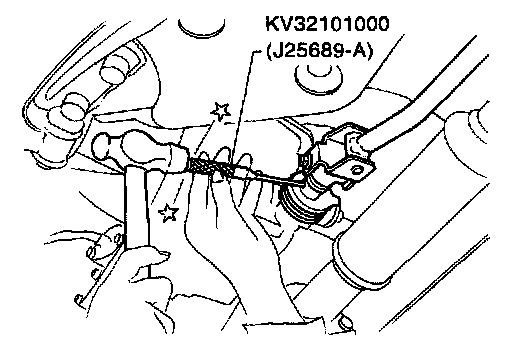

2. Remove retaining pin of yoke using Tool.
- Be careful not to damage boot.
3. Remove the boot.





4. Remove striking rod oil seal with a suitable tool.

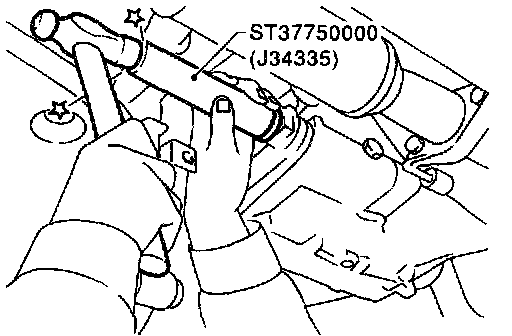

5. Install striking rod oil seal using Tool.
- Apply multi-purpose grease to seal lip of oil seal before installing.
6. Install the boot.
7. Install yoke and retaining pin.
8. Connect the transaxle control rod to the yoke.
