Shift Interlock Cable: Service and Repair

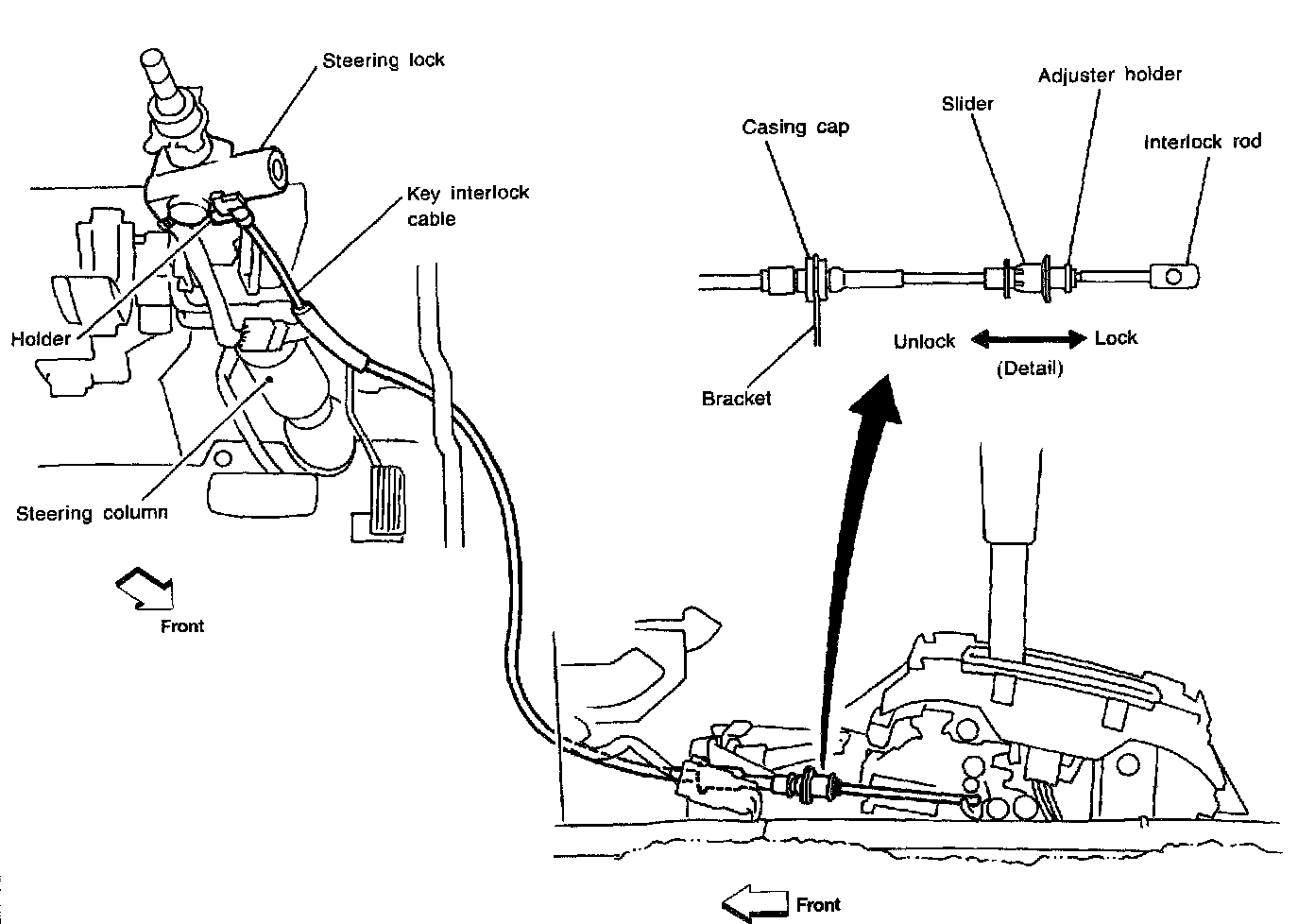

KEY INTERLOCK CABLE





CAUTION:
- Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
- After installing key interlock cable to control device, make sure that casing cap and bracket are firmly secured in their positions.

Removal

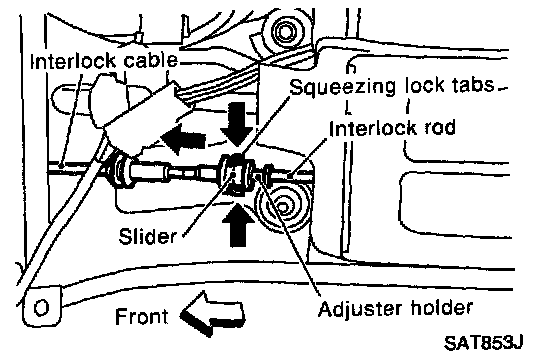

1. Unlock slider by squeezing lock tabs on slider from adjuster holder and remove interlock rod from cable.

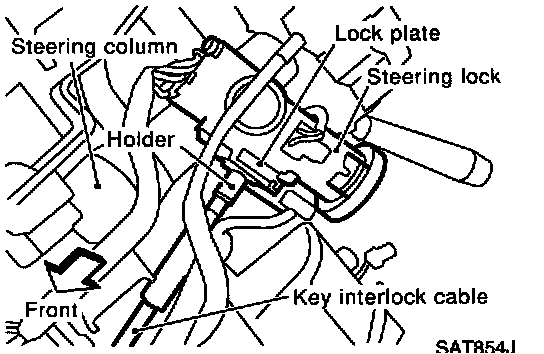

2. Remove lock plate from steering lock assembly and remove key interlock cable.

Installation
1. Turn ignition key to lock position.
2. Set A/T selector lever to P position.

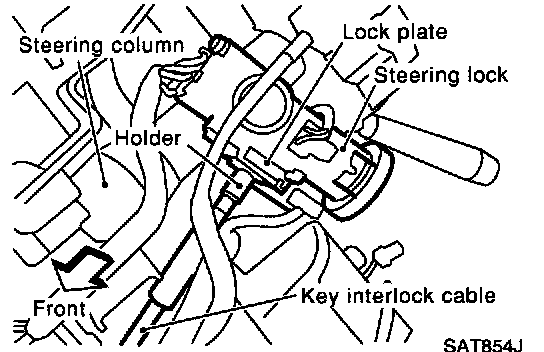

3. Set key interlock cable to steering lock assembly and install lock plate.
4. Clamp cable to steering column and attach to control cable with band.

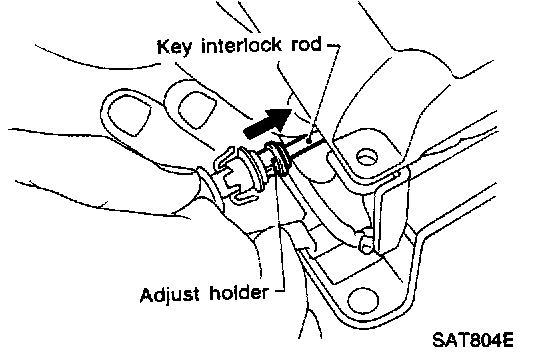

5. Insert interlock rod into adjuster holder.

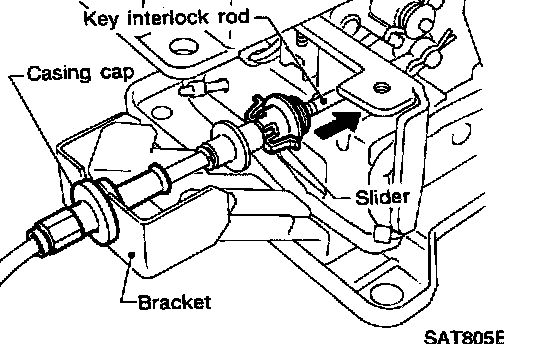

6. Install casing cap to bracket.
7. Move slider in order to connect adjuster holder to interlock rod.
