Front

REMOVAL AND INSTALLATION

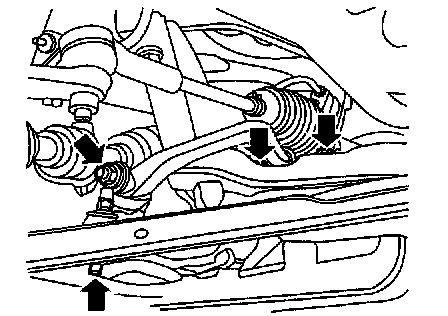

^ Remove four stabilizer bar mounting nuts from each side.





^ When installing stabilizer, make sure the paint mark and clamp face in their correct directions.

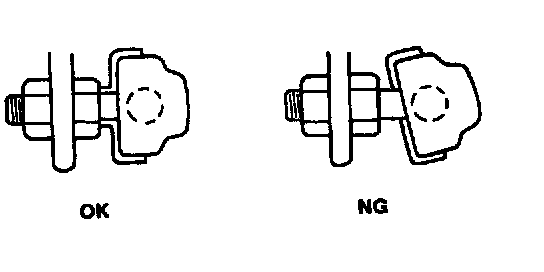

^ Make sure that slit in bushing is in the position shown in the figure.

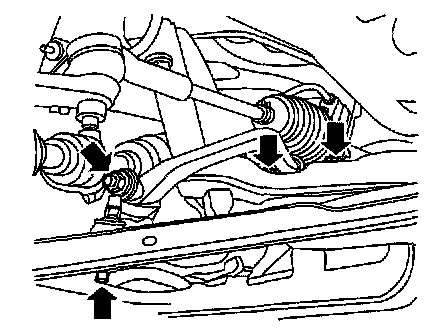

^ Install four stabilizer bar mounting nuts at each side.





^ Install stabilizer bar with ball joint socket properly placed.





^ Check stabilizer for deformation or cracks. Replace if necessary.
^ Check rubber bushings for deterioration or cracks. Replace if necessary.
^ Check that the ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.
