Timer/Control Unit: Testing and Inspection

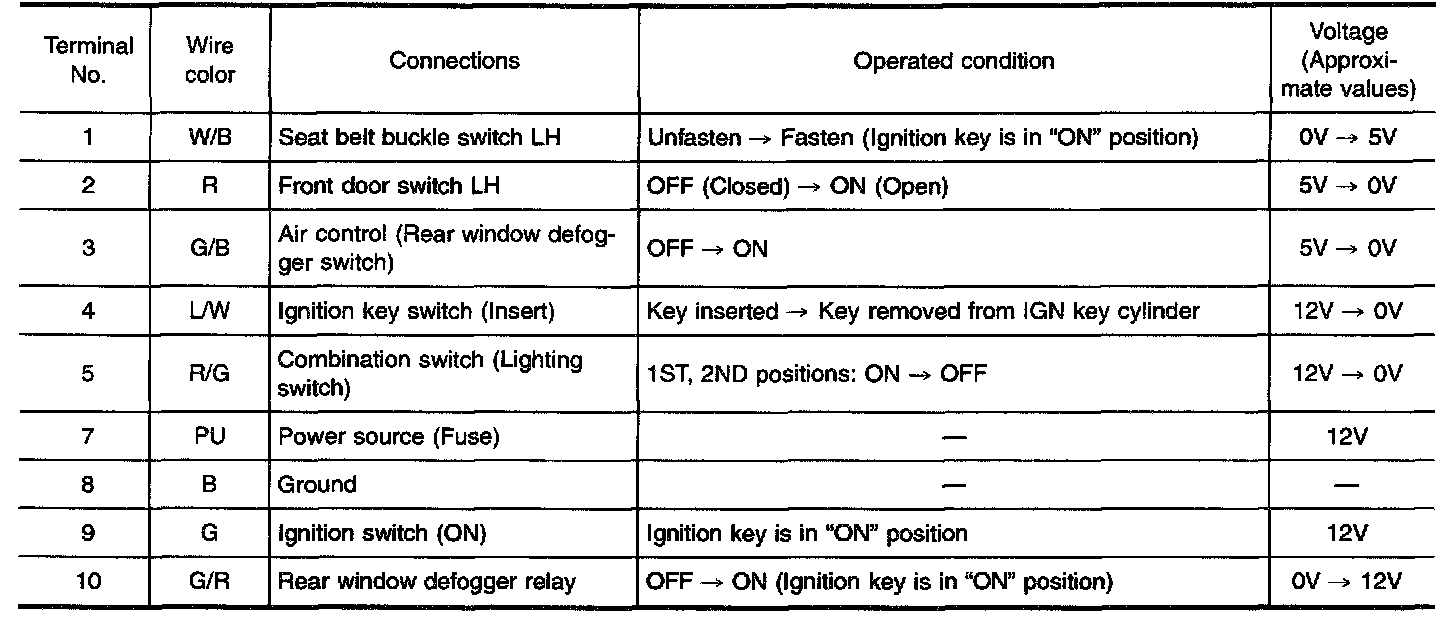

Time Control Unit Inspection Table (Without Power Door Locks):

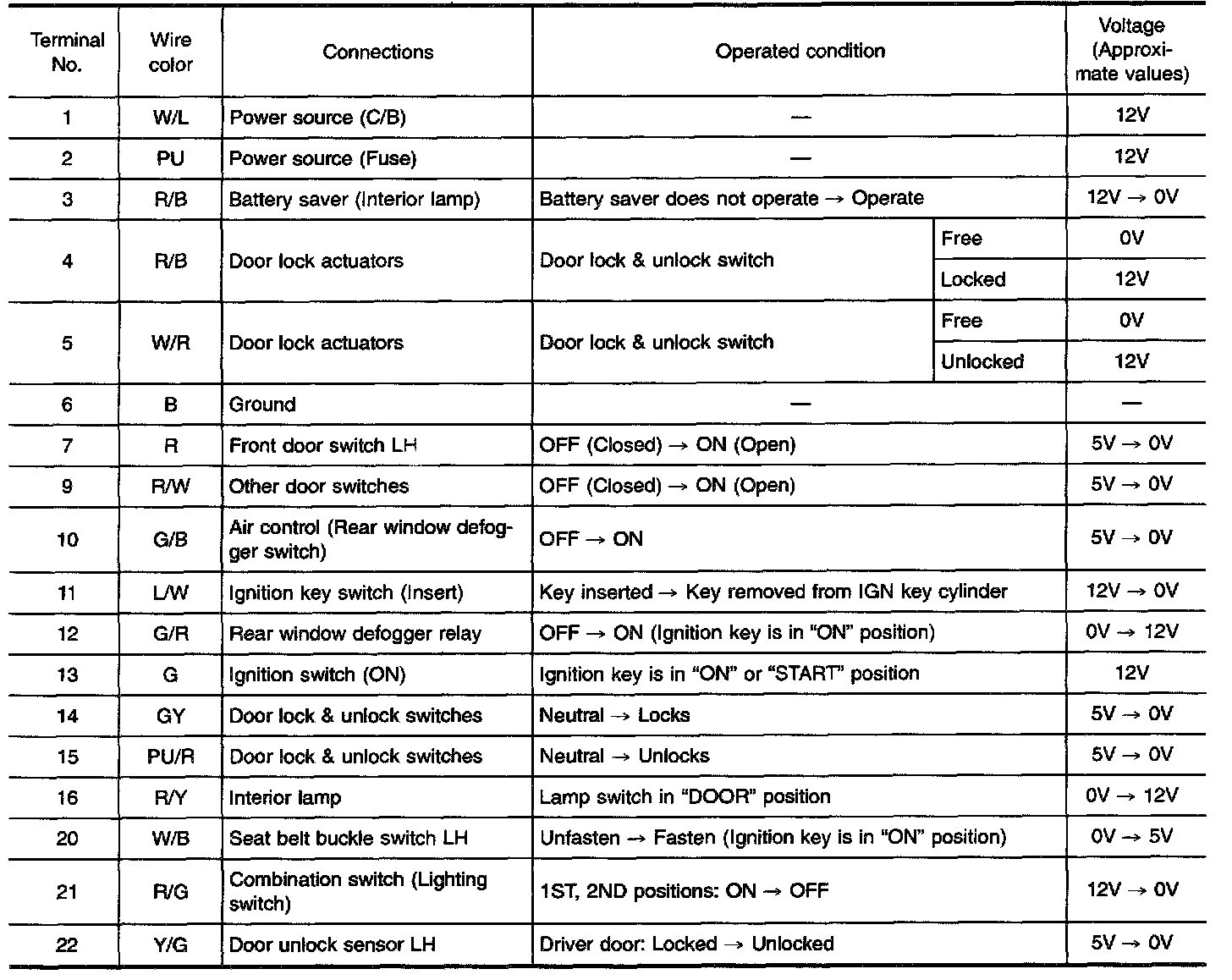

Time Control Unit Inspection Table (With Power Door Locks):
