Grounding Point: Locations

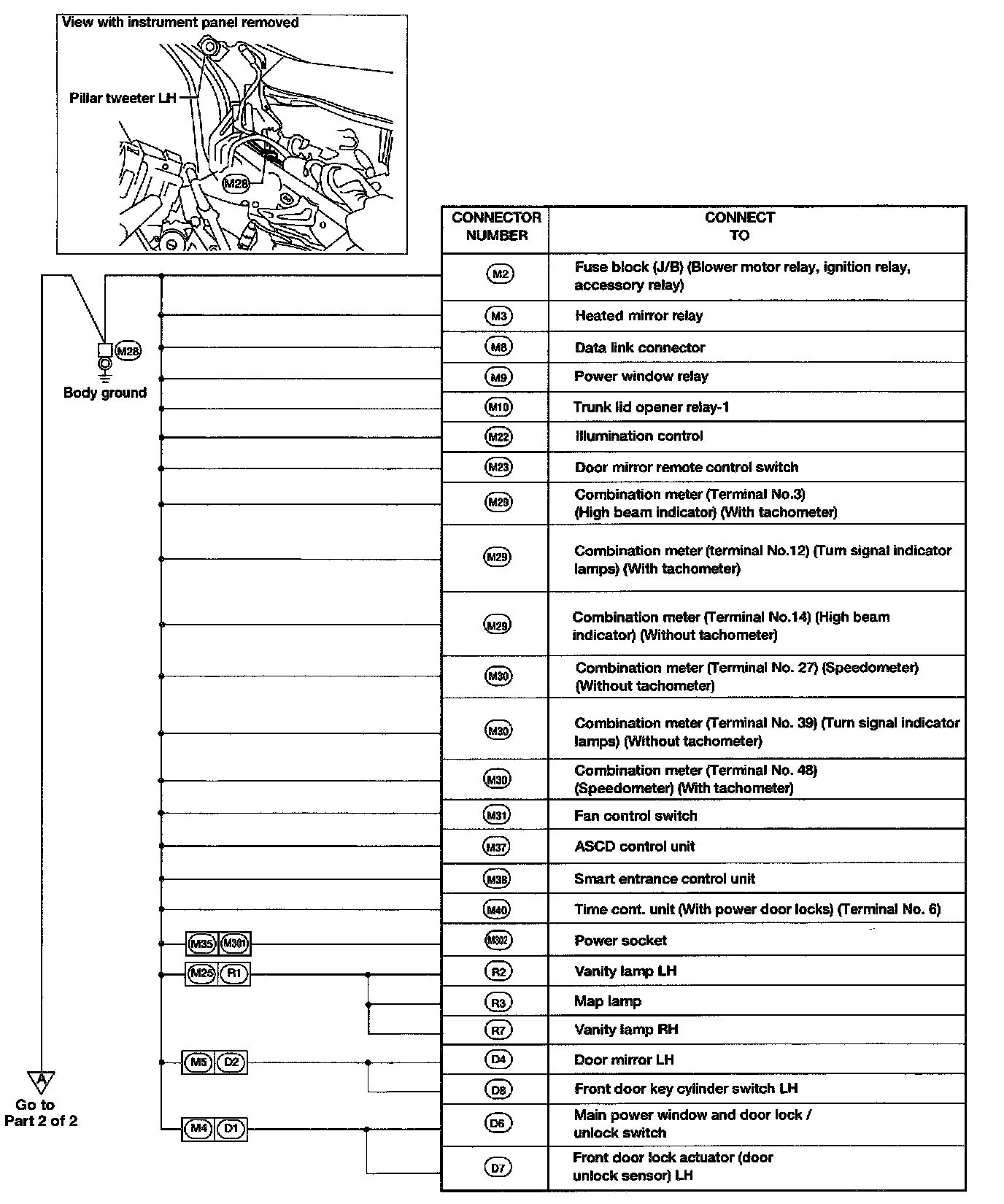

Main Harness (Part 1 Of 2):

Main Harness (Part 2 Of 2):

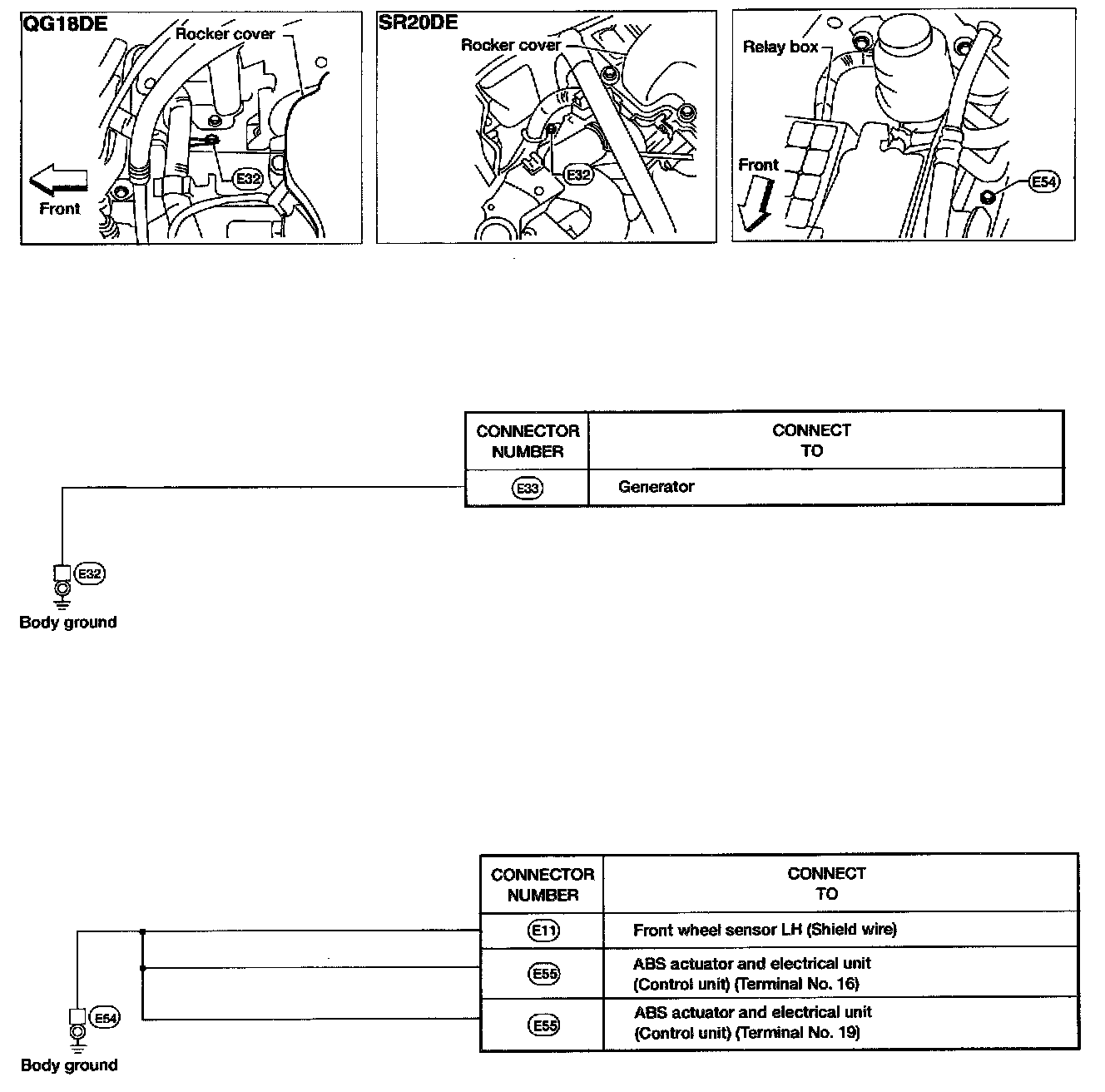

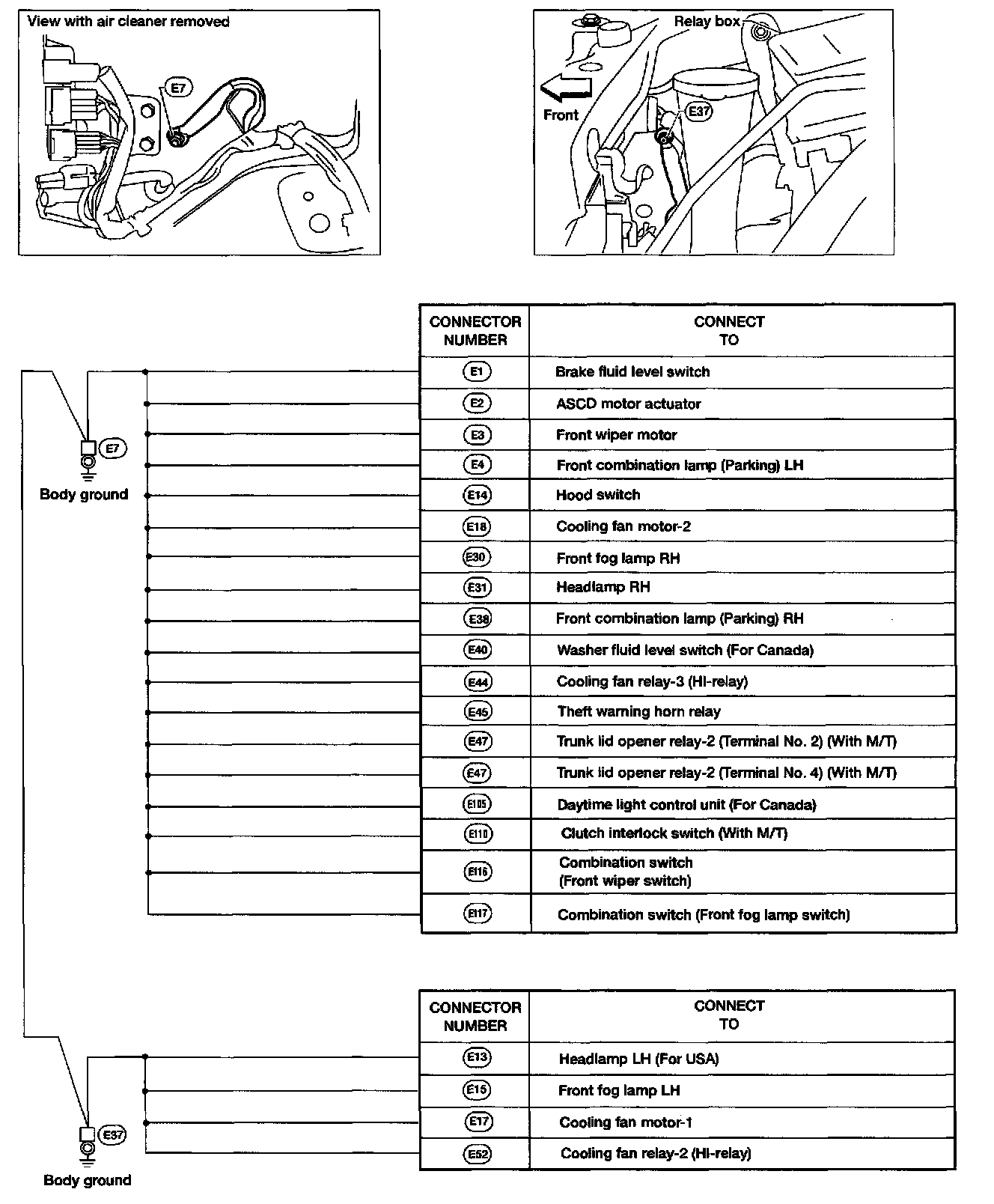

Engine Room Harness (Part 1 Of 2):

Engine Room Harness (Part 2 Of 2):

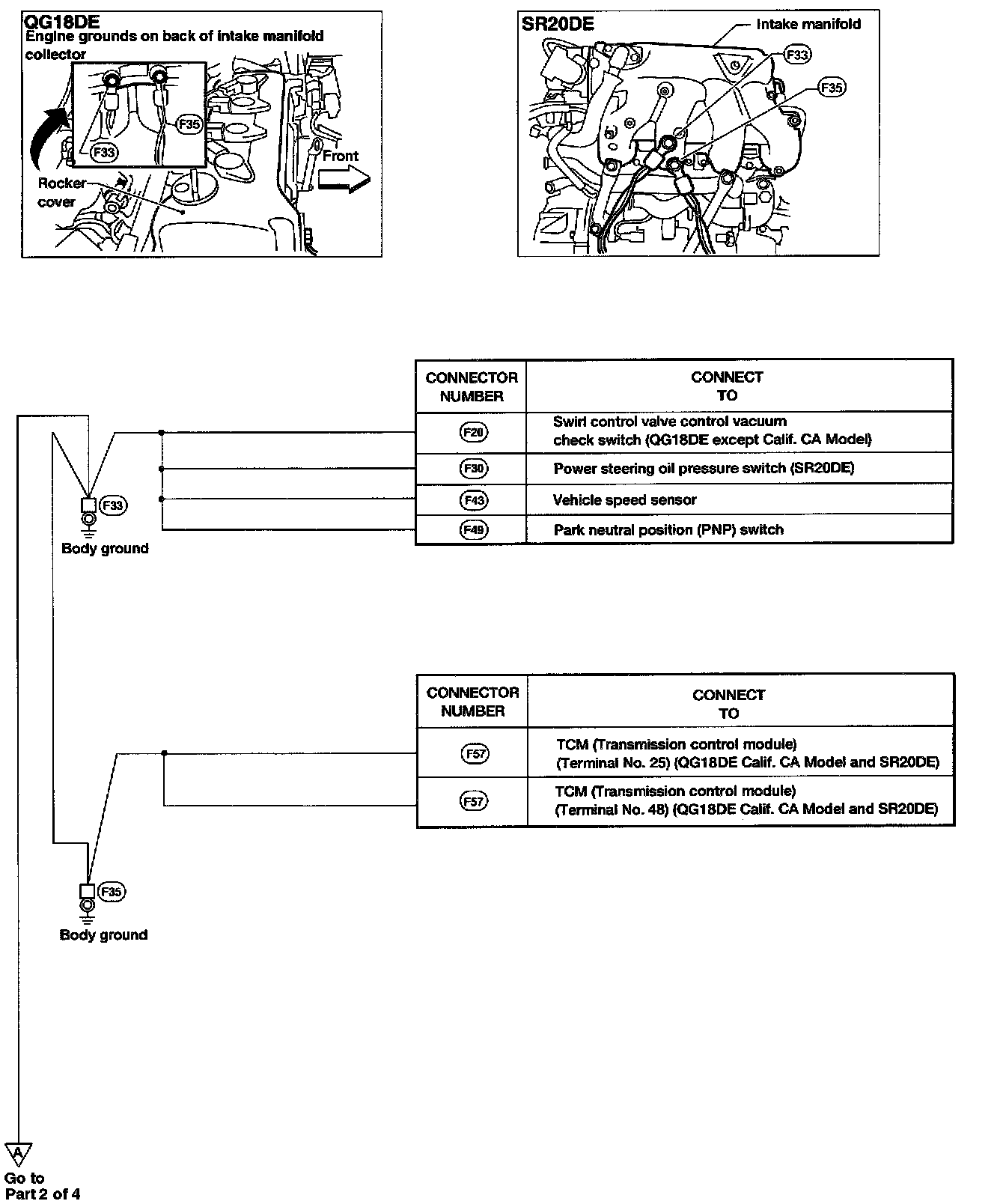

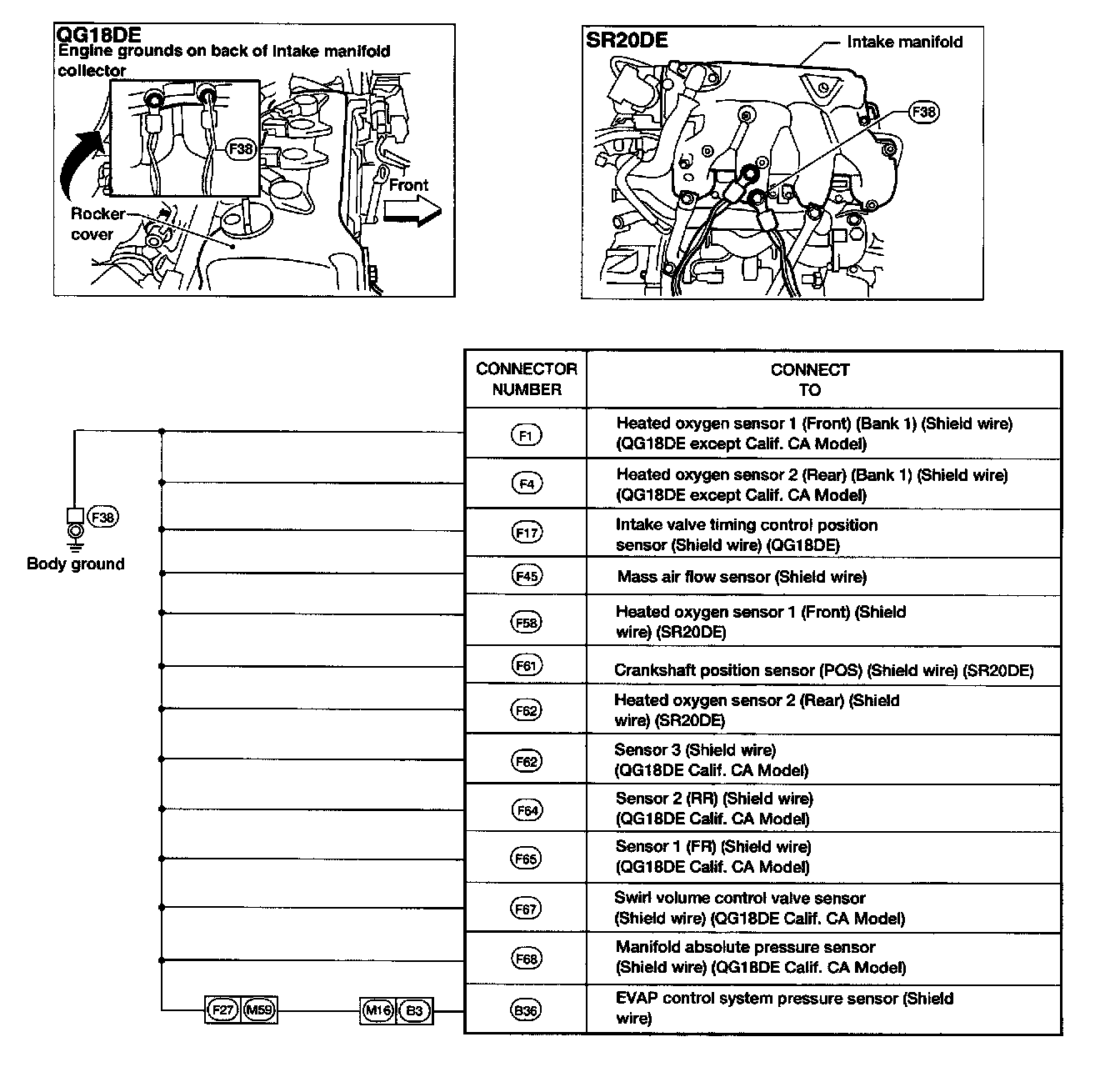

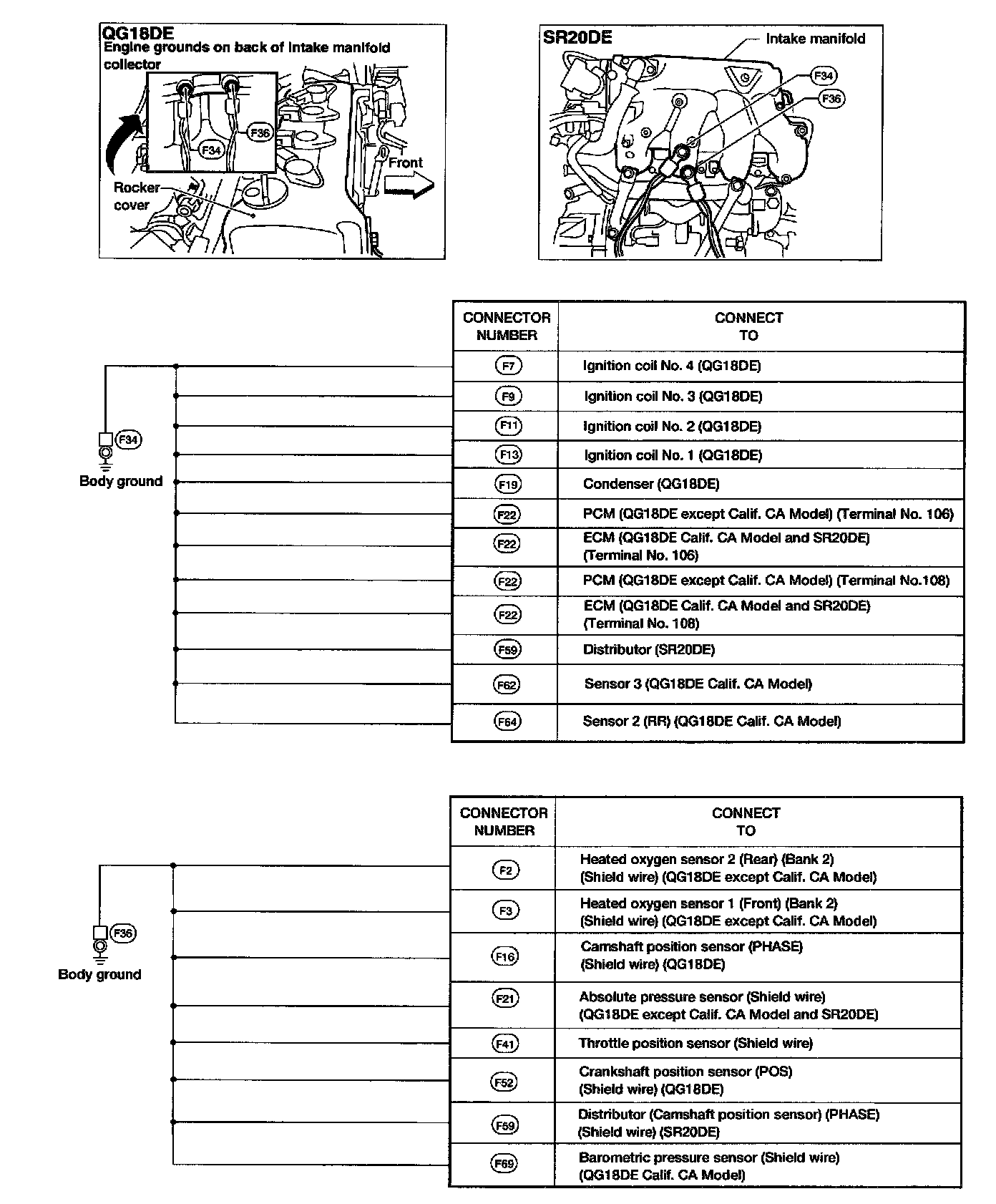

Engine Control Harness (Part 1 Of 4):

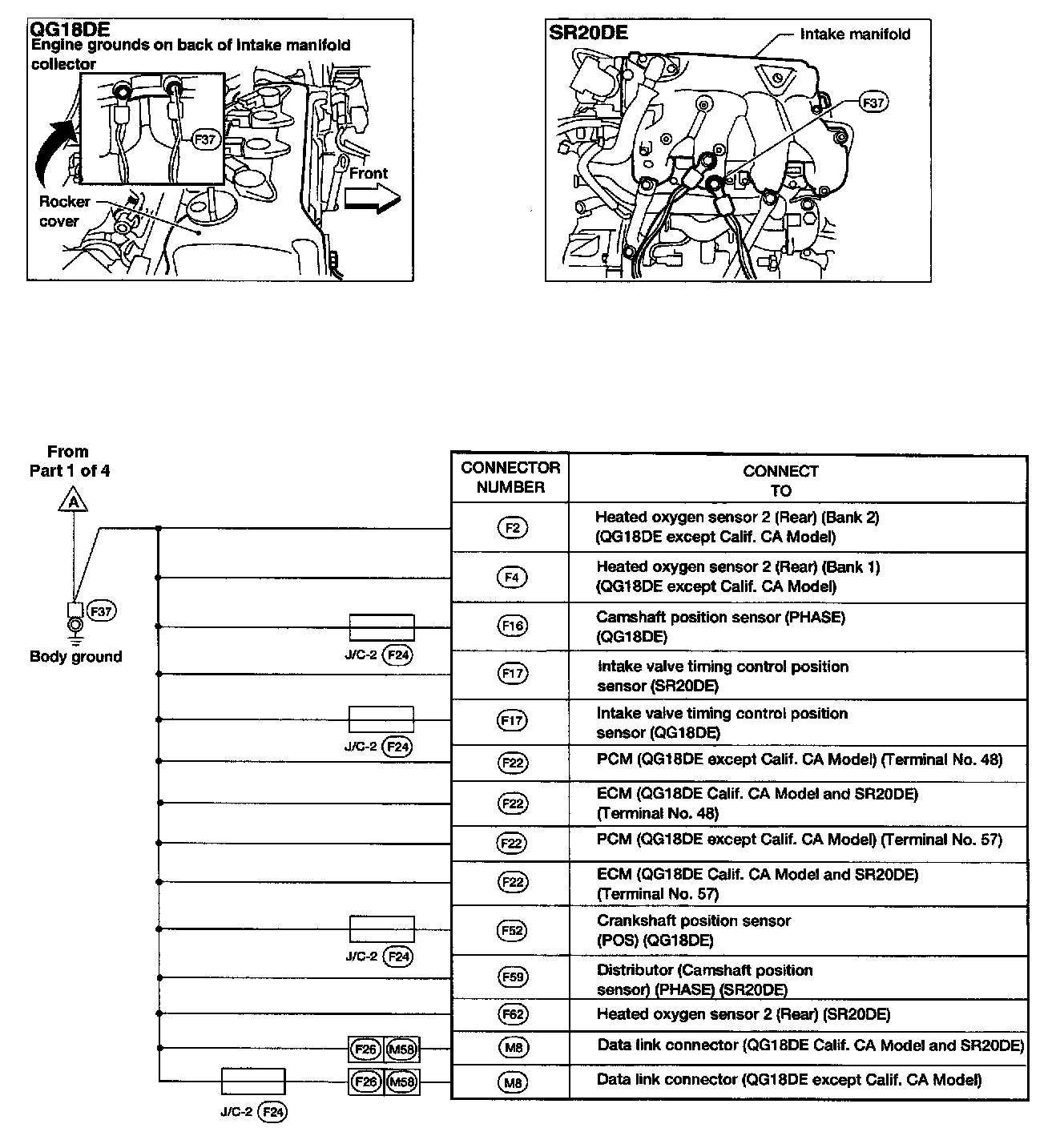

Engine Control Harness (Part 2 Of 4):

Engine Control Harness (Part 3 Of 4):

Engine Control Harness (Part 4 Of 4):

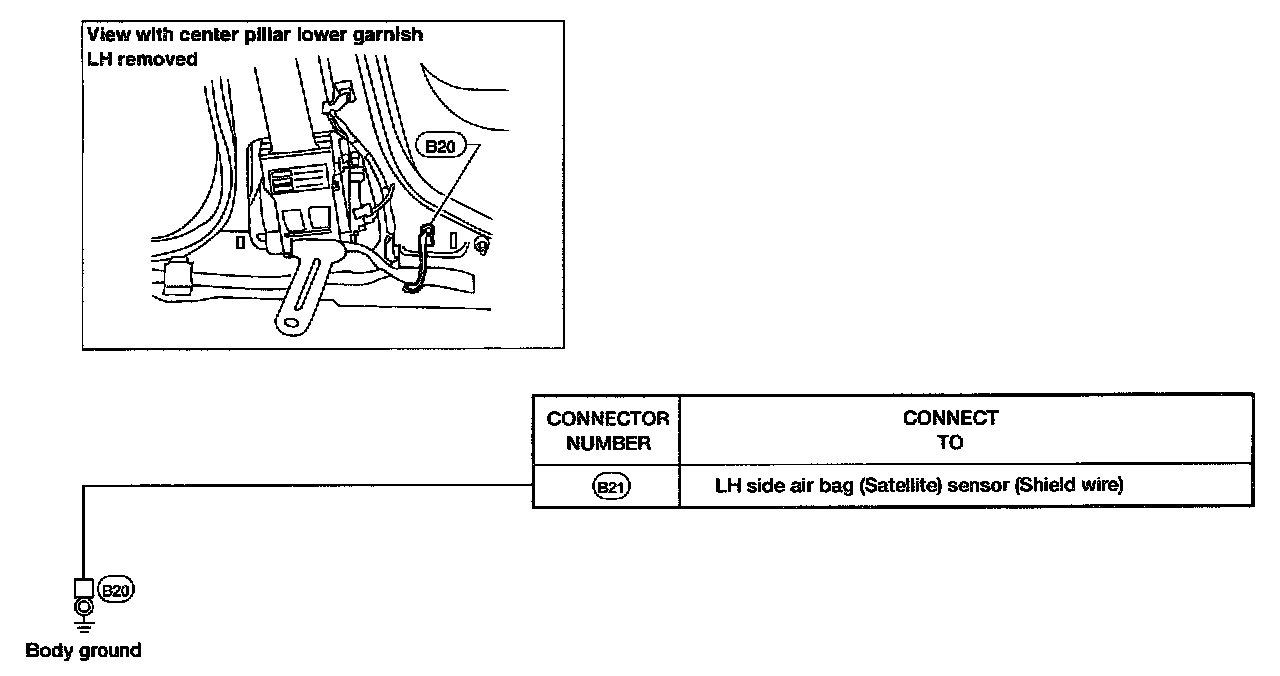

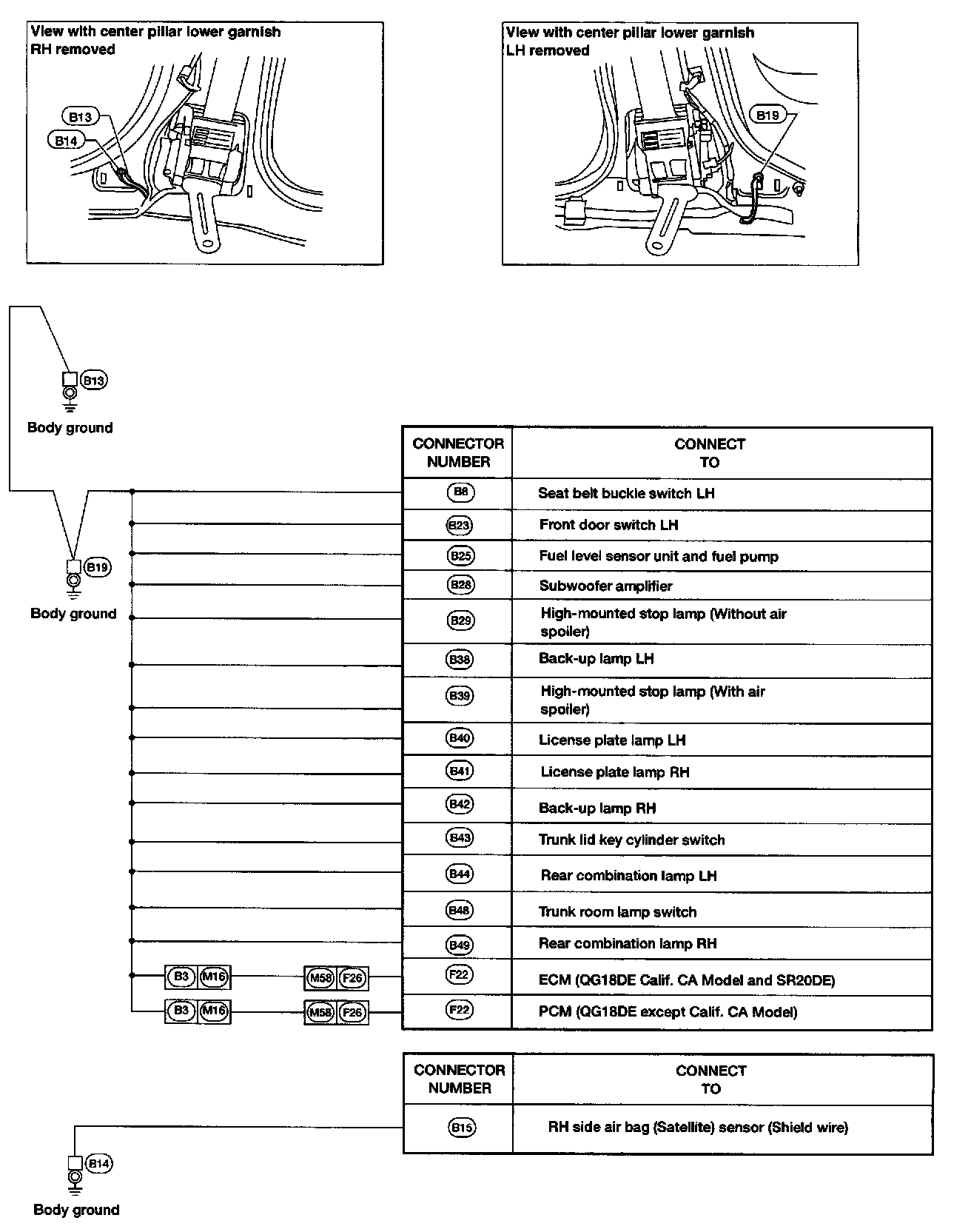

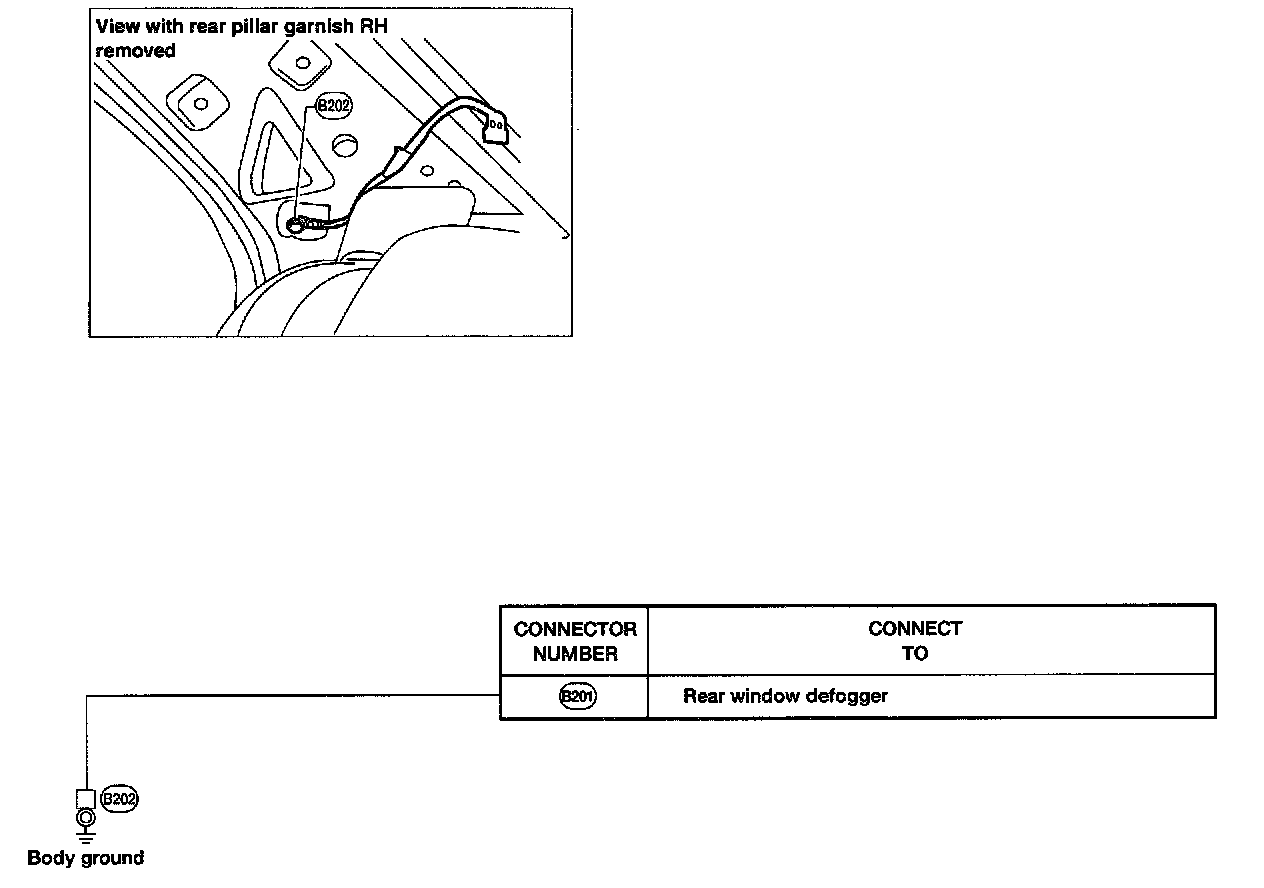

Body Harness (Part 1 Of 2):

Body Harness (Part 2 Of 2):

Body No. 2 Harness:

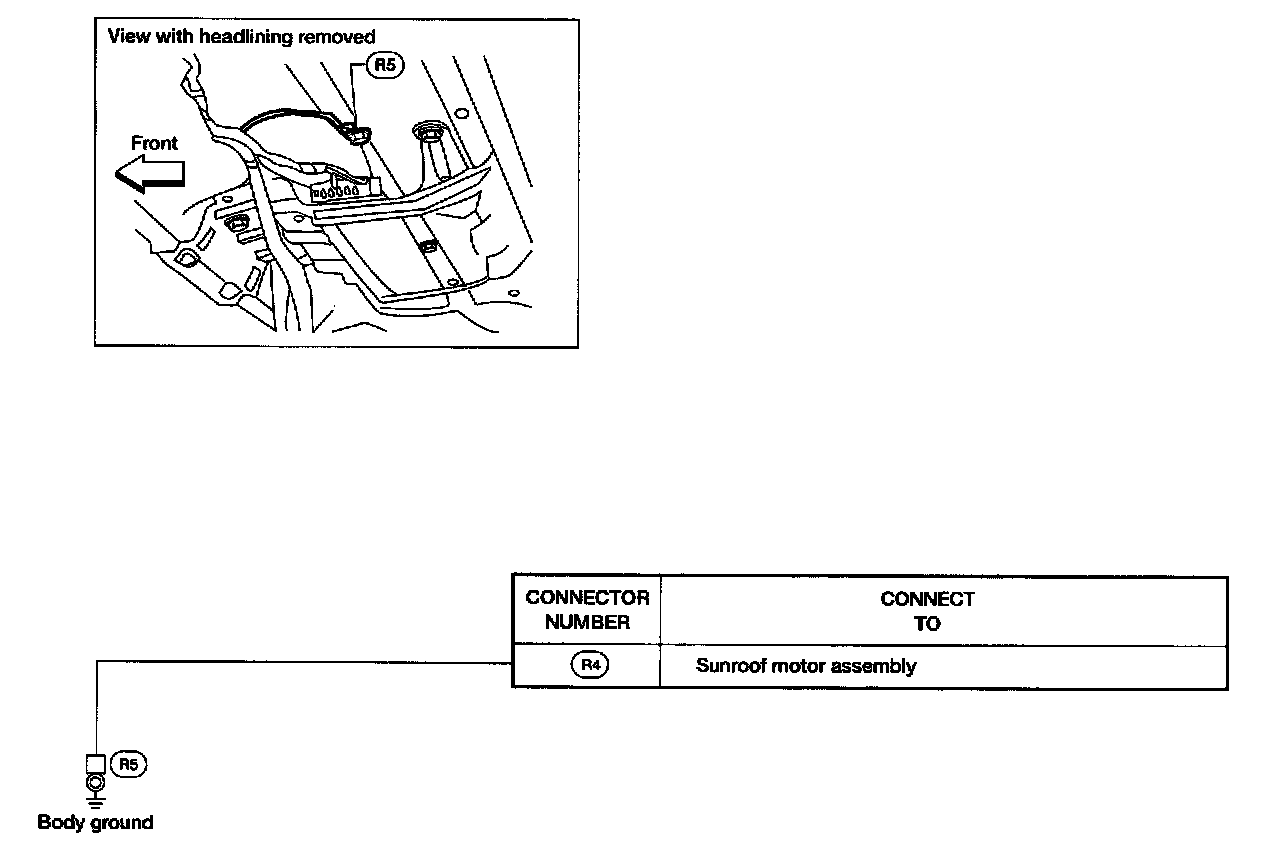

Room Harness:
