Gear Sensor/Switch: Testing and Inspection

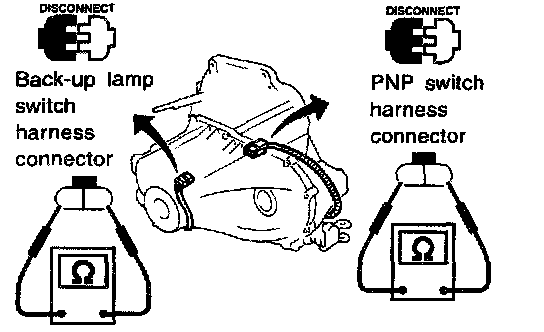

Position Switch Check

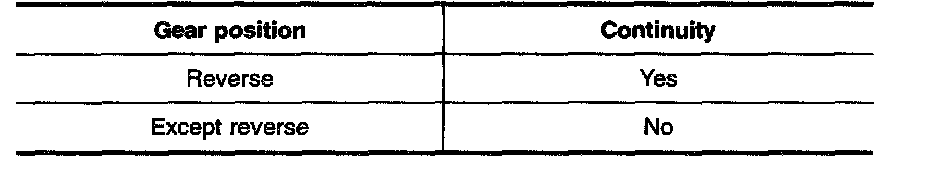

BACK-UP LAMP SWITCH
- Check continuity.

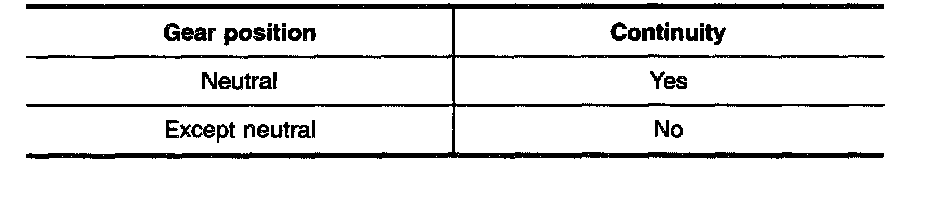

PNP SWITCH
- Check continuity.
