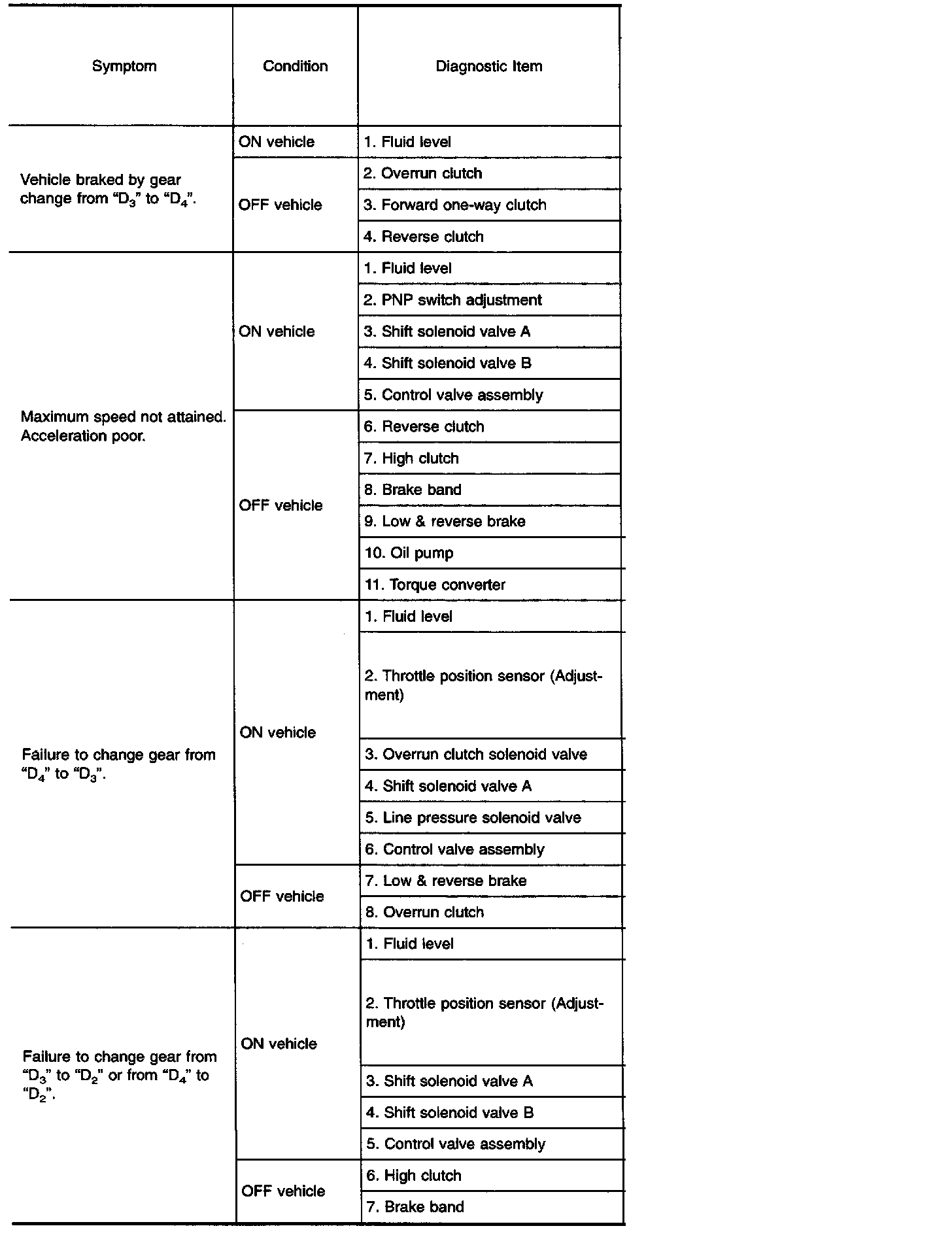

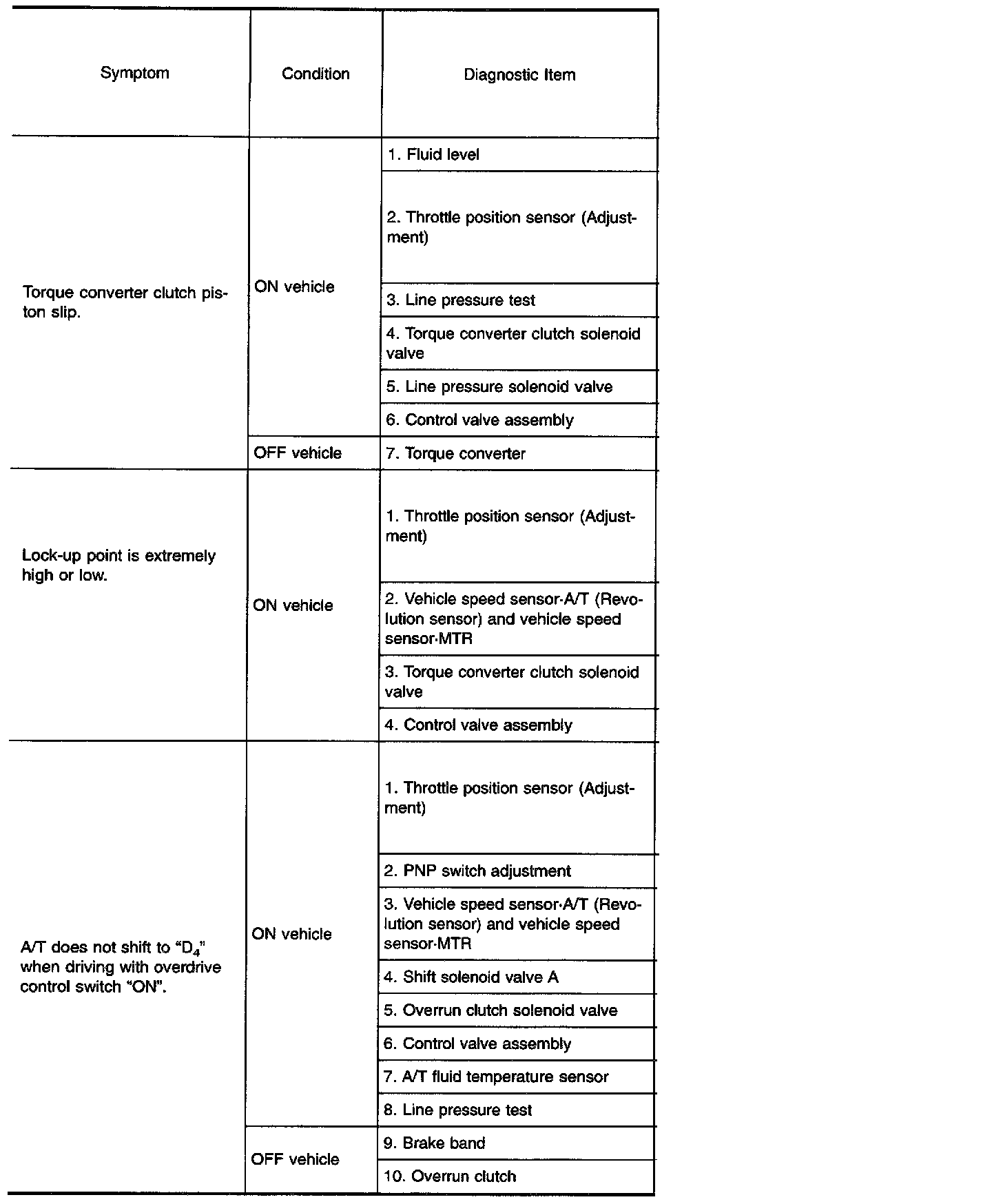

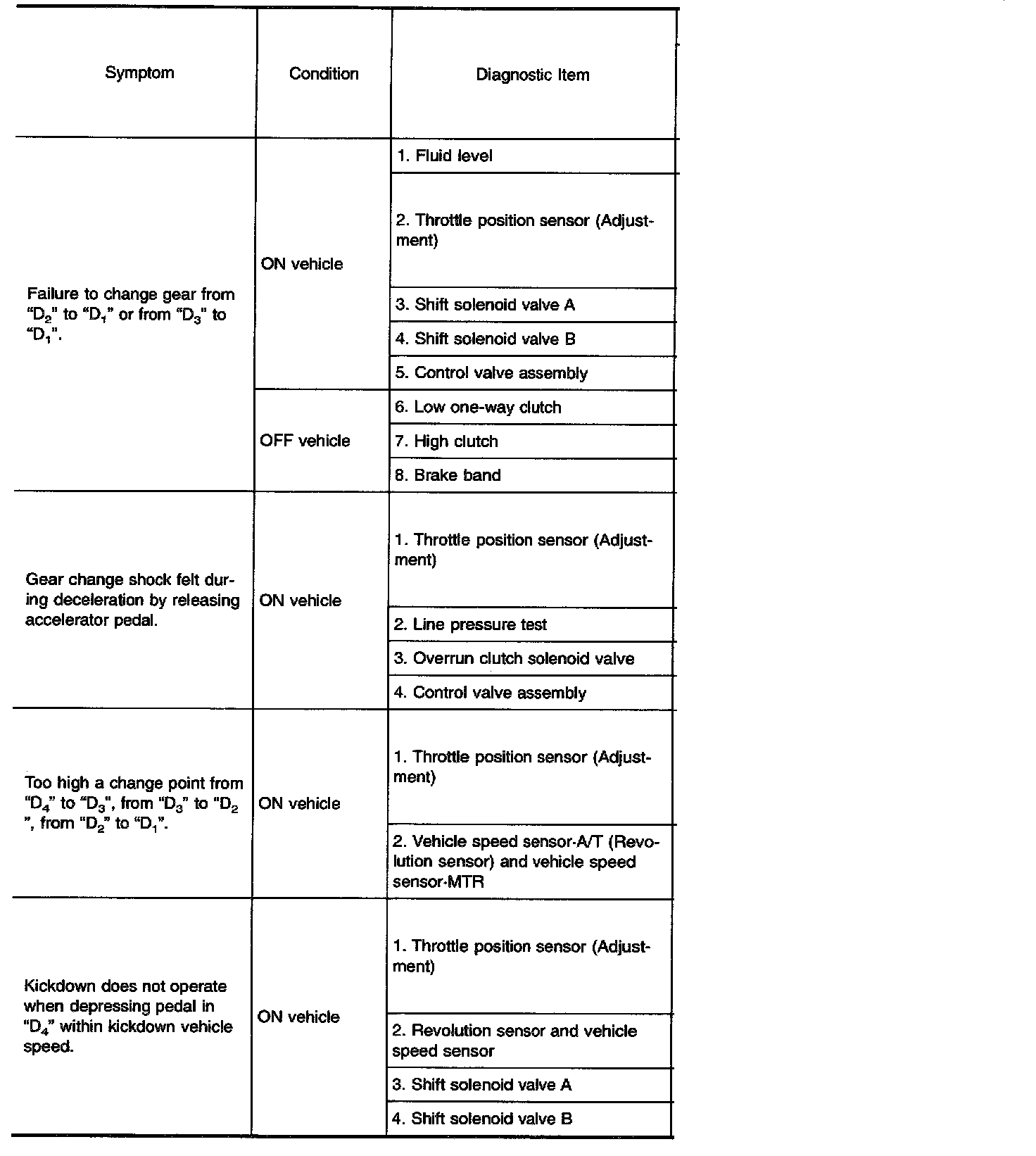

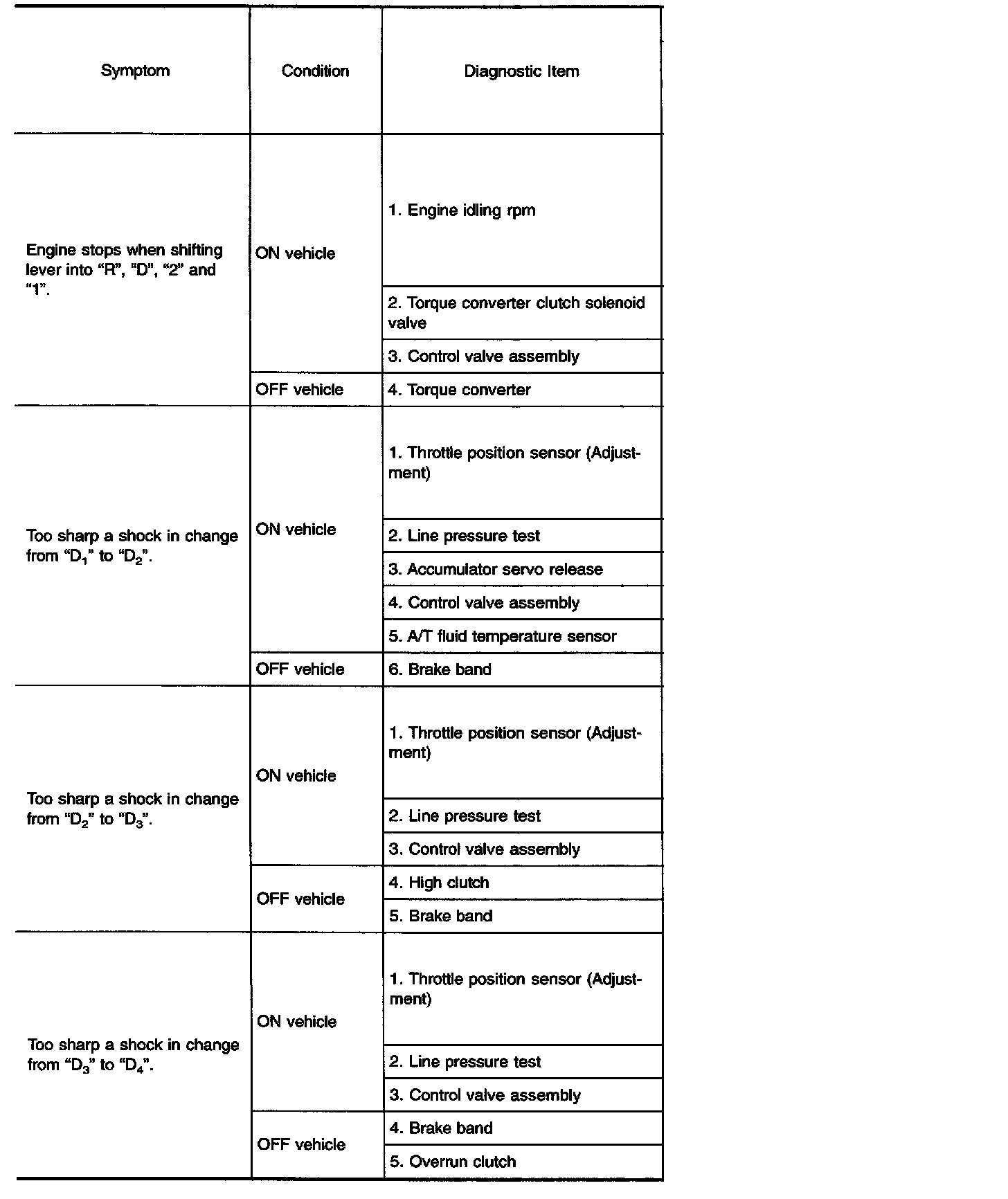

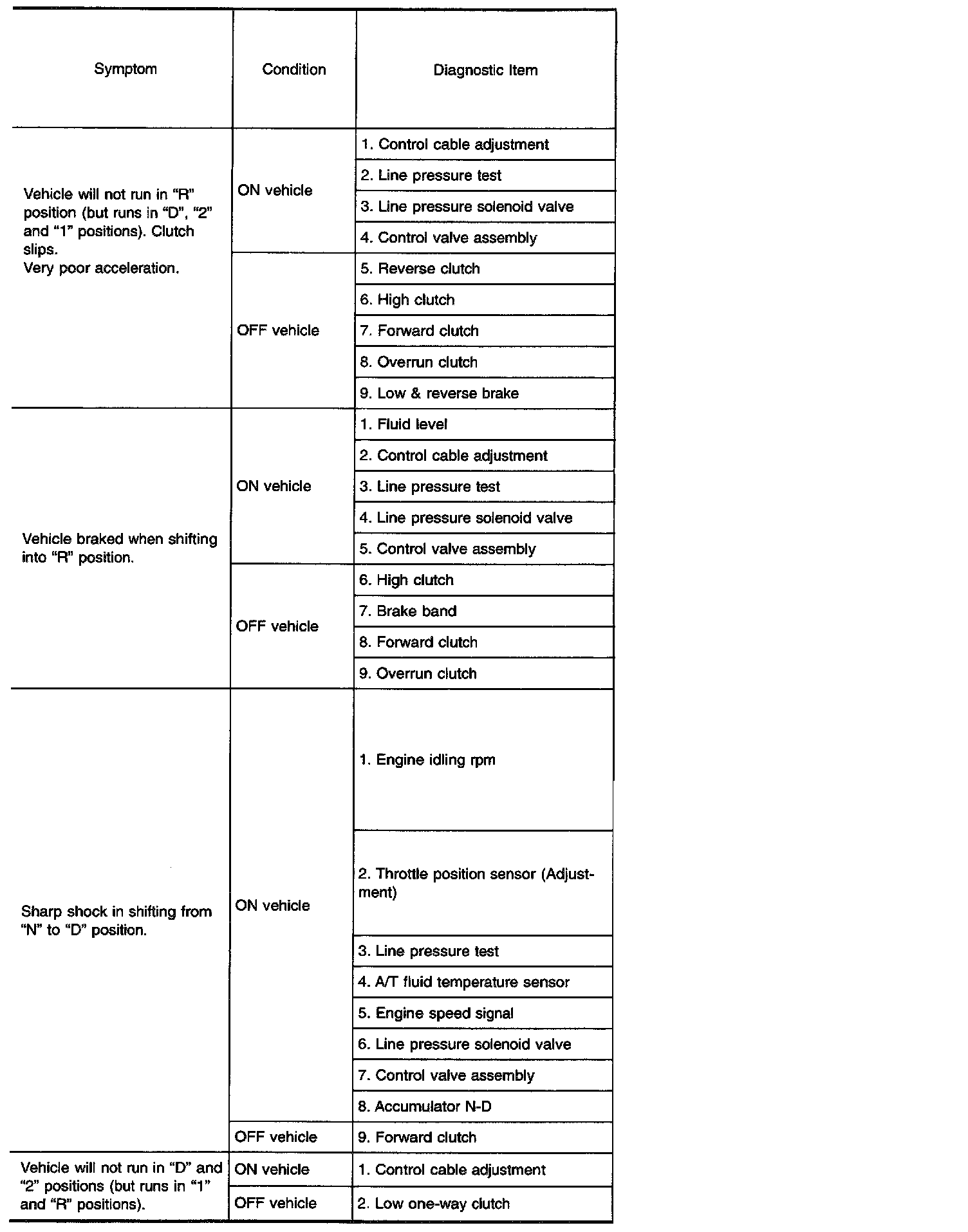

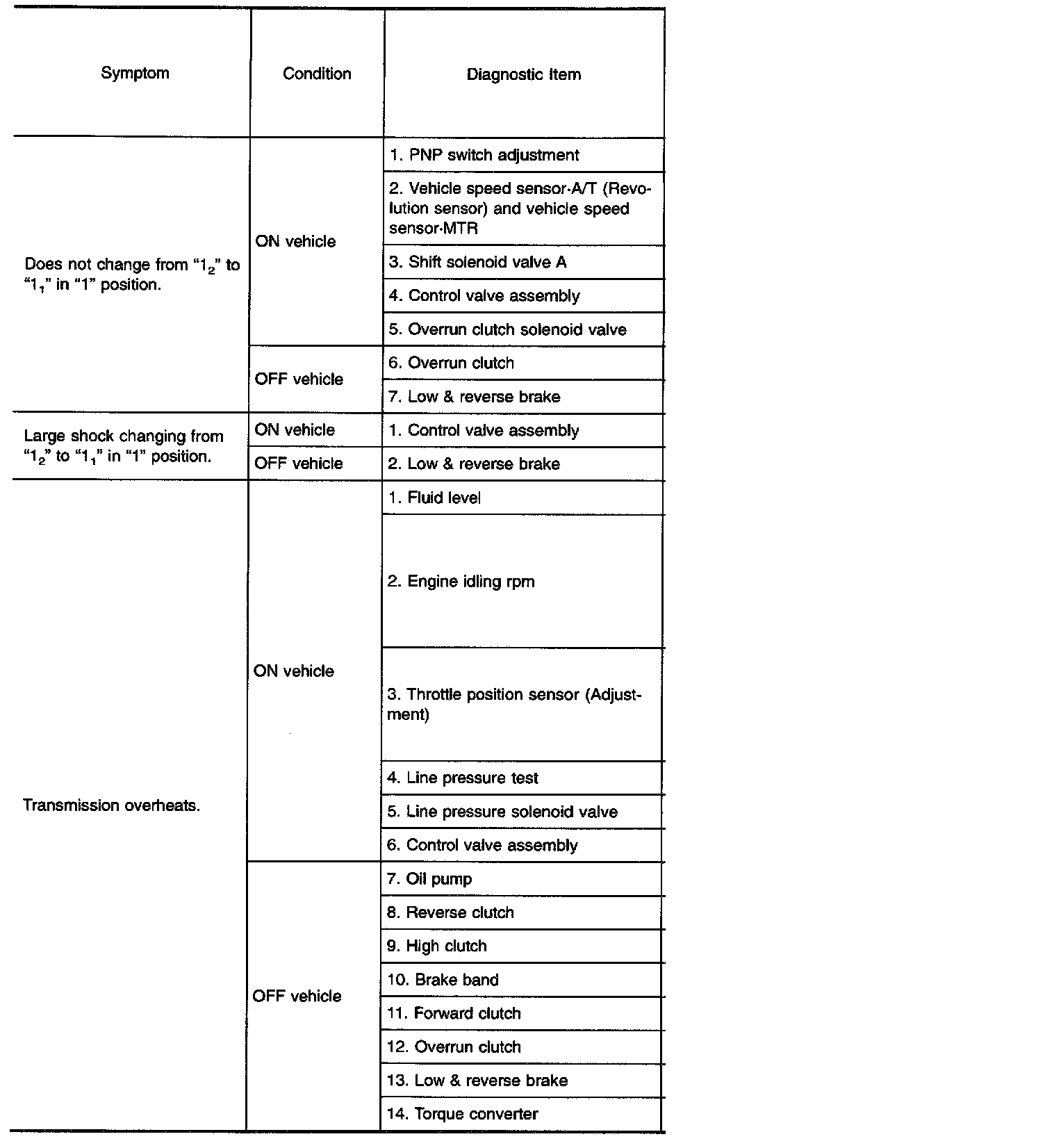

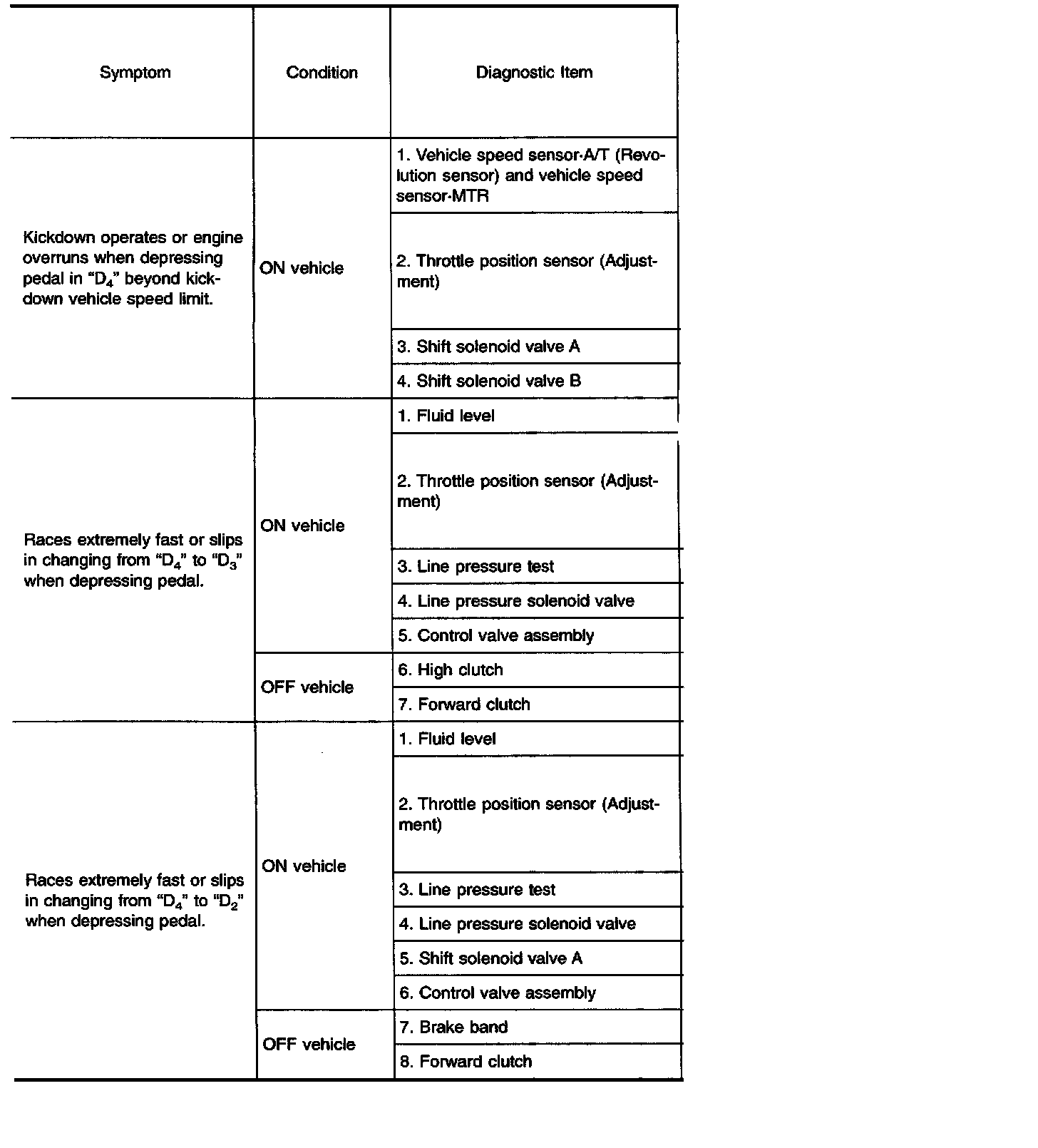

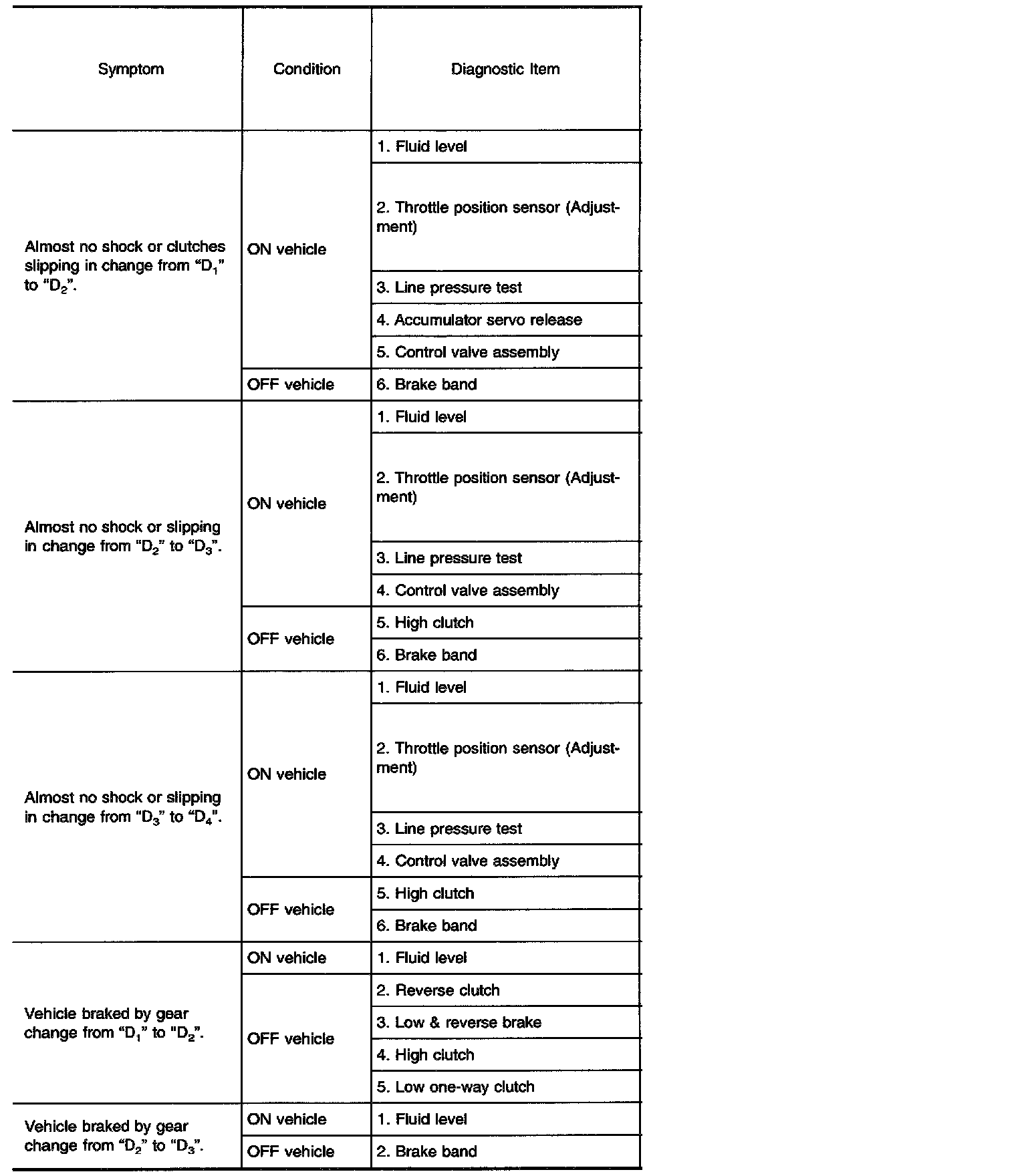

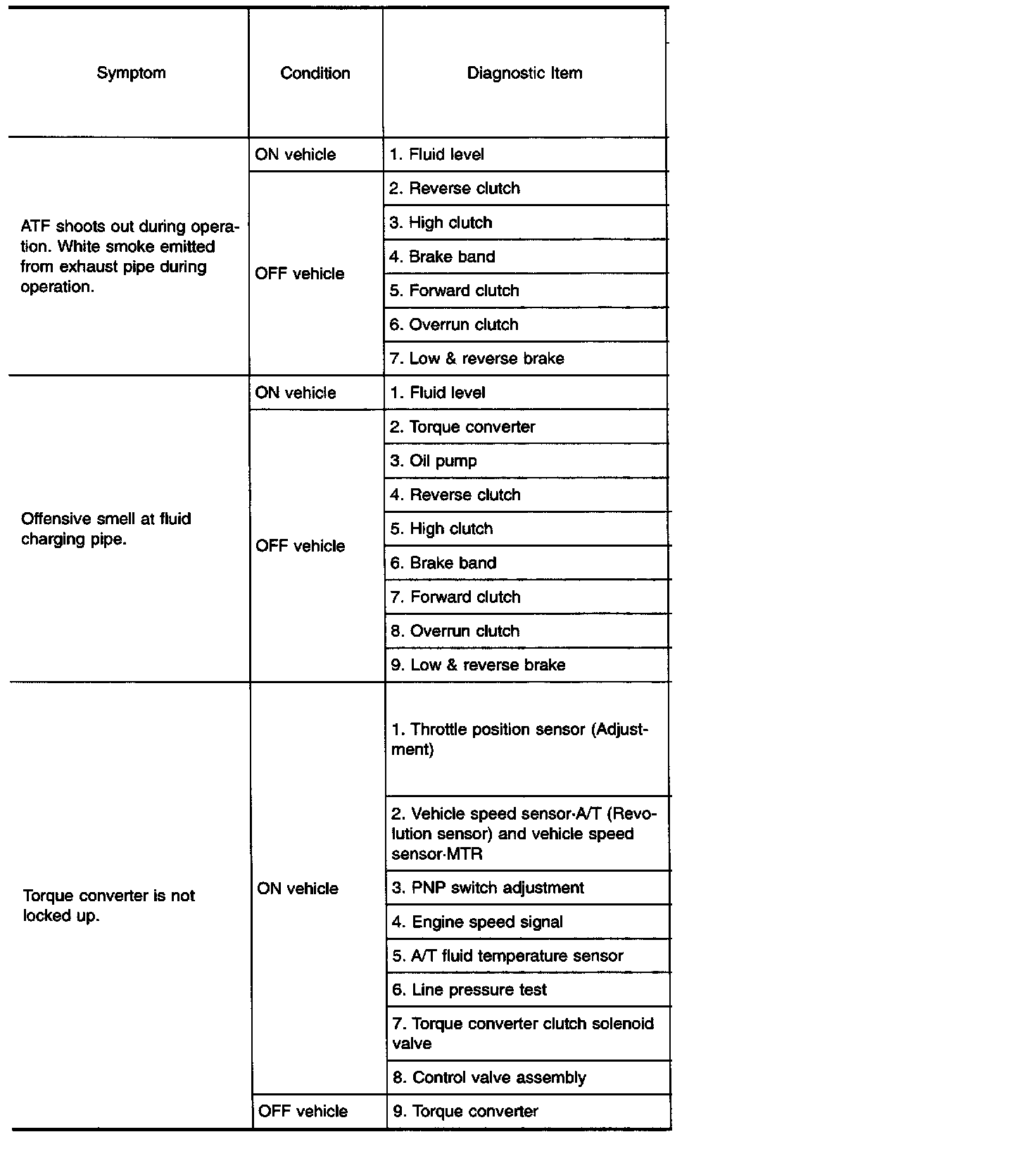

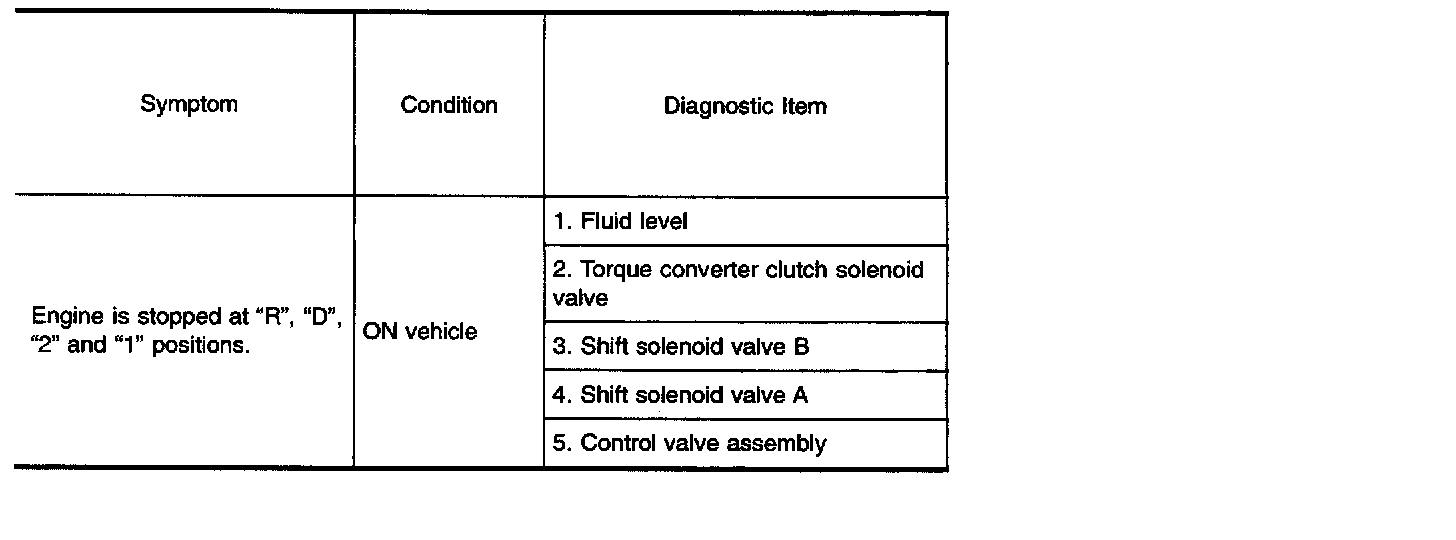

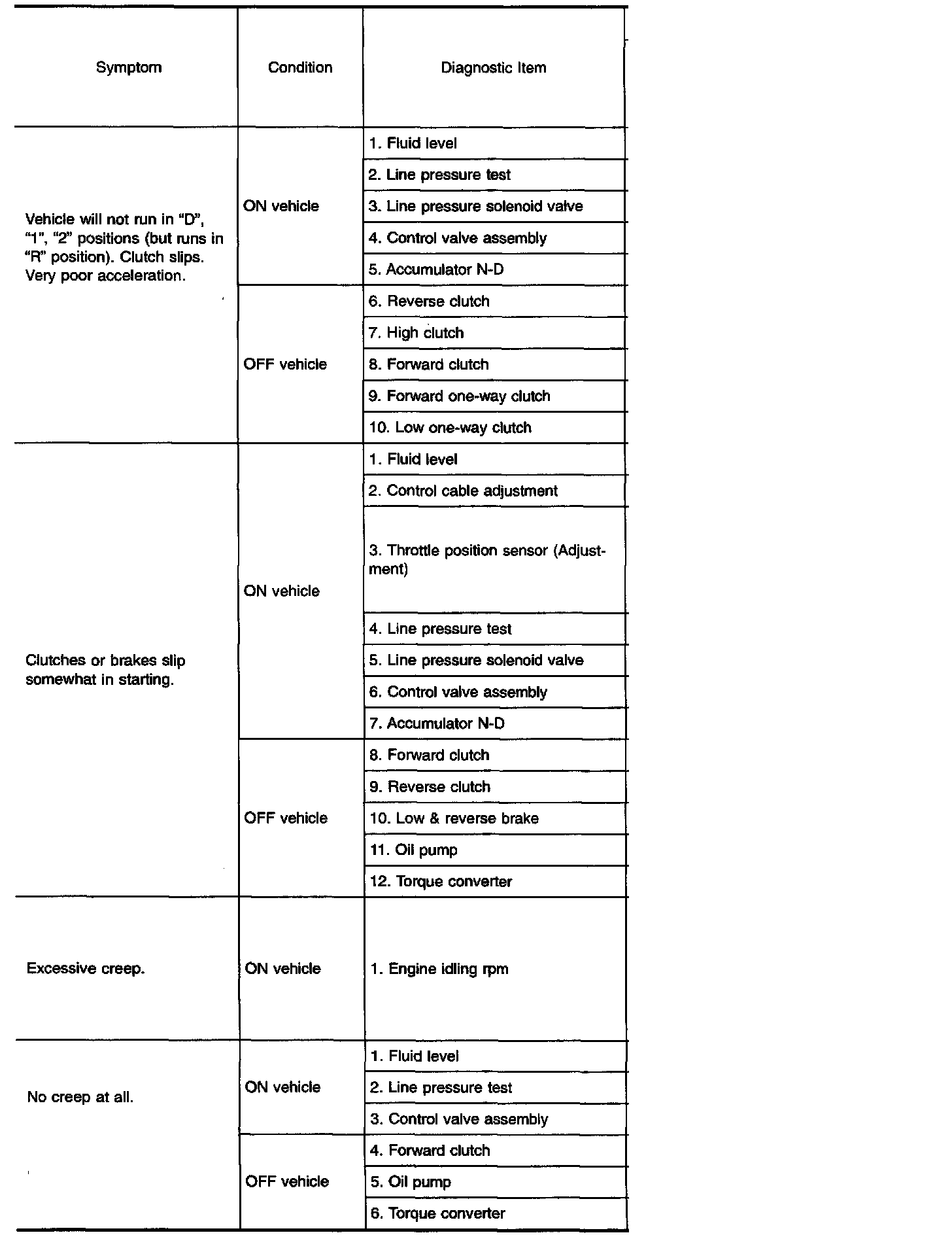

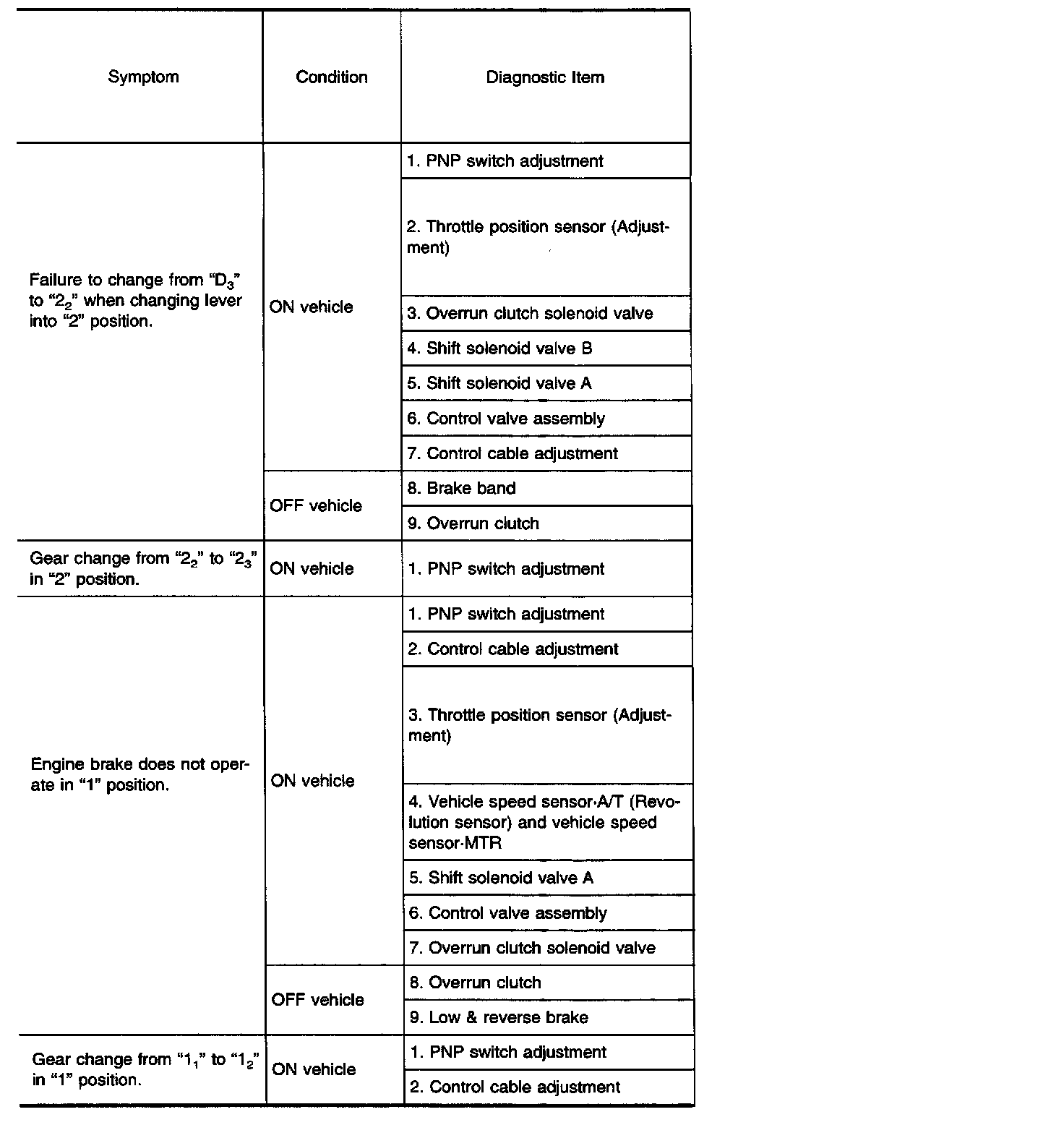

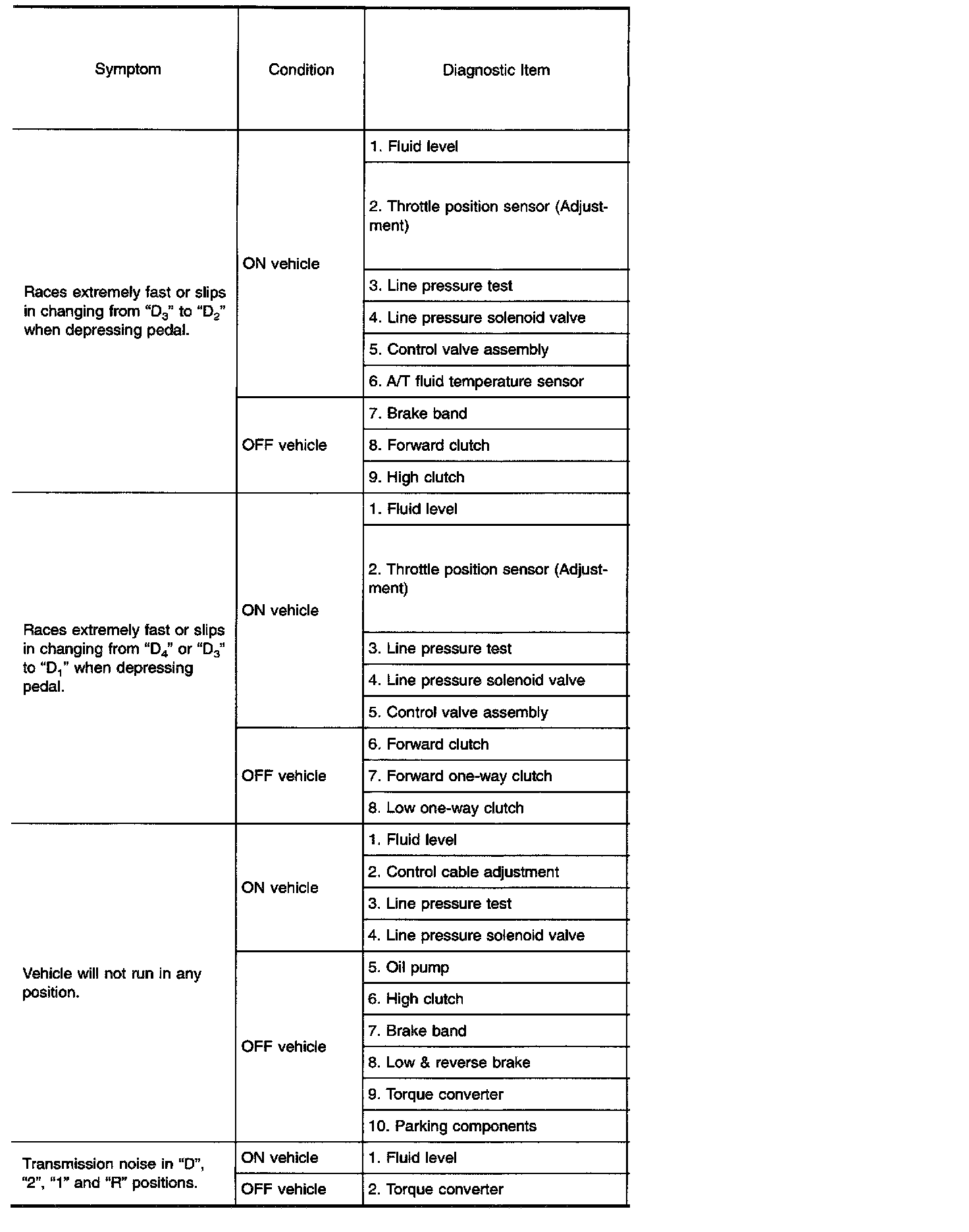

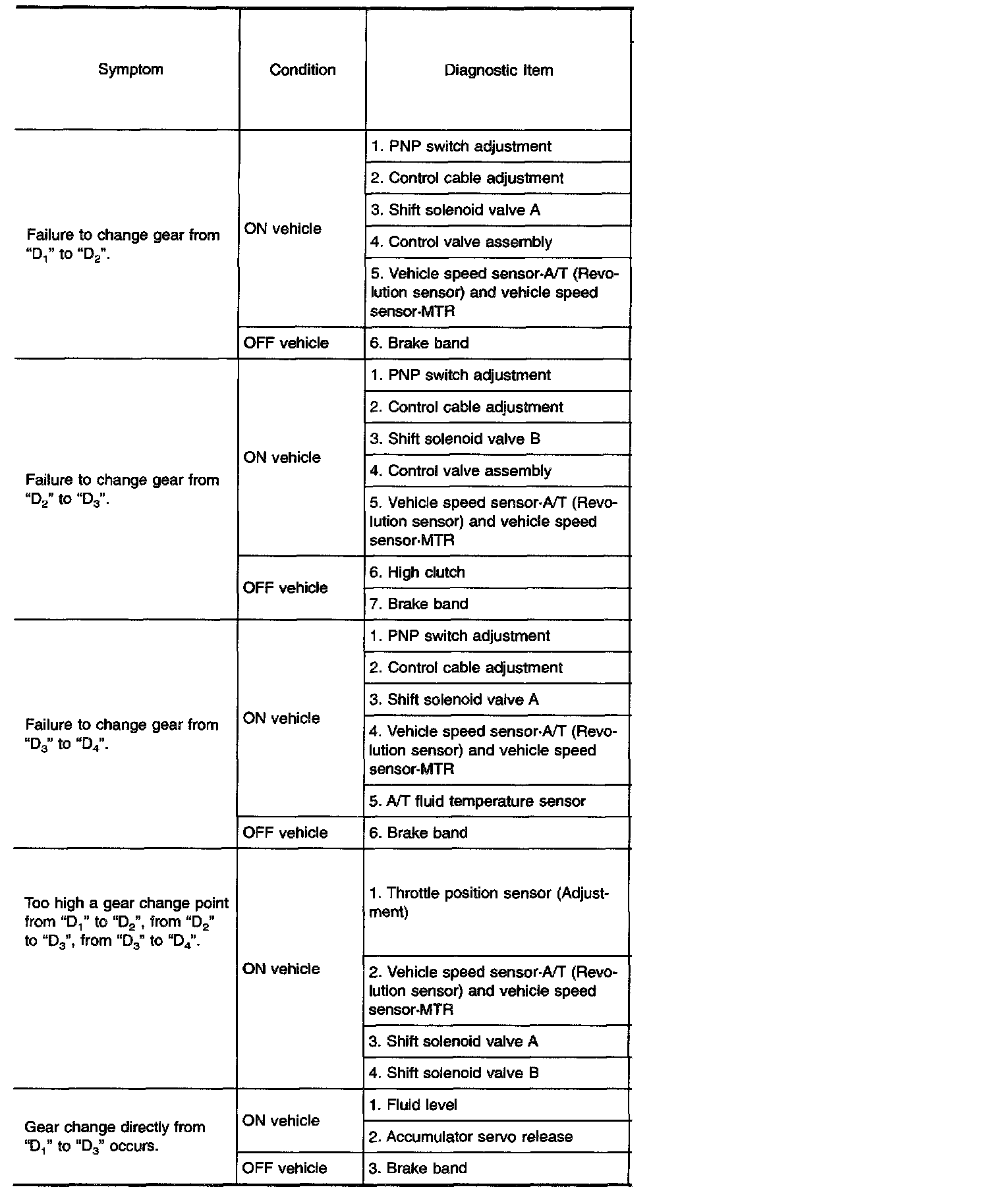

Symptom Chart

Symptom Chart





Part 1 of 11





Part 2 of 11





Part 3 of 11





Part 4 of 11





Part 5 of 15





Part 6 of 15





Part 7 of 15





Part 8 of 15





Part 9 of 15





Part 10 of 15





Part 11 of 15





Part 12 of 15





Part 13 of 15





Part 14 of 15





Part 15 of 15


Numbers are arranged in the order of inspection.
Perform inspections starting with number one and work up.
Diagnostic item Nos. in OFF vehicle indicate that the transmission must be removed for the inspection.
