QG18DE (Except Calif. CA Model)

O/D OFF Indicator Lamp Does Not Come On

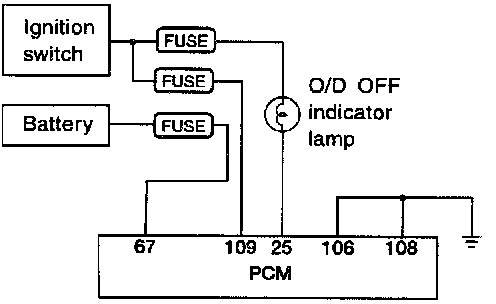

CIRCUIT SCHEMATIC

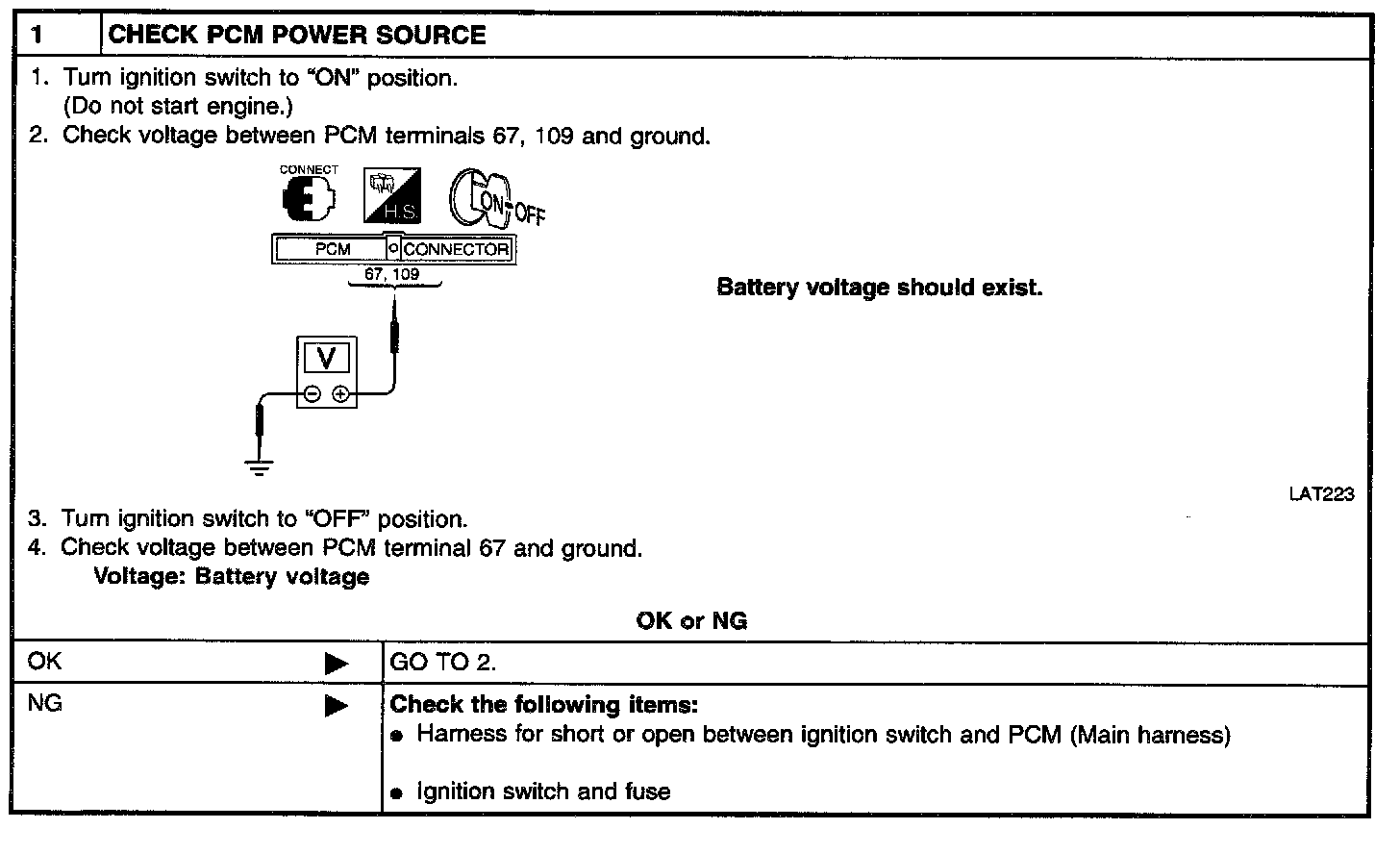

Step 1:

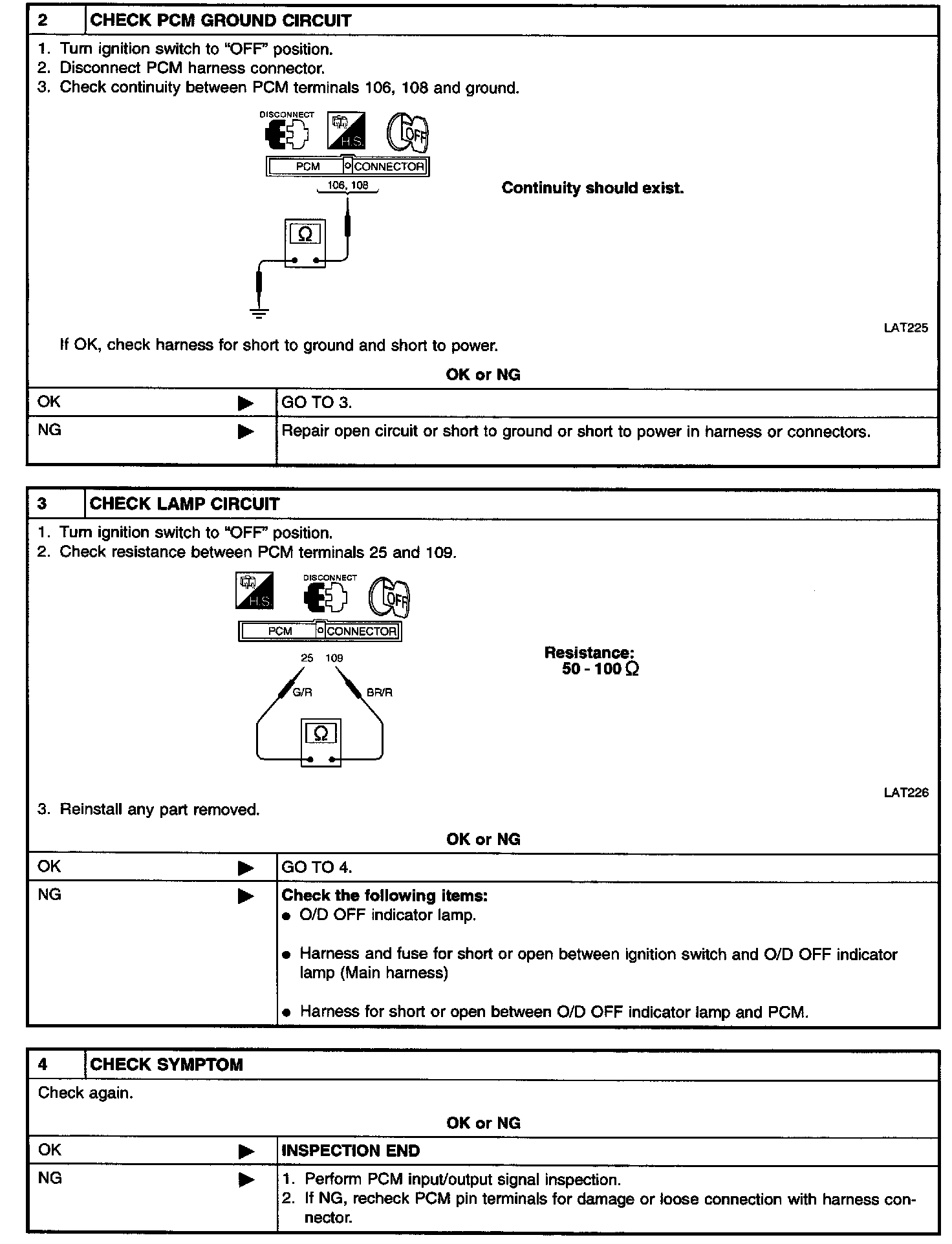

Steps 2 - 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to "ON".
