A/T Does Not Shift: D3->D4
>>
QG18DE (Except Calif. CA Model)
QG18DE (Except Calif. CA Model)
A/T Does Not Shift: D3 -> D4

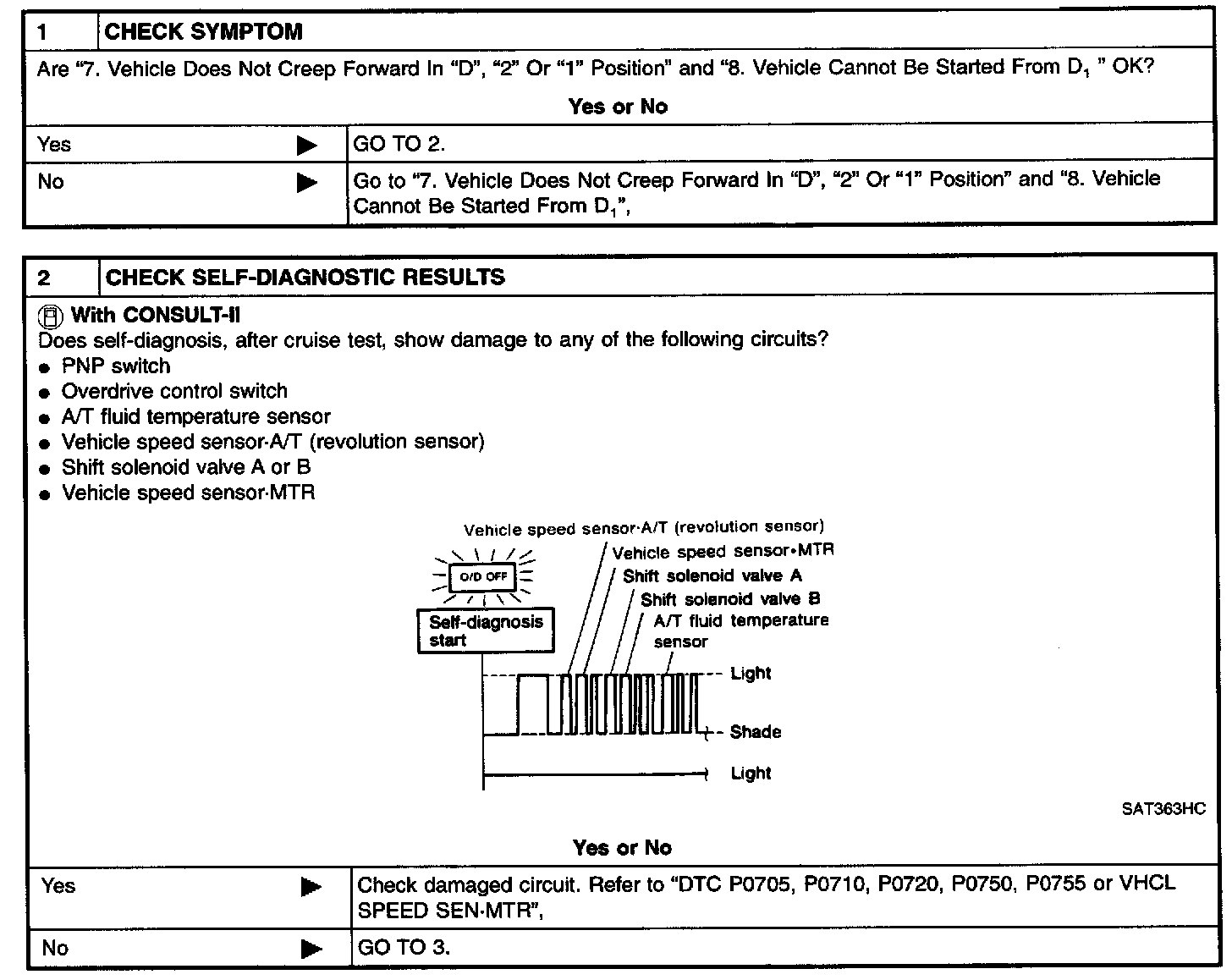

Steps 1 - 2:

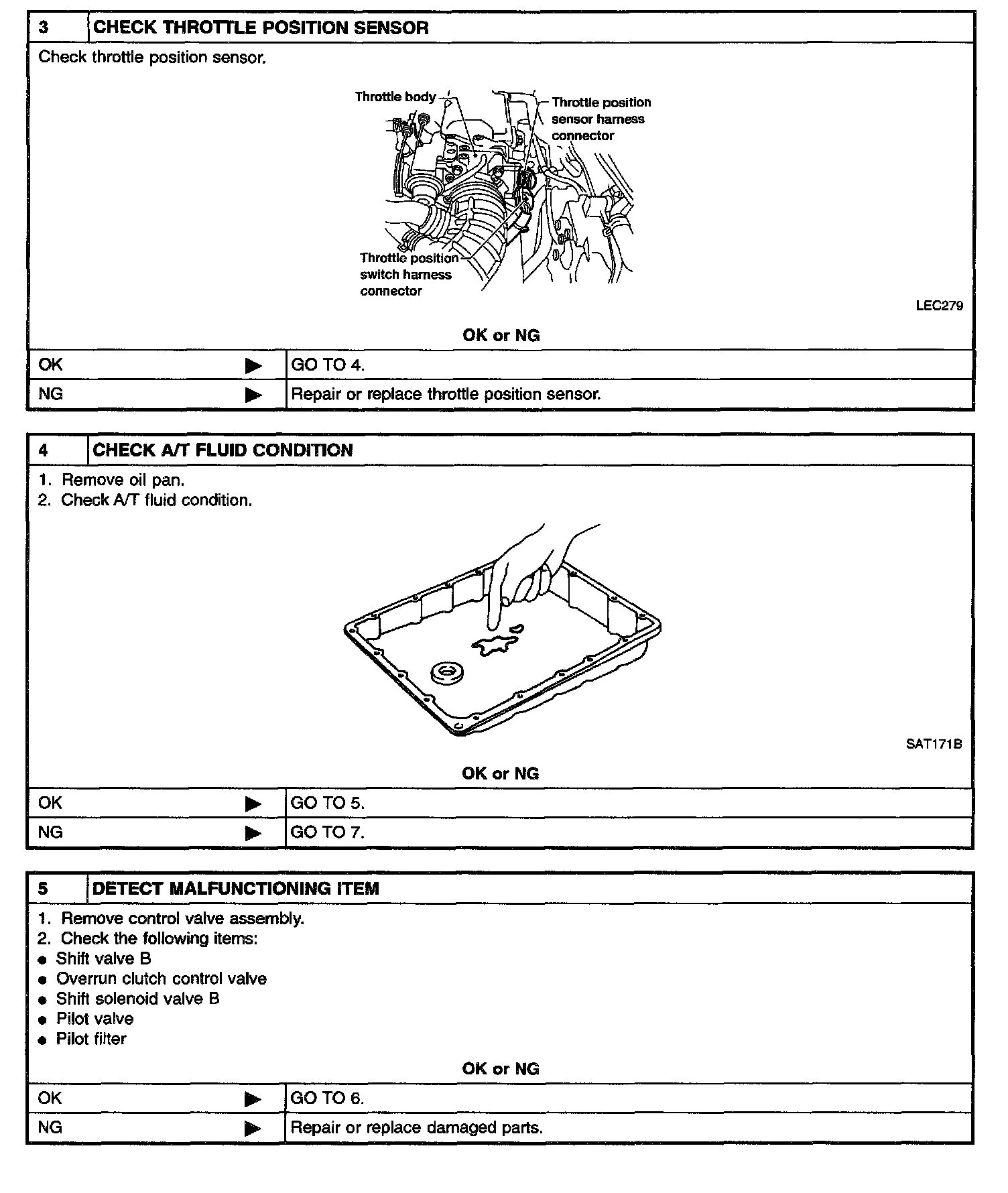

Steps 3 - 5:

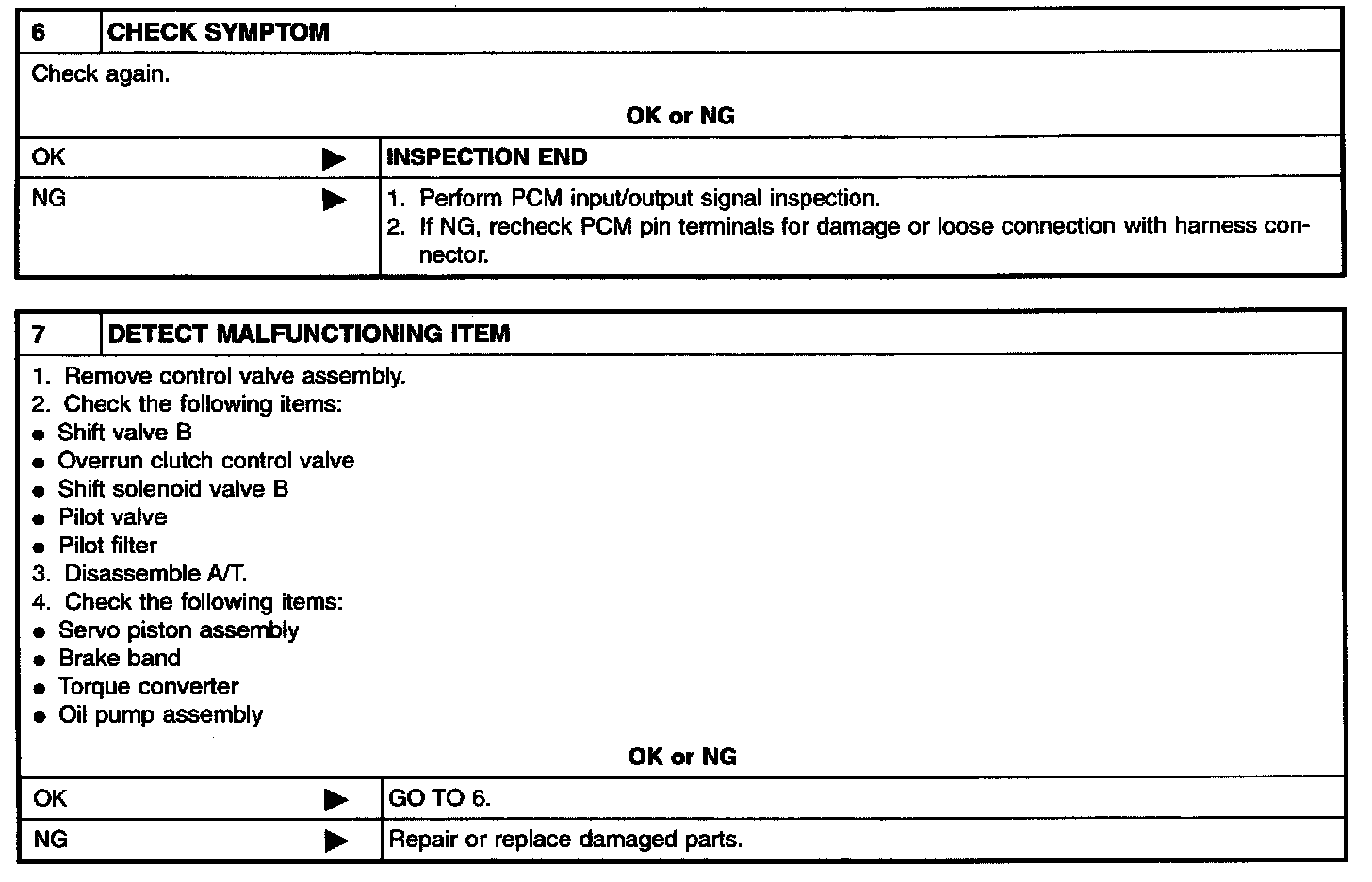

Steps 6 - 7:
SYMPTOM:
-
A/T does not shift from D3 to D4 at the specified speed.
-
A/T must be warm before D3 to D4 shift will occur.
