A/T Does Not Shift: D2->D3
>>
QG18DE (Except Calif. CA Model)
QG18DE (Except Calif. CA Model)
A/T Does Not Shift: D2 -> D3

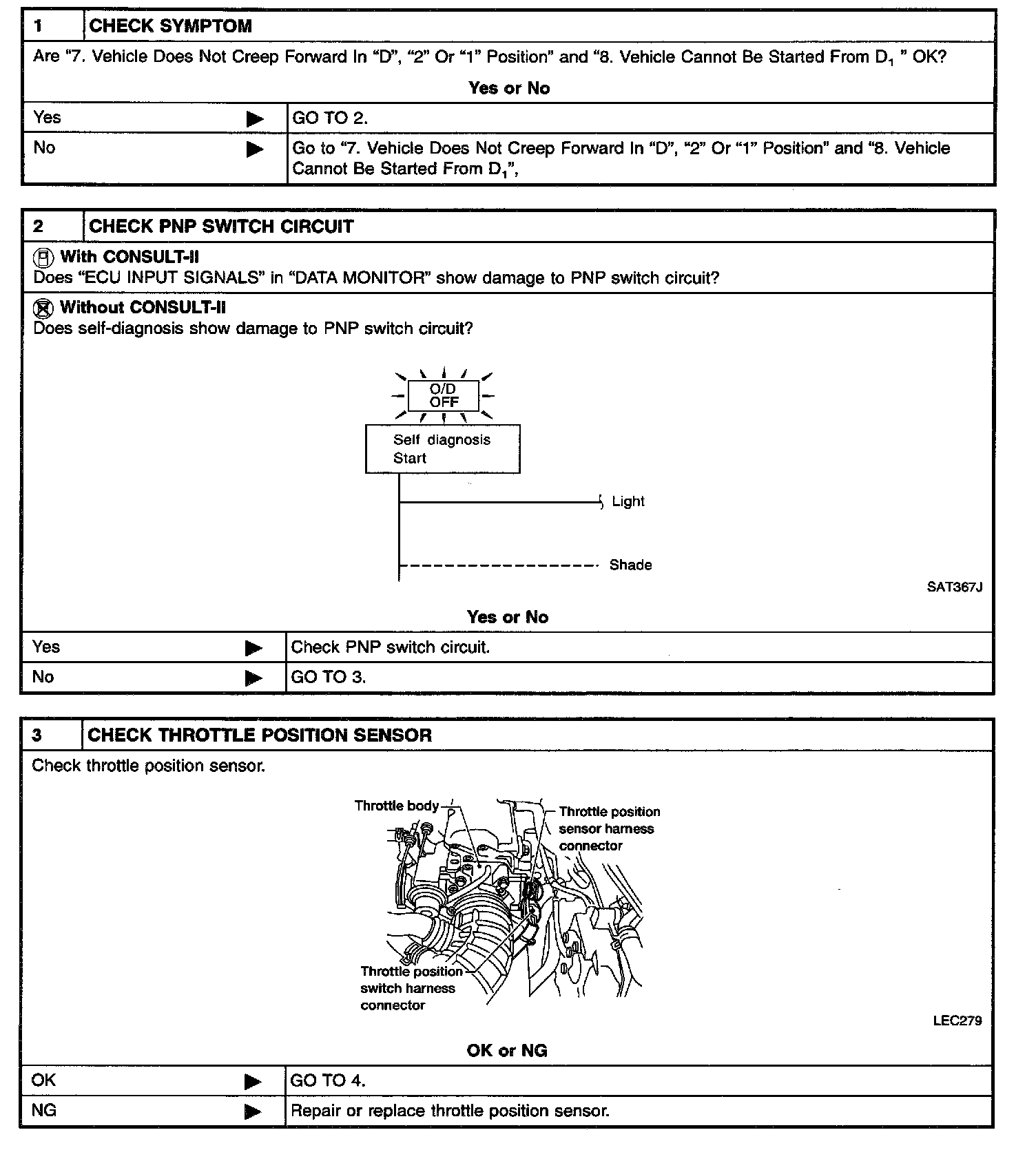

Steps 1 - 3:

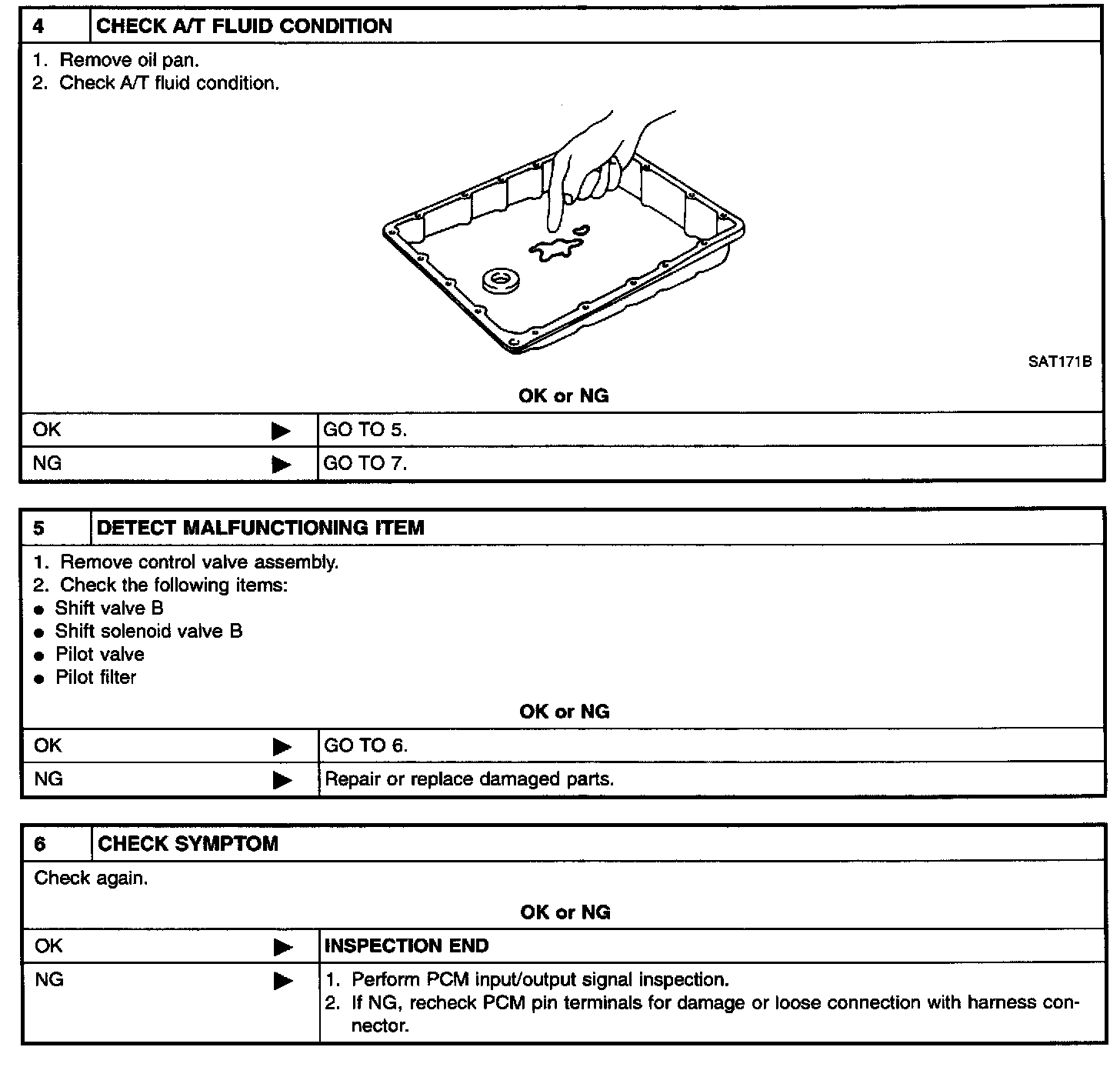

Steps 4 - 6:

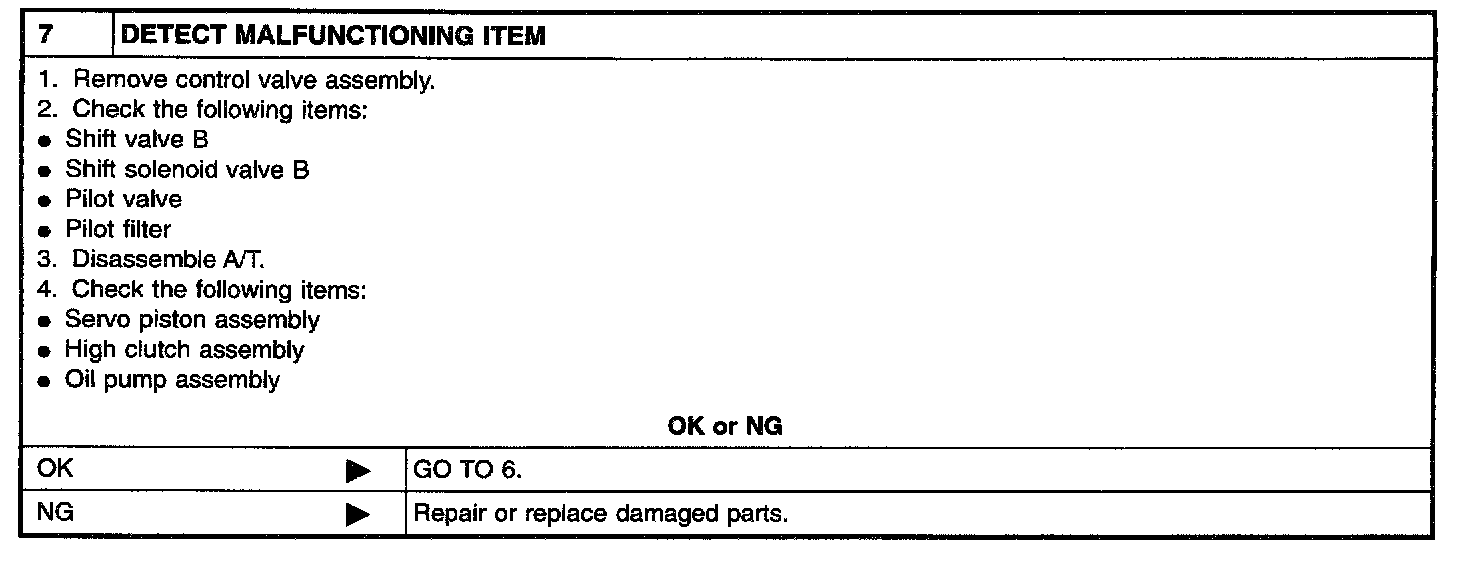

Step 7:
SYMPTOM: A/T does not shift from D2 to D3 at the specified speed.
