QG18DE (Except Calif. CA Model)

A/T Does Not Hold Lock-up Condition

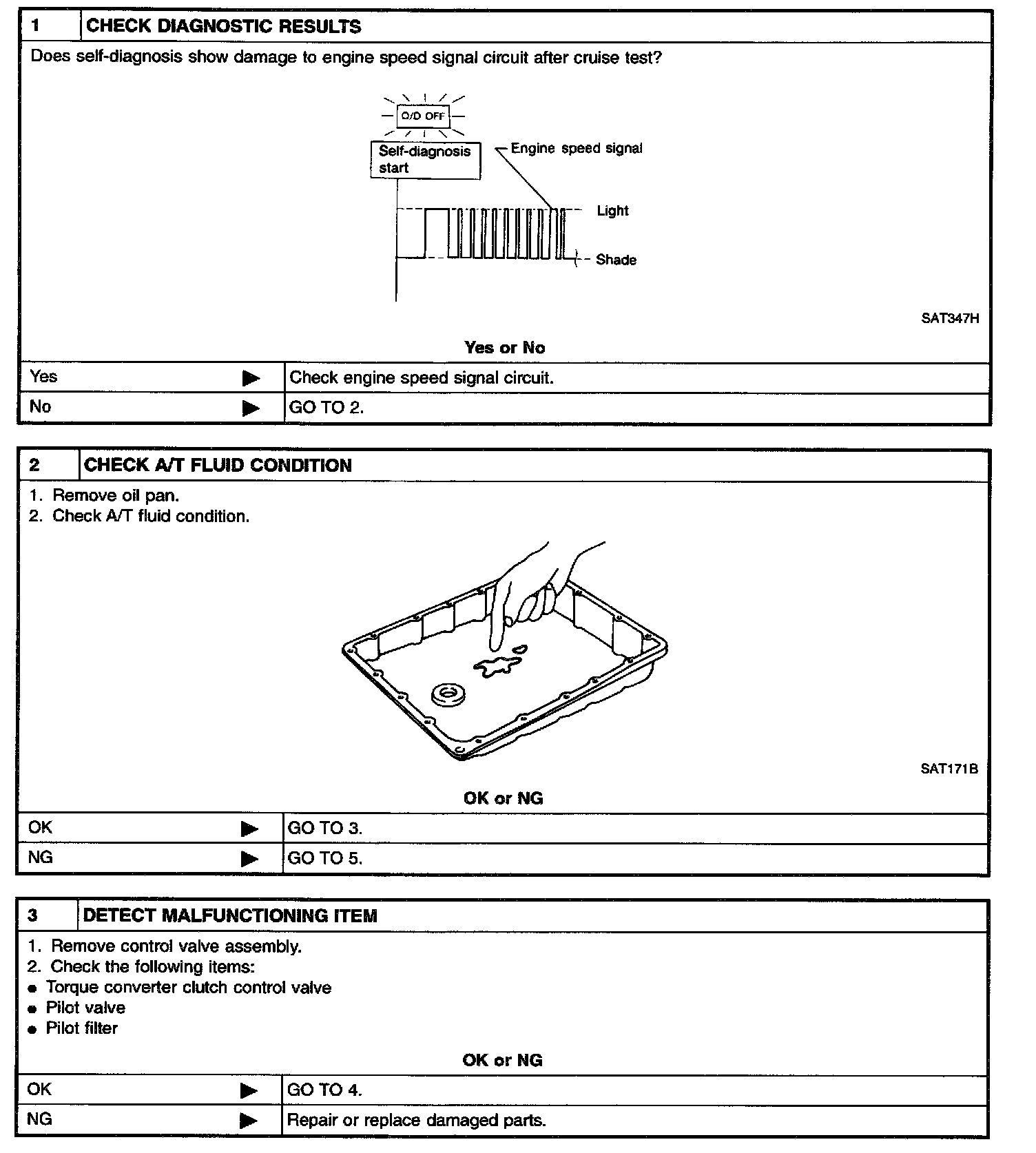

Steps 1 - 3:

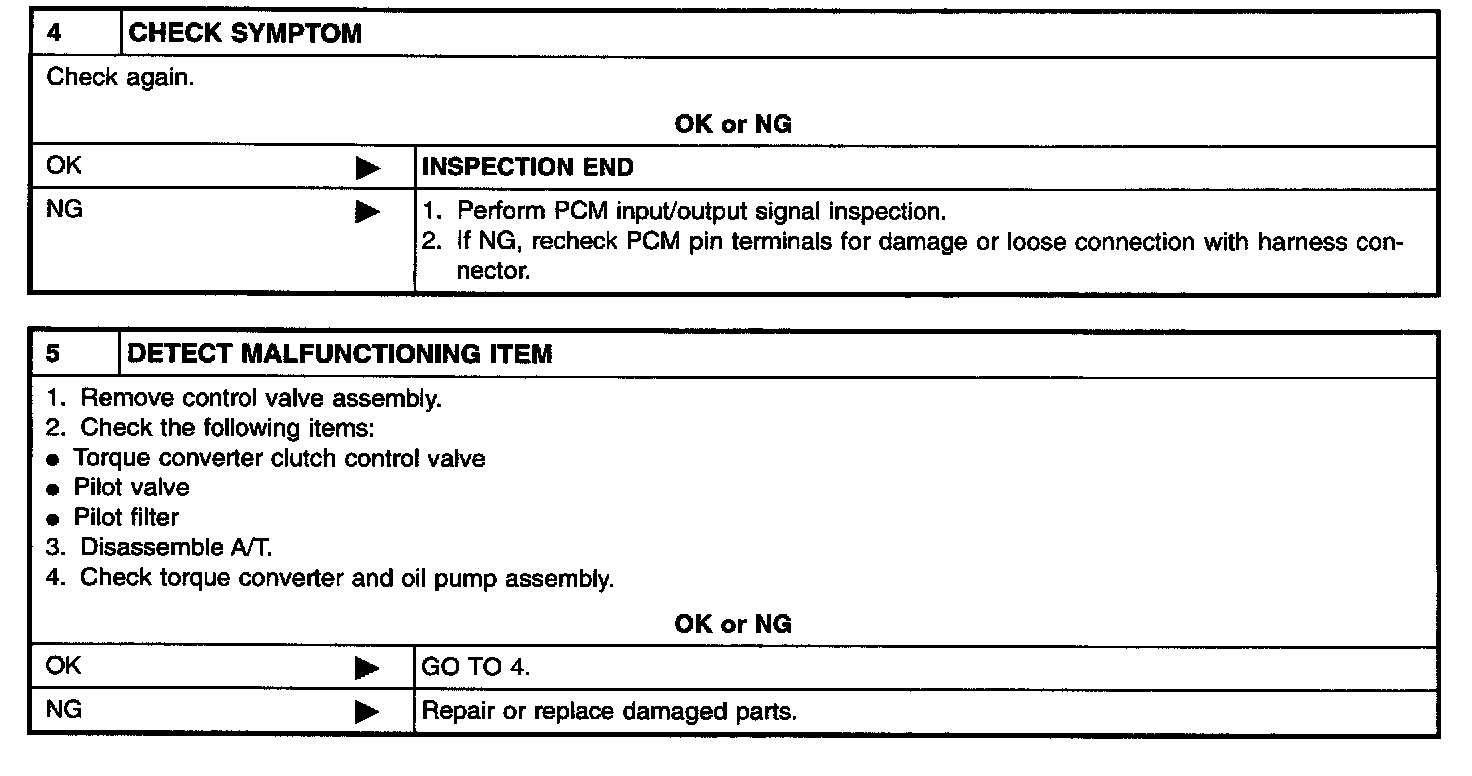

Steps 4 - 5:





SYMPTOM: A/T does not hold lock-up condition for more than 30 seconds.
