QG18DE (Except Calif. CA Model)

Trouble Diagnosis For Power Supply

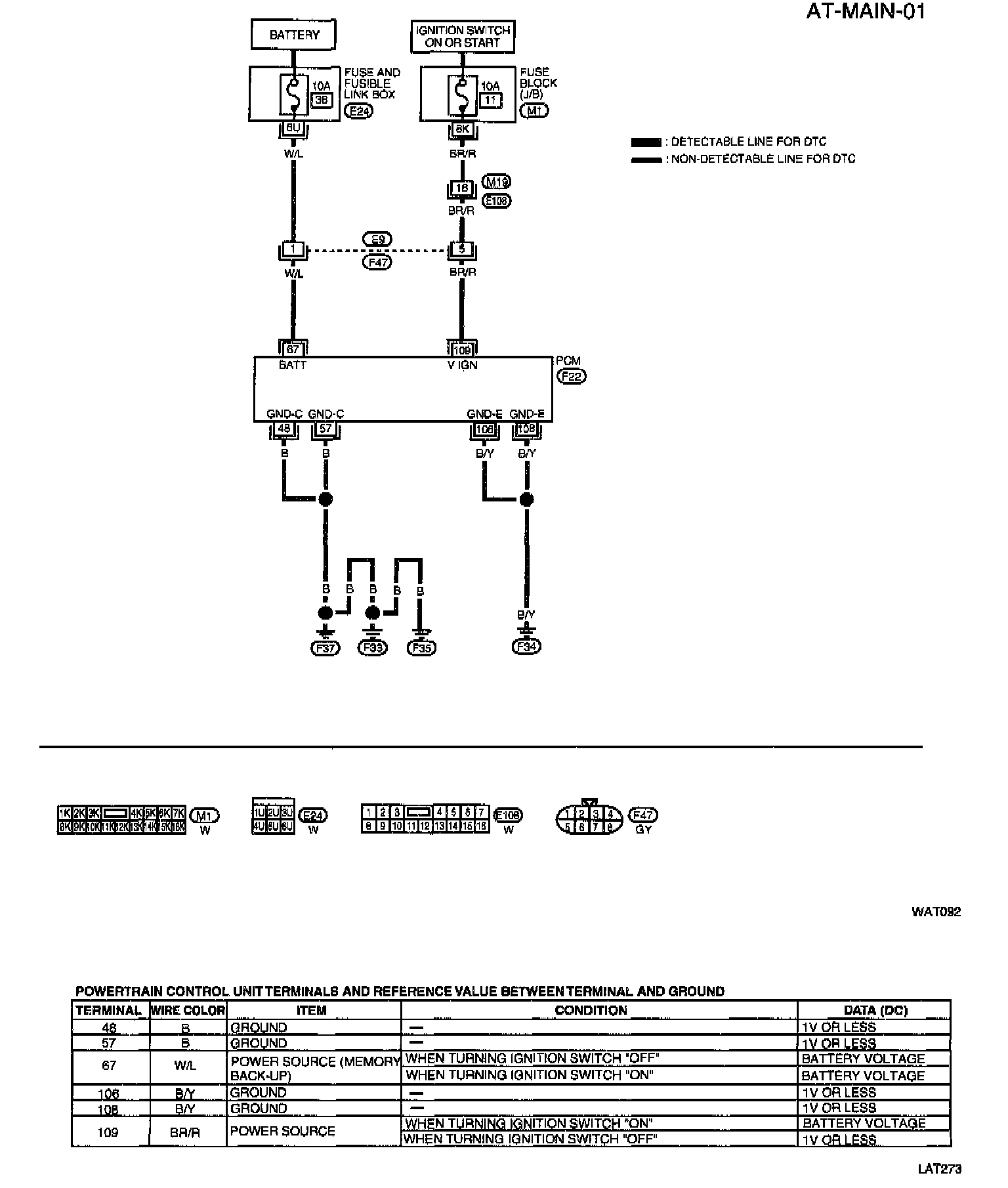

Wiring Diagram

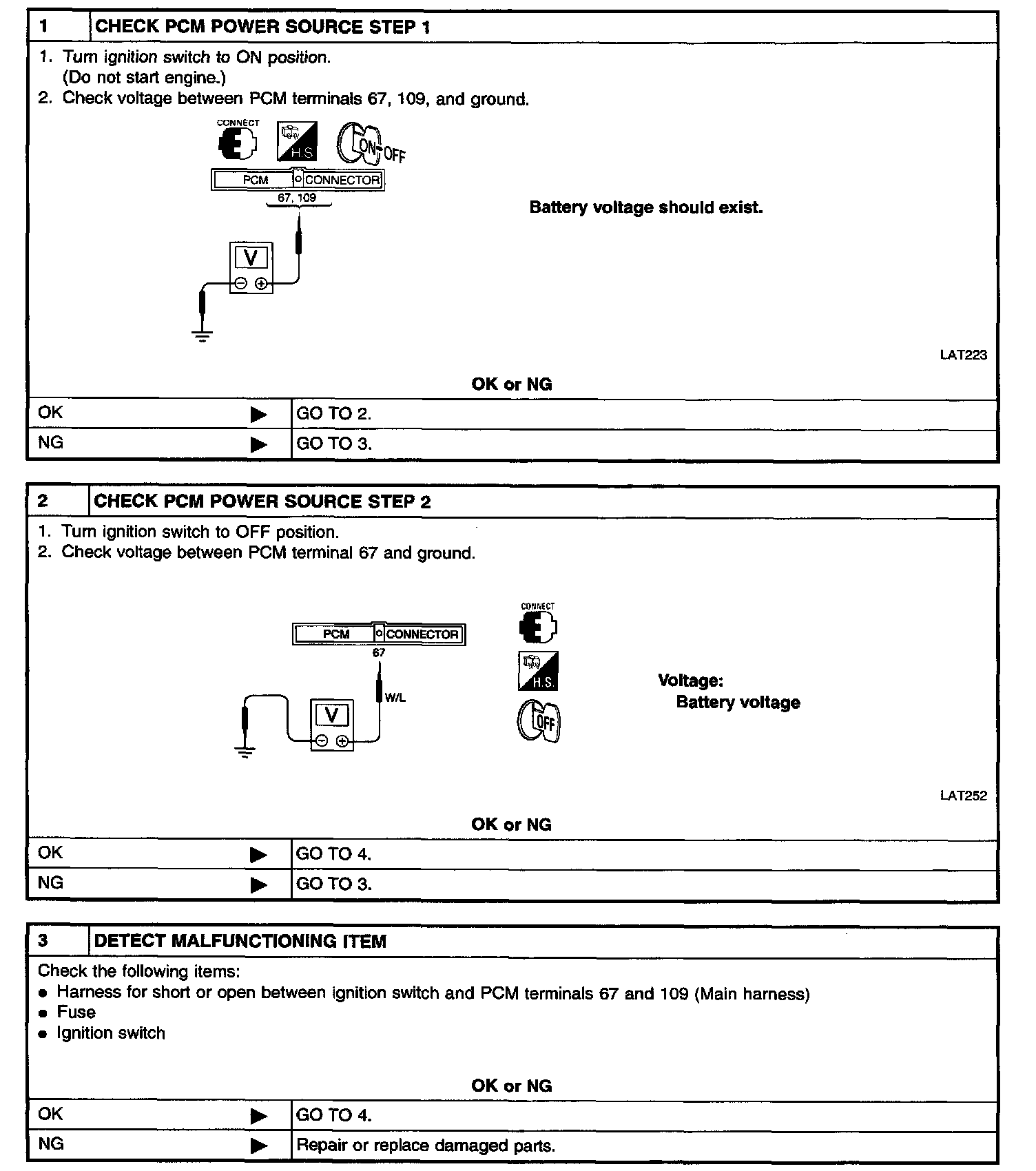

Steps 1 - 3:

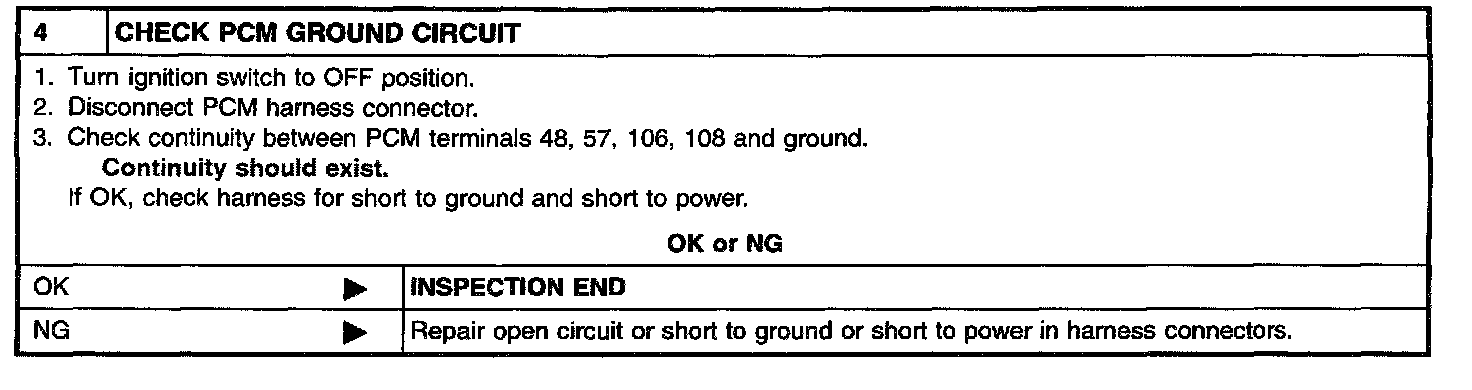

Step 4:




Diagnostic Procedure
