Fuel Temperature Sensor: Testing and Inspection







FUEL TANK TEMPERATURE SENSOR

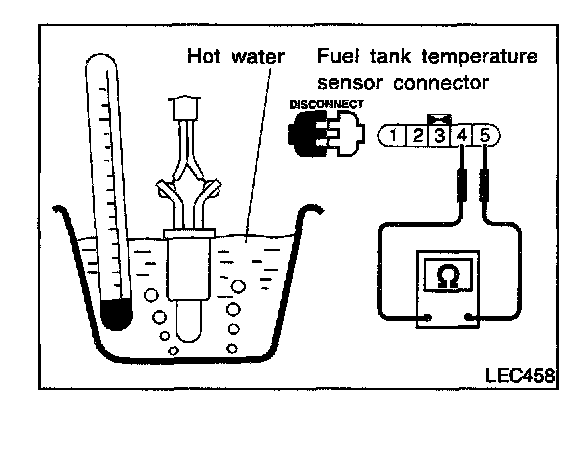

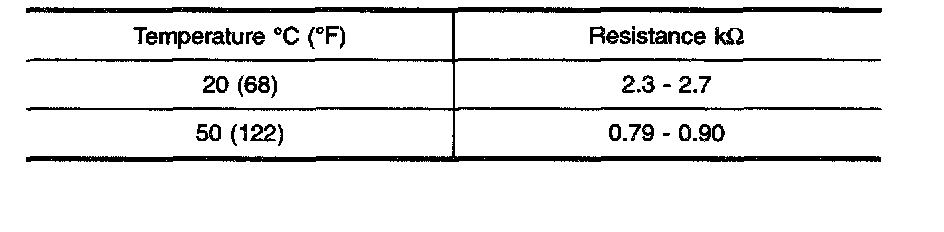

Check resistance by heating with hot water or heat gun as shown in the figure.
If NG, replace fuel tank temperature sensor.
