Component Tests and General Diagnostics

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH SYMPTOM:
- Magnet clutch does not operate when A/C switch and fan control switch are ON.




INSPECTION FLOW

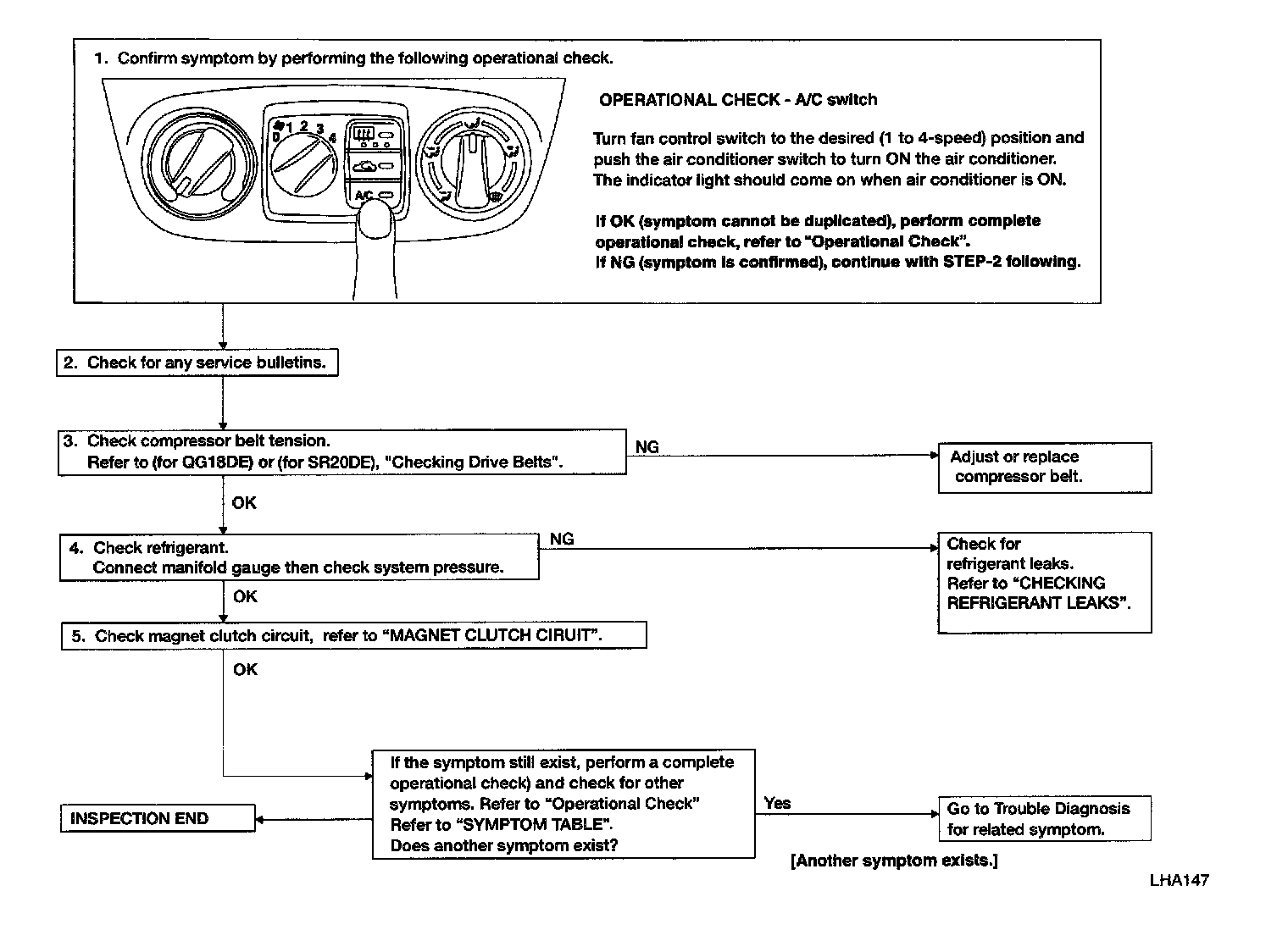

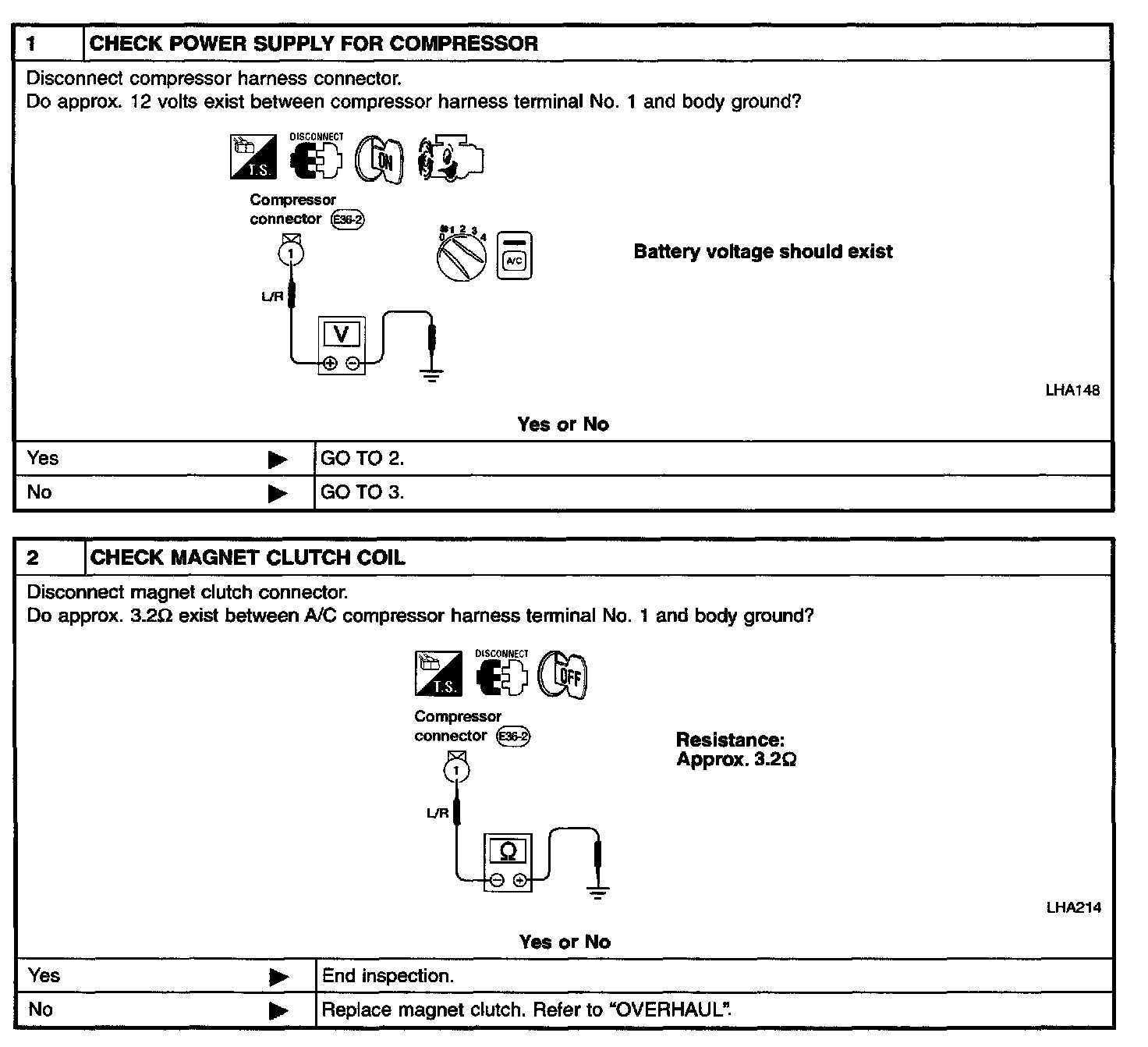

Steps 1 - 2:

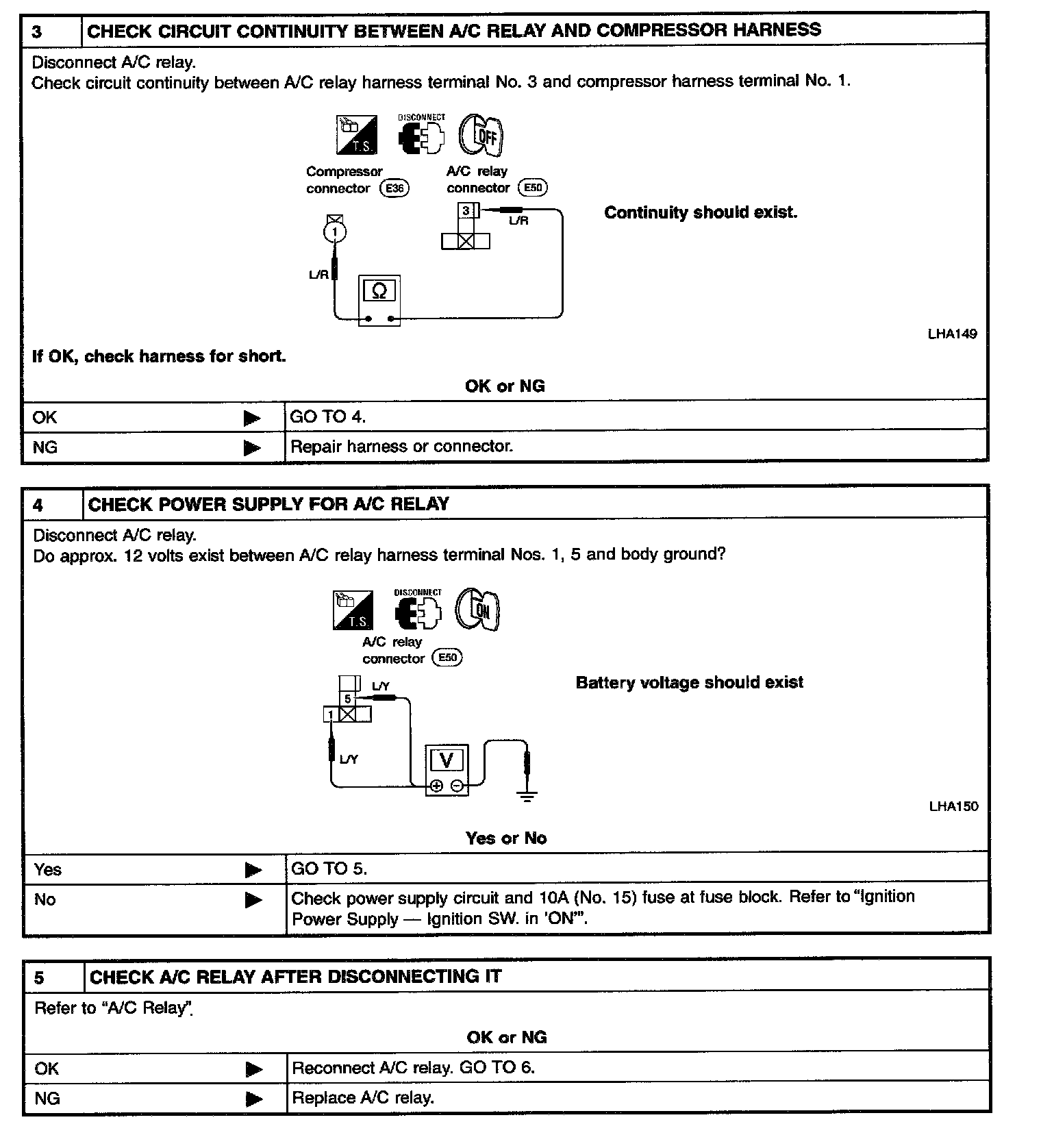

Steps 3 - 5:

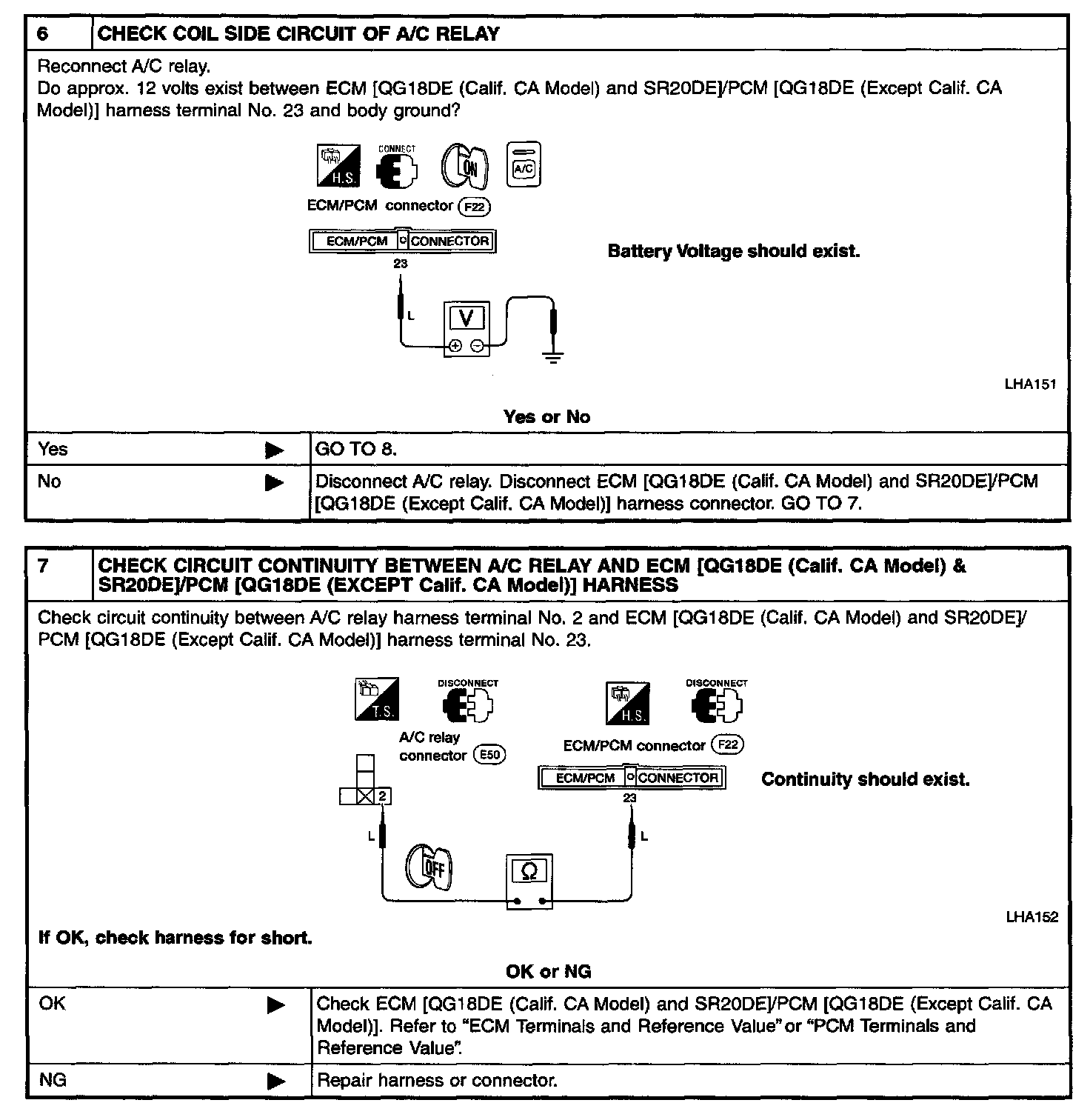

Steps 6 - 7:

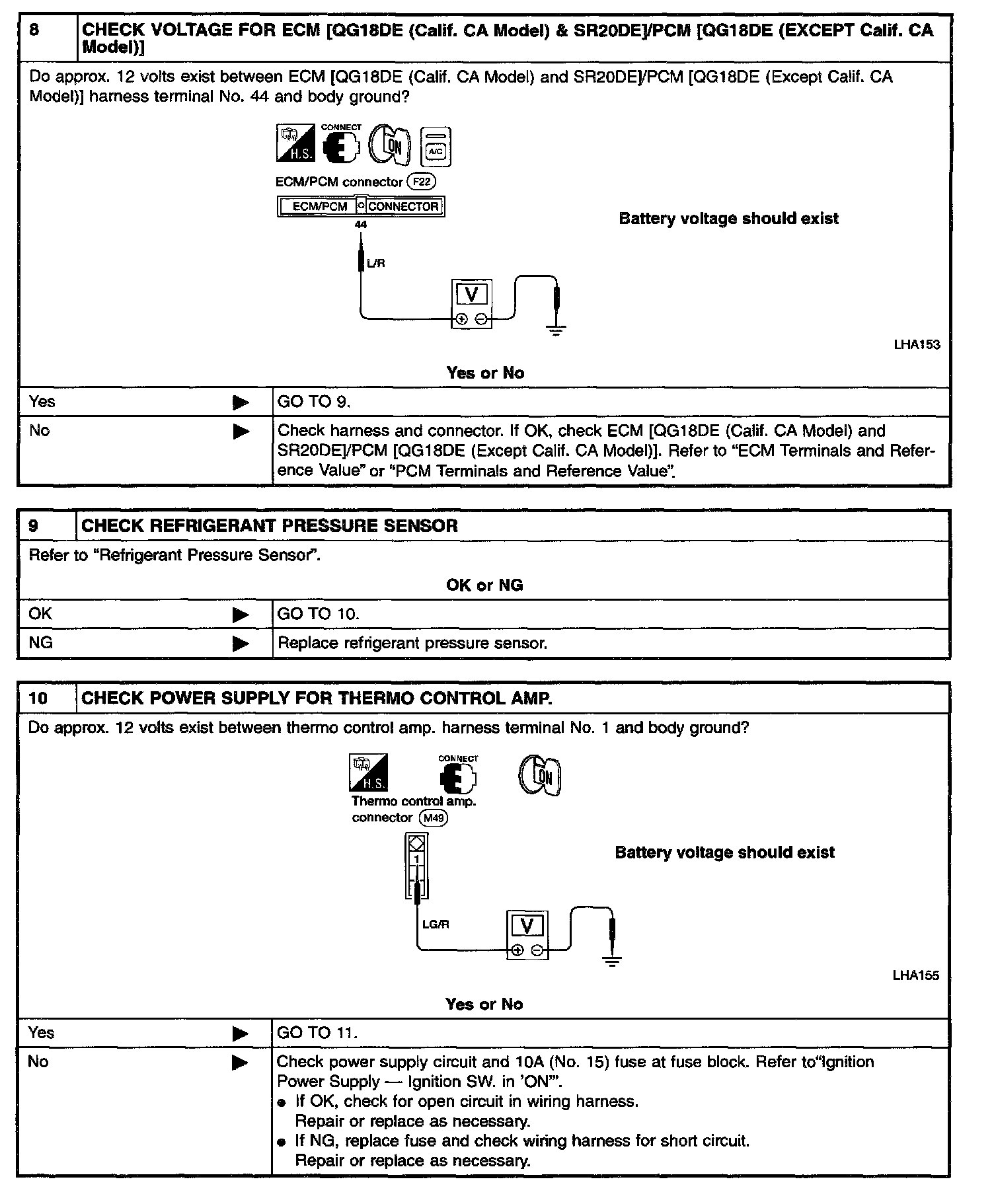

Steps 8 - 10:

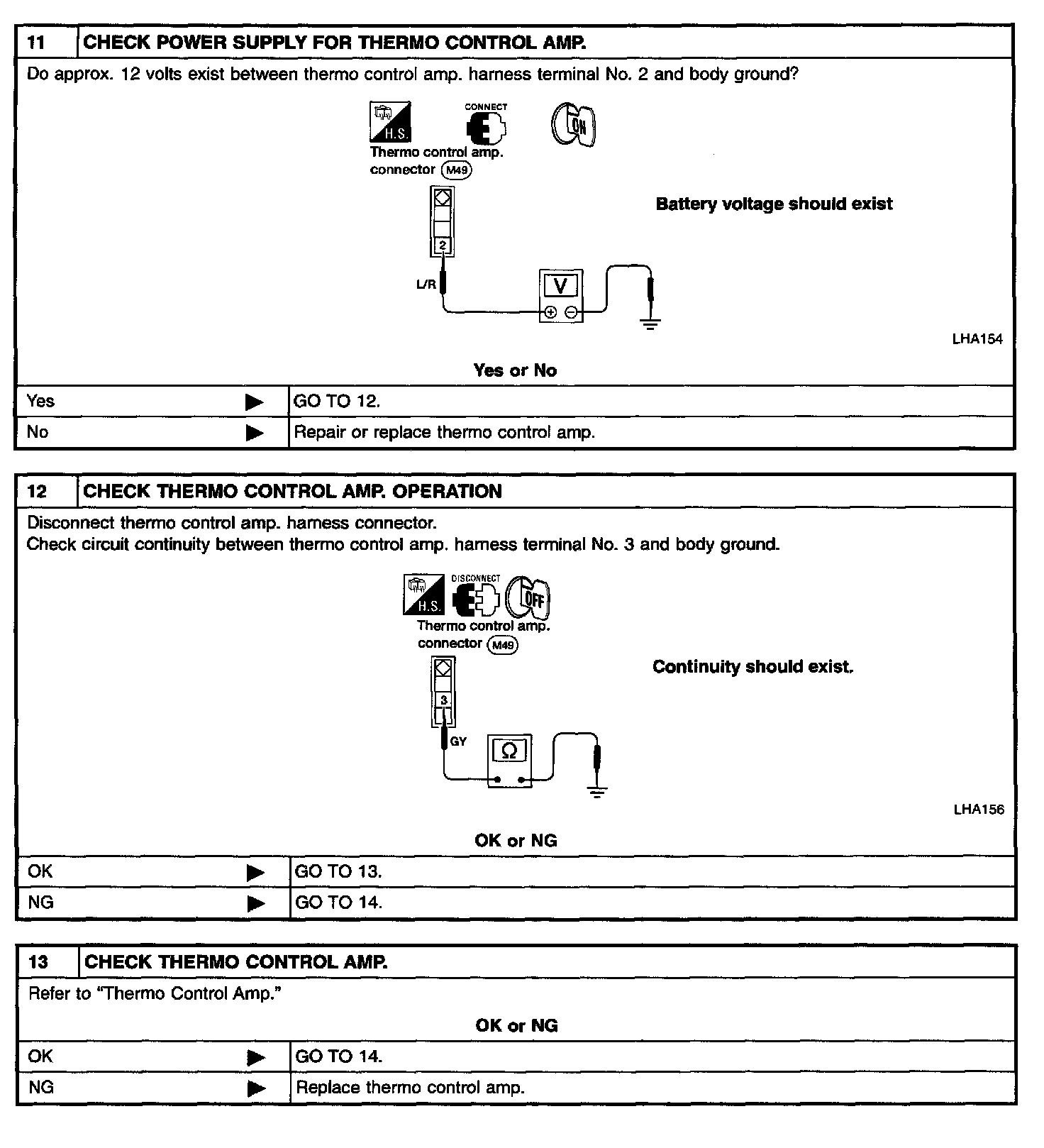

Steps 11 - 13:

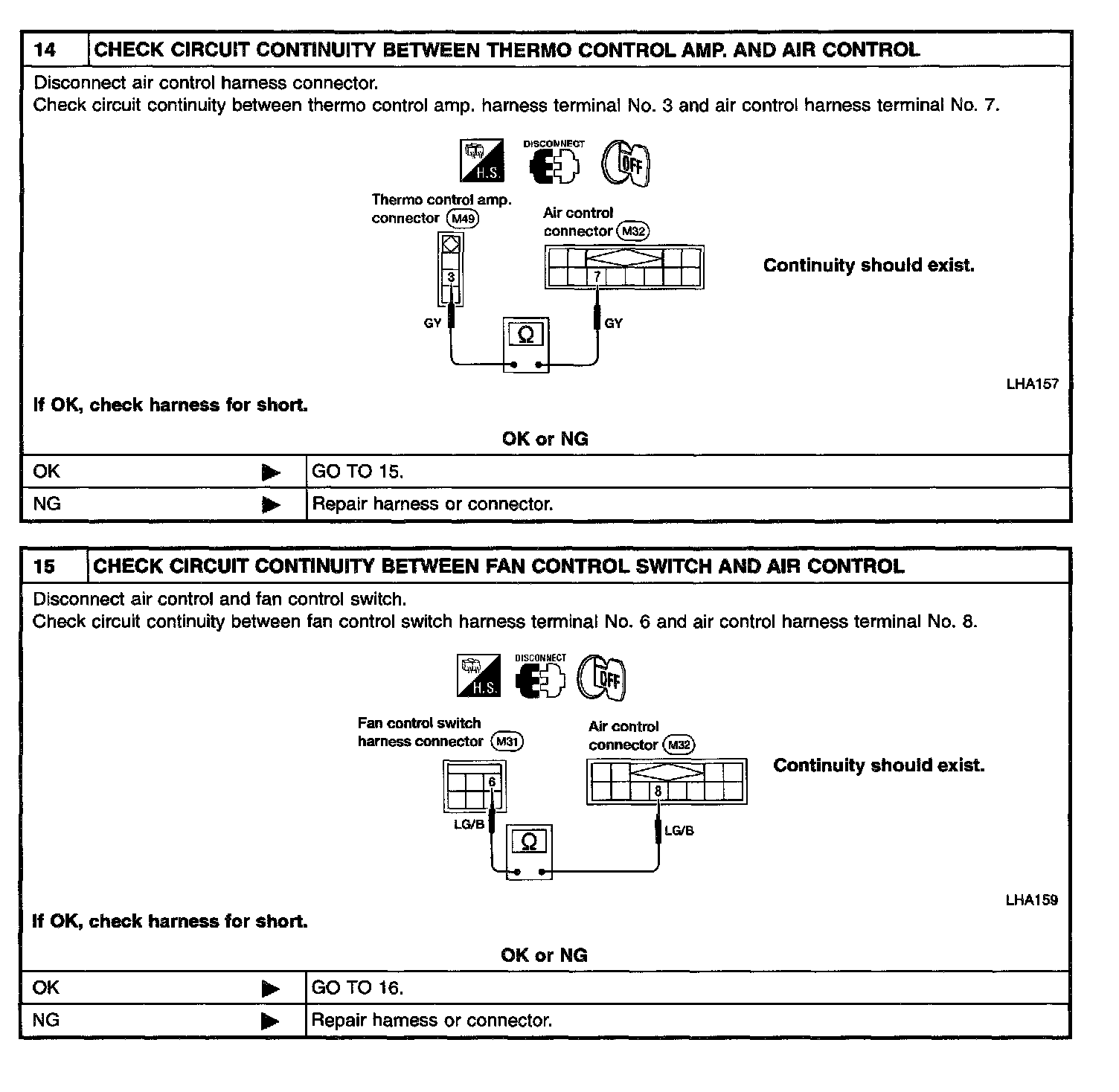

Steps 14 - 15:

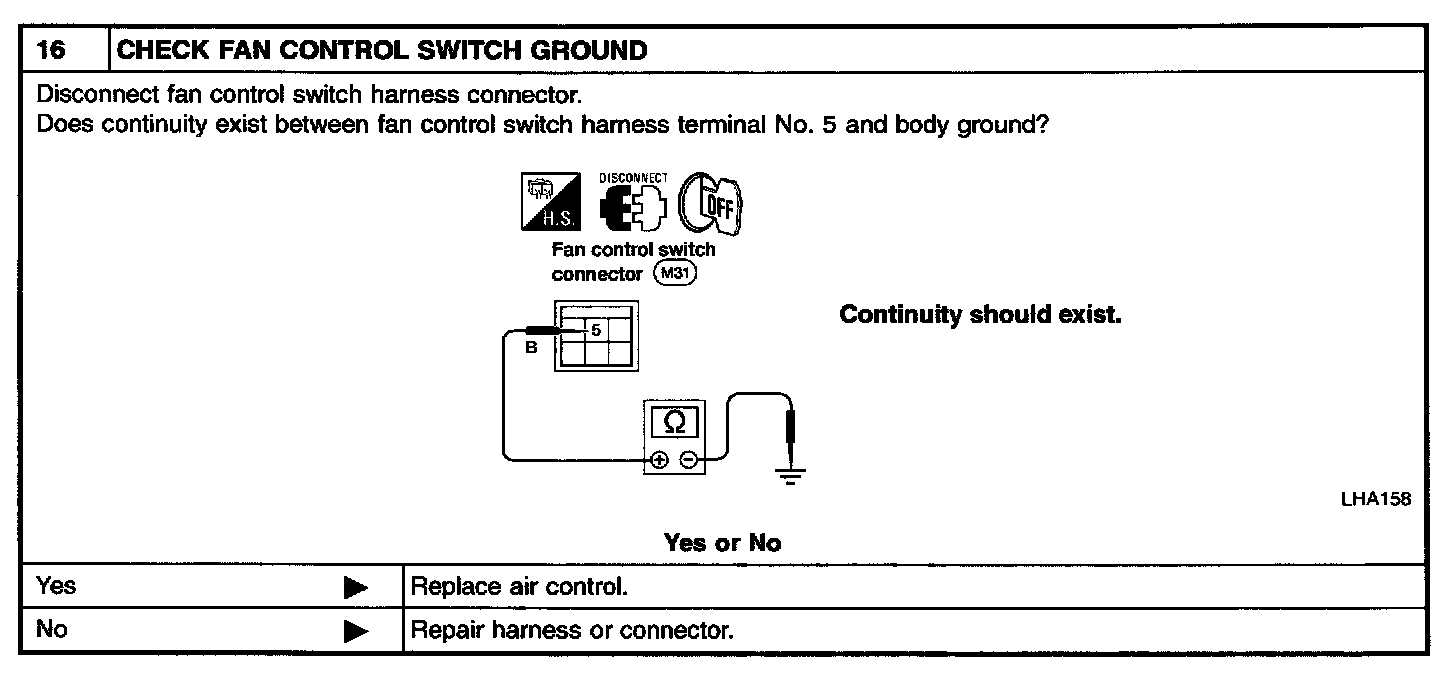

Step 16:

MAGNET CLUTCH CIRCUIT SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan control switch are ON.

ELECTRICAL COMPONENT INSPECTION

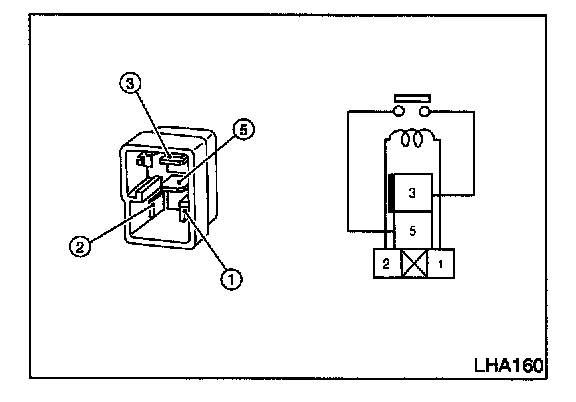

A/C Relay

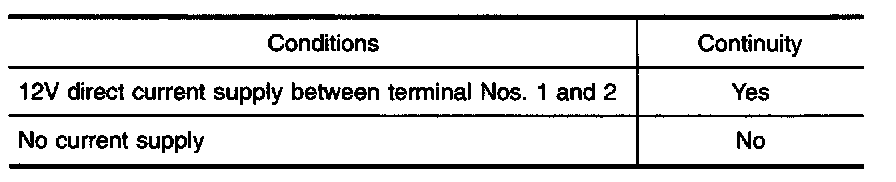

Check continuity between terminal Nos. 3 and 5.
If NG, replace relay.

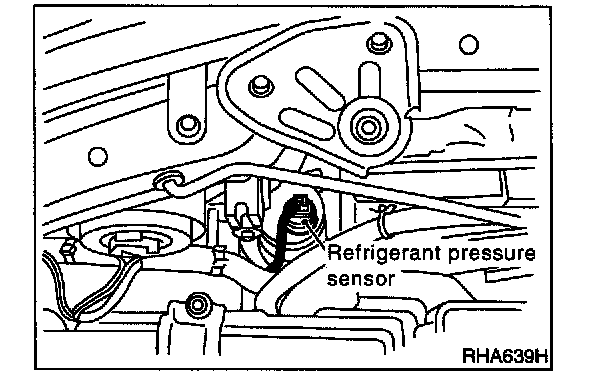

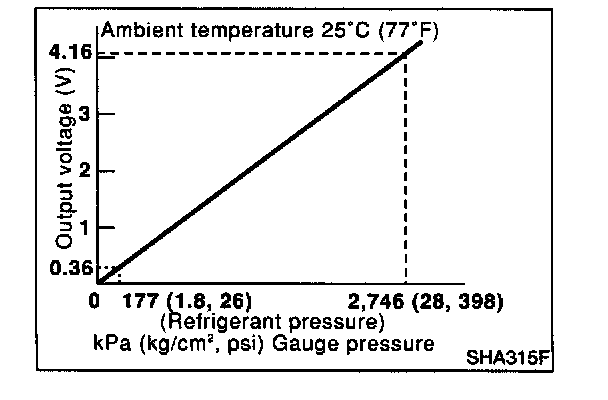

Refrigerant Pressure Sensor
Make sure that higher A/C refrigerant pressure results in higher refrigerant-pressure sensor output voltage.

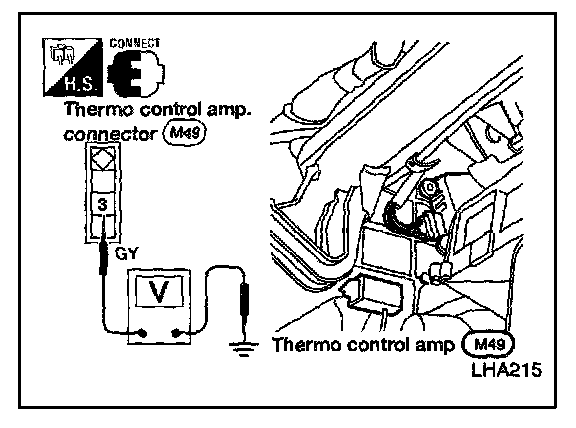

Thermal Control Amp.
1. Run engine and operate A/C system.
2. Connect voltmeter from harness side.

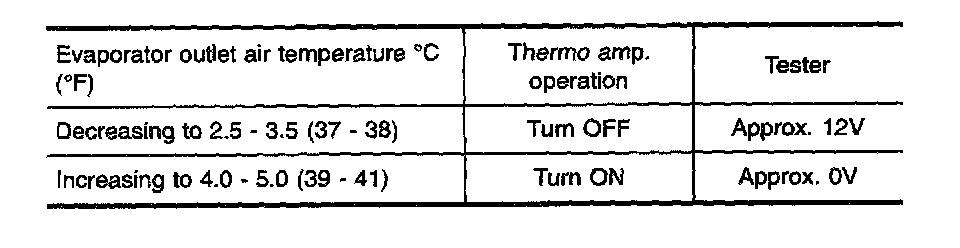

3. Check thermo control amp. operation shown in the table.
