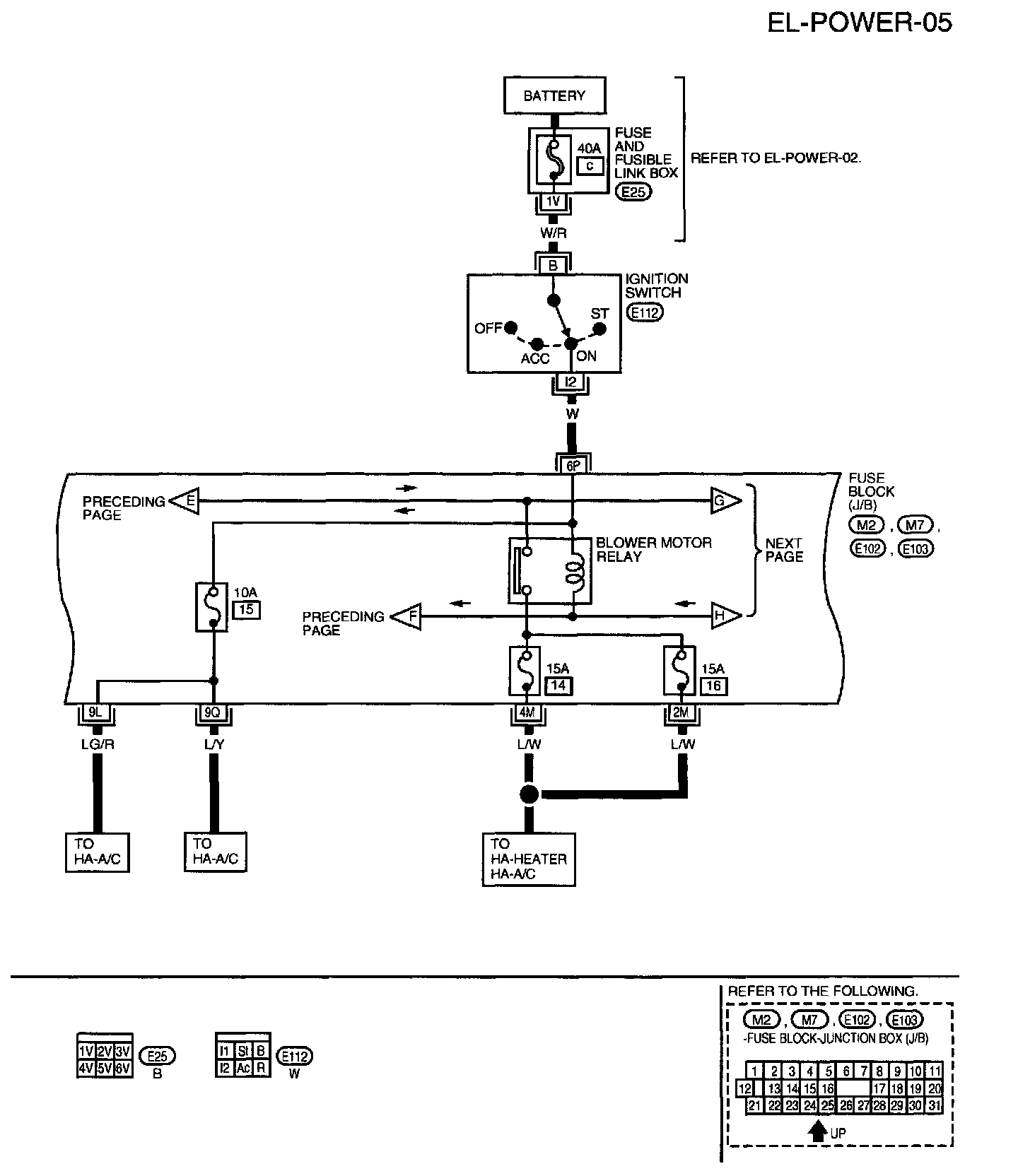

Ignition Power Supply - Ignition Switch In "on"
Ignition Power Supply - Ignition Switch In "on"
EL-POWER-05:
