Nissan-Datsun
>>
2000
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Fuses/Circuit Breaker/Fusable Link/Fuse Block/Relay Box
>>
Multi-Remote Control Relay
Multi-Remote Control Relay

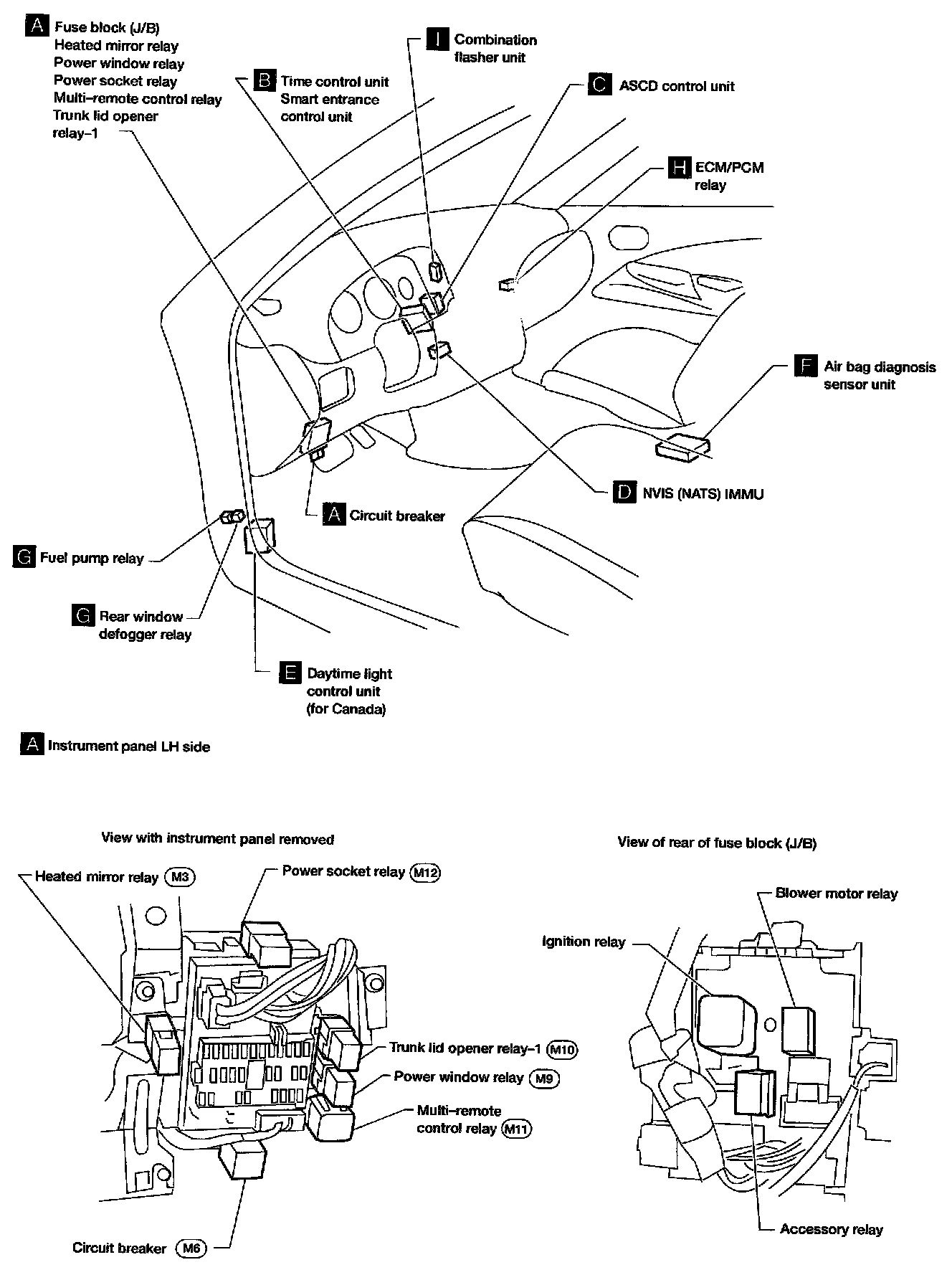

Fuse Block, Multi-Remote Control Relay:
Passenger Compartment Overview:
