Home >> Nissan-Datsun >> 2000 >> Sentra XE L4-1.8L (QG18DE) >> Repair and Diagnosis >> Diagrams >> Components >> Fuses/Circuit Breaker/Fusable Link/Fuse Block/Relay Box >> Fuse and Fusible Link Box

Fuse and Fusible Link Box

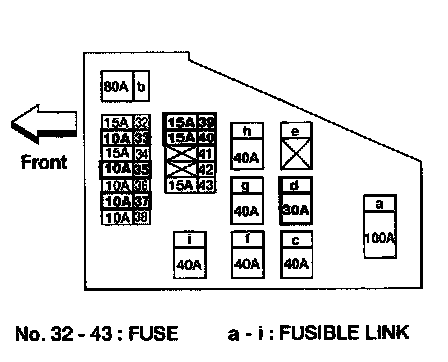

Fuse And Fusible Link:



Component Locations Overview:



Engine Compartment Overview:
