ASCD Component Inspections

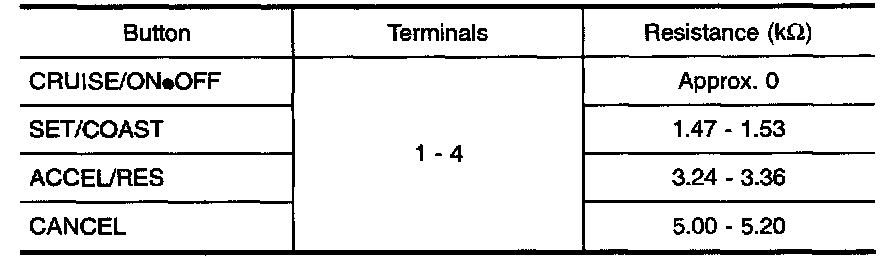

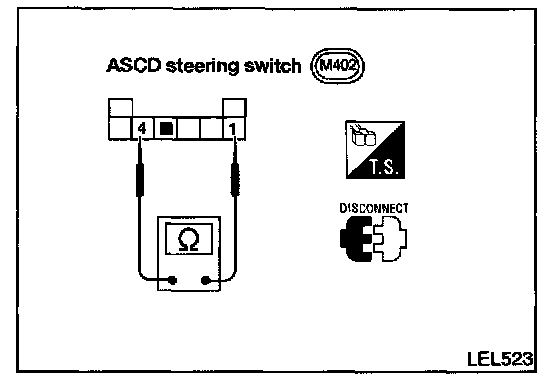

ASCD STEERING SWITCH
Check continuity between terminals by pushing each button.

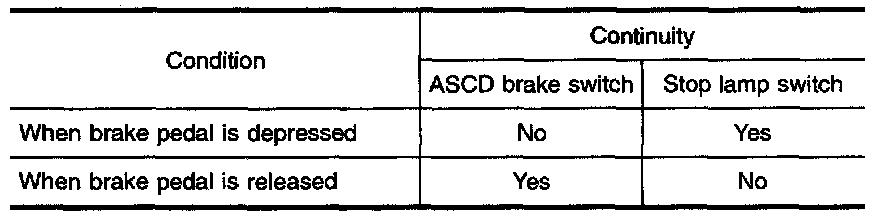

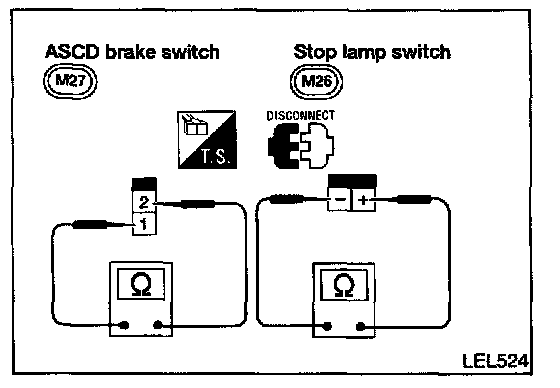

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check brake pedal adjustment after checking each switch. Refer to "Adjustment".

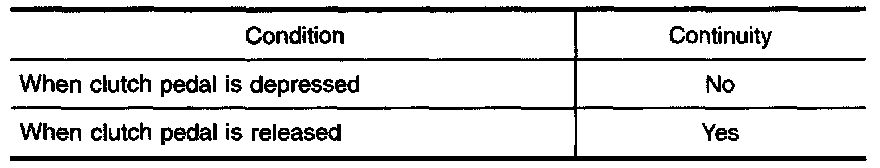

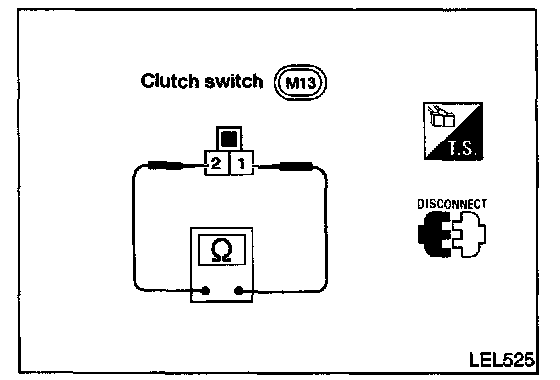

ASCD CLUTCH SWITCH (M/T)

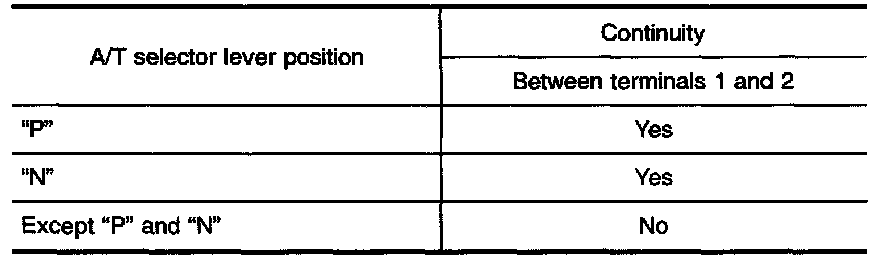

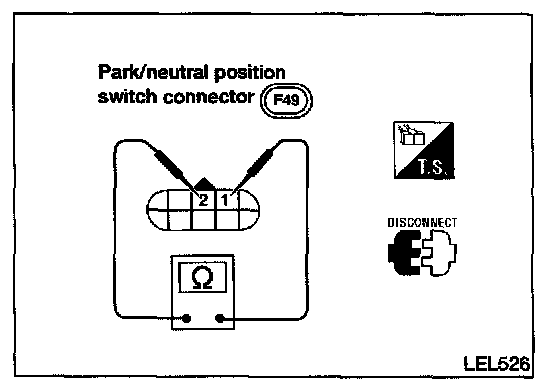

PARK/NEUTRAL POSITION SWITCH (A/T)

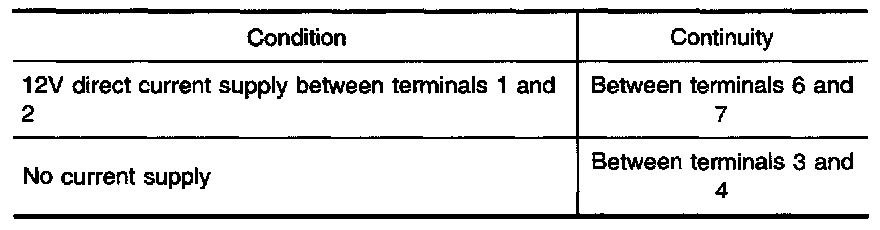

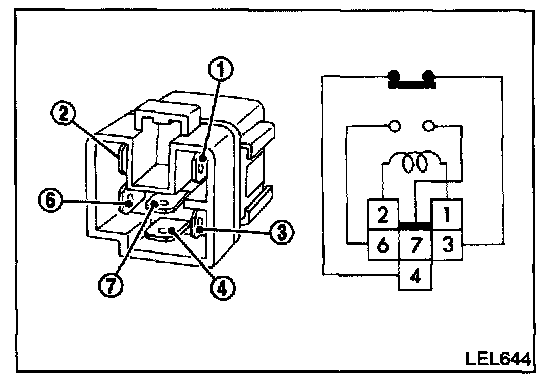

PARK/NEUTRAL POSITION (PNP) RELAY
Check continuity between terminals 3 and 4, 6 and 7.
