Ground Circuit Check

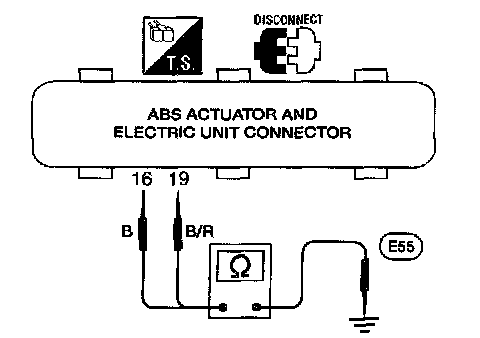

ABS ACTUATOR AND ELECTRIC UNIT GROUND





- Check resistance between ABS actuator and electric unit connector terminals and ground.
Resistance: approximately 0.0 Ohms
