Component Tests

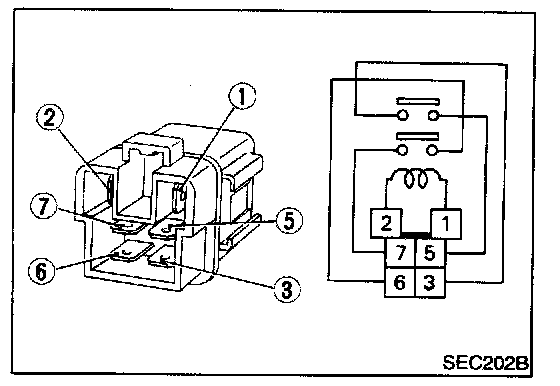

THEFT WARNING HORN AND THEFT WARNING LAMP

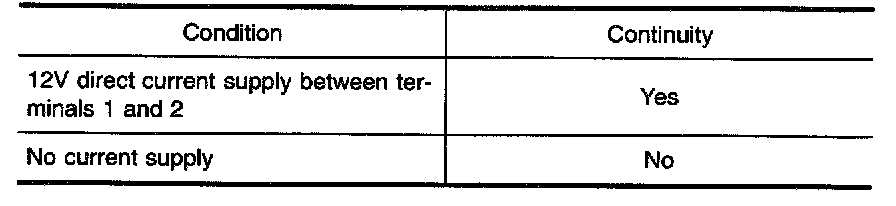

Check continuity between terminals 3 and 5, 6 and 7.
