P1613

DIAGNOSTIC PROCEDURE 1
Self-diagnostic results:

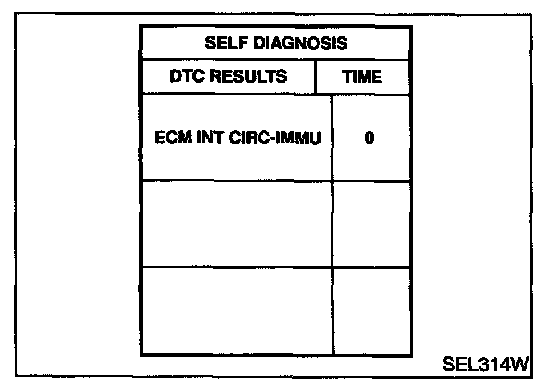

"ECM INT CIRC-IMMU" displayed on CONSULT-II screen

1. Confirm SELF-DIAGNOSTIC RESULTS "ECM INT CIRC-IMMU" displayed on CONSULT-II screen. Ref.. part No. B.
2. Replace ECM/PCM.
3. Perform initialization with CONSULT-II.
For initialization, refer to "CONSULT-II OPERATION MANUAL IVIS/NVIS".
