P1165
COMPONENT DESCRIPTION
The swirl control valve control vacuum check switch detects vacuum signal to the swirl control valve, and sends "ON" or "OFF" signal to the PCM.
When vacuum is supplied to the valve, the swirl control valve control vacuum check switch sends "OFF" signal to the PCM. The swirl control valve control vacuum check switch is not used to control the engine system, it is used for on board diagnosis.
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
Malfunction is detected when the swirl control valve control vacuum check switch remains "OFF" under specified engine conditions.
Possible Cause
- Harness or connectors
(Swirl control valve control vacuum check switch circuit is open.)
- Hoses
(Hoses are clogged or connected incorrectly.)
- Swirl control valve control solenoid valve
- Swirl control valve control vacuum check switch
- Swirl control valve actuator
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: For best results, perform the test at a temperature above 5 °C (41 °F).
WITH CONSULT-II
1. Turn ignition switch "OFF" and wait at least 10 seconds.
2. Turn ignition switch "ON".

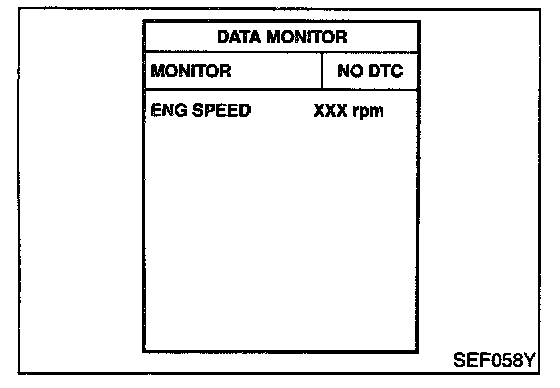

3. Select "DATA MONITOR" mode with CONSULT-II and wait at least 5 seconds.
If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "WITH CONSULT-II" above.
EC-S/VCSW-01:
EC-S/VCSW-01 - Connector View:
WIRING DIAGRAM

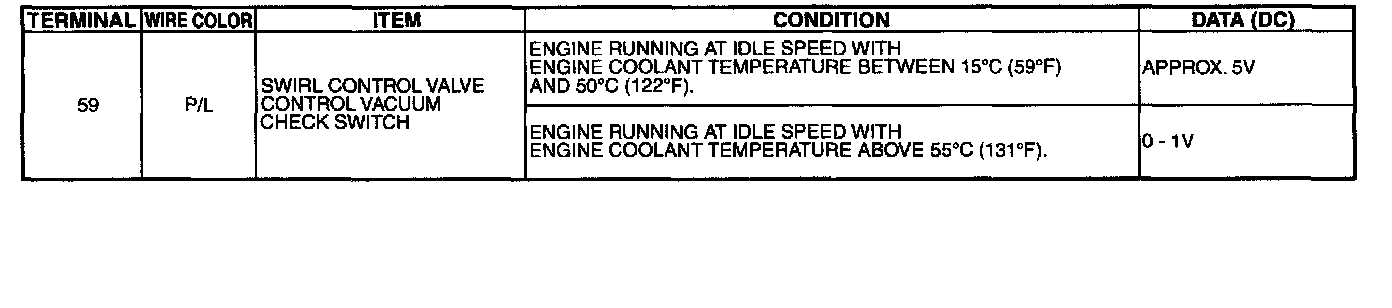

PCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.
CAUTION: DO NOT USE PCM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE PCM'S TRANSISTOR. USE A GROUND OTHER THAN PCM TERMINALS, SUCH AS THE GROUND.

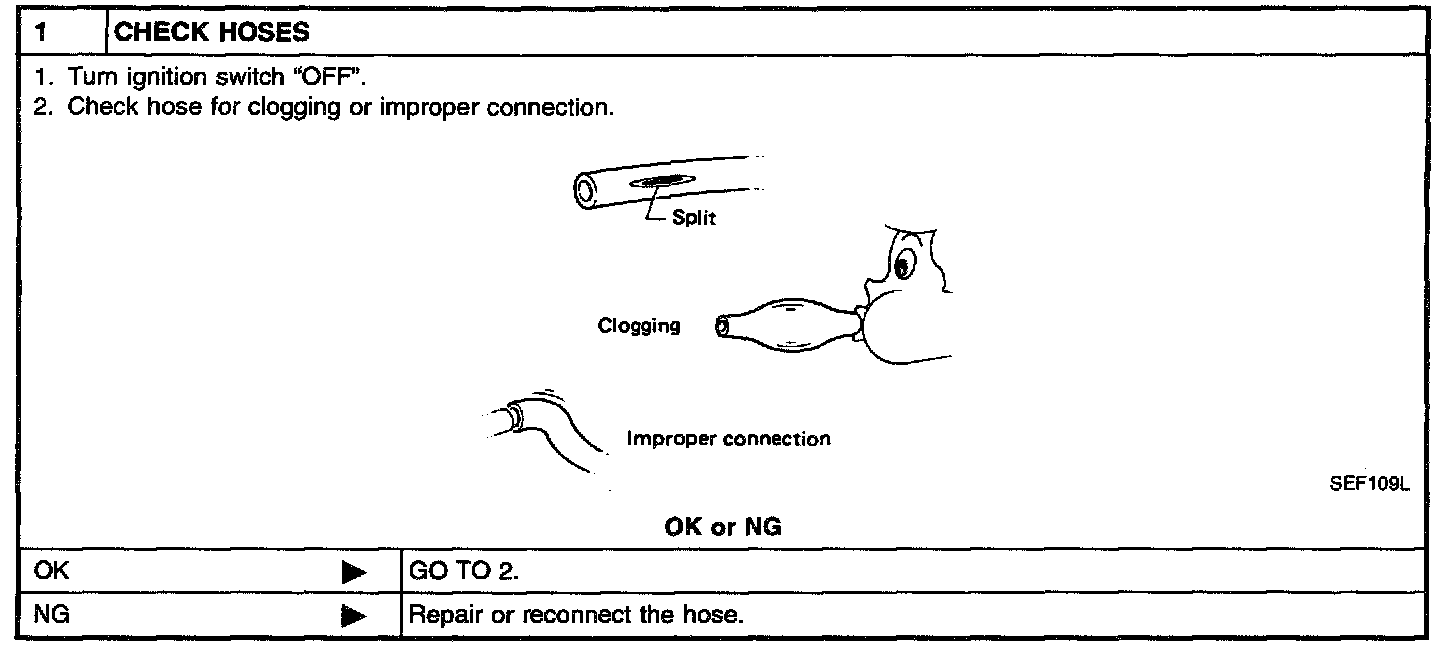

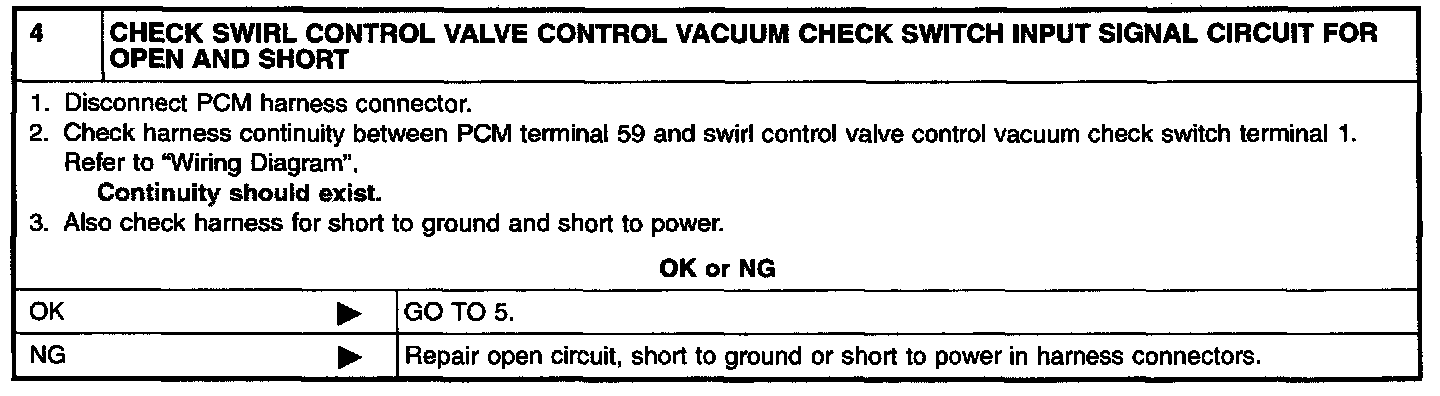

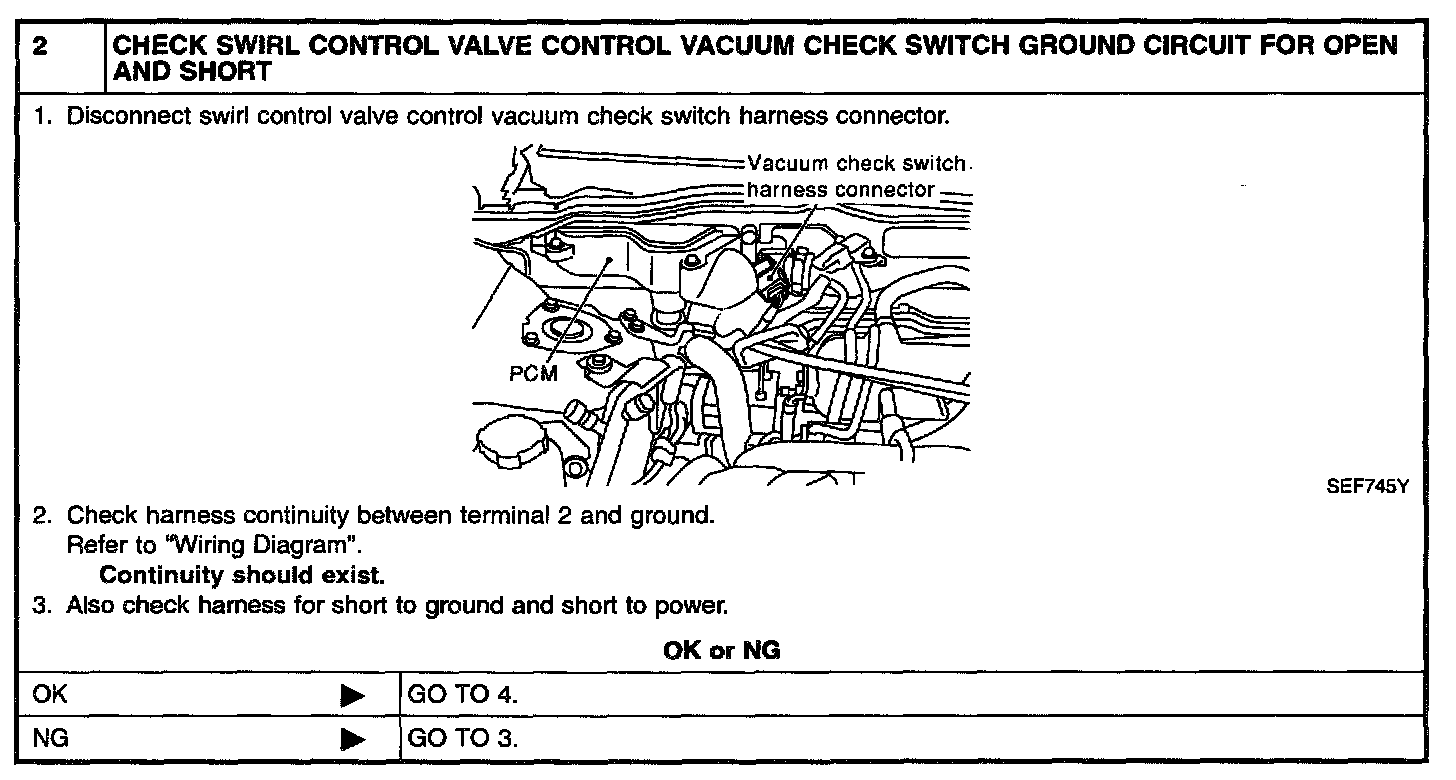

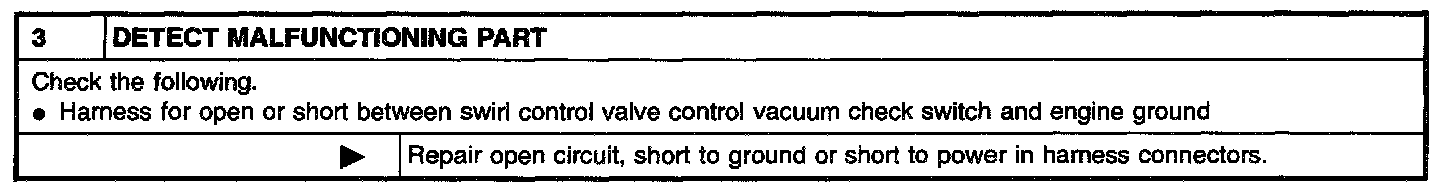

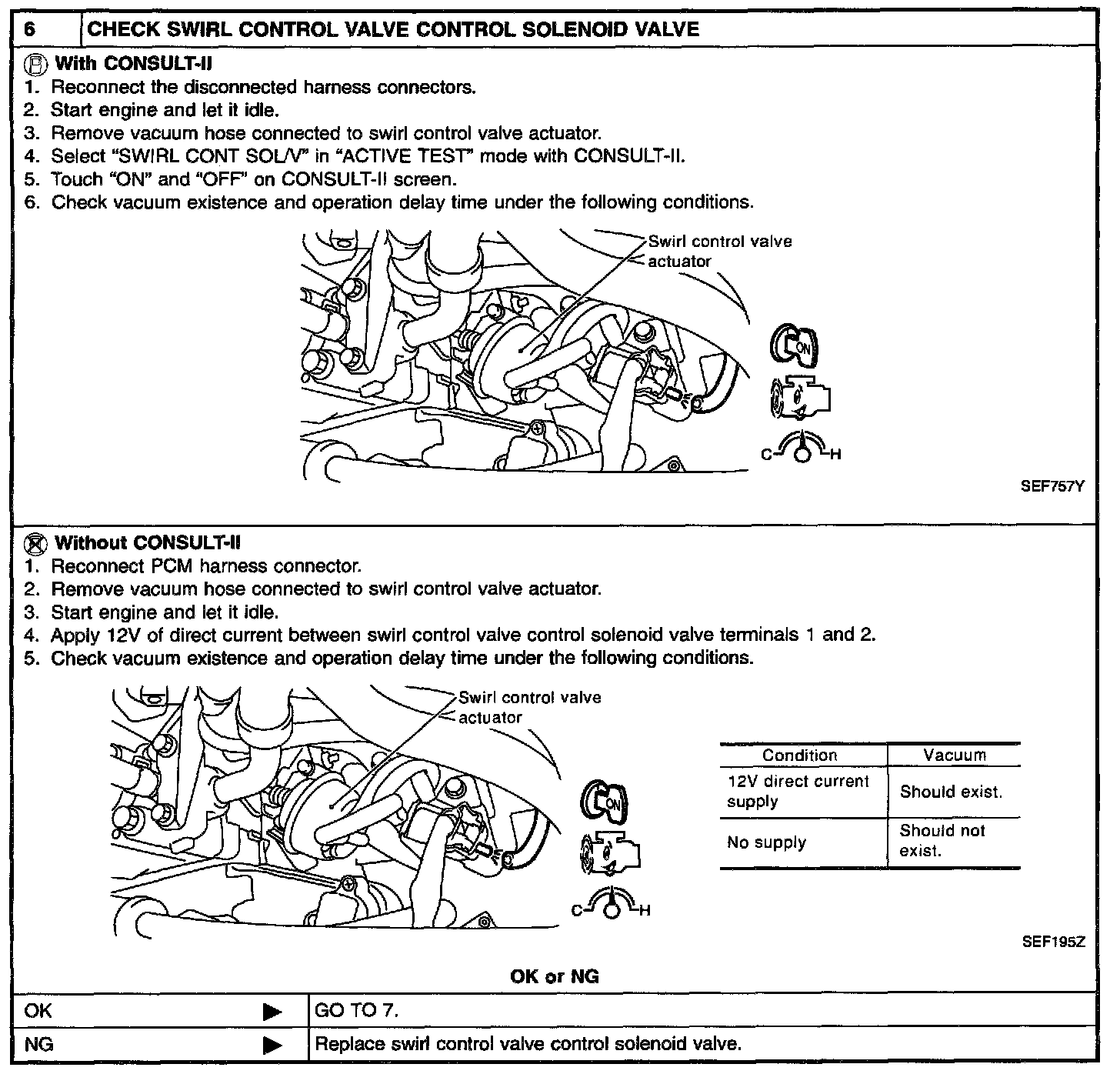

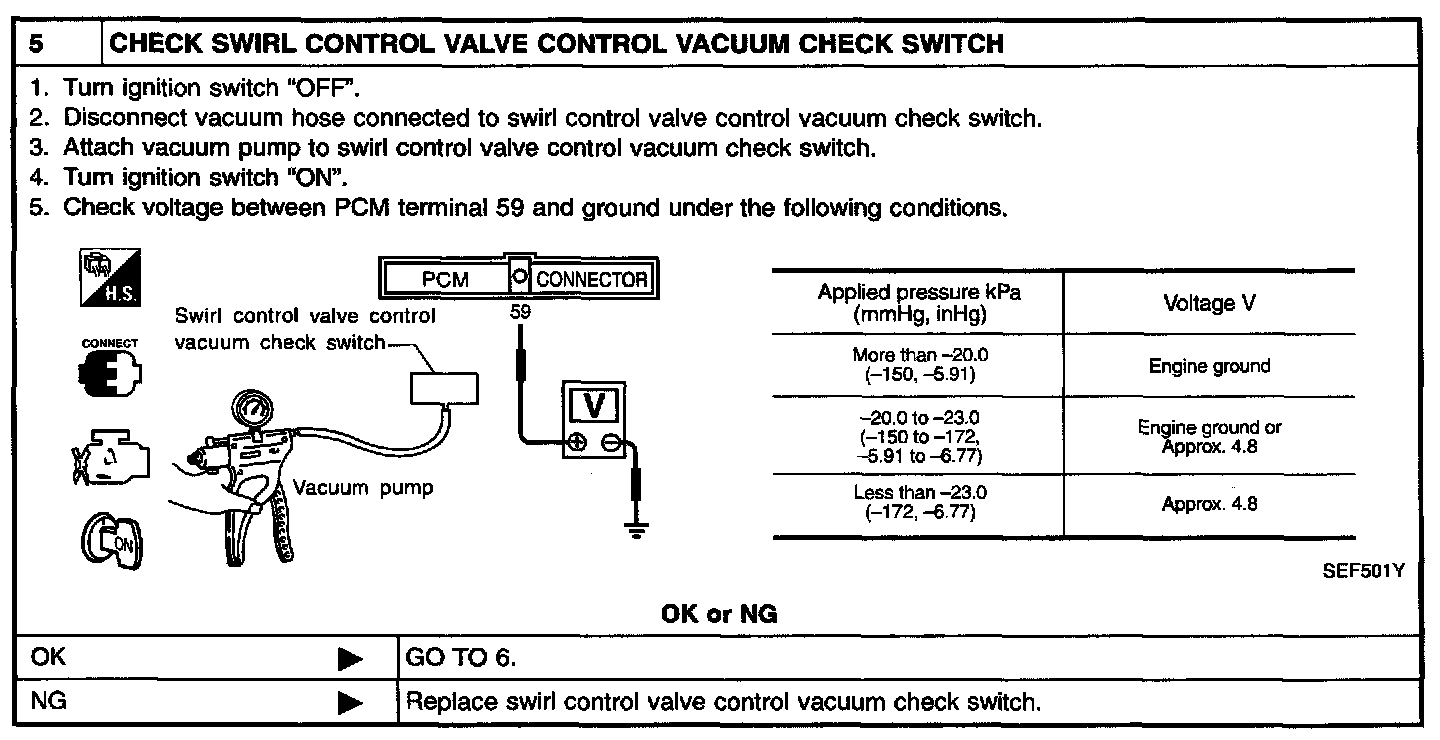

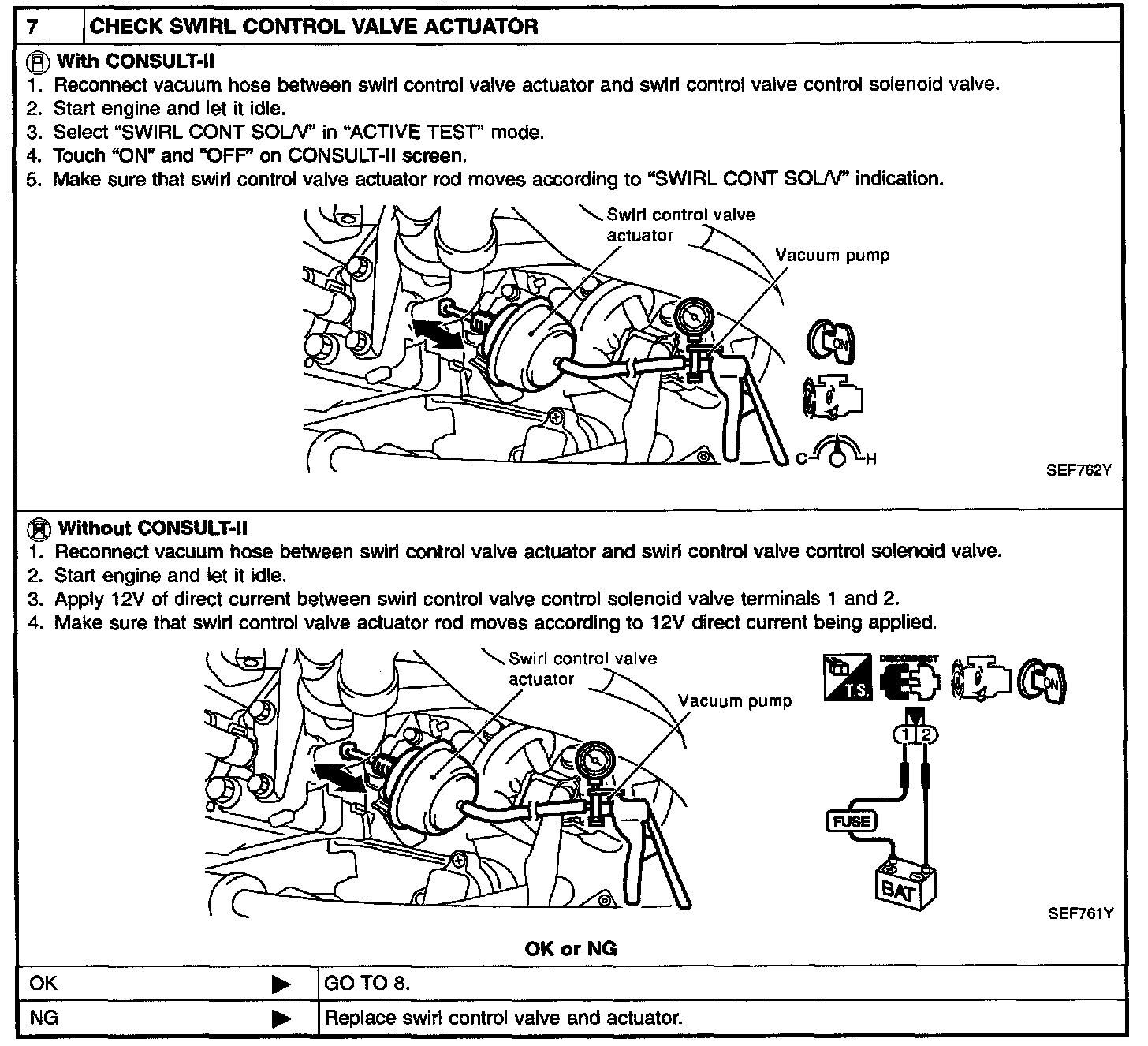

DIAGNOSTIC PROCEDURE
