P0600

SYSTEM DESCRIPTION
This system is used to control the smooth shifting up and down of A/T during the hard acceleration/deceleration.

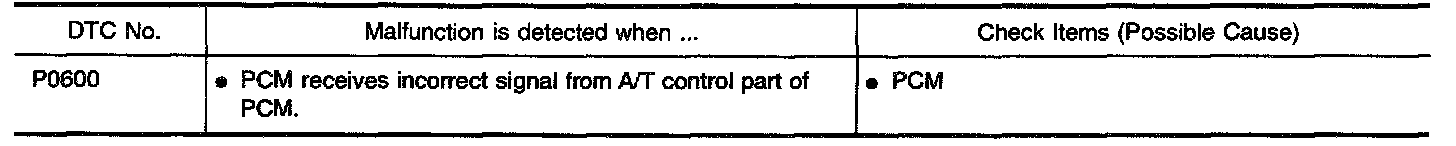

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10.5 V at ignition switch "ON".

With CONSULT-II
1. Turn ignition switch "ON".

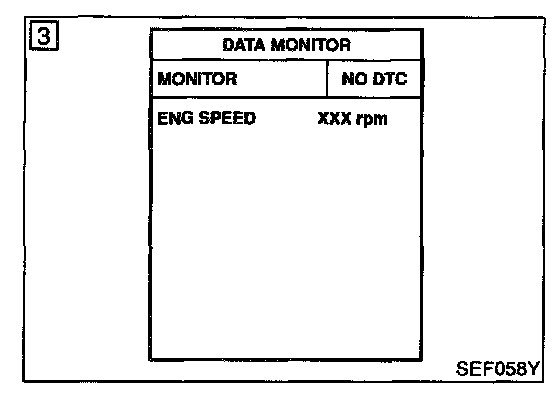

2. Select "DATA MONITOR" mode with CONSULT-II.




3. Wait at least 10 seconds.
4. If DTC is detected, go to "Diagnostic Procedure" below.

DIAGNOSTIC PROCEDURE

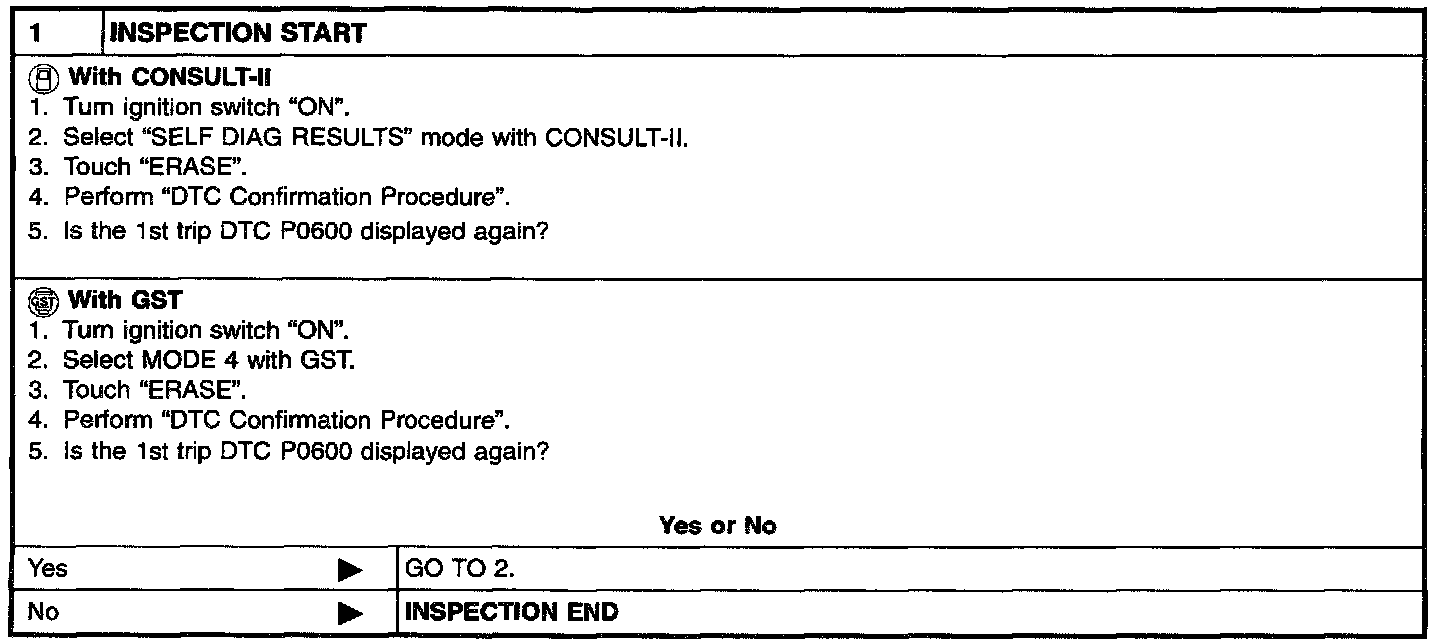

Diagnostic Procedure Step 1:

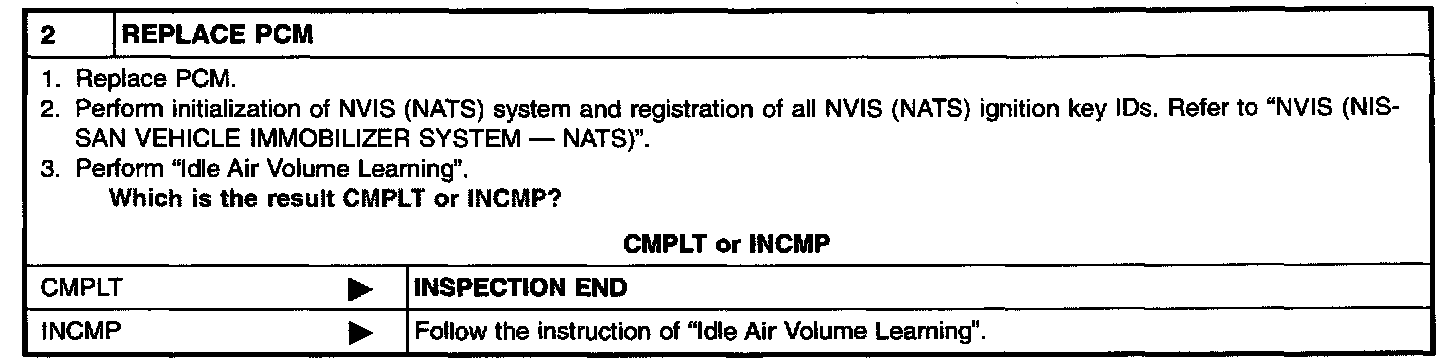

Diagnostic Procedure Step 2:
