P0446
COMPONENT DESCRIPTION

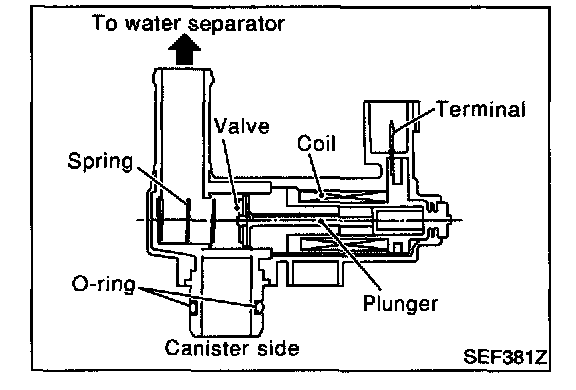

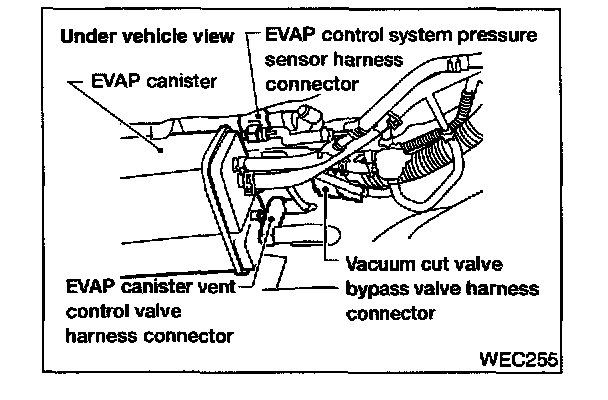

The EVAP canister vent control valve is located on the EVAP canister and is used to seal the canister vent.
This solenoid valve responds to signals from the PCM. When the PCM sends an ON signal, the coil in the solenoid valve is energized. A plunger will then move to seal the canister vent. The ability to seal the vent is necessary for the on board diagnosis of other evaporative emission control system components.
This solenoid valve is used only for diagnosis, and usually remains opened.
When the vent is closed, under normal purge conditions, the evaporative emission control system is depressurized and allows "EVAP Control System" diagnoses.

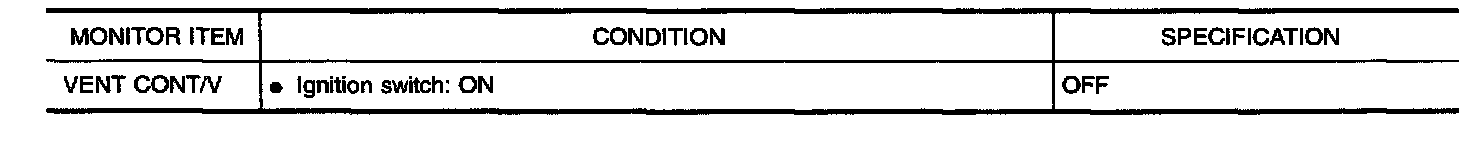

CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
Malfunction is detected when an improper voltage signal is sent to PCM through EVAP canister vent control valve.
Possible Cause
- Harness or connectors (The valve circuit is open or shorted.)
- EVAP canister vent control valve
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm battery voltage is more than 11 V at idle.
WITH CONSULT-II
1. Turn ignition switch "ON".

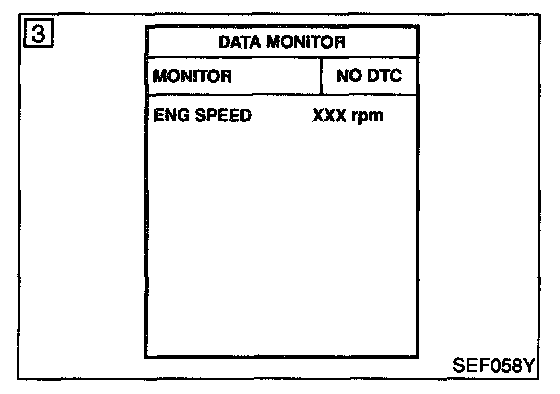

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and wait at least 8 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "WITH CONSULT-II".
EC-VENT/V-01:
EC-VENT/V-01 Connector View:
WIRING DIAGRAM

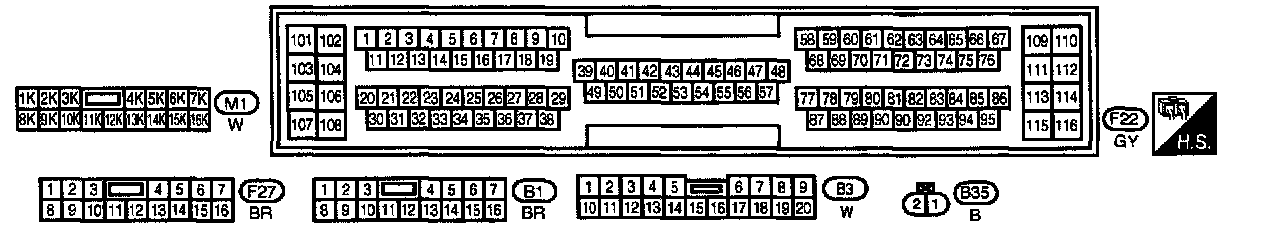

PCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.
CAUTION: DO NOT USE PCM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE PCM'S TRANSISTOR. USE A GROUND OTHER THAN PCM TERMINALS, SUCH AS THE GROUND.
DIAGNOSTIC PROCEDURE

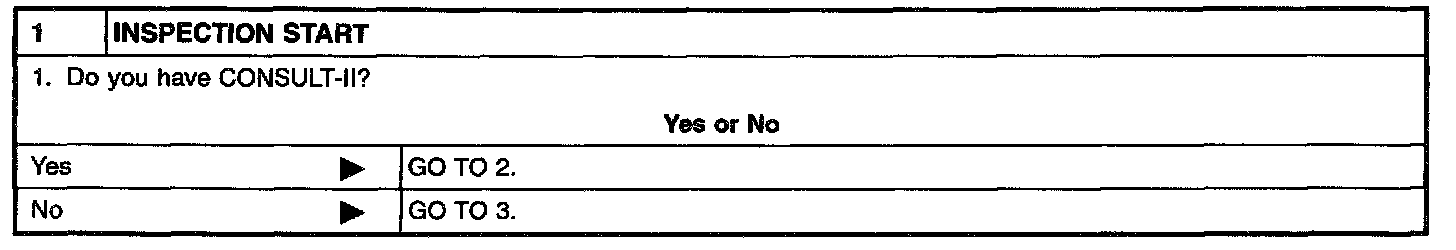

Diagnostic Procedure Step 1:

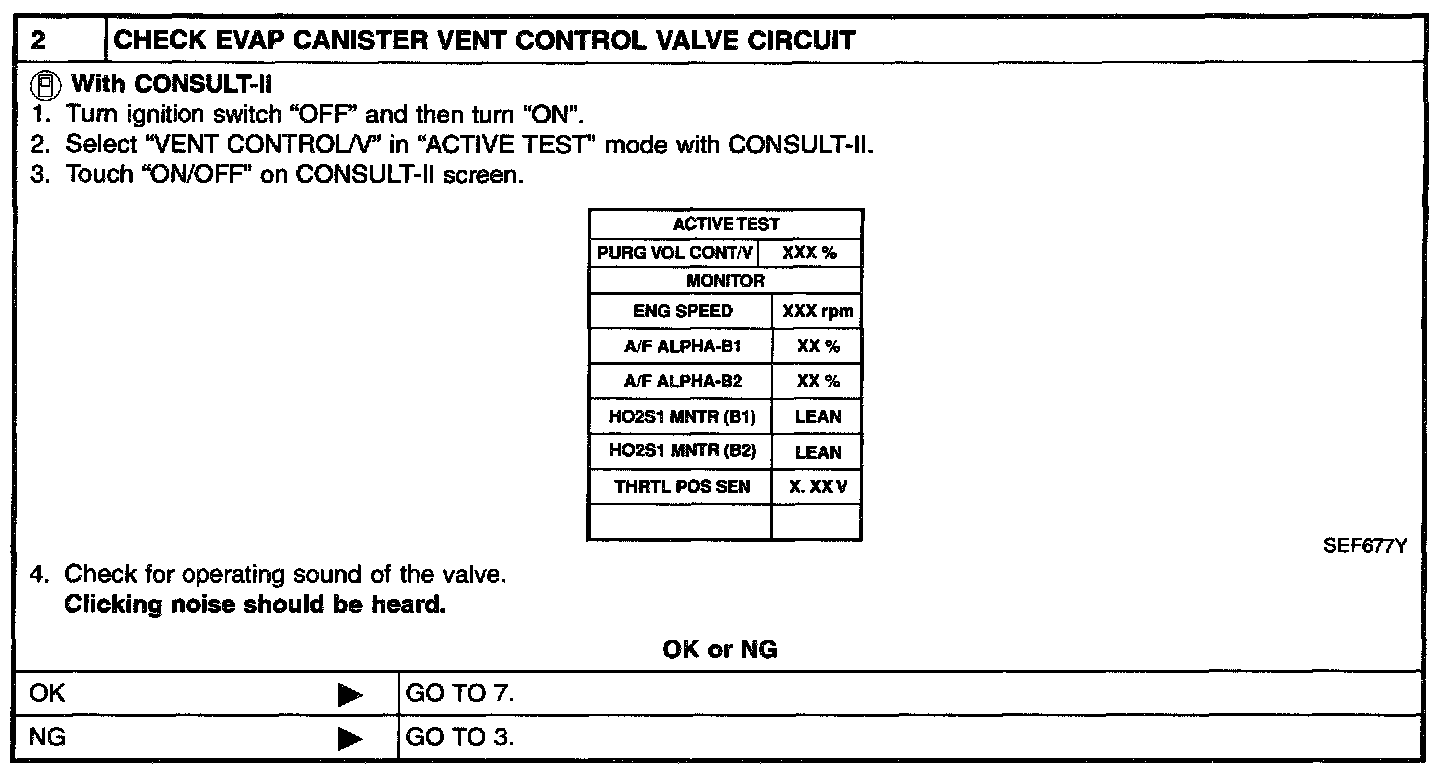

Diagnostic Procedure Step 2:

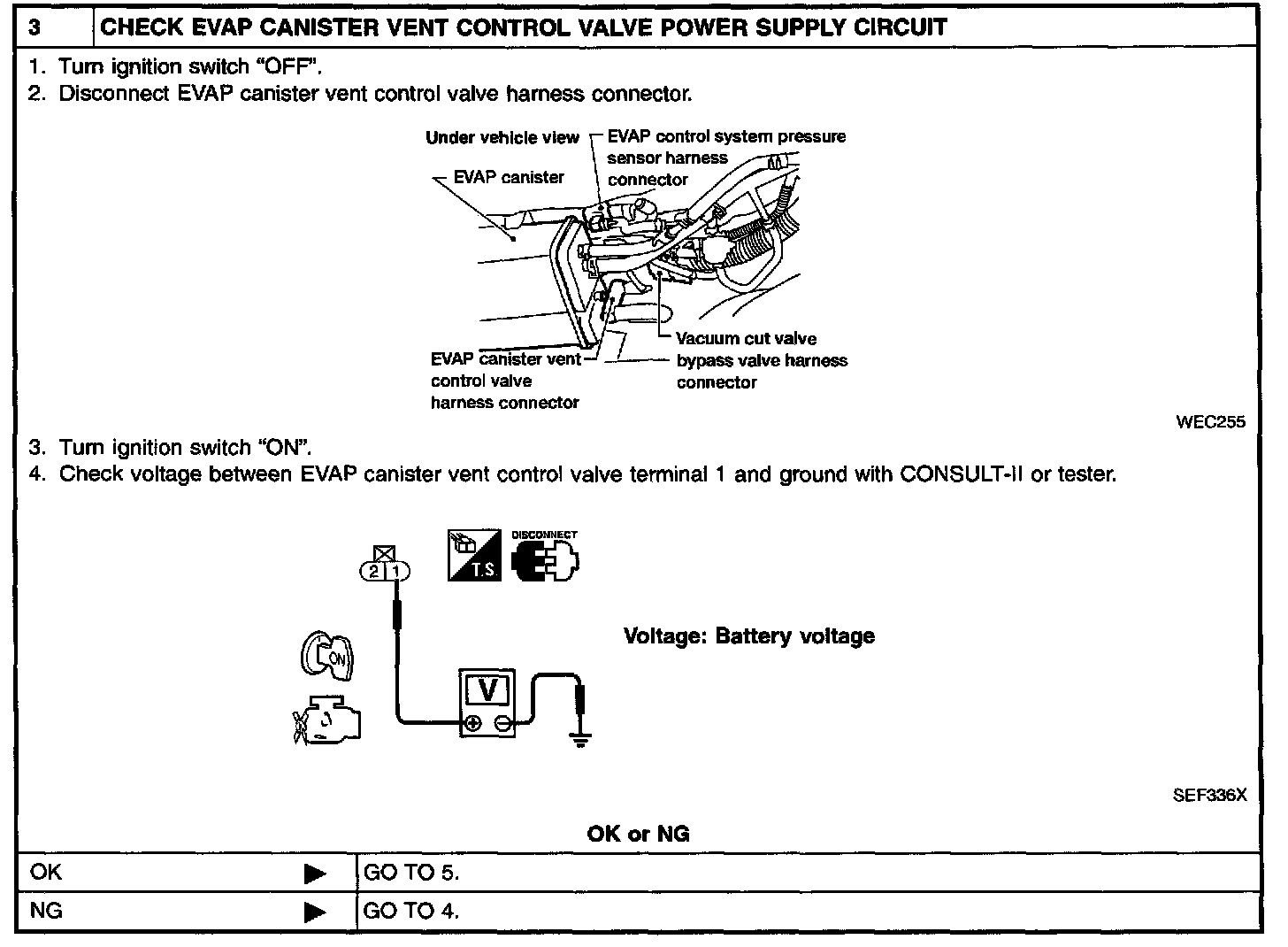

Diagnostic Procedure Step 3:

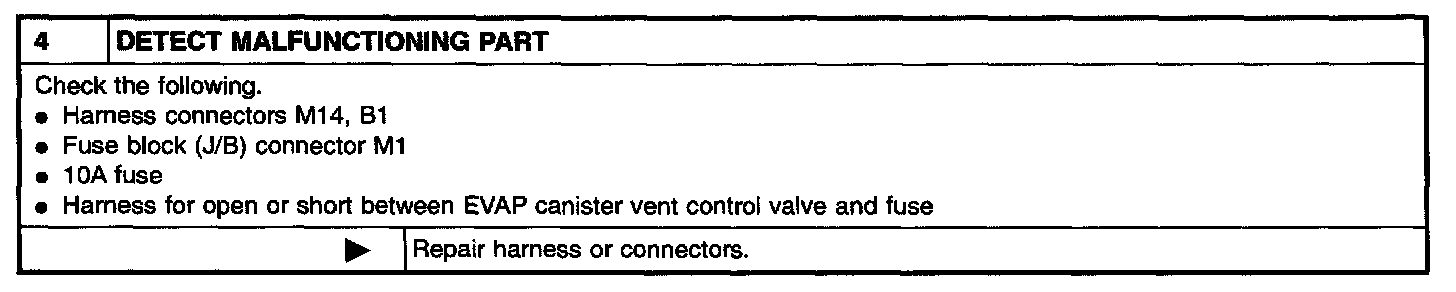

Diagnostic Procedure Step 4:

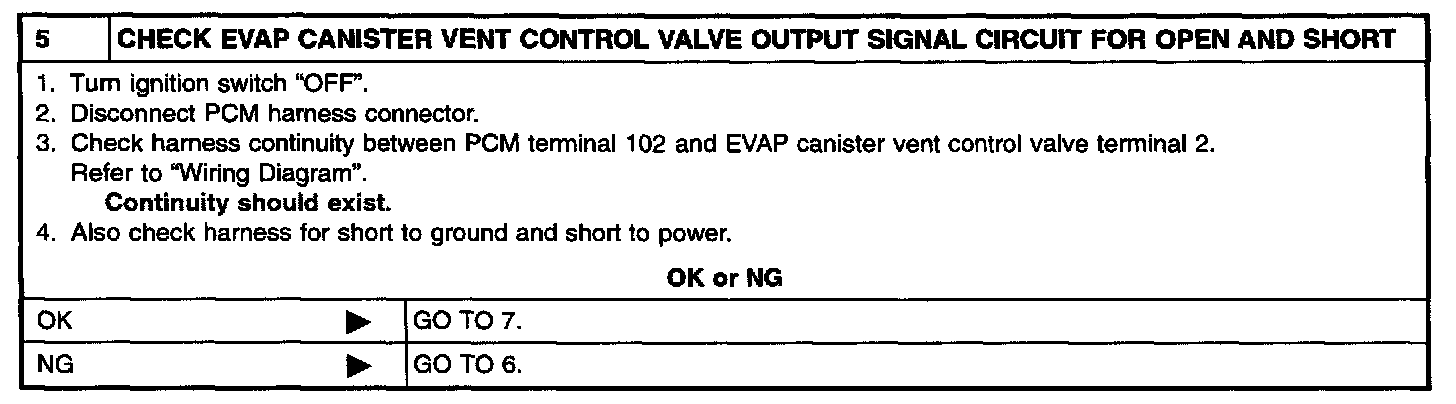

Diagnostic Procedure Step 5:

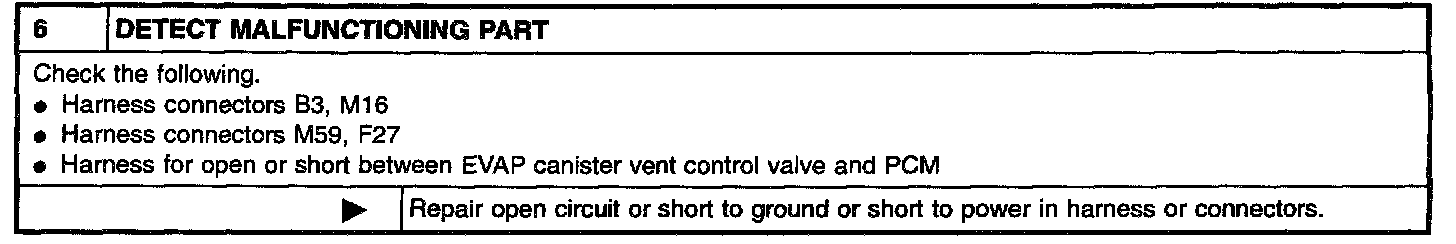

Diagnostic Procedure Step 6:

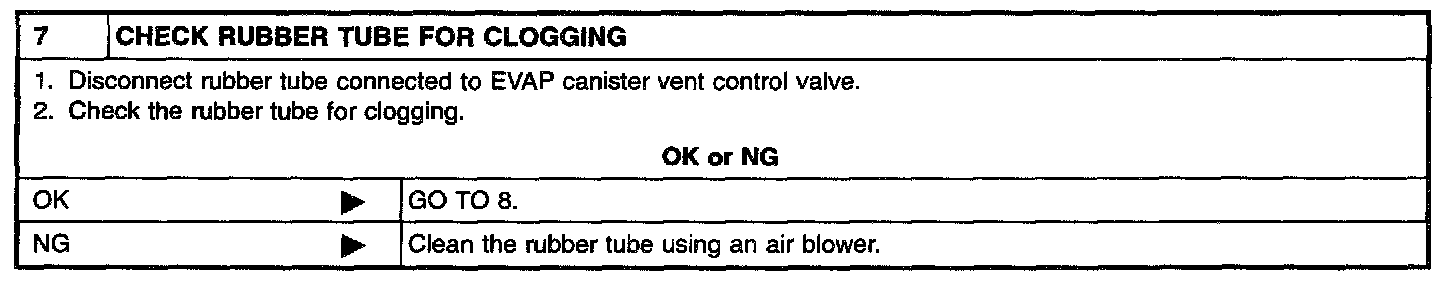

Diagnostic Procedure Step 7:

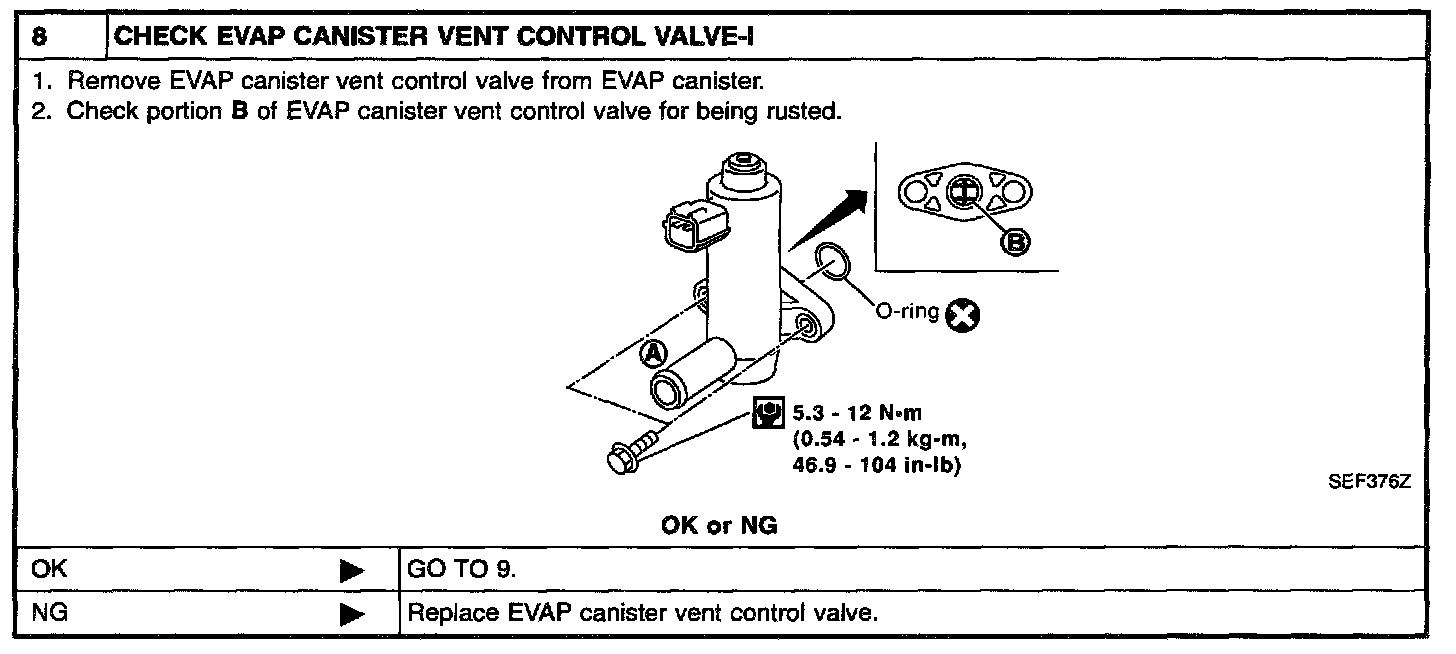

Diagnostic Procedure Step 8:

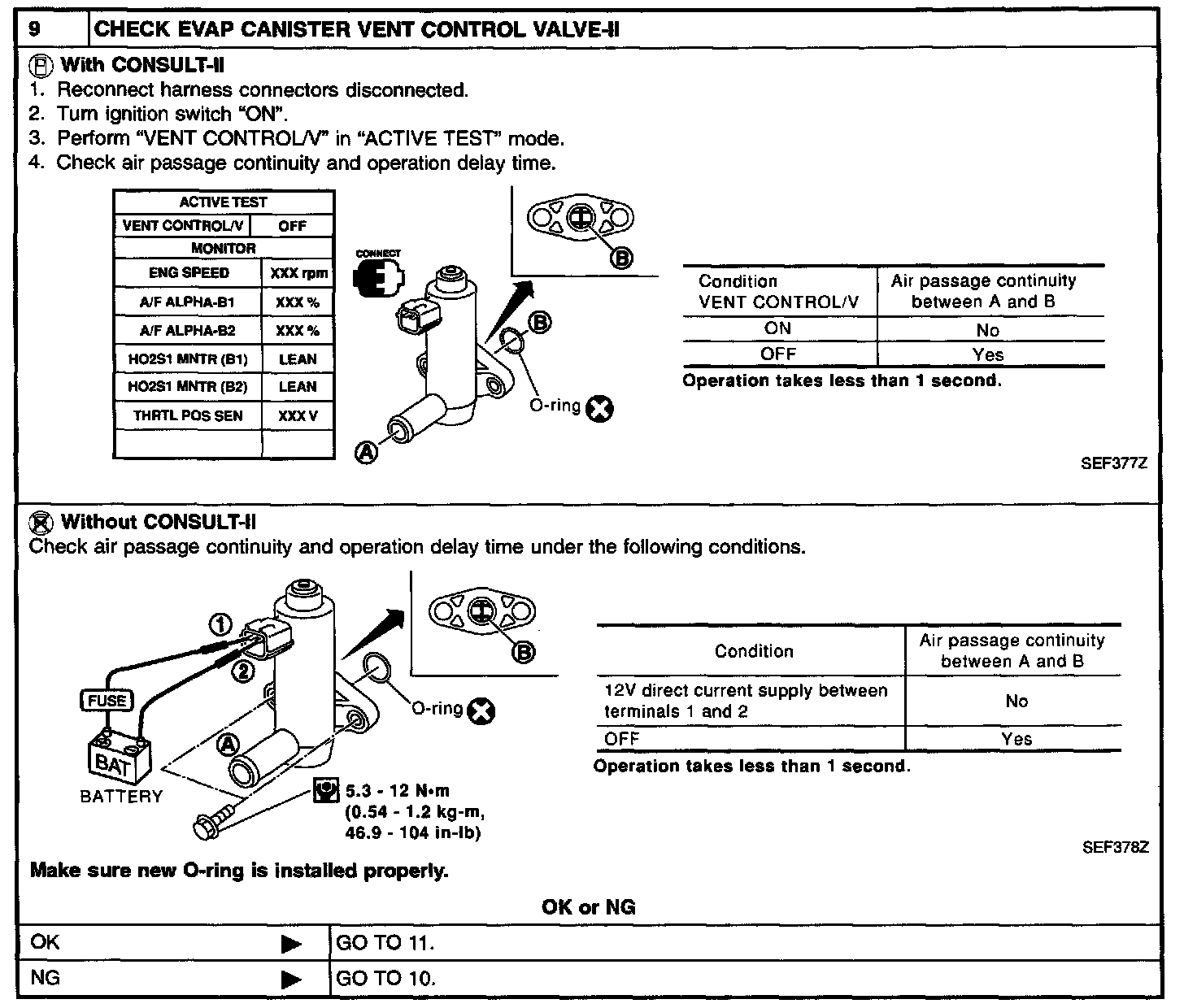

Diagnostic Procedure Step 9:

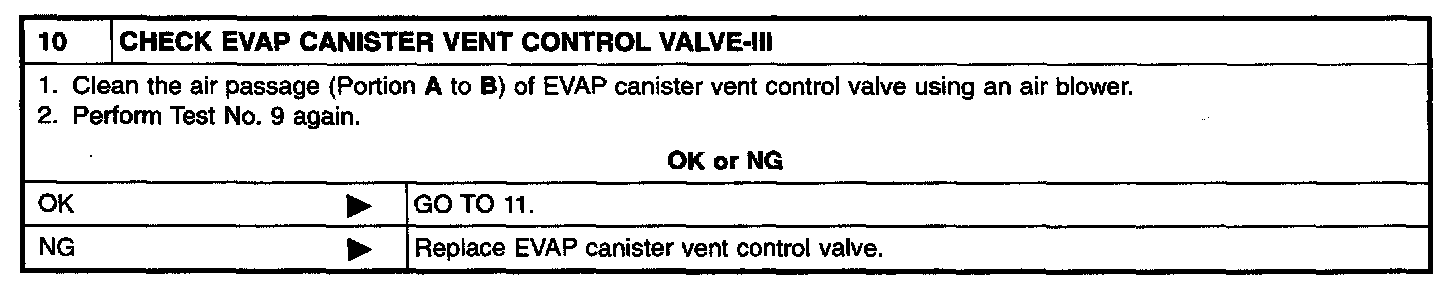

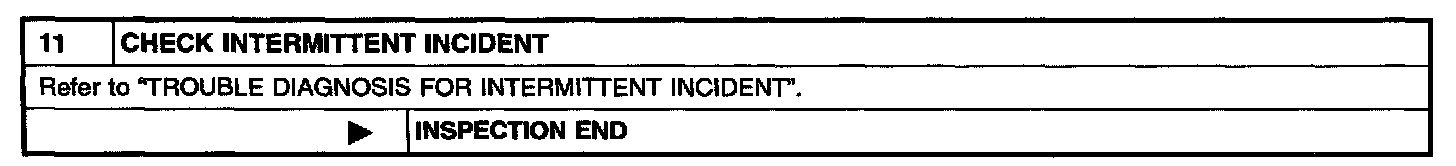

Diagnostic Procedure Step 10:
