P0115

Reference Data:

COMPONENT DESCRIPTION
The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the PCM. The modified signal returns to the PCM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

CAUTION: Do not use PCM ground terminals when measuring input/output voltage. Doing so may lead to PCM's transistor damage. Use ground other than PCM, such as engine ground.

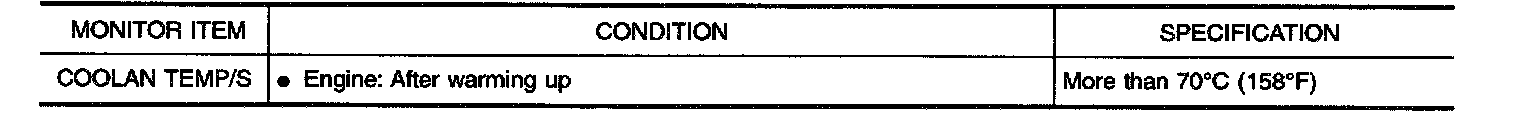

Consult-II Reference Value In Data Monitor Mode:

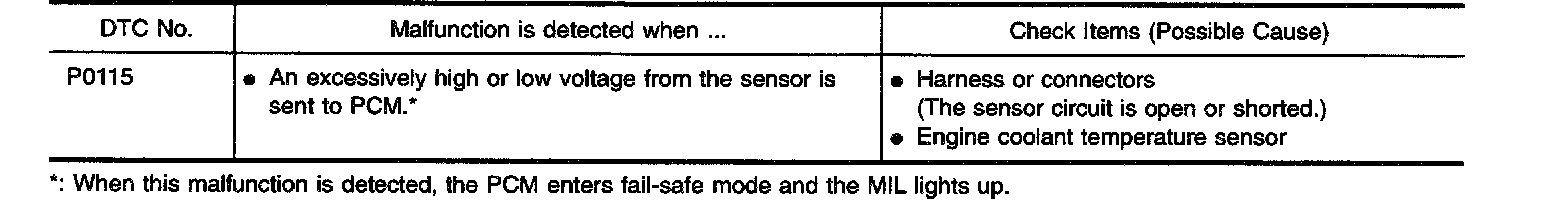

On Board Diagnosis Logic (Part 1 Of 2):

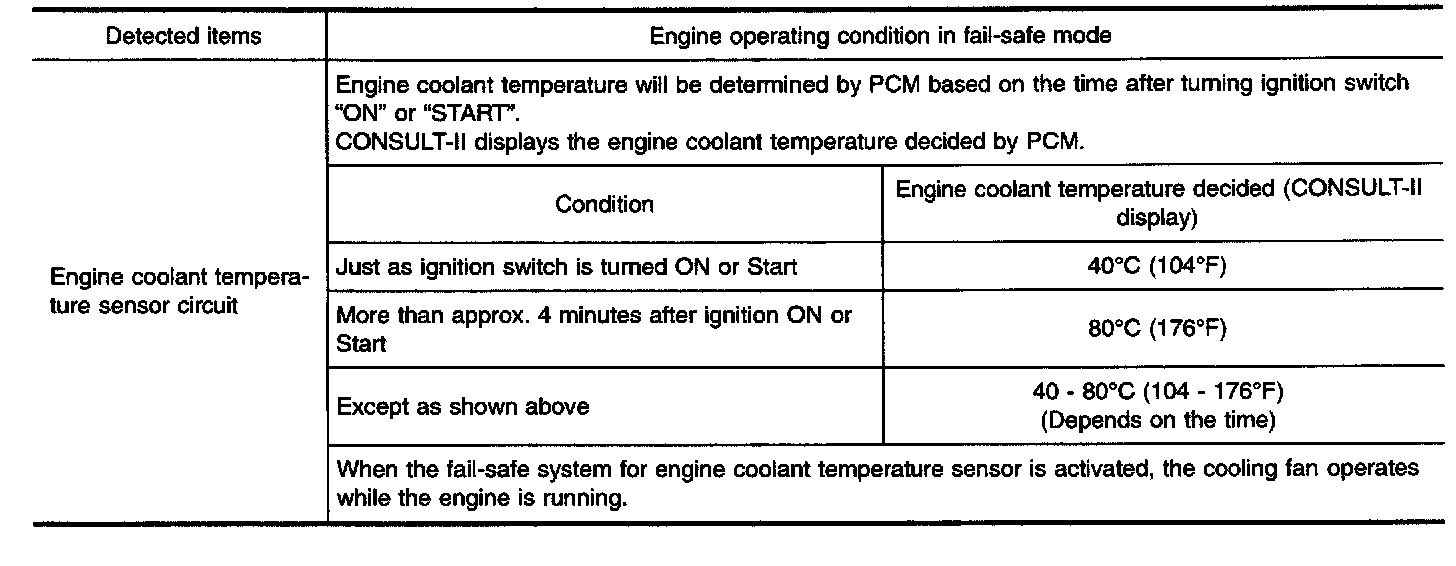

On Board Diagnosis Logic (Part 2 Of 2):

ON BOARD DIAGNOSIS LOGIC

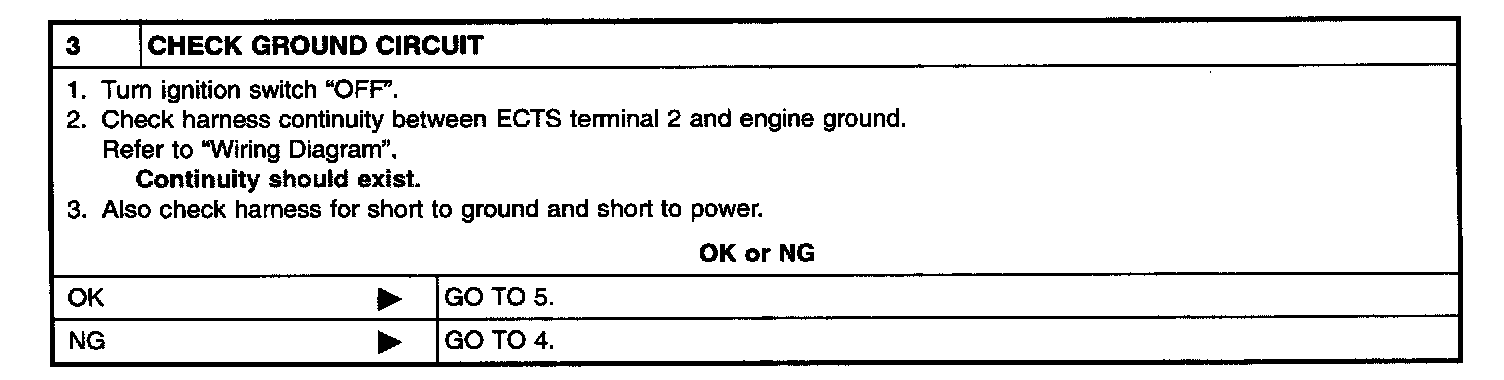

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch "ON".

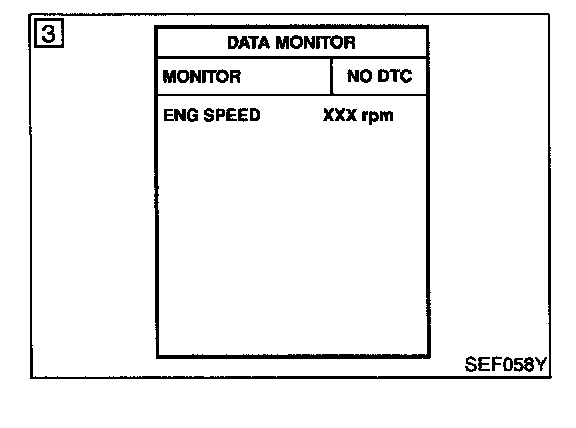

2. Select "DATA MONITOR" mode with CONSULT-II.

3. Wait at least 5 seconds.

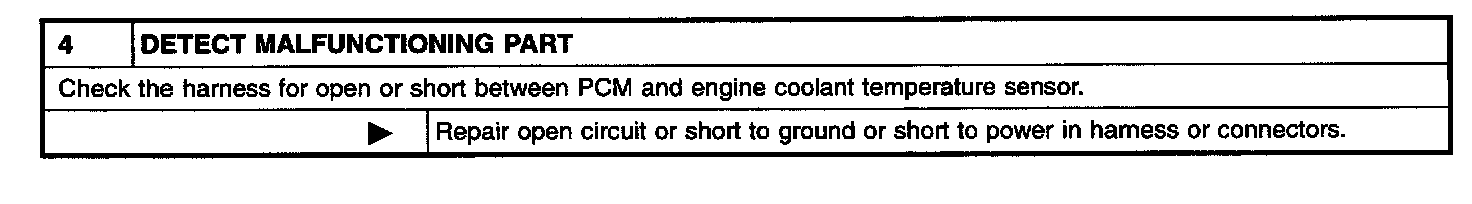

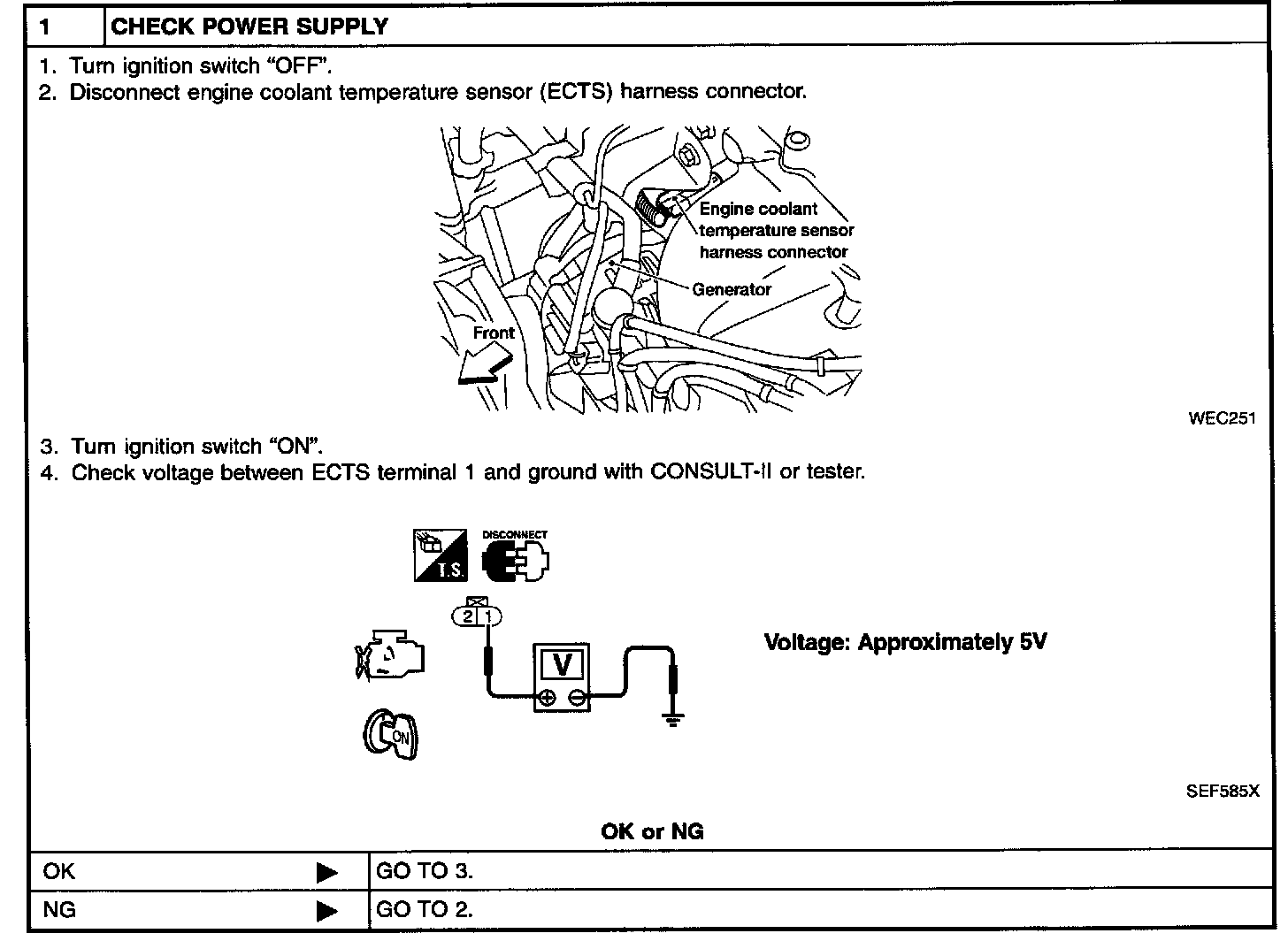

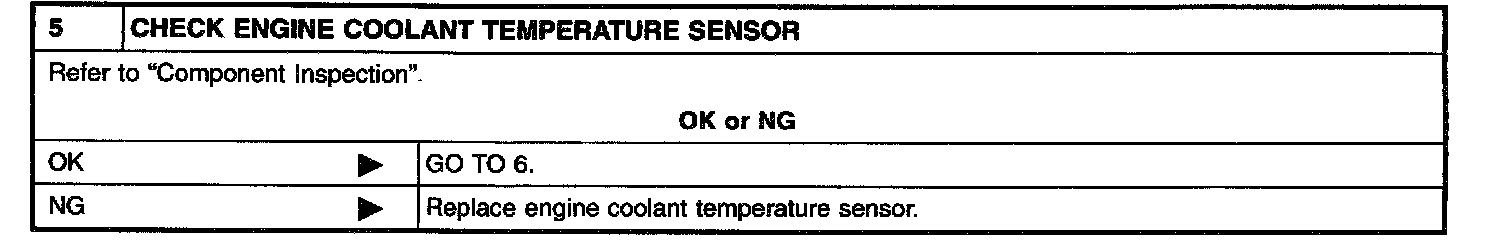

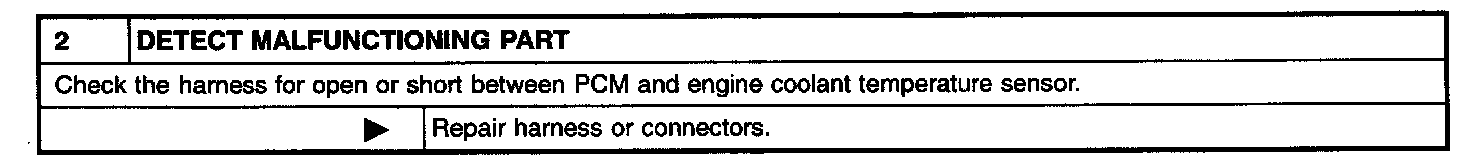

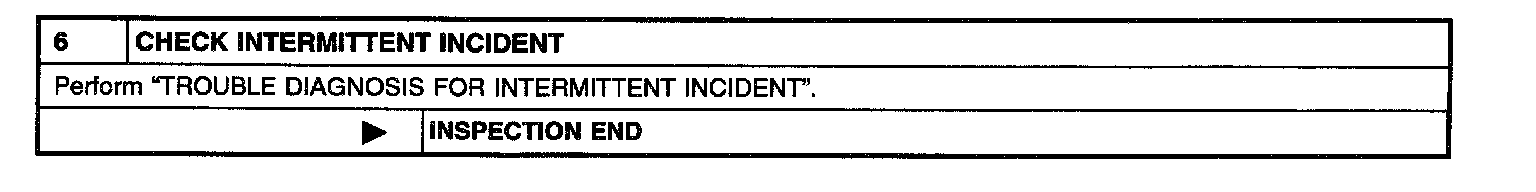

4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II" above.
