P0100
COMPONENT DESCRIPTION
The mass air flow sensor is placed in the stream of intake air. It measures the intake flow rate by measuring a part of the entire intake flow. It consists of a hot film that is supplied with electric current from the PCM. The temperature of the hot film is controlled by the PCM a certain amount. The heat generated by the hot film is reduced as the intake air flows around it. The more air, the greater the heat loss.
Therefore, the PCM must supply more electric current to maintain the temperature of the hot wire as air flow increases. The PCM detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor Mode:
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

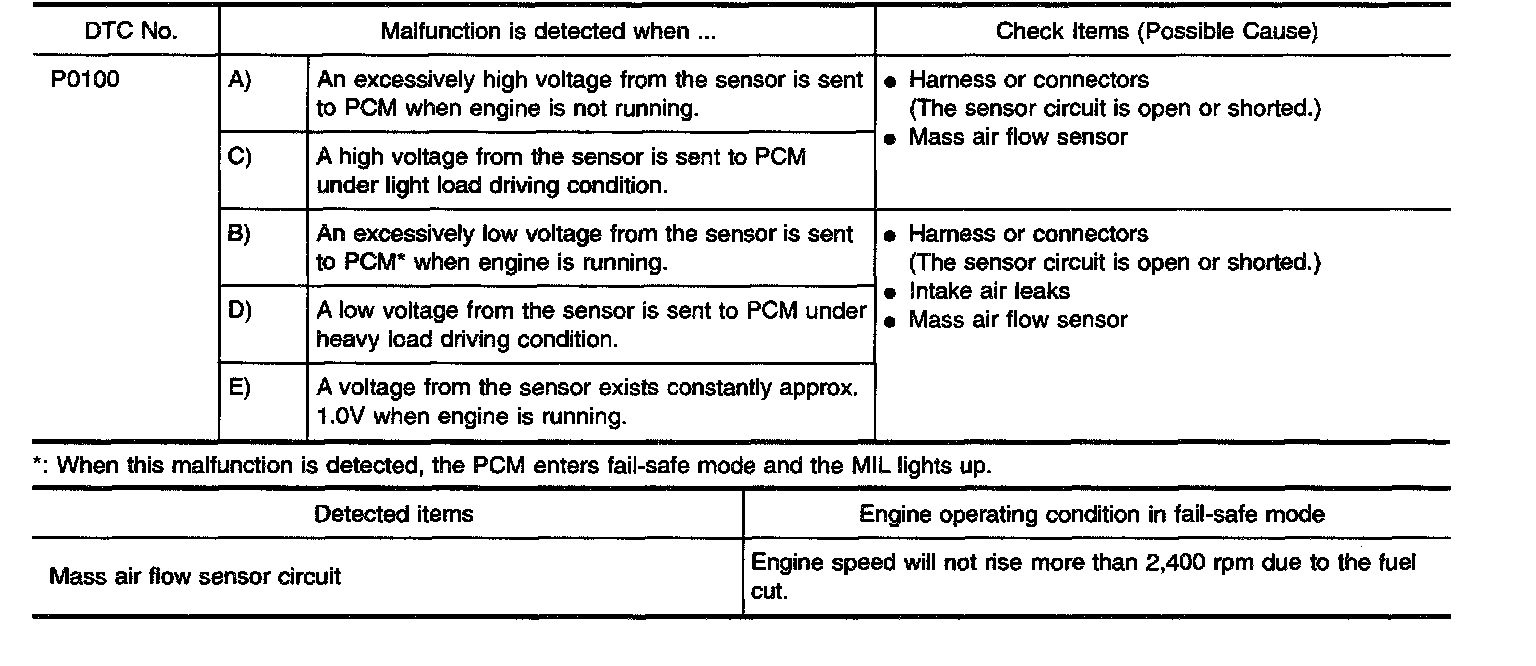

On Board Diagnosis Logic:
DTC Confirmation Procedure
Perform "PROCEDURE FOR MALFUNCTION A" first. If the 1st trip DTC cannot be confirmed, perform "PROCEDURE FOR MALFUNCTION B and E". If there is no problem on "PROCEDURE FOR MALFUNCTION B and E", perform "PROCEDURE FOR MALFUNCTION C". If there is no problem on "PROCEDURE FOR MALFUNCTION C", perform "PROCEDURE FOR MALFUNCTION D".
CAUTION: Always drive vehicle at a safe speed.
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.

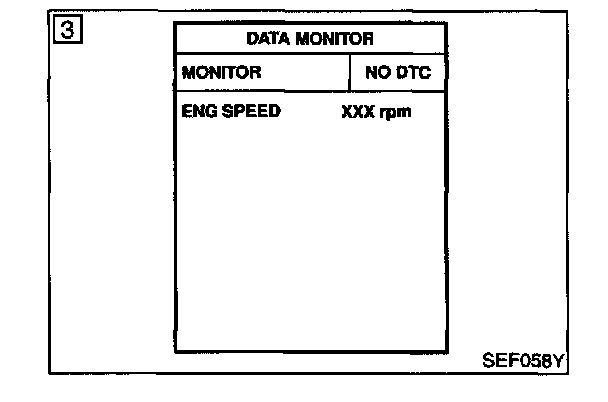

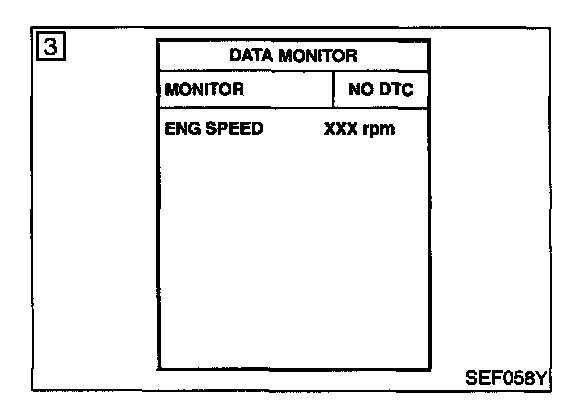

3. Wait at least 6 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
With GST
Follow the procedure "With CONSULT-II" above.
PROCEDURE FOR MALFUNCTION B AND E
With CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and wait 5 seconds at most.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
With GST
Follow the procedure "With CONSULT-II" above.
NOTE: If 1st trip DTC is confirmed after more than 5 seconds, there may be Malfunction C.
PROCEDURE FOR MALFUNCTION C
NOTE: If engine will not start or stops soon wait at least 10 seconds with engine stopped (Ignition switch "ON") instead of running engine at idle speed.
With CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and warm it up to normal operating temperature.

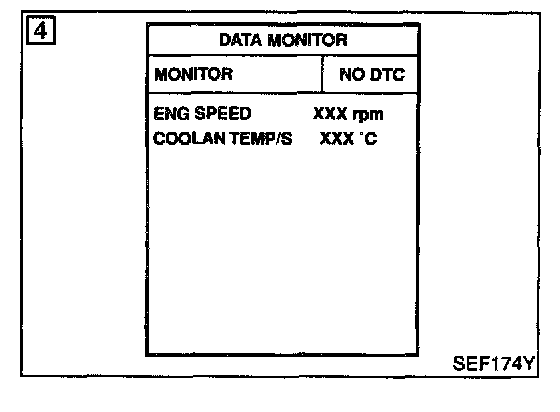

4. Run engine for at least 10 seconds at idle speed.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
With GST
Follow the procedure "With CONSULT-II" above.
PROCEDURE FOR MALFUNCTION D
With CONSULT-II
1. Turn ignition switch "ON".
2. Start engine and warm it up to normal operating temperature. If engine cannot be started, go to "Diagnostic Procedure" below.
3. Select "DATA MONITOR" mode with CONSULT-II.
4. Check the voltage of "MAS A/F SE-B1" with "DATA MONITOR".
5. Increases engine speed to about 4,000 rpm.

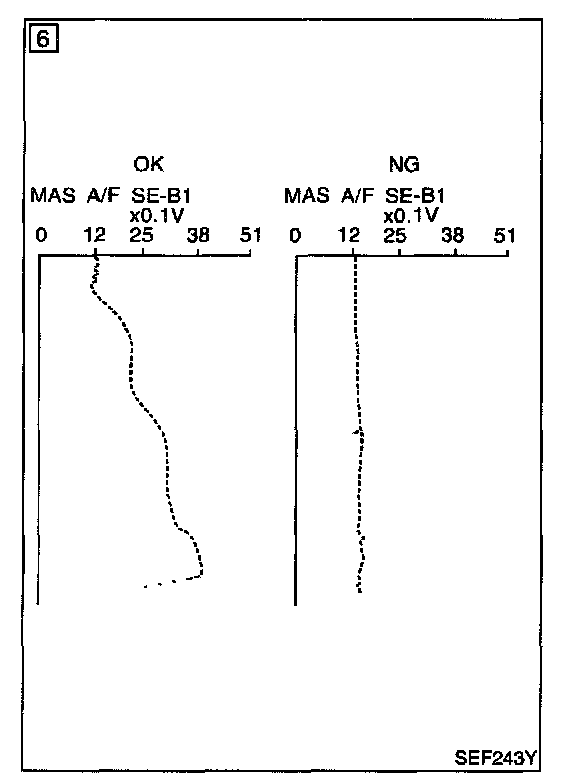

6. Monitor the linear voltage rise in response to engine speed increases.
If NG, go to "Diagnostic Procedure" below.
If OK, go to following step.

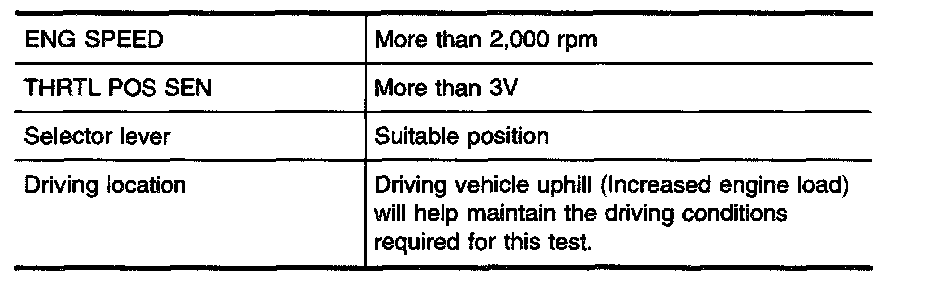

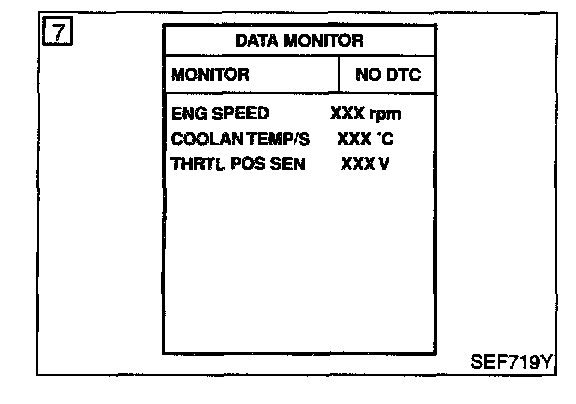

7. Maintain the following conditions for at least 10 consecutive seconds.
8. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
Overall Function Check
Use this procedure to check the overall function of the mass air flow sensor circuit. During this check, a 1st trip DTC might not be confirmed.
PROCEDURE FOR MALFUNCTION D
With GST
1. Turn ignition switch "ON".
2. Start engine and warm it up to normal operating temperature.
3. Select "MODE 1" with GST.
4. Check the mass air flow sensor signal with "MODE 1".
5. Check for linear mass air flow rise in response to increases of about 4,000 rpm in engine speed.
EC-MAFS-01:
EC-MAFS-01 - Connector View:
WIRING DIAGRAM
Joint Connector Terminal Arrangement (F23, F24, F25):

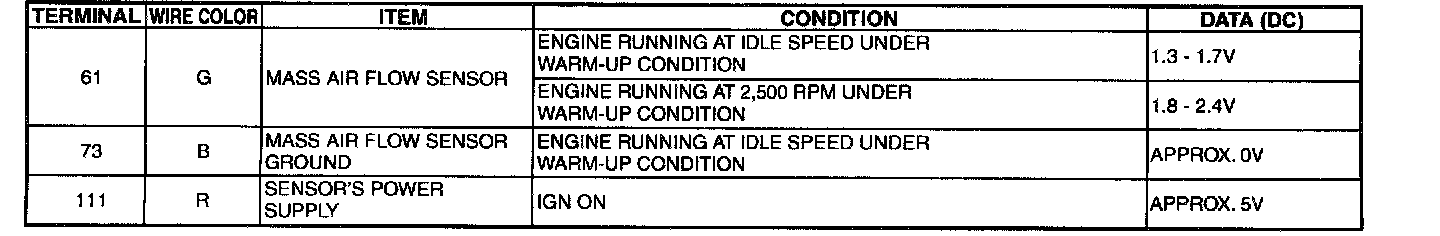

PCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.
CAUTION: DO NOT USE PCM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE PCM'S TRANSISTOR. USE A GROUND OTHER THAN PCM TERMINALS, SUCH AS THE GROUND.
DIAGNOSTIC PROCEDURE

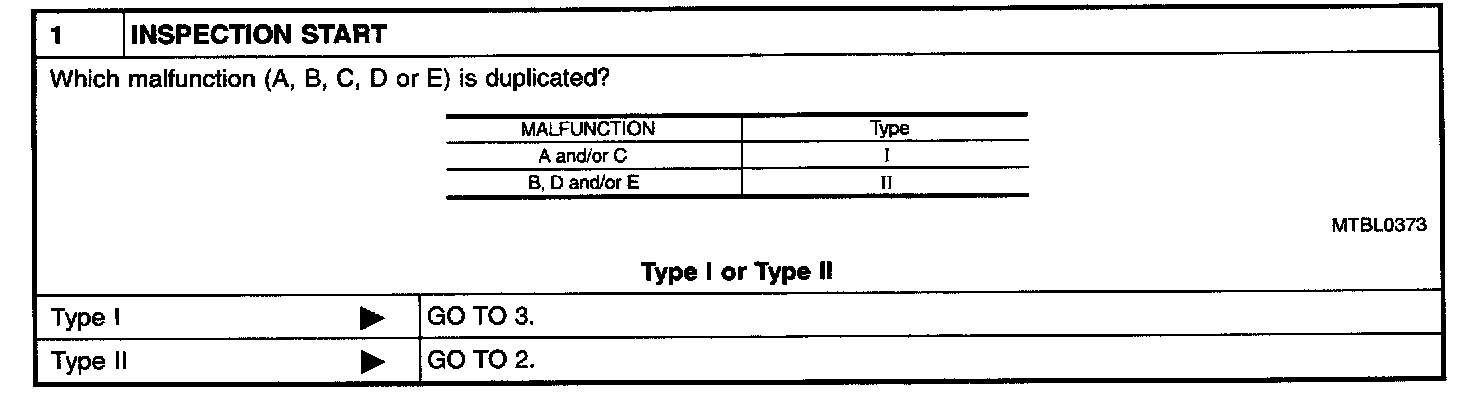

Diagnostic Procedure Step 1:

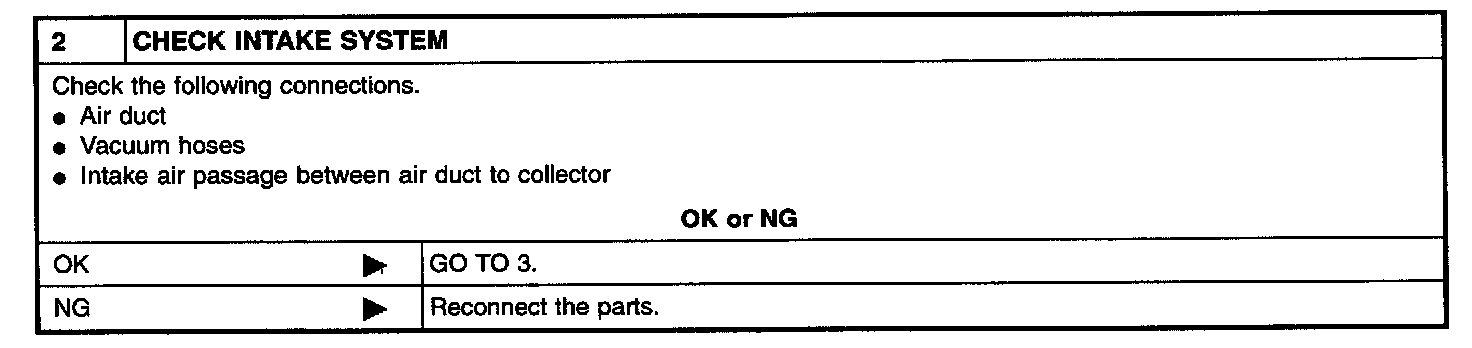

Diagnostic Procedure Step 2:

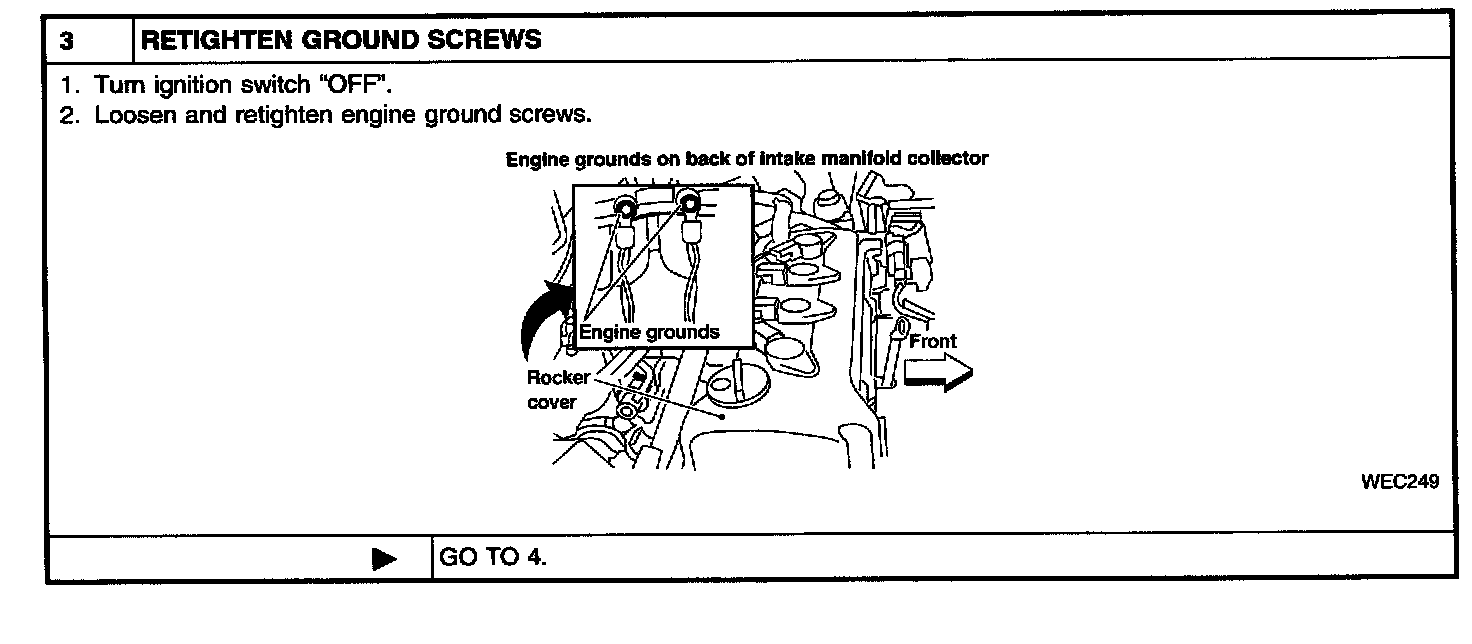

Diagnostic Procedure Step 3:

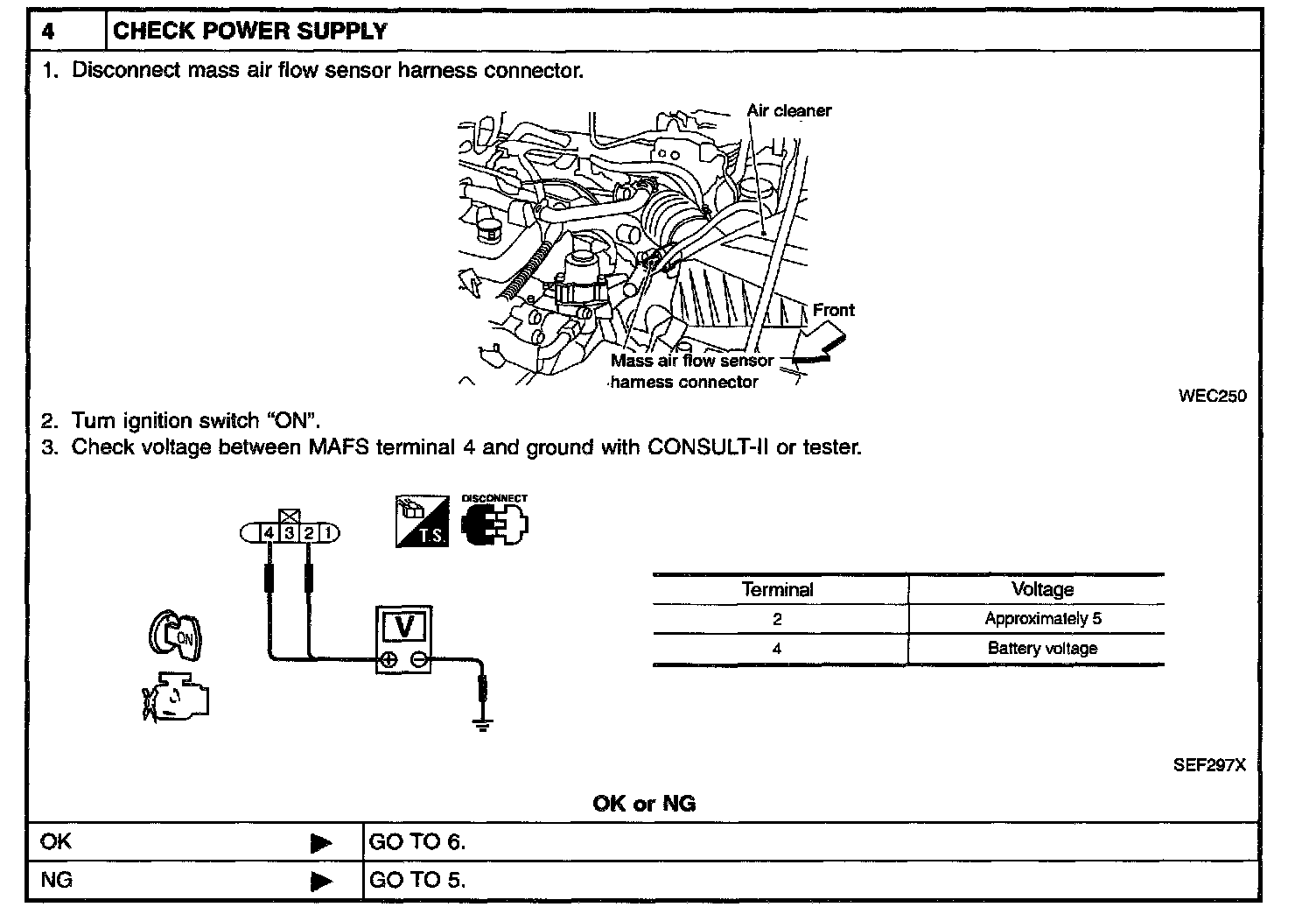

Diagnostic Procedure Step 4:

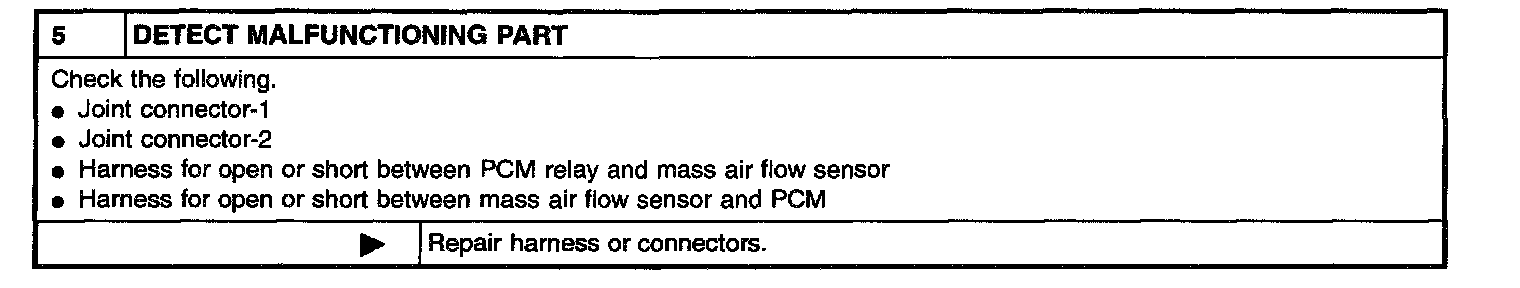

Diagnostic Procedure Step 5:

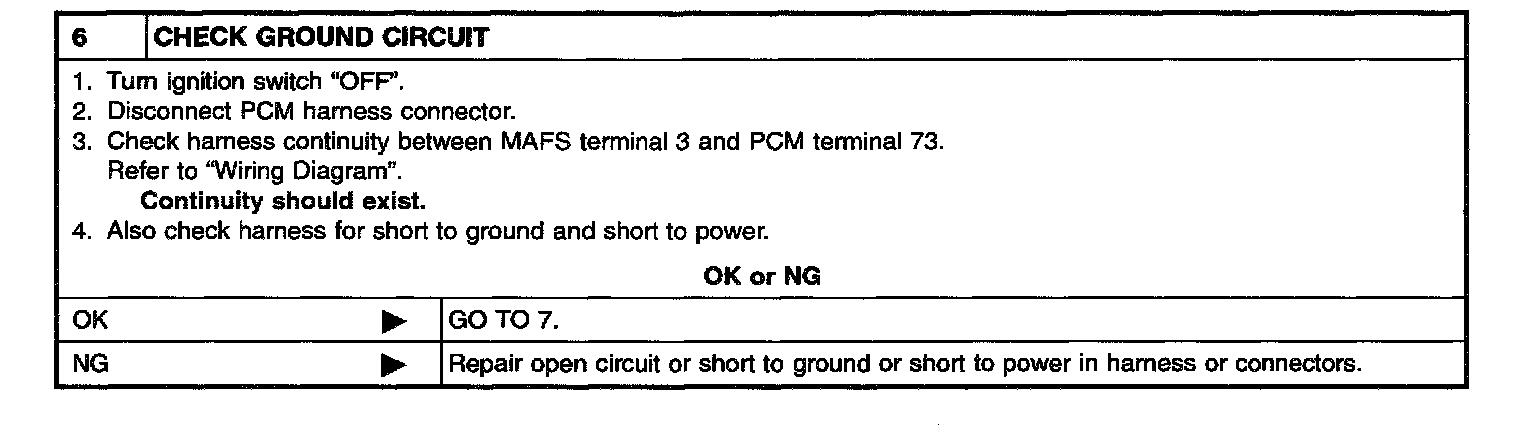

Diagnostic Procedure Step 6:

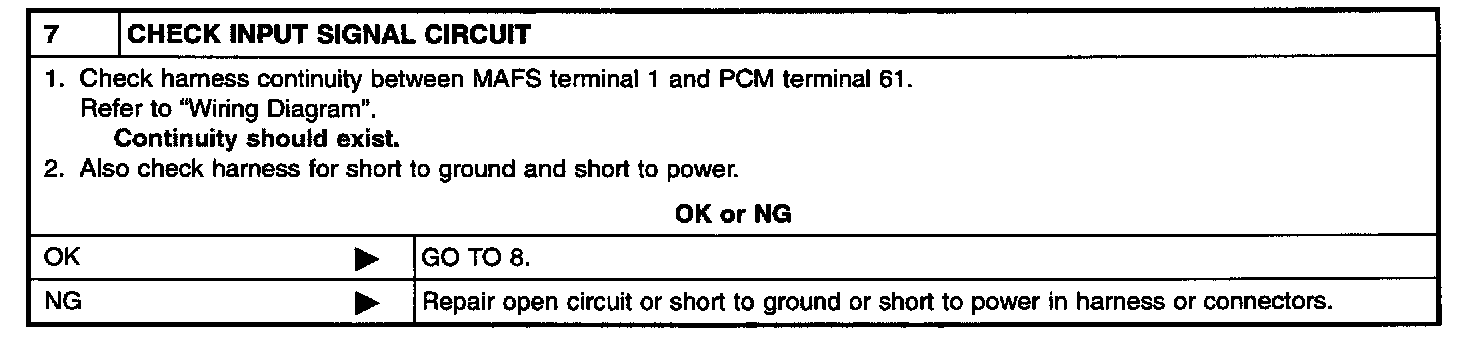

Diagnostic Procedure Step 7:

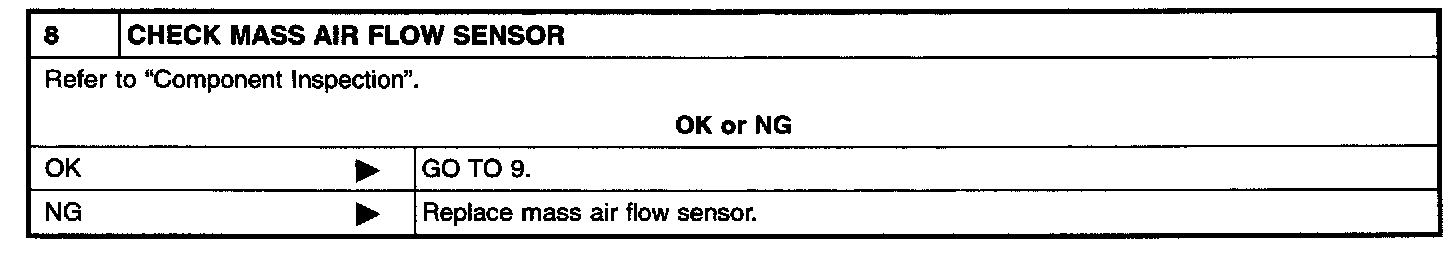

Diagnostic Procedure Step 8:

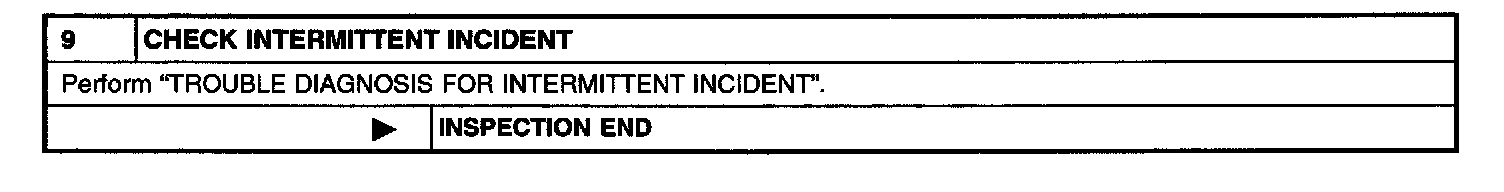

Diagnostic Procedure Step 9:
Component Inspection
MASS AIR FLOW SENSOR
1. Turn ignition switch "ON".
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between PCM terminal 61 (Mass air flow sensor signal) and ground.
4. If the voltage is out of specification, disconnect mass air flow sensor harness connector and connect it again. Repeat above check.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
