Clutch Pedal Assembly: Adjustments
ADJUSTING CLUTCH PEDALPedal Height

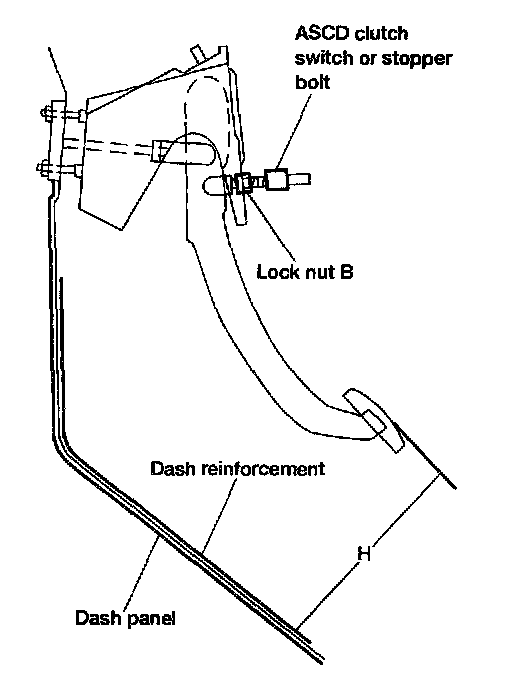

1. Verify that clutch pedal height "H" is within specification.
- Measure distance between the upper surface of dash reinforcement and pedal.
Pedal height "H": 156.1 - 166.1 mm (6.146 - 6.539 inch)
2. Adjust pedal free play with master cylinder push rod. Then tighten lock nut.
Pedal free play "A": 9 - 16 mm (0.35 - 0.63 inch)
- Push or step on clutch pedal until resistance is felt, and check the distance the pedal moves.

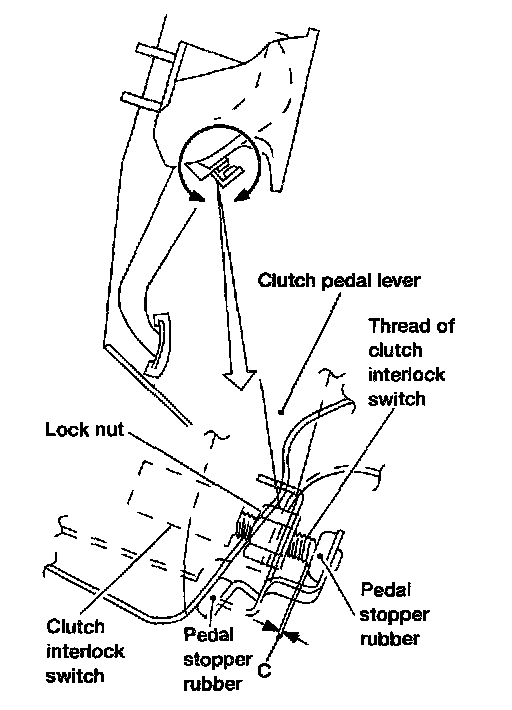

3. Adjust clearance "C" shown in the figure while fully depressing clutch pedal.
Clearance C: 0.1 - 1.0 mm (0.004 - 0.039 inch)
