Description and Operation
>>
Overall System
Overall System

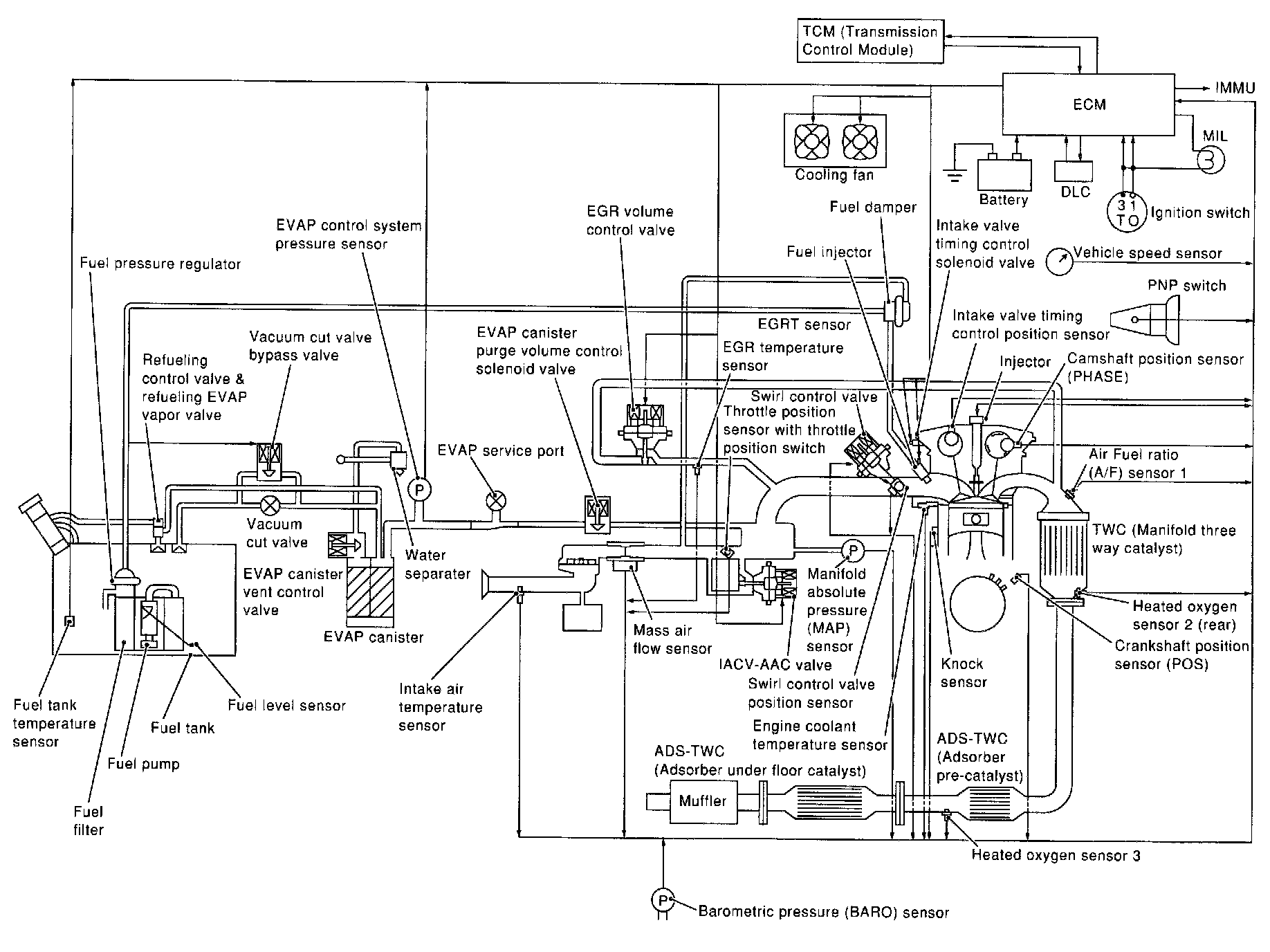

System Diagram - California Only:

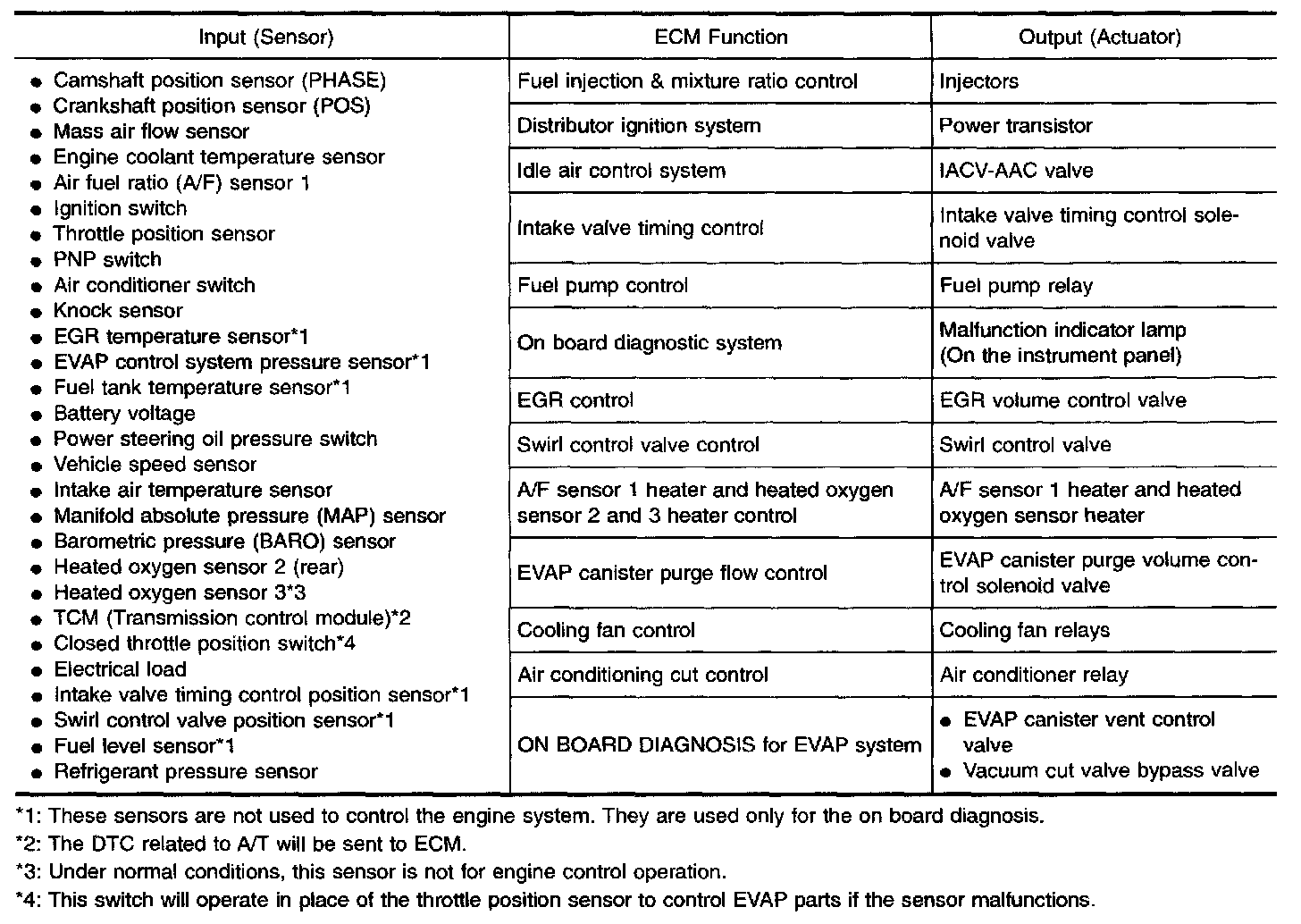

System Chart:

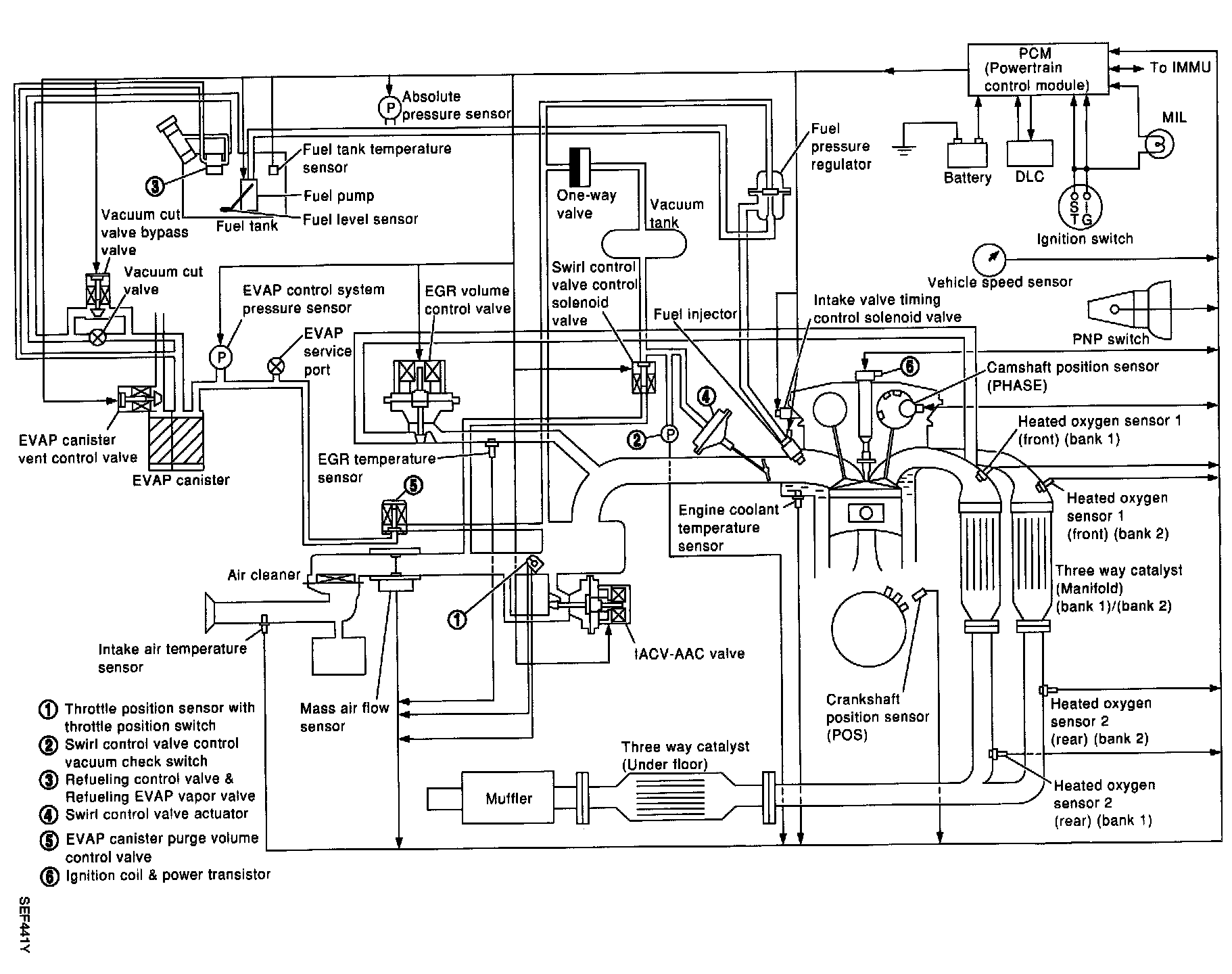

System Diagram:
System Chart:
