Pinout Values and Diagnostic Parameters

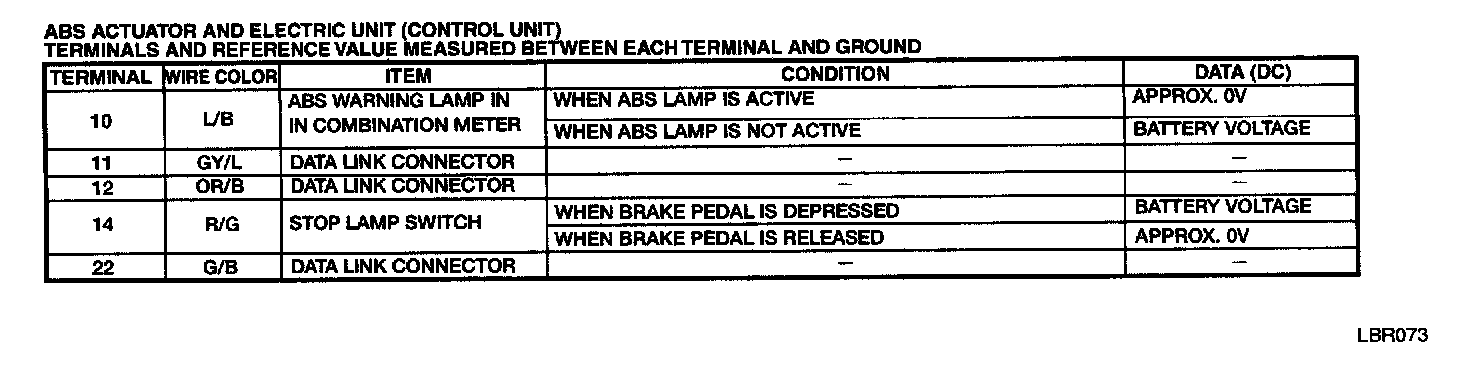

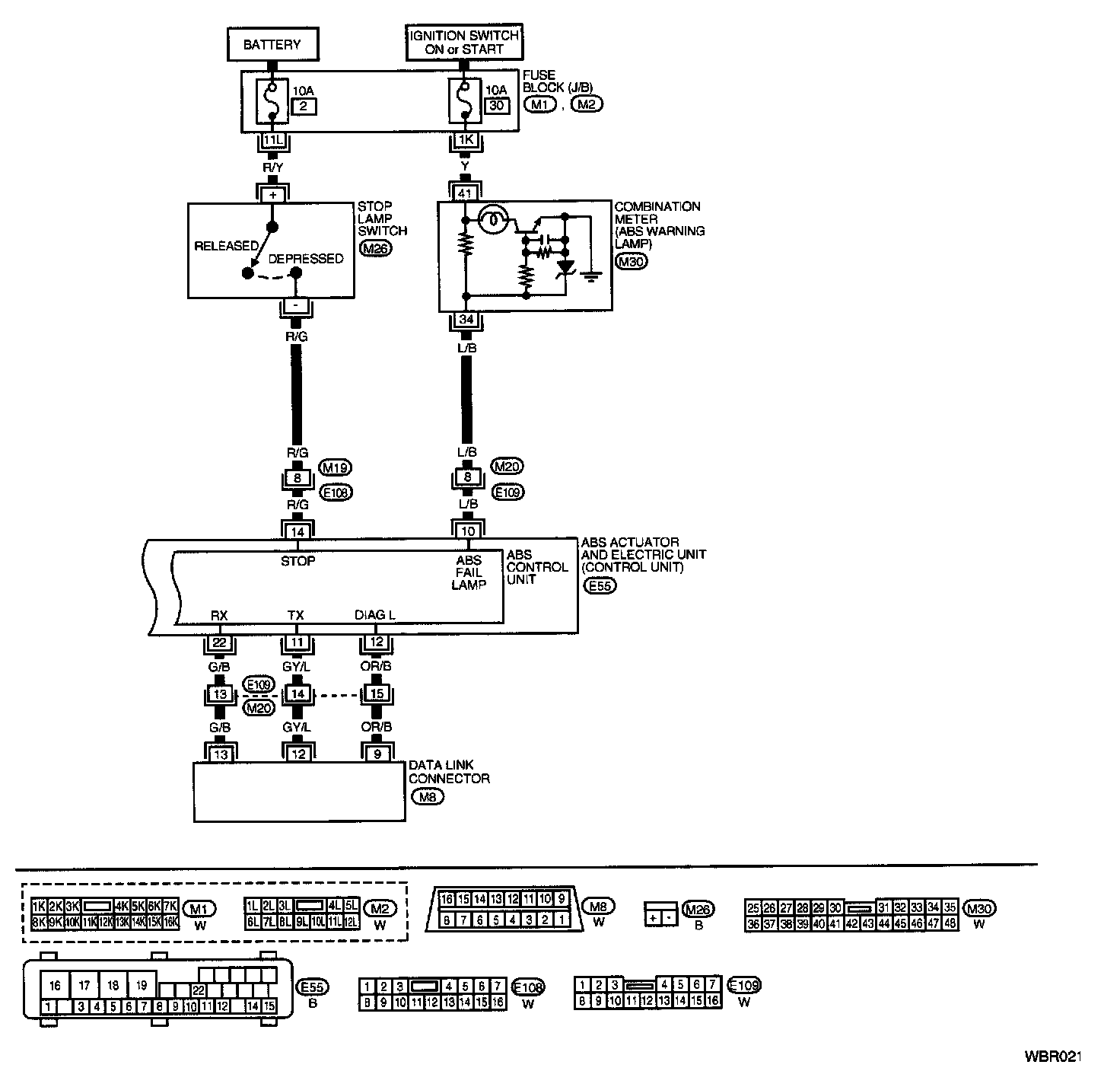

ABS Diagrams, Terminals, and Reference Values

NOTE: All reference values are measured between each terminal and ground.








ABS Actuator and Electrical Control Unit








ABS Actuator and Electrical Control Unit
Wheel Speed Sensors








ABS Actuator and Electrical Control Unit
ABS Warning Lamp
Stop Lamp Switch
Data Link Connector
