P0600

SYSTEM DESCRIPTION
These circuit lines are used to control the smooth shifting up and down of A/T during the hard acceleration/deceleration. Voltage signals are exchanged between ECM and TCM (Transmission control module).

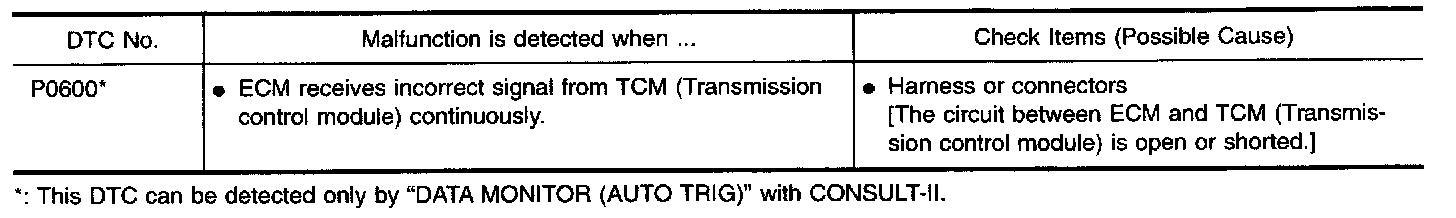

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10.5 V with ignition switch "ON".

With CONSULT-II
1. Turn ignition switch "ON".

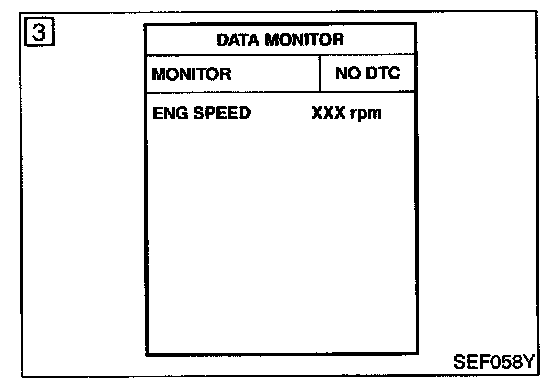

2. Select "DATA MONITOR" mode with CONSULT-II.




3. Wait at least 10 seconds.
4. If DTC is detected, go to "Diagnostic Procedure" below.

EC-AT/C-01:

EC-AT/C-01 - Connector View:

WIRING DIAGRAM

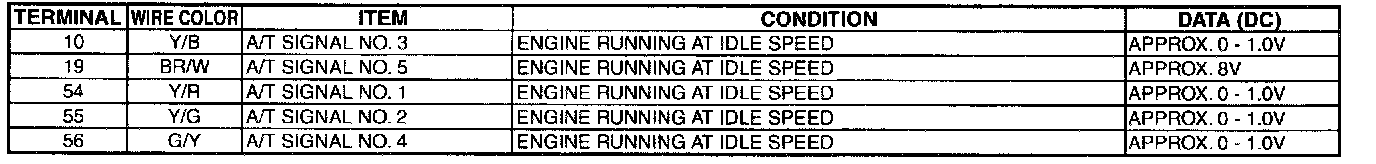

ECM Terminals And Reference Value:

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.

CAUTION: DO NOT USE ECM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE ECM'S TRANSISTOR. USE A GROUND OTHER THAN ECM TERMINALS SUCH AS THE GROUND.

DIAGNOSTIC PROCEDURE

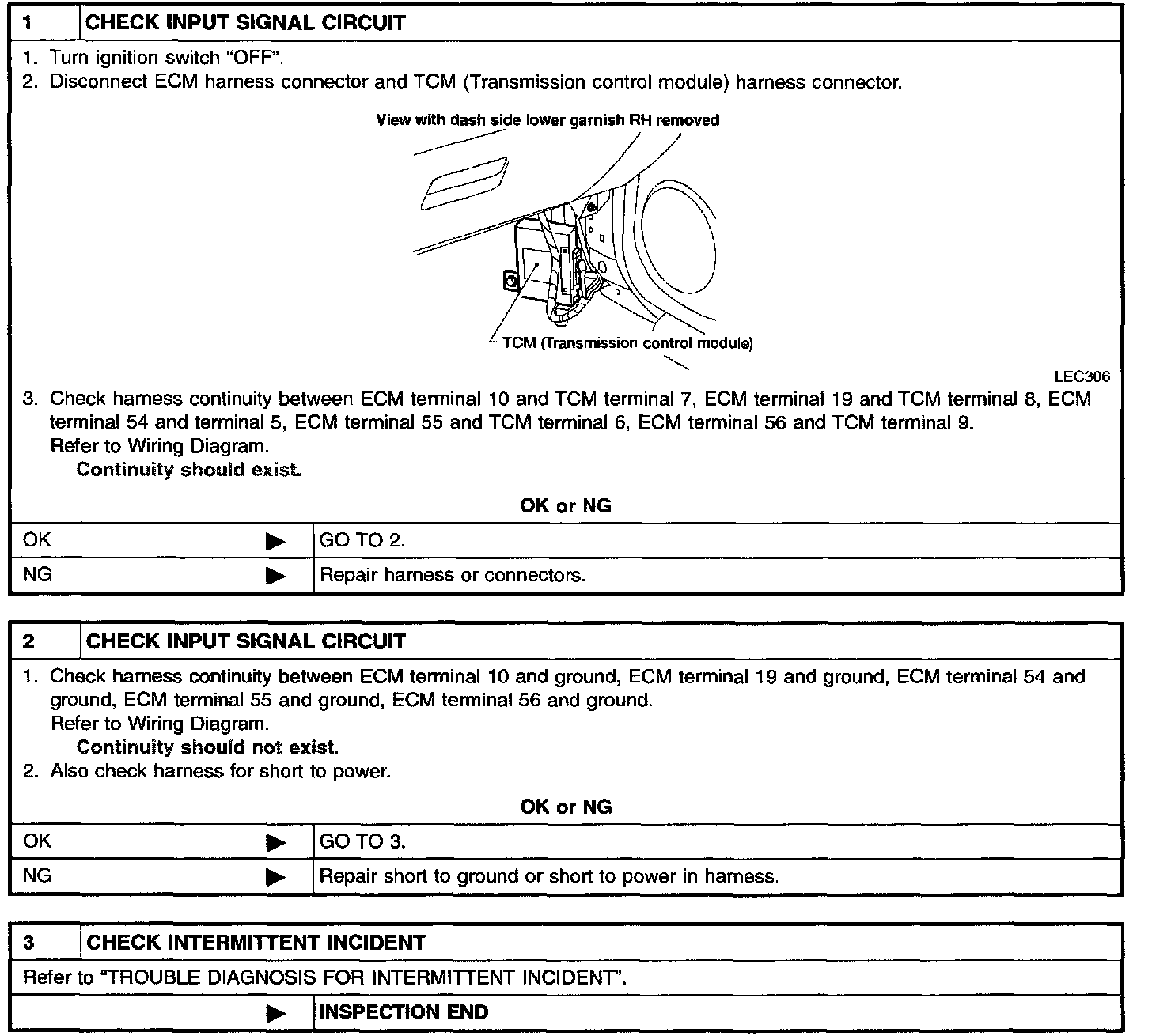

Diagnostic Procedure Steps 1 - 3:
