P0443

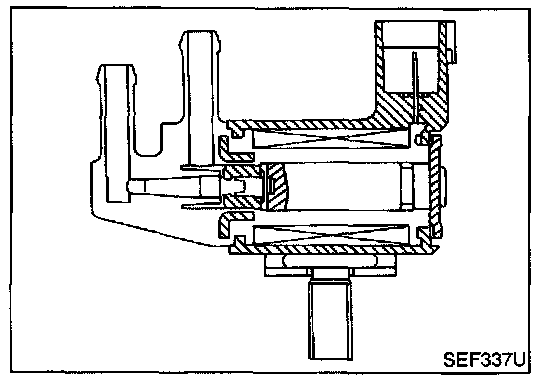

COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/OFF duty to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

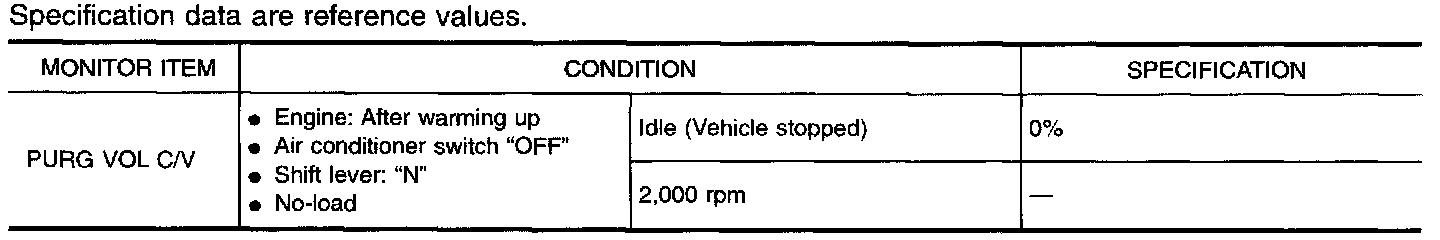

CONSULT-II Reference Value In Data Monitor Mode:
ON BOARD DIAGNOSIS LOGIC
Malfunction is detected when an improper voltage signal is sent to ECM through the valve.
Possible Cause
- Harness or connectors
(The valve circuit is open or shorted.)
- EVAP canister purge volume control solenoid valve
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm battery voltage is more than 11 V at idle.
WITH CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for at least 13 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "WITH CONSULT-II" above.
EC-PGC/V-01:

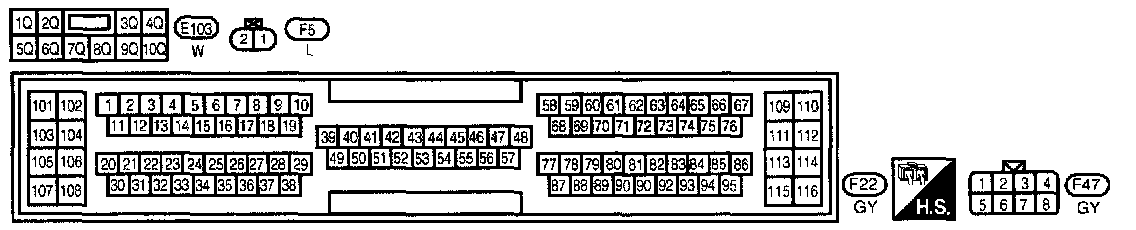

EC-PGC/V-01 - Connector View:
WIRING DIAGRAM

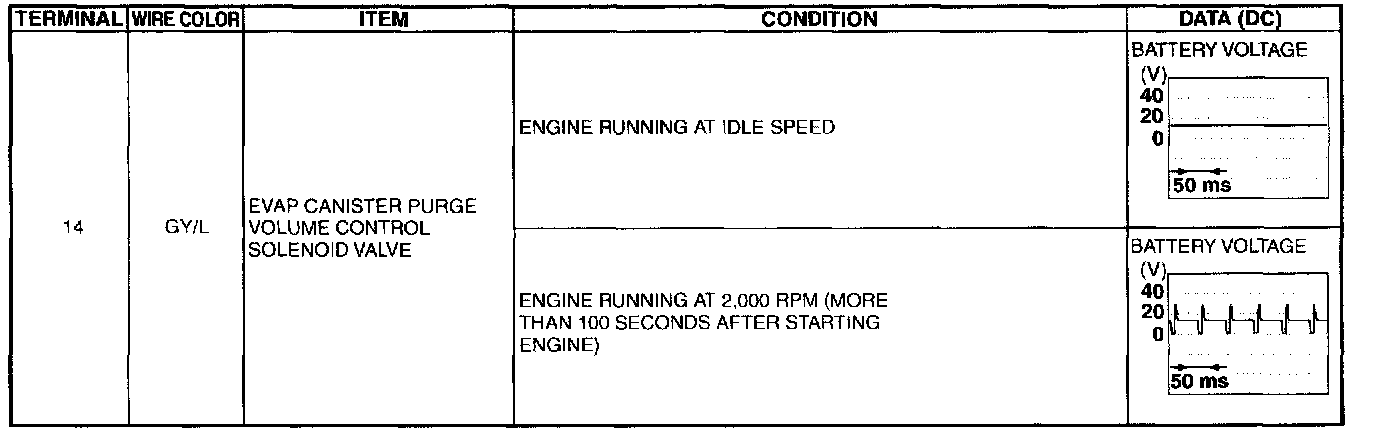

ECM Terminals And Reference Value:
ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.
CAUTION: DO NOT USE ECM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE ECM'S TRANSISTOR. USE A GROUND OTHER THAN ECM TERMINALS, SUCH AS THE GROUND.
DIAGNOSTIC PROCEDURE

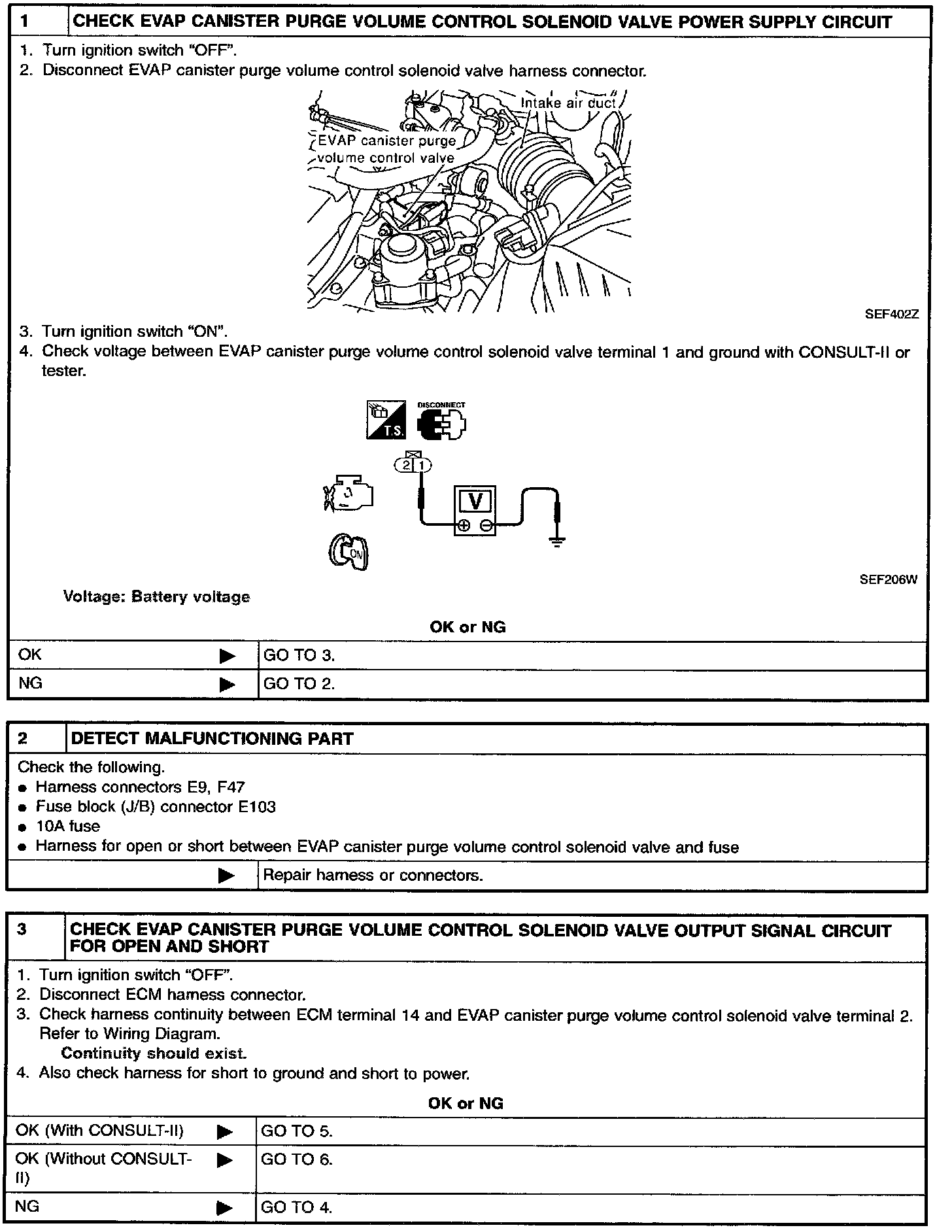

Diagnostic Procedure Steps 1 - 3:

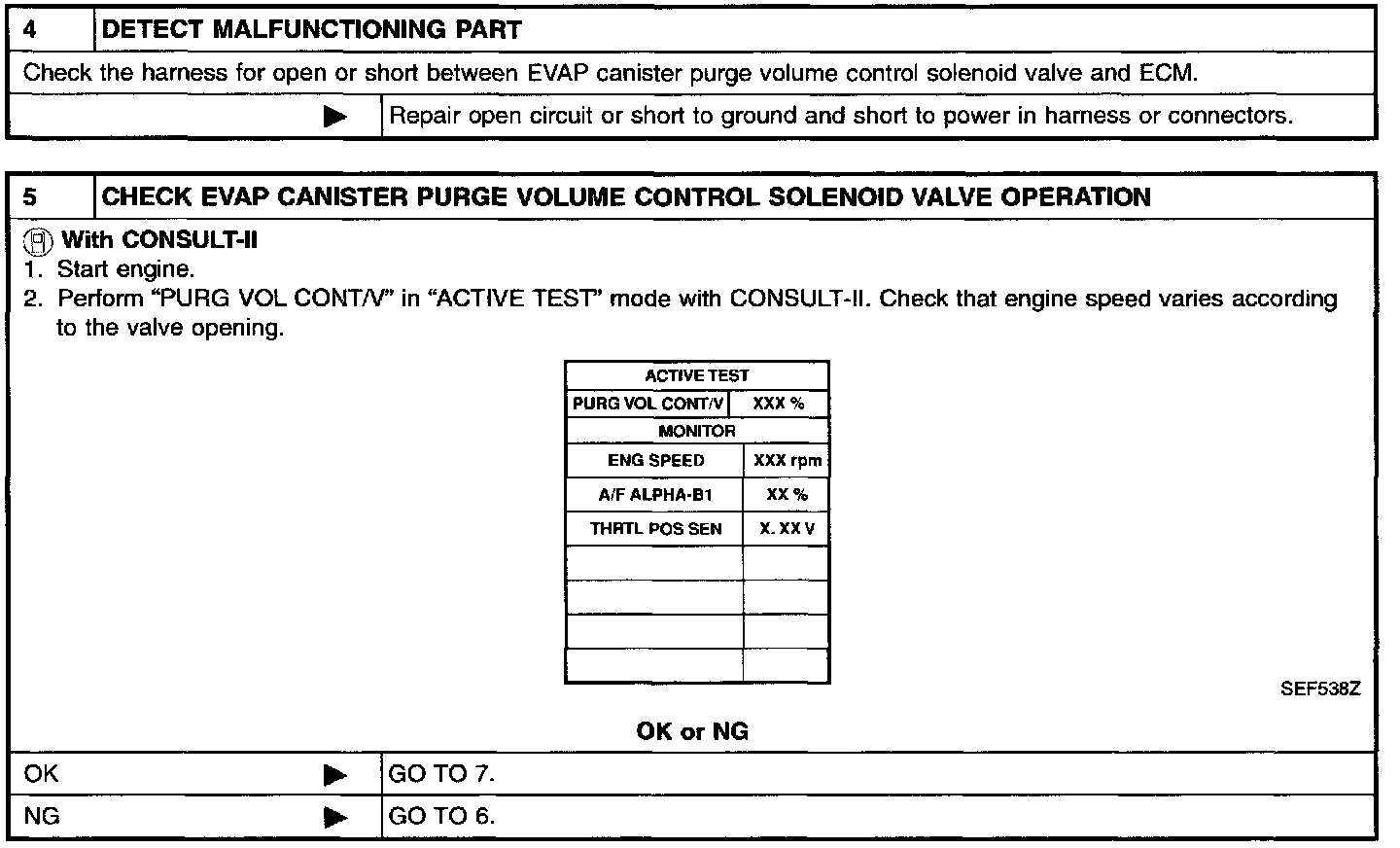

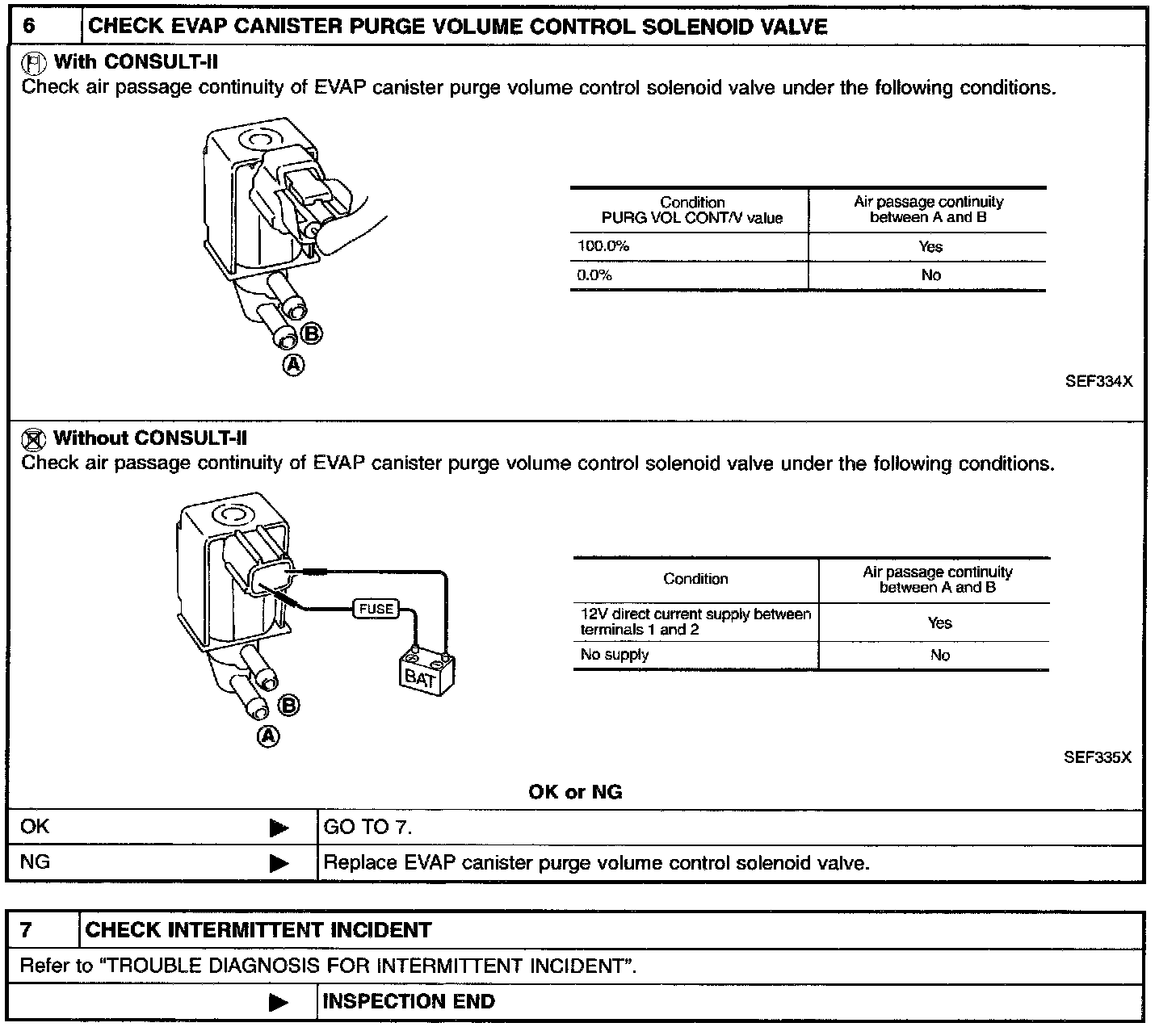

Diagnostic Procedure Steps 4 - 5:
