Engine Control System

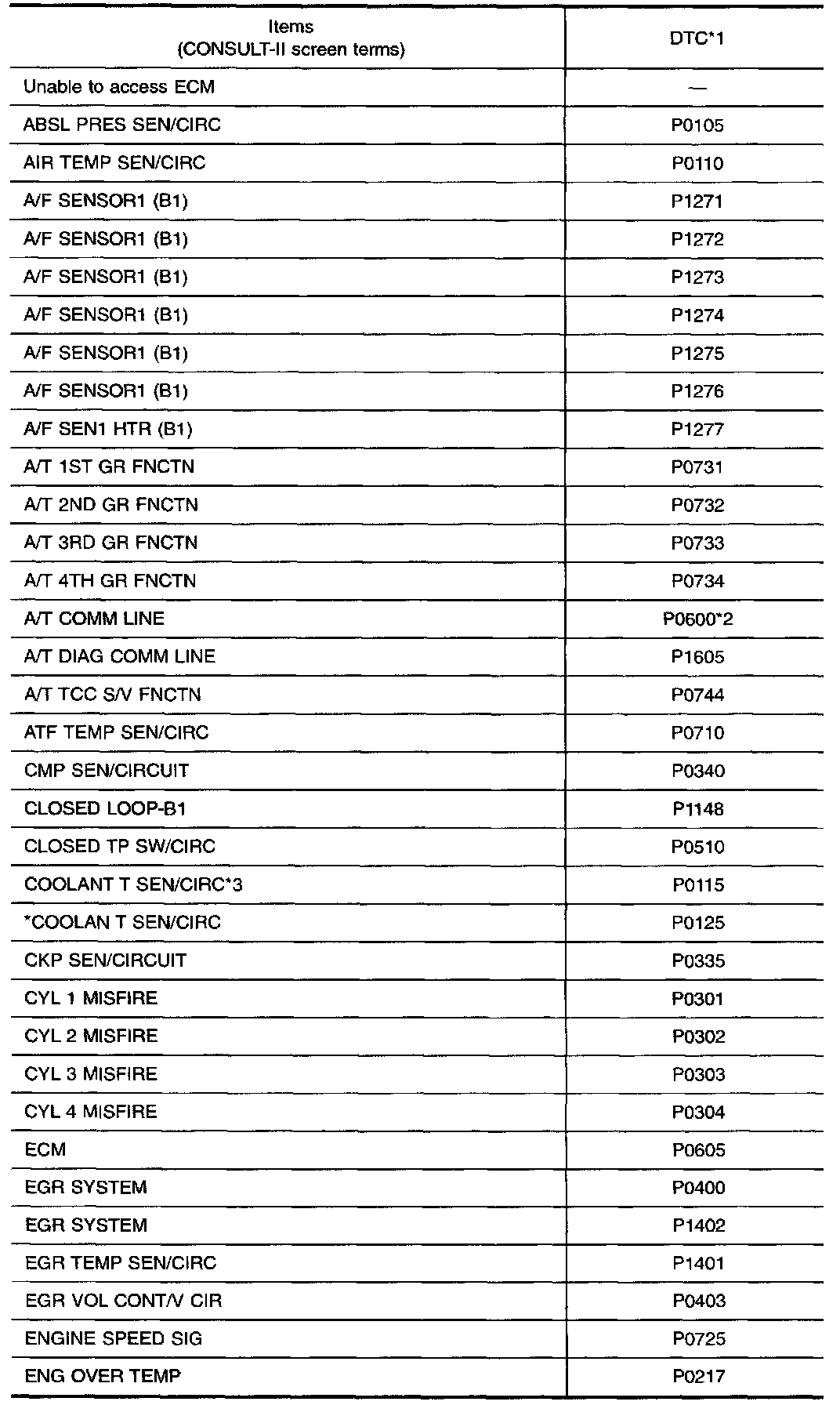

Alphabetical Index For DTC (Part 1 Of 3):

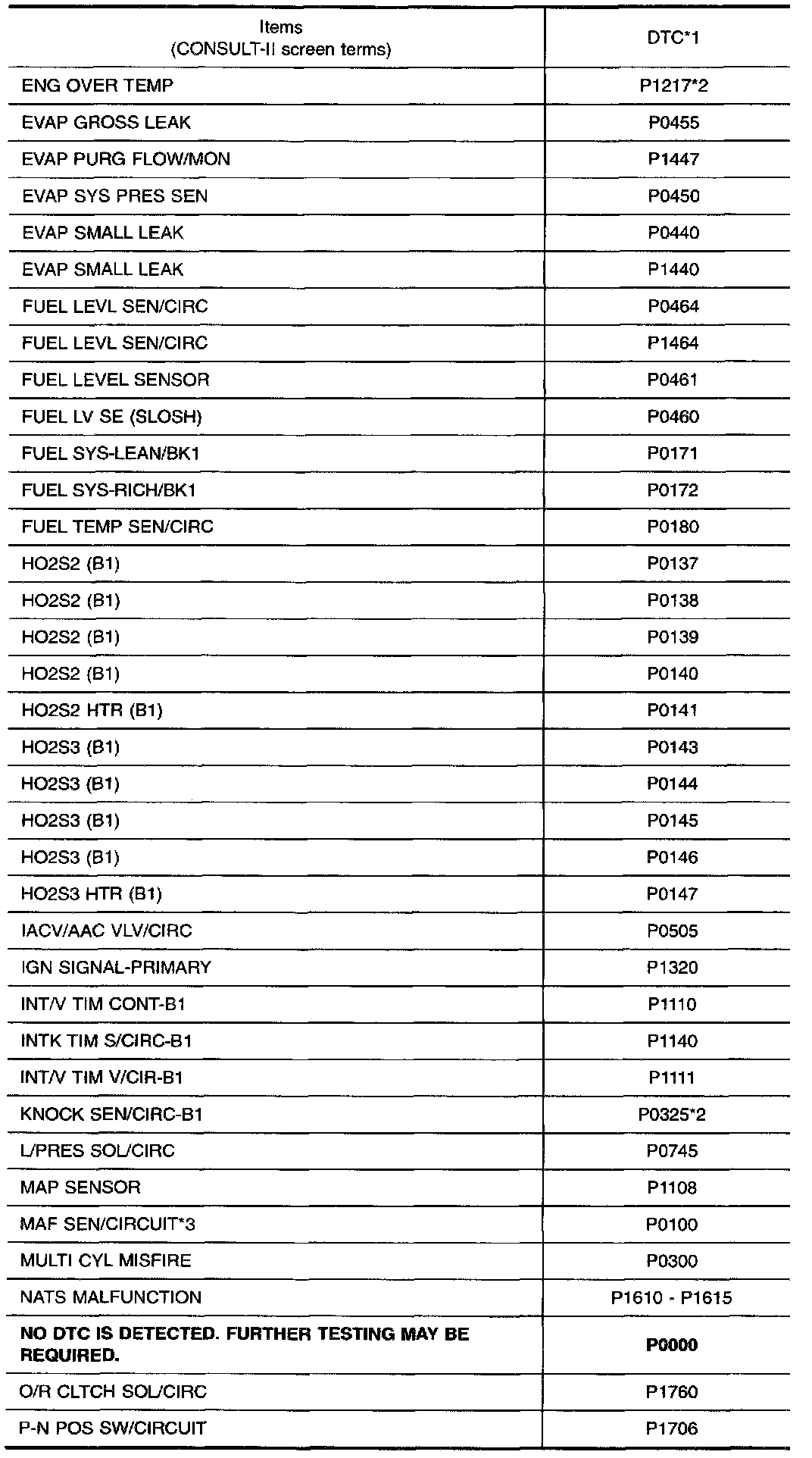

Alphabetical Index For DTC (Part 2 Of 3):

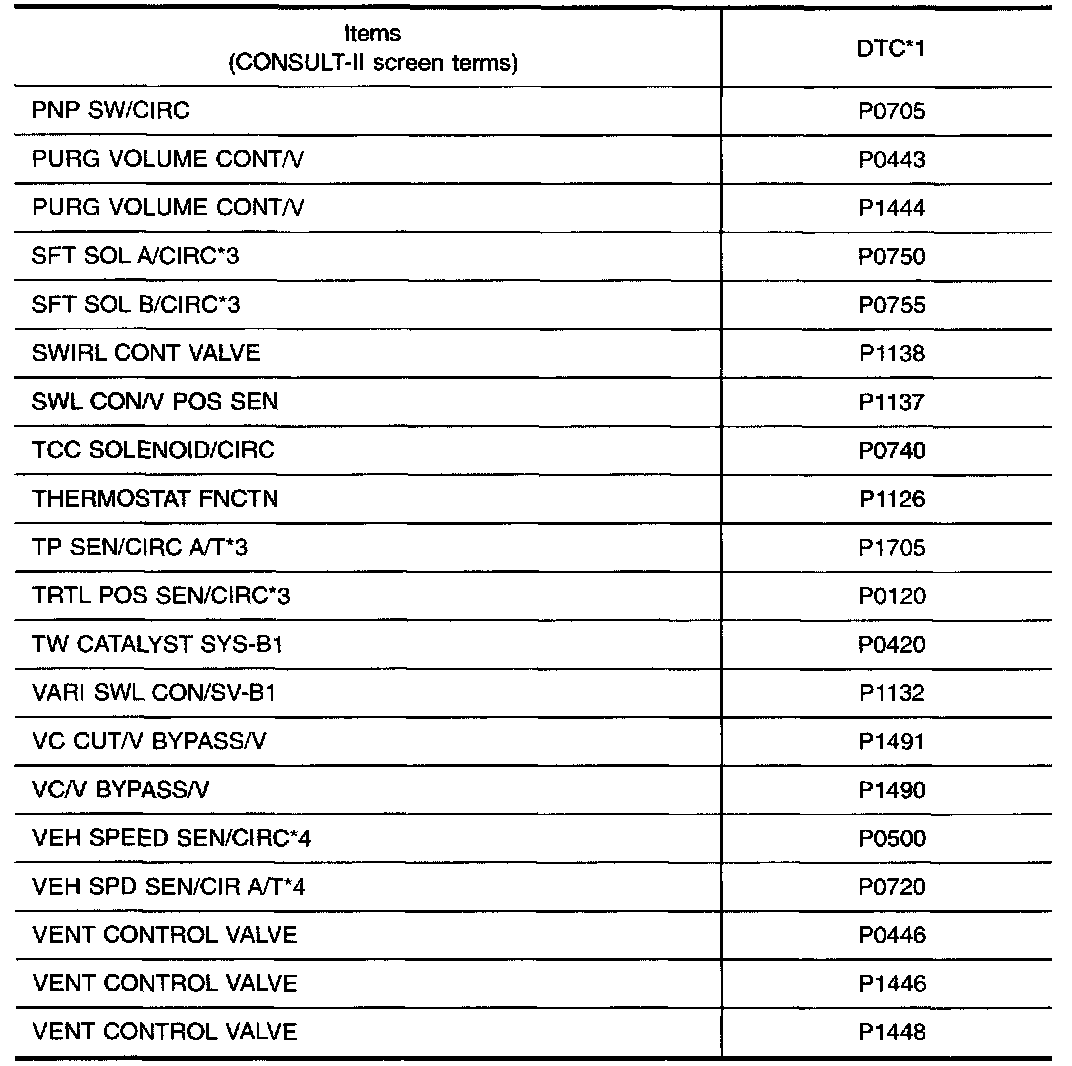

Alphabetical Index For DTC (Part 3 Of 3):

ALPHABETICAL & P NO. INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.

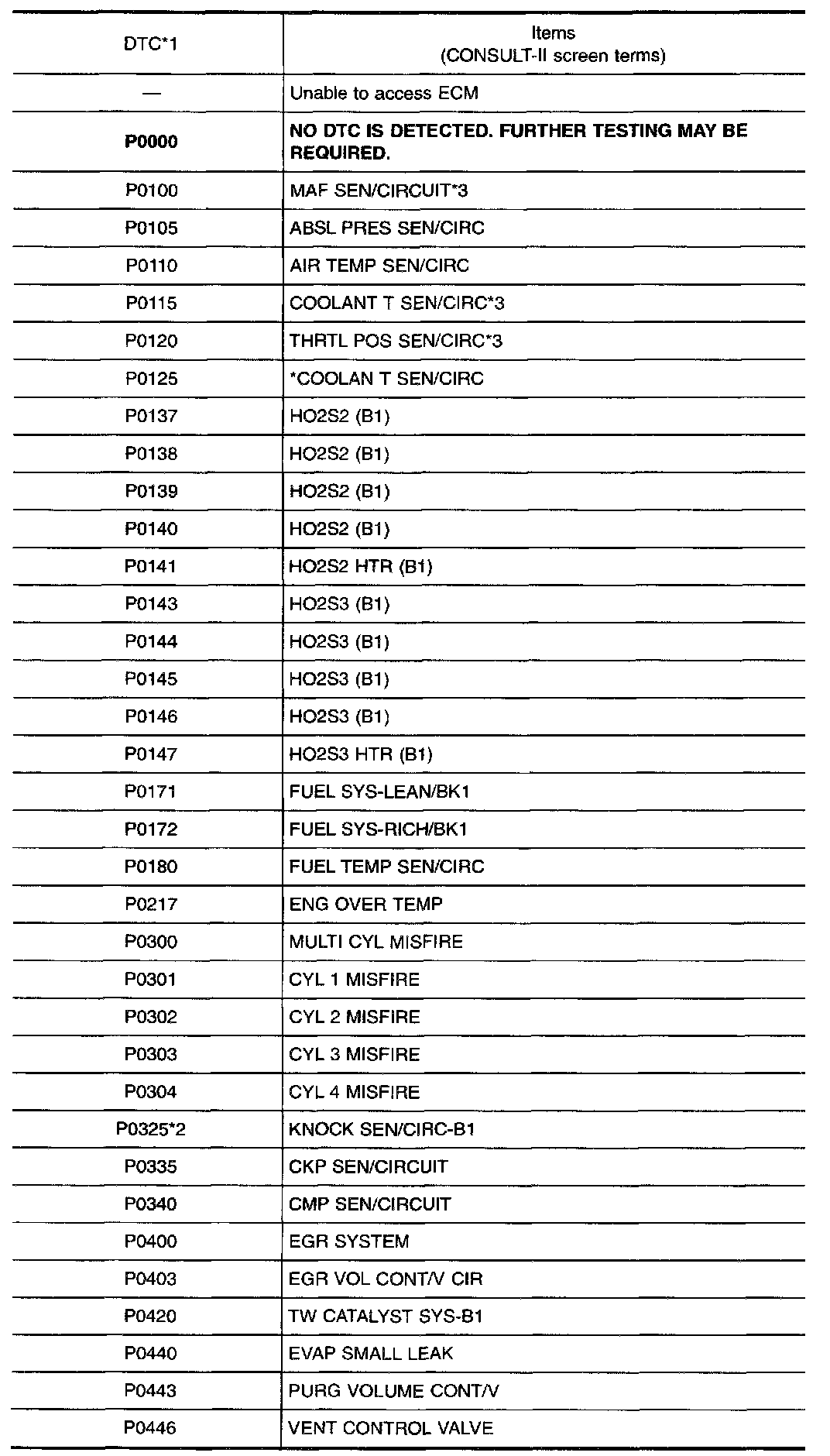

P0000 - P0446:

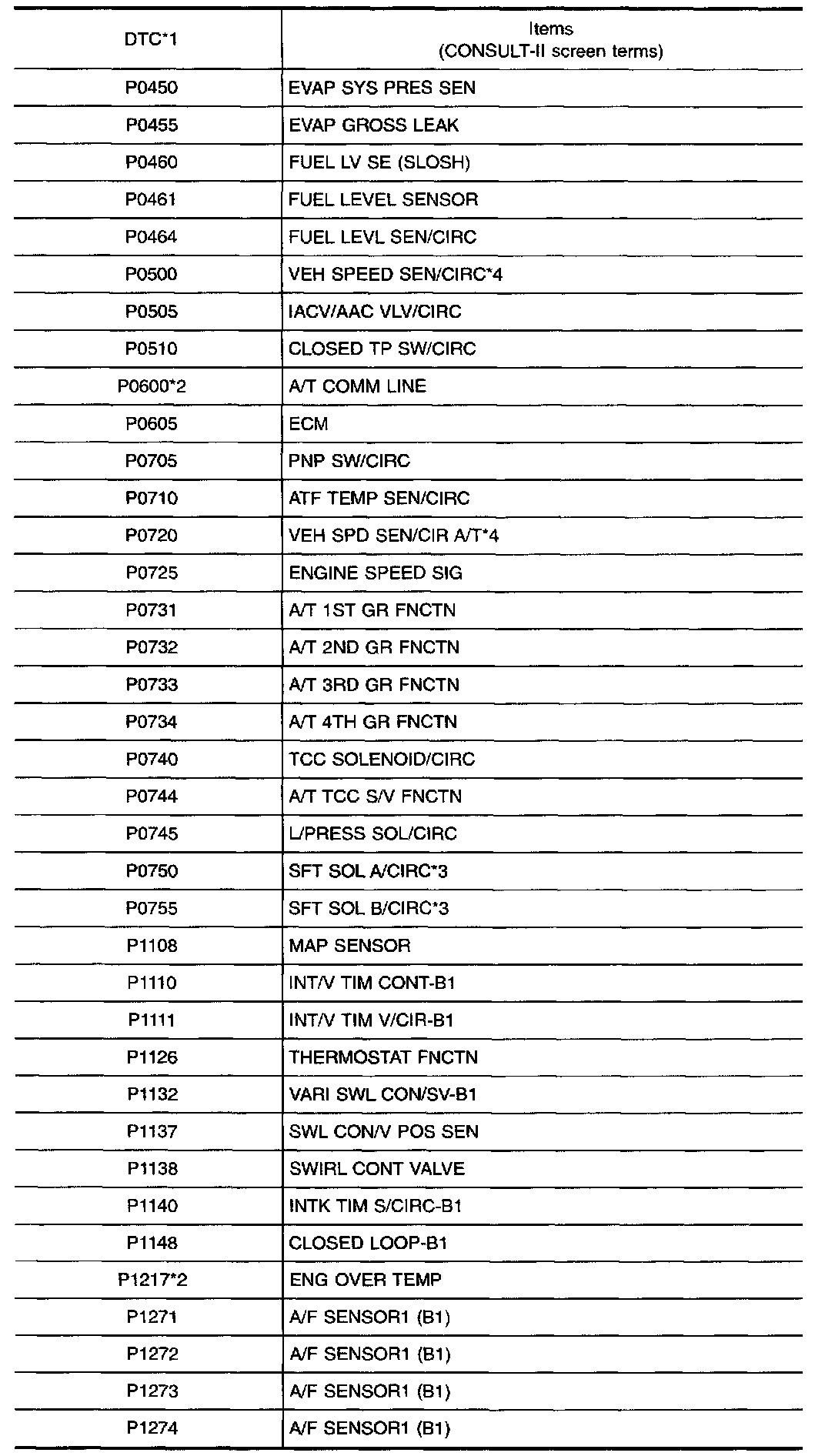

P0450 - P1274:

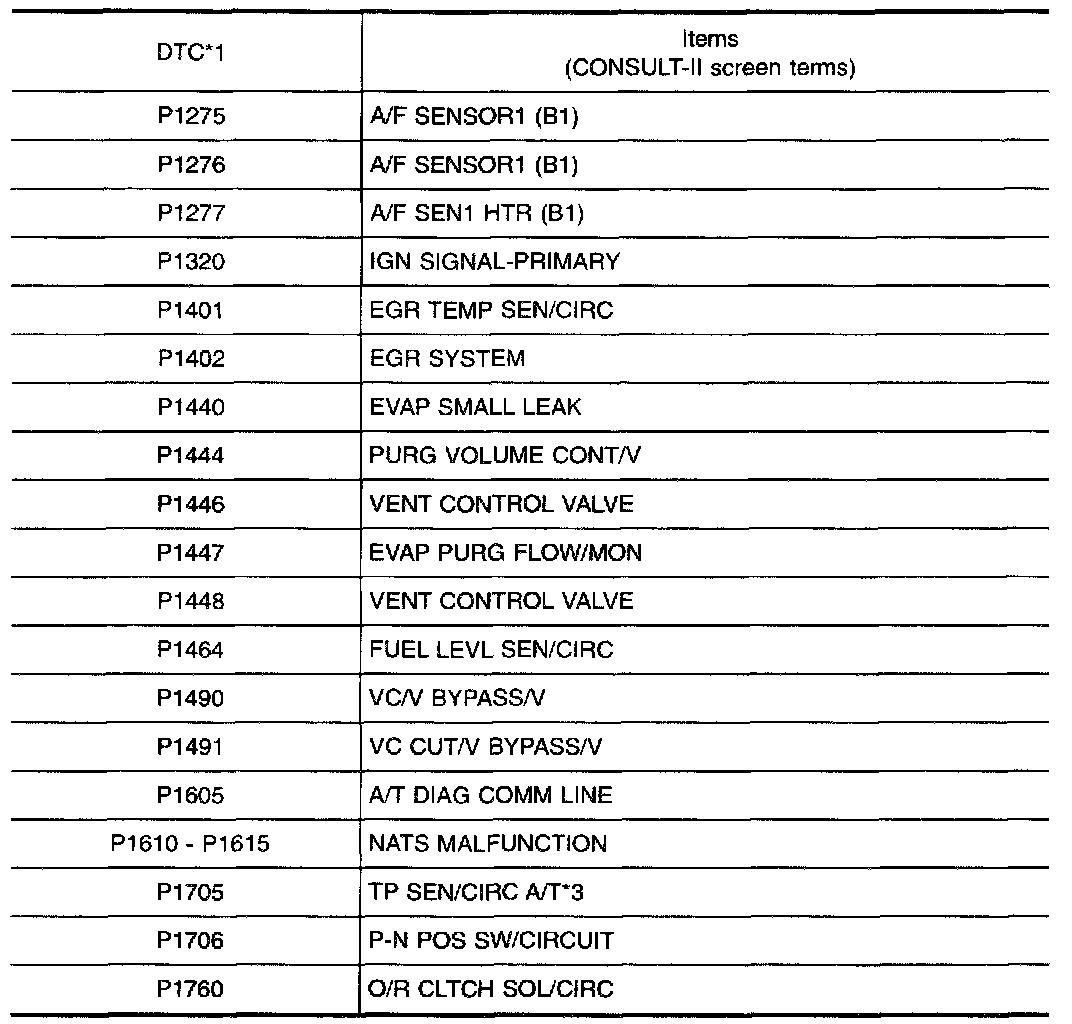

P1275 - P1760:

P NO. INDEX FOR DTC
*1; 1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.
