Home >> Nissan-Datsun >> 2000 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Testing and Inspection

Heated Glass Element Relay: Testing and Inspection

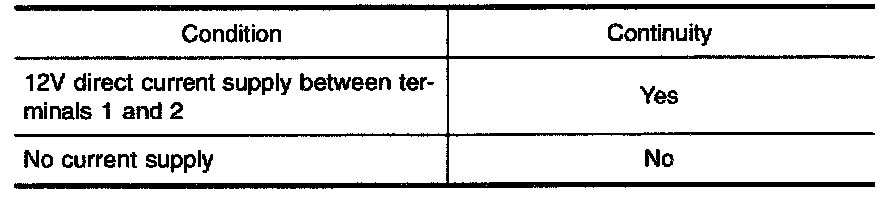

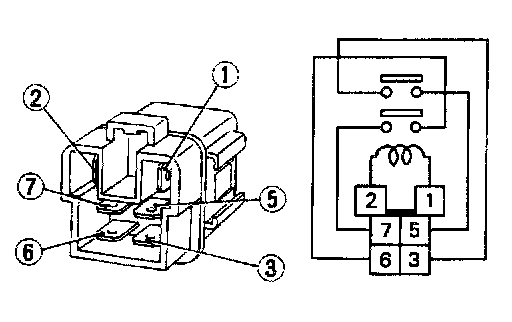

Check continuity between terminals 3 and 5, 6 and 7.
