Shift Interlock: Testing and Inspection

Diagnostic Procedure

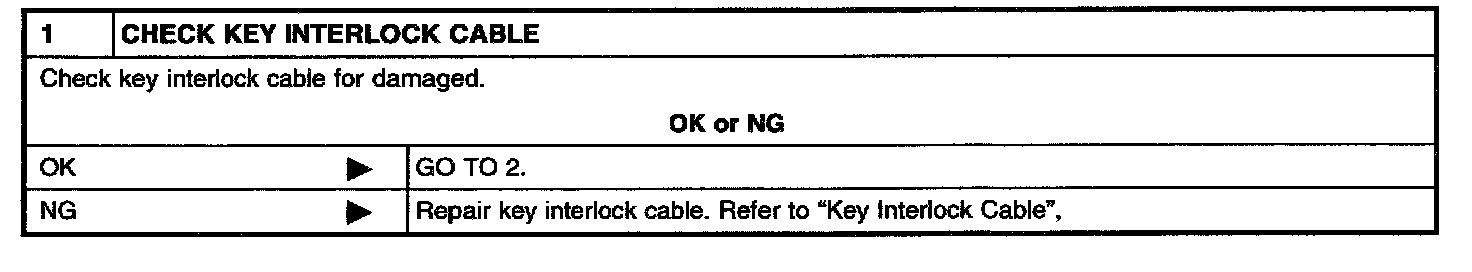

1: CHECK KEY INTERLOCK CABLE

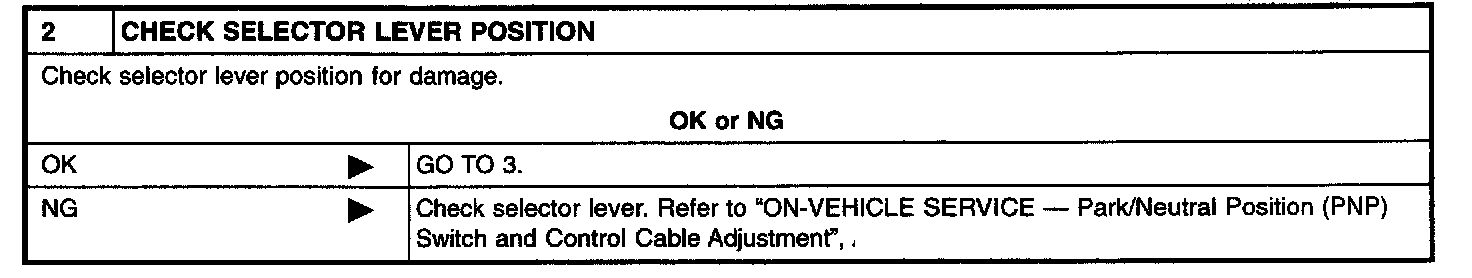

2: CHECK SELECTOR LEVER POSITION

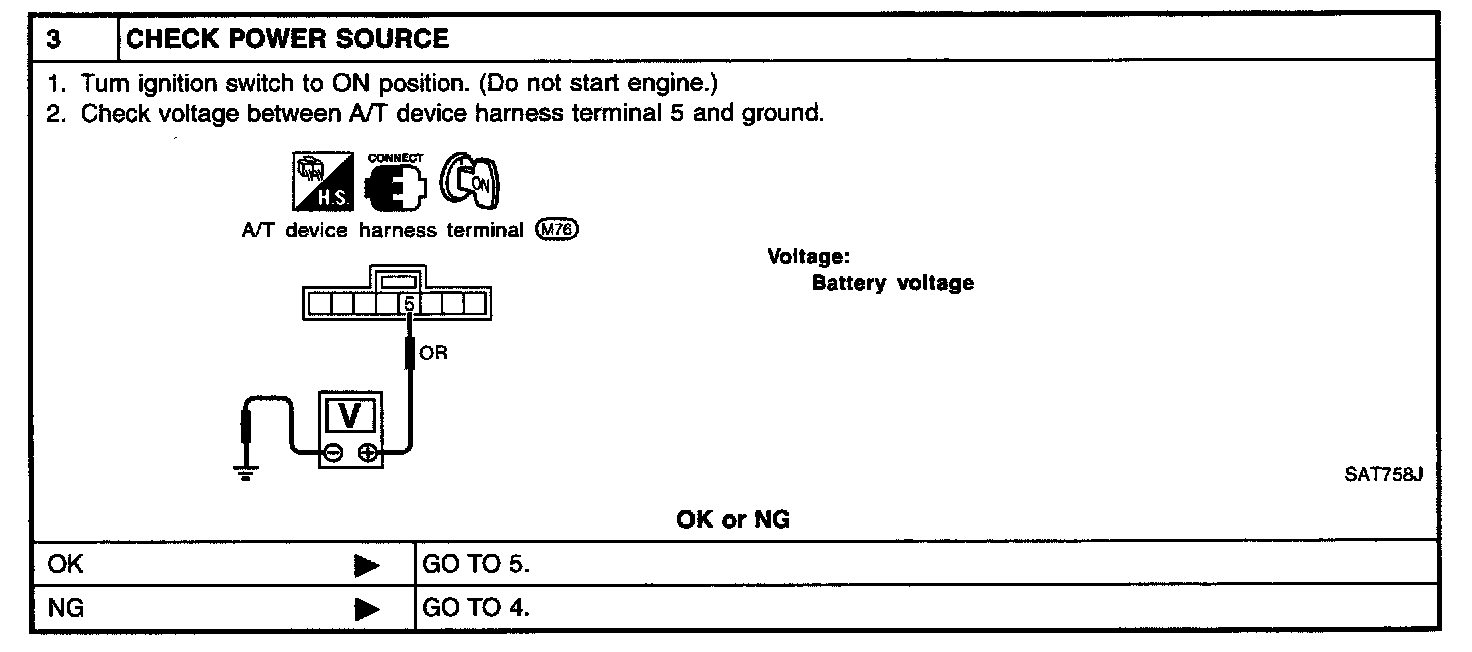

3: CHECK POWER SOURCE

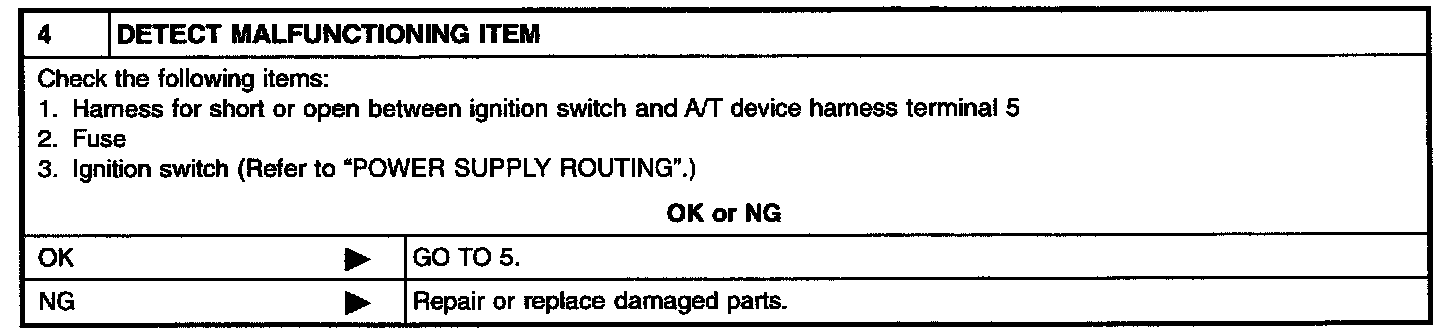

4: DETECT MALFUNCTIONING ITEM

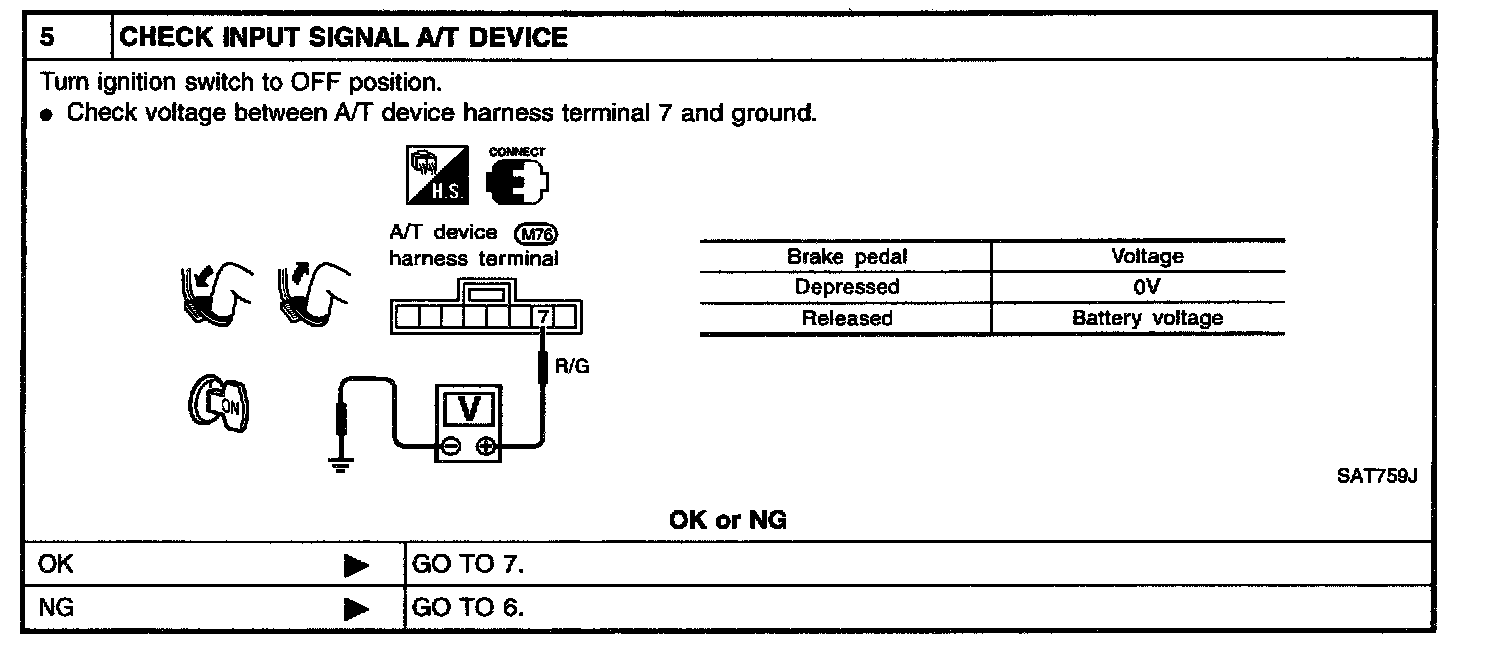

5: CHECK INPUT SIGNAL A/T DEVICE

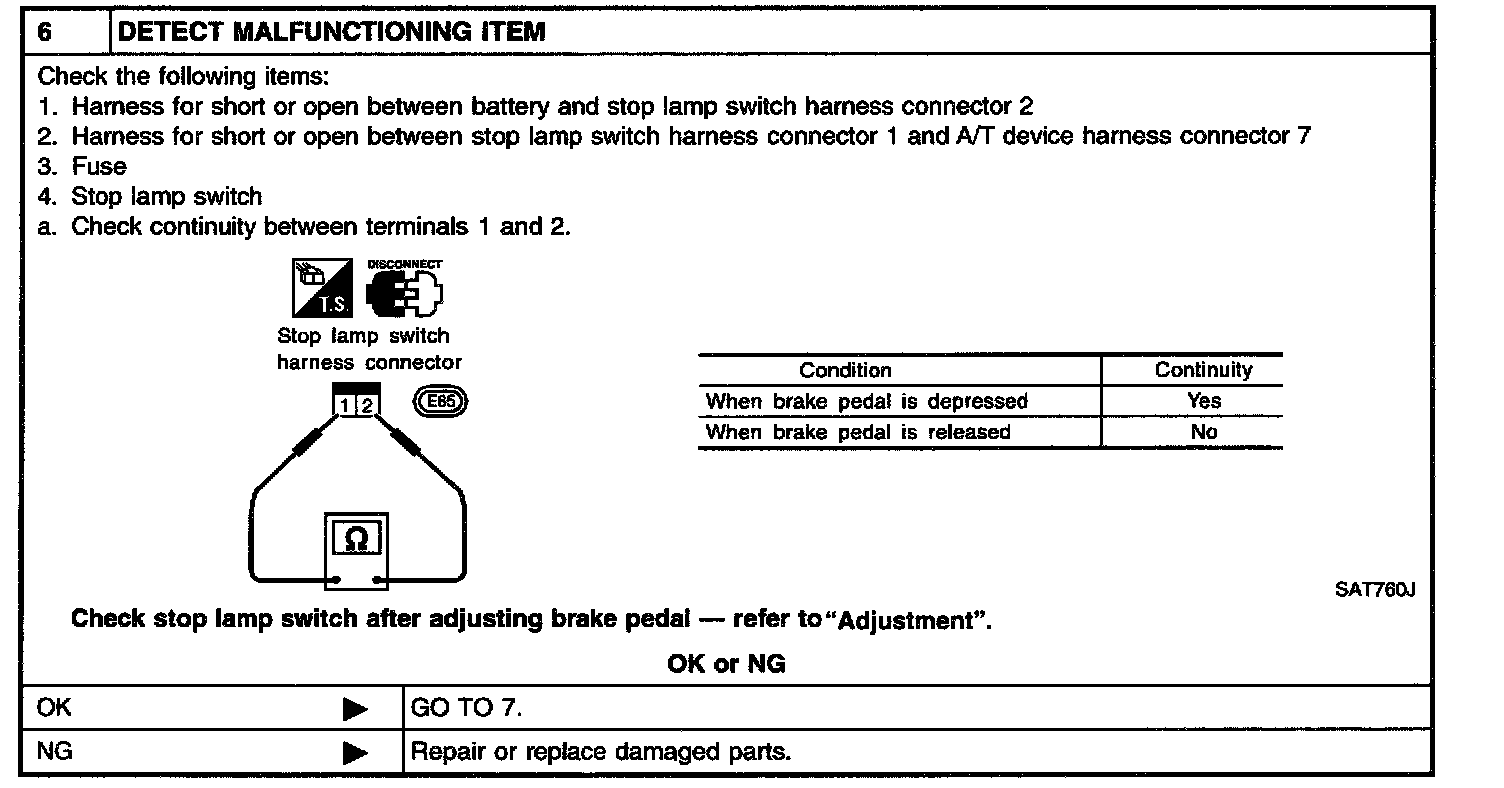

6: DETECT MALFUNCTIONING ITEM

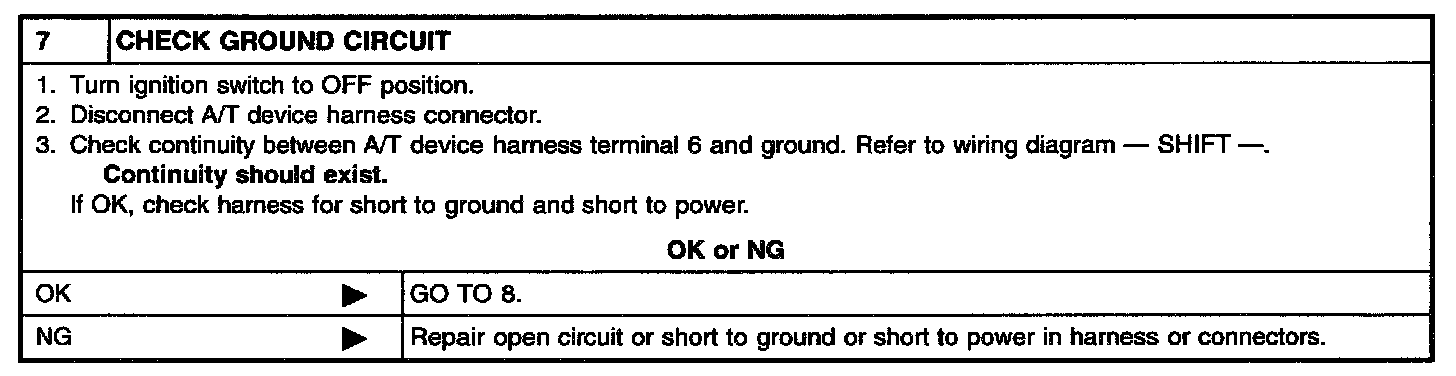

7: CHECK GROUND CIRCUIT





8: CHECK RELAY CIRCUIT

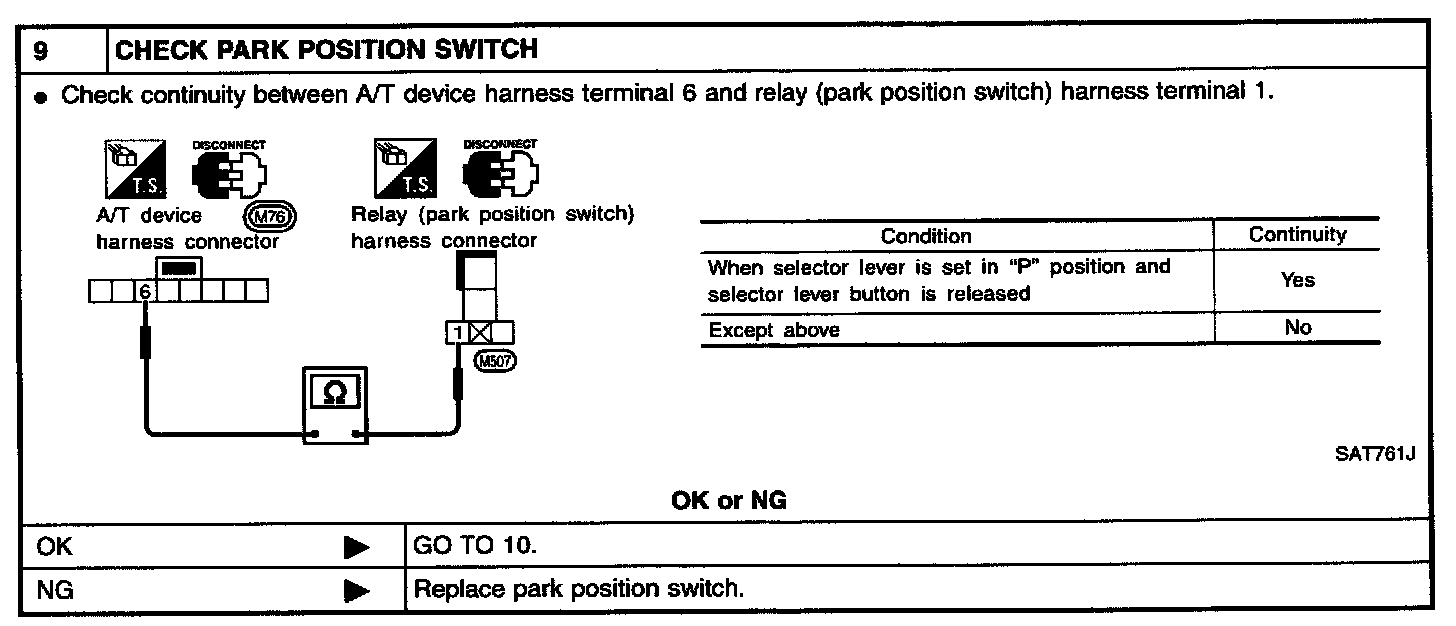

9: CHECK PARK POSITION SWITCH

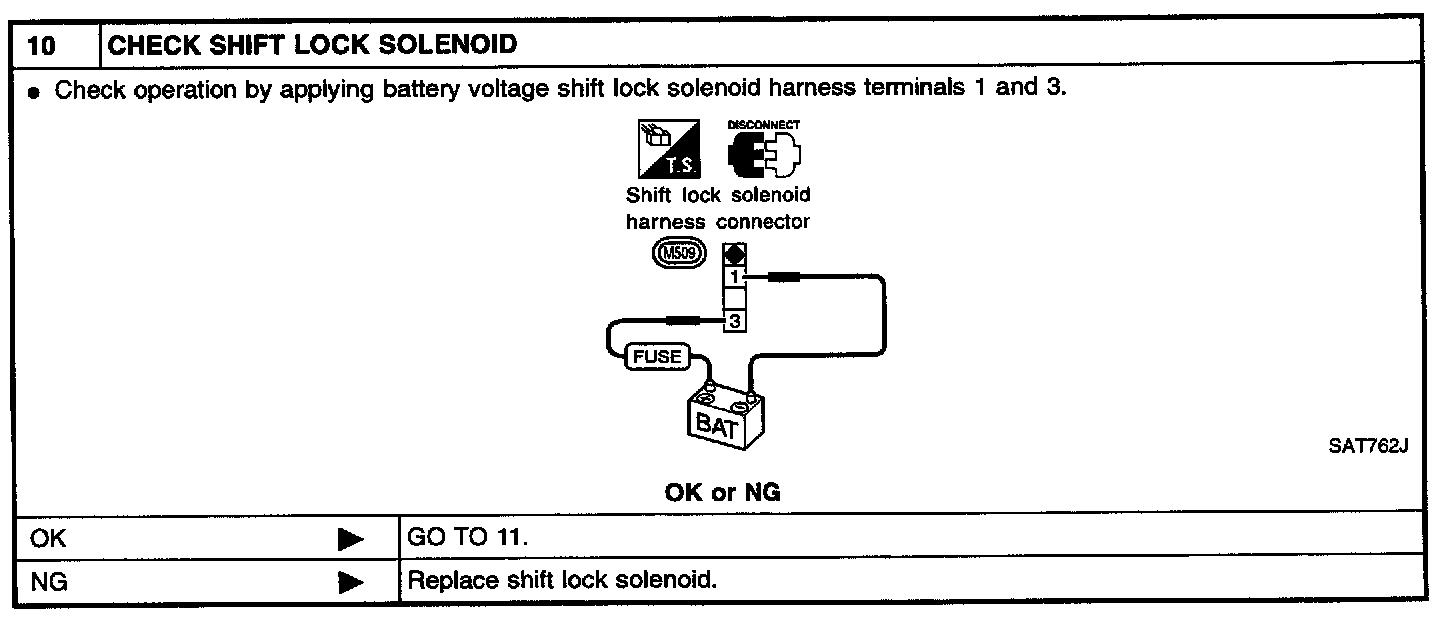

10: CHECK SHIFT LOCK SOLENOID

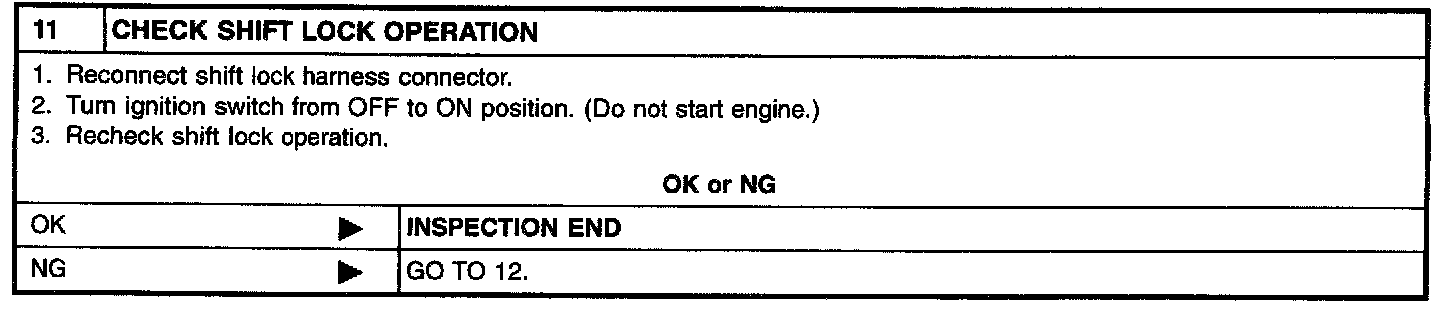

11: CHECK SHIFT LOCK OPERATION

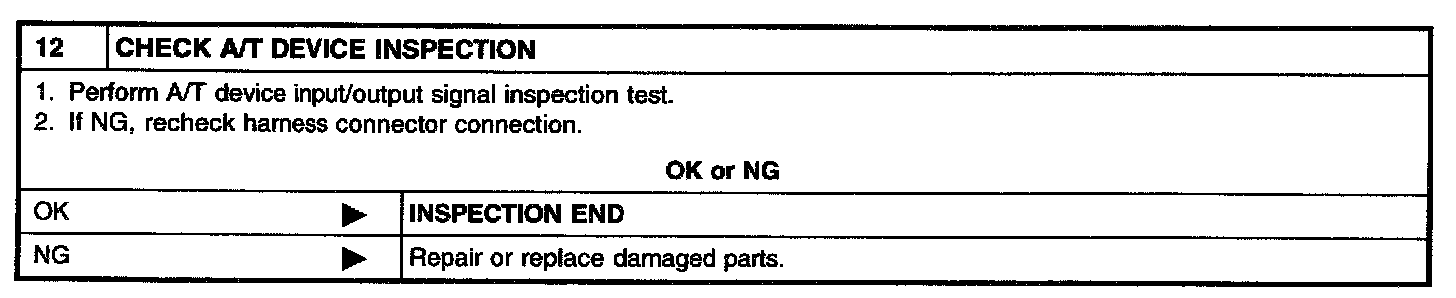

12: CHECK A/T DEVICE INSPECTION

SYMPTOM 1:
- Selector lever cannot be moved from P position with key in ON position and brake pedal applied.
- Selector lever can be moved from P position with key in ON position and brake pedal released.
- Selector lever can be moved from P position when key is removed from key cylinder.

SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to P position. It can be removed when selector lever is set to any position except P.
