Assembly (1)

Assembly (1)

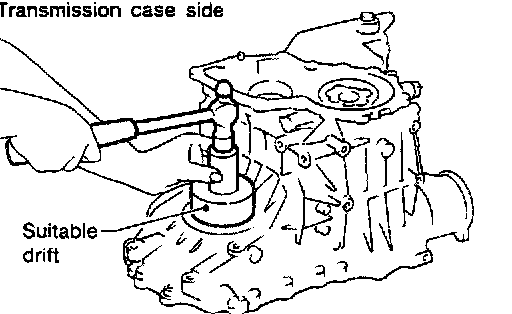

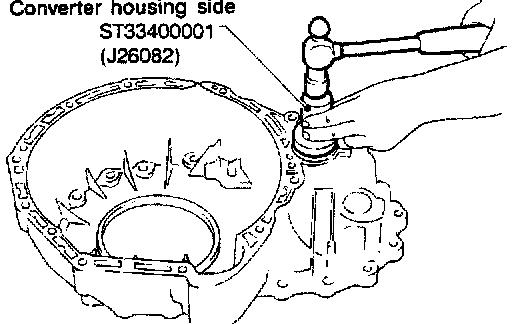

1. Install differential side oil seals on transmission case and converter housing.

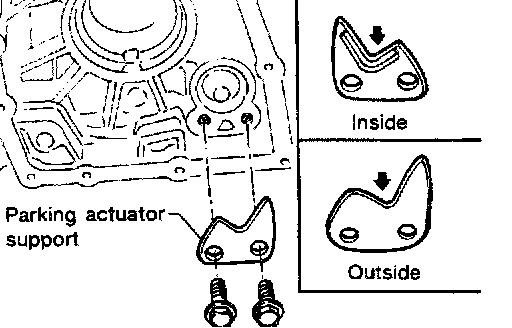

2. Install parking actuator support to transmission case. Tighten parking actuator support bolts to the specified torque. Refer to Service and Repair; Transmission Overhaul; Major Overhaul.
- Pay attention to direction of parking actuator support.





3. Install parking pawl on transmission case and fix it with parking shaft.
4. Install return spring.
