Symptom Related Diagnostic Procedures

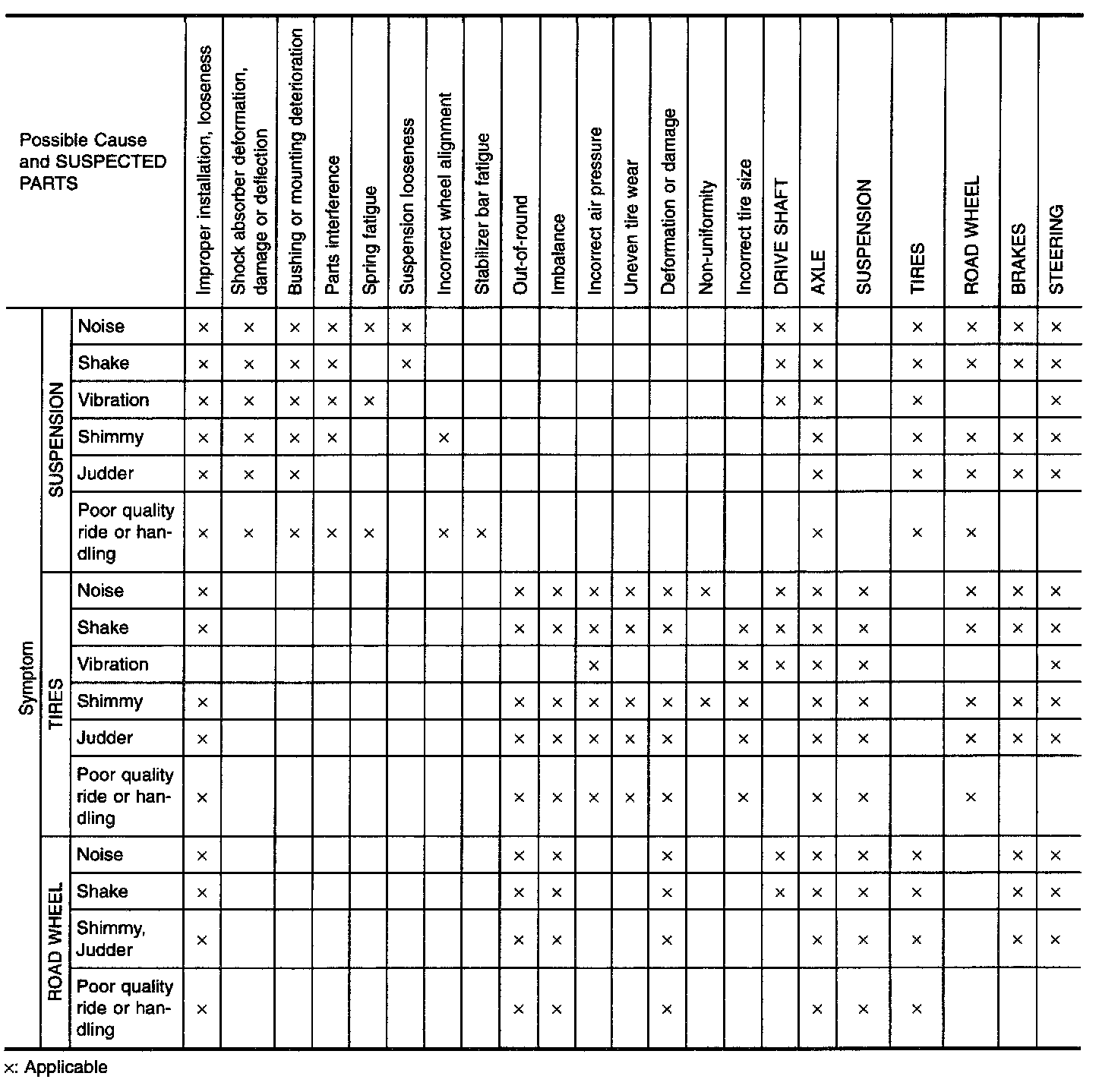

NVH TROUBLESHOOTING CHART
Use the chart to find the cause of the symptom. If necessary, repair or replace these parts.
