Starter Motor: Service and Repair

REMOVAL
1. Remove air duct assembly.
2. Remove harness protector from engine room harness.

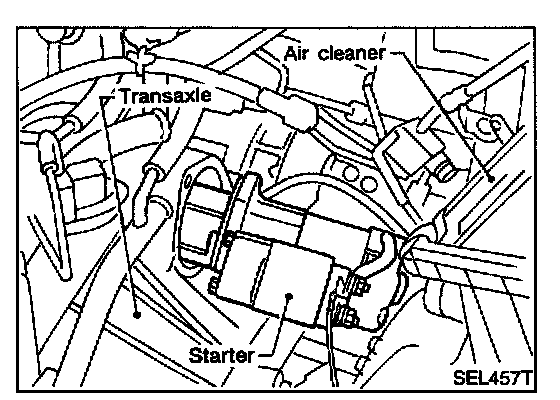

3. Disconnect starter harness.

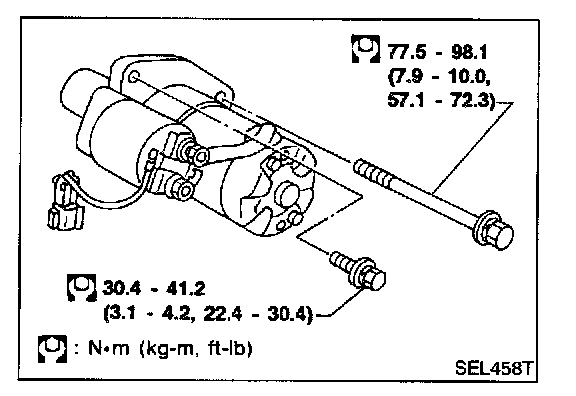

4. Remove starter bolts (two).
5. Remove starter.

INSTALLATION
To install, reverse the removal procedure.
