Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
With M/T
With M/T

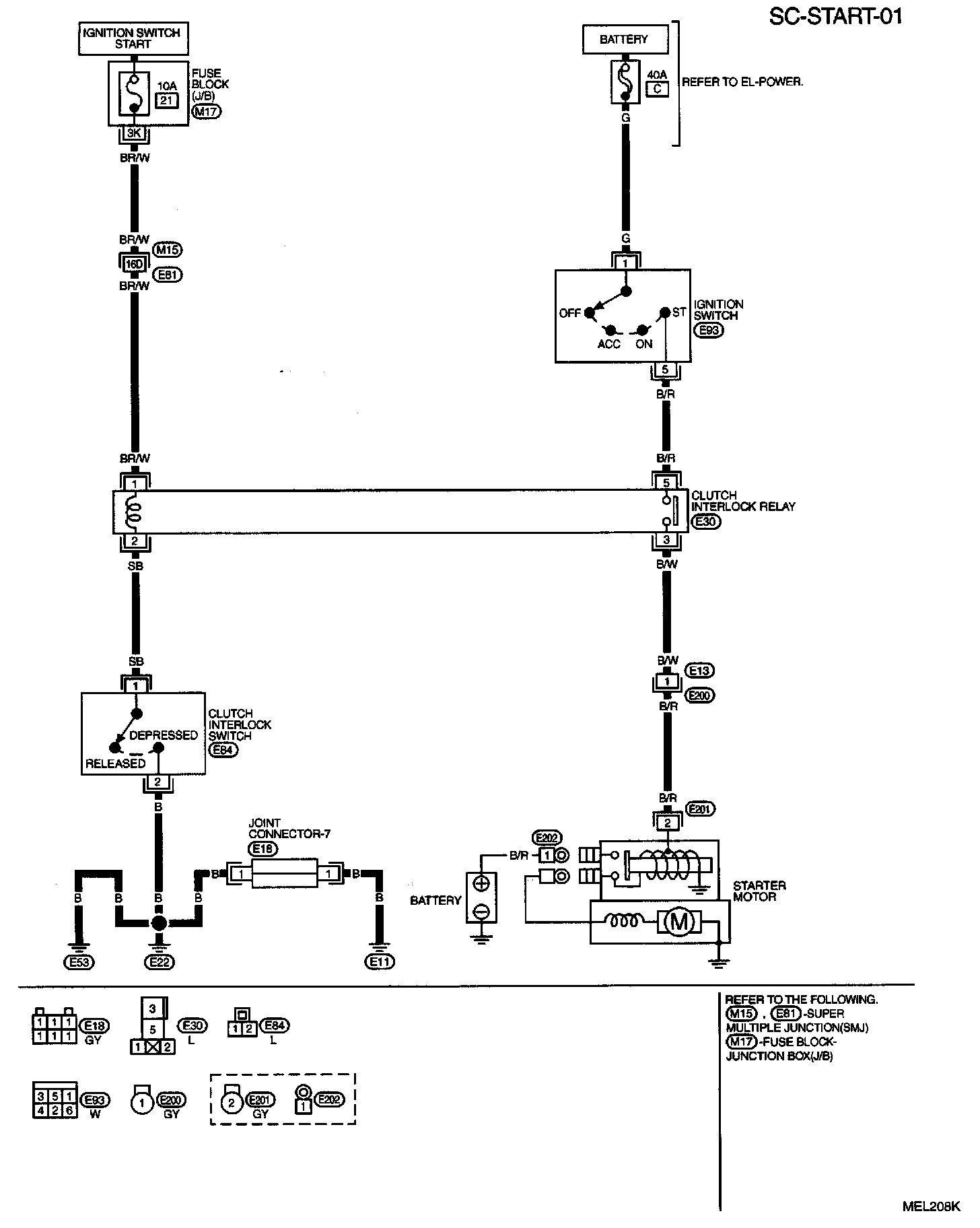

SC-START-01:
M15, E81, D1, M4, D31, D61 Connector Views:
E87, E89, E83, B5, M17, M18, M19 Connector Views:
