Home >> Nissan-Datsun >> 2000 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> With A/T

With A/T

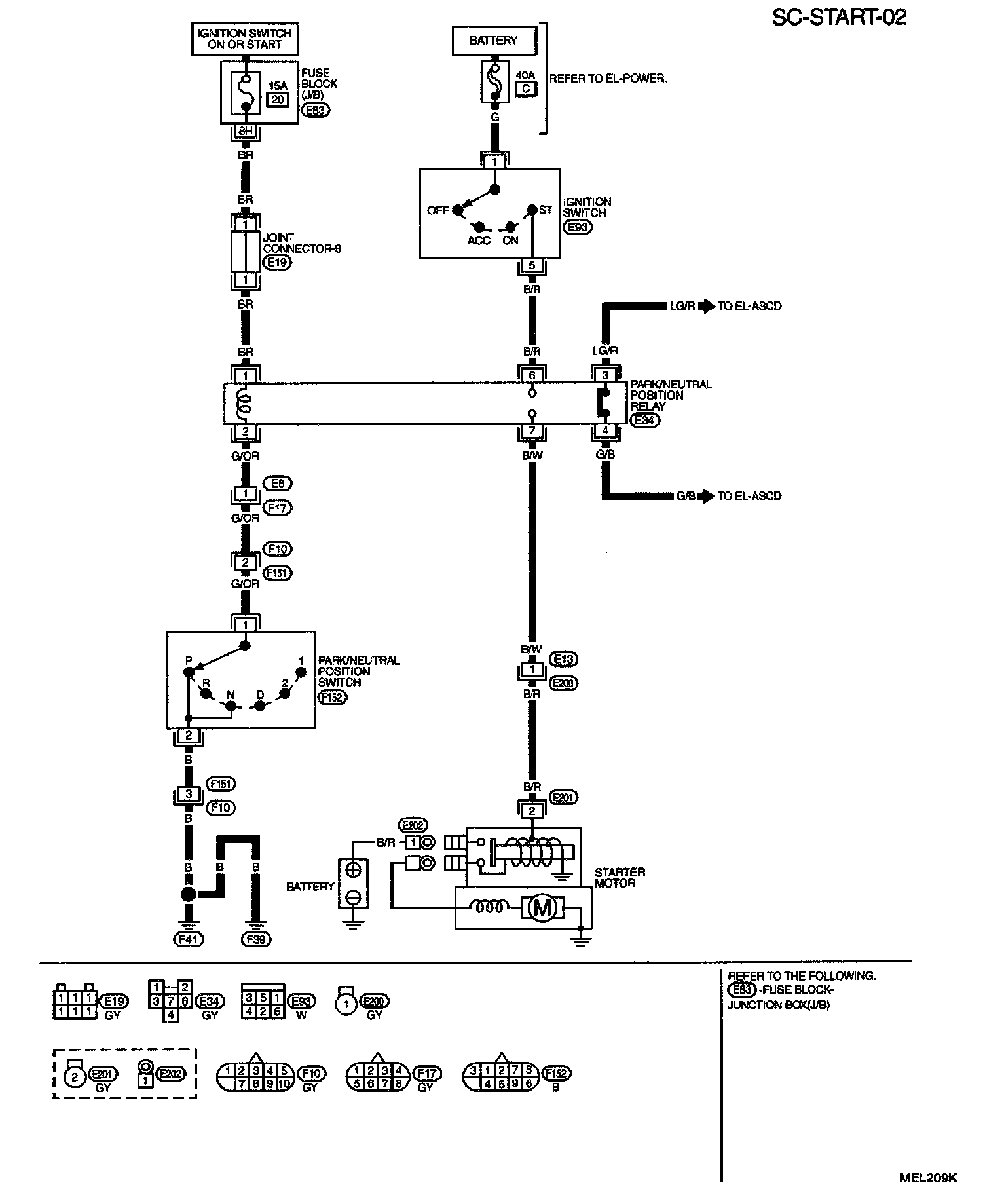

SC-START-02:



E87, E89, E83, B5, M17, M18, M19 Connector Views:
