Multiple Junction Connector: Service and Repair

Super Multiple Junction (SMJ)





Installation

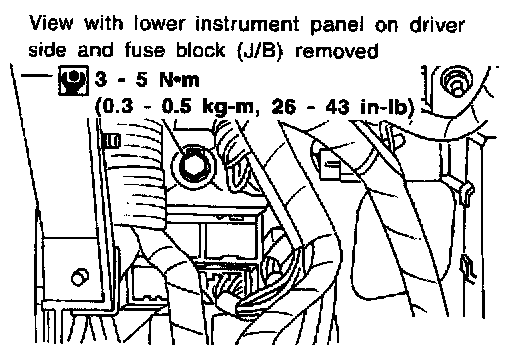

To Install SMJ, tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.
With Tightening Torque: 3 - 5 Nm (0.3 - 0.5 kg.m, 26 - 43 in.lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
