Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Engine Room Harness
Engine Room Harness

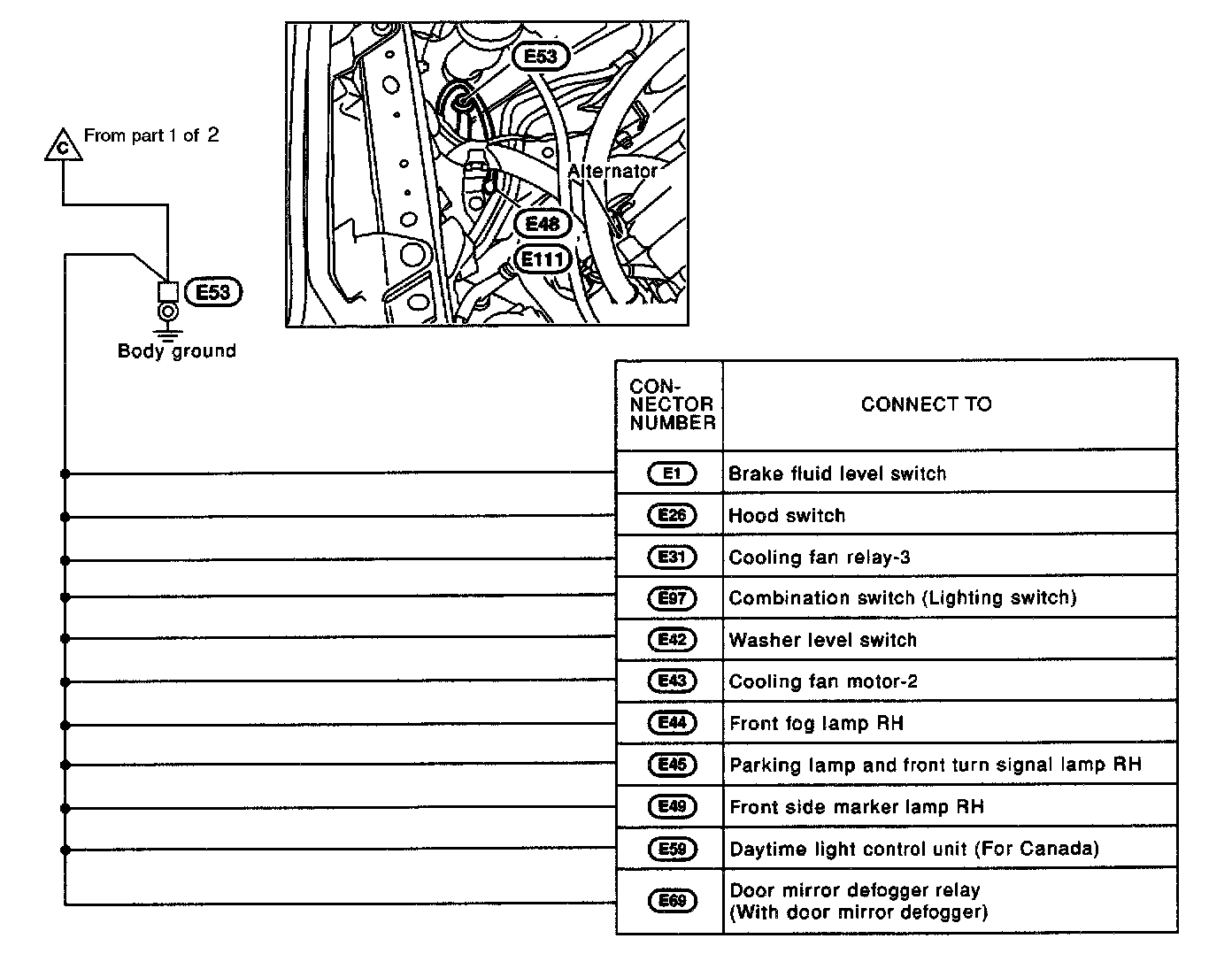

Grounds (1 OF 3):

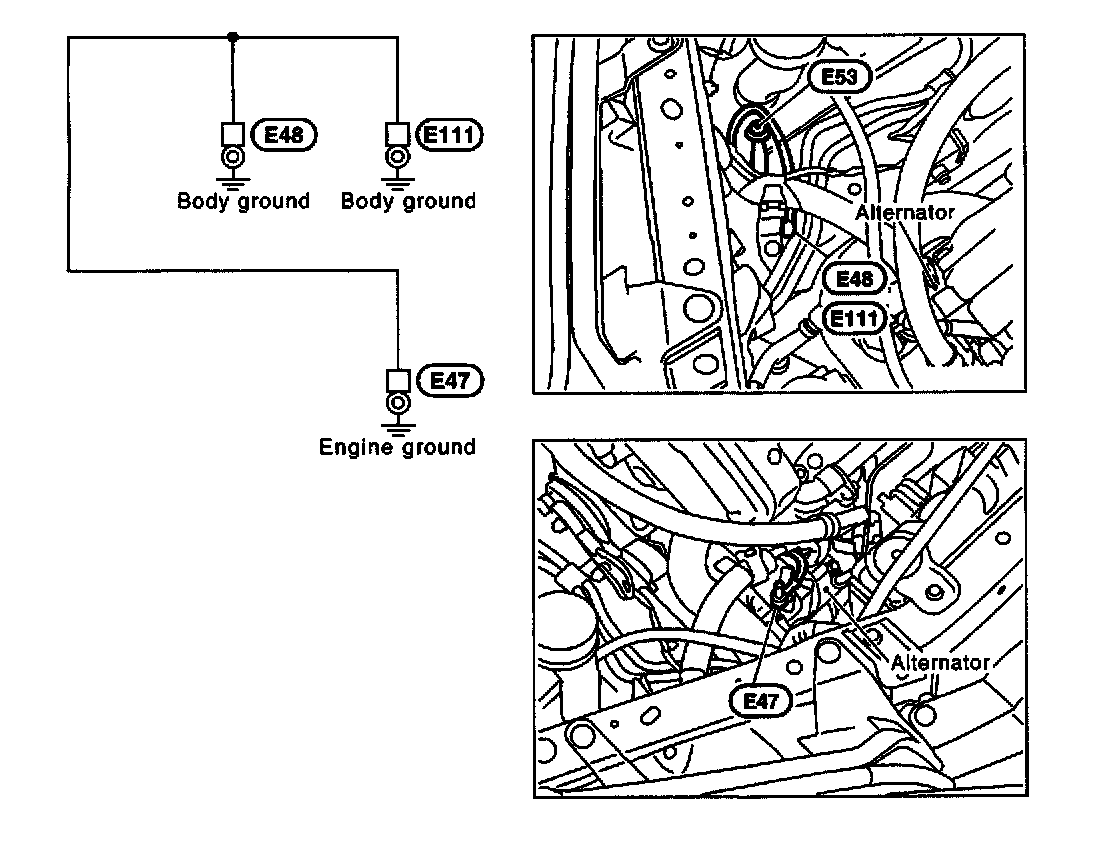

Grounds (2 OF 3):
Grounds (3 OF 3):
