Accessory Power Supply - Ignition Switch In "ACC" or "ON"
Accessory Power Supply - Ignition Switch In "ACC" or "ON"

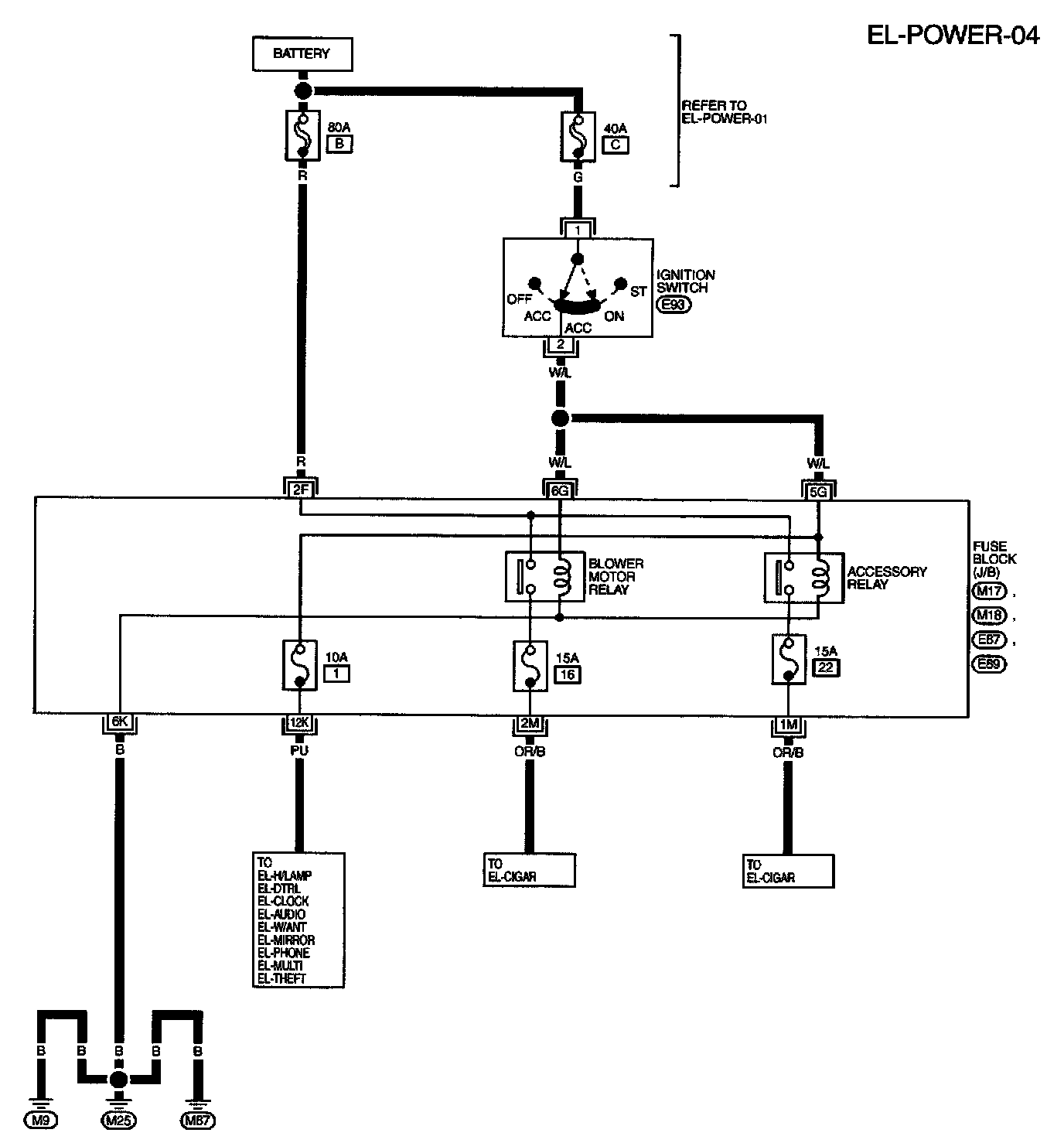

Schematic:
Schematic
Circuit Diagrams:
Circuit Diagrams

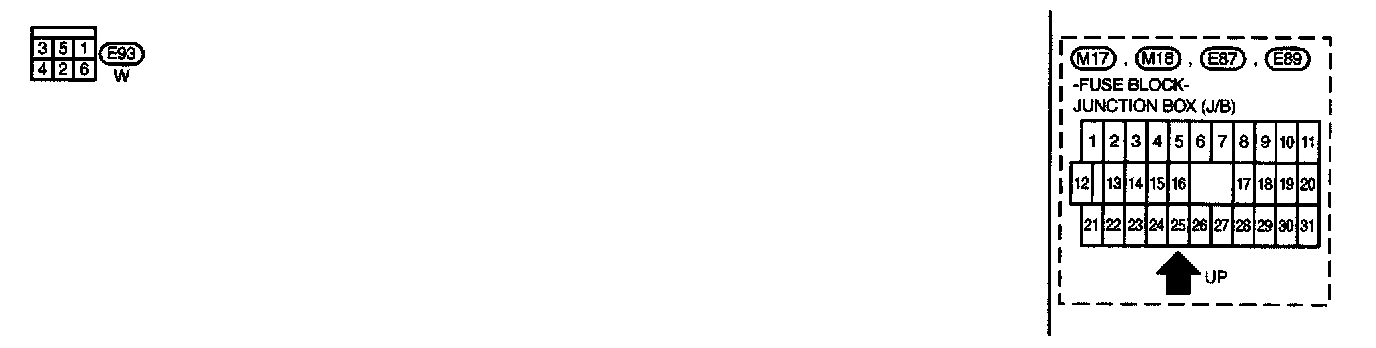

Circuit Connectors:
Circuit Connectors
