Alternator: Service and Repair

REMOVAL
1. Remove engine undercover RH.
2. Remove side inspection cover RH.
3. Loosen belt idler pulley.

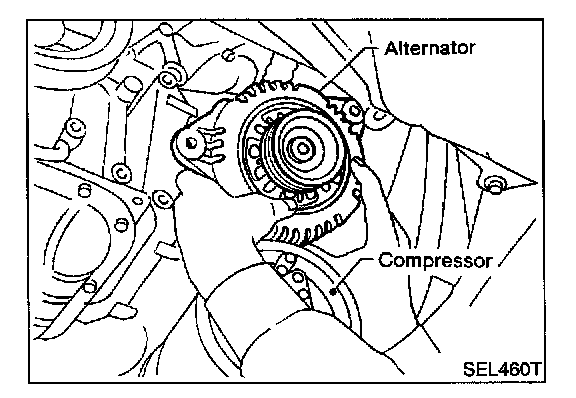

4. Remove drive belt.
5. Remove A/C compressor mounting bolts (four).
6. Slide A/C compressor forward.
7. Disconnect alternator harness connector.

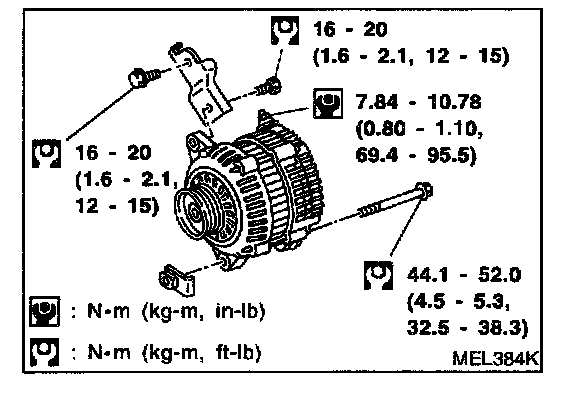

8. Remove alternator upper bolt and lower bolt.

INSTALLATION
To install, reverse the removal procedure.
