Front

Service Data and Specifications (SDS)

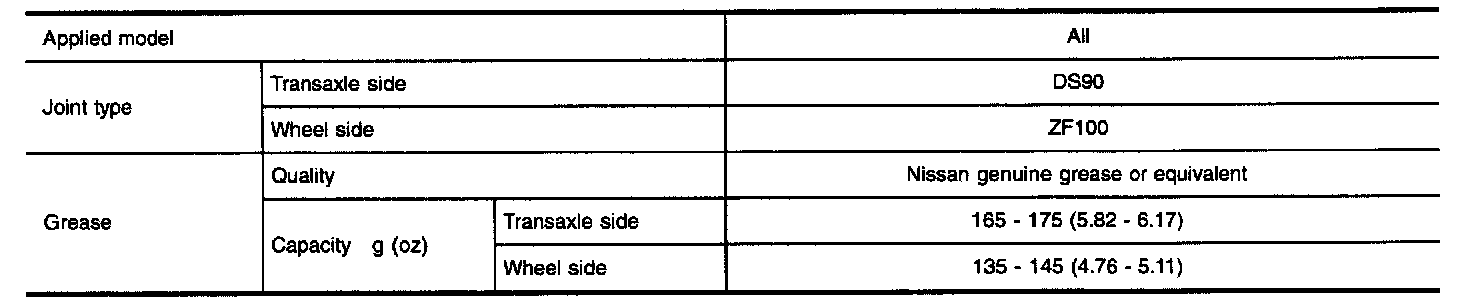

DRIVE SHAFT





Part 1 of 2

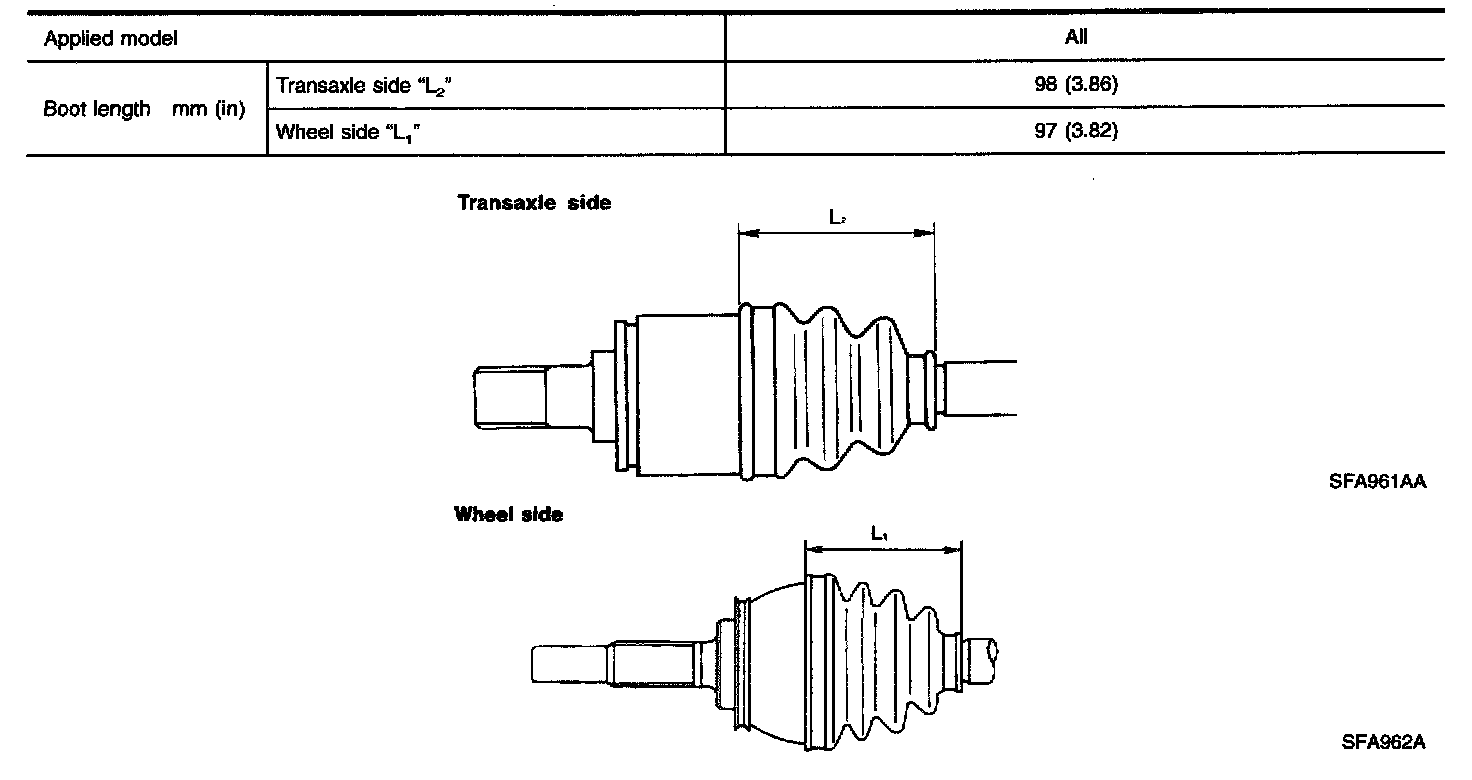

Part 2 of 2

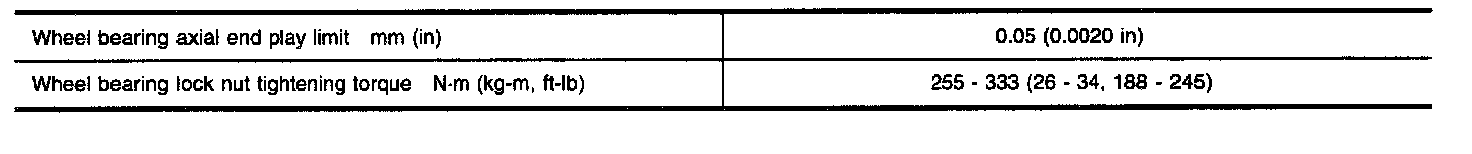

WHEEL BEARING (FRONT)
