Crankshaft Position Sensor: Service and Repair

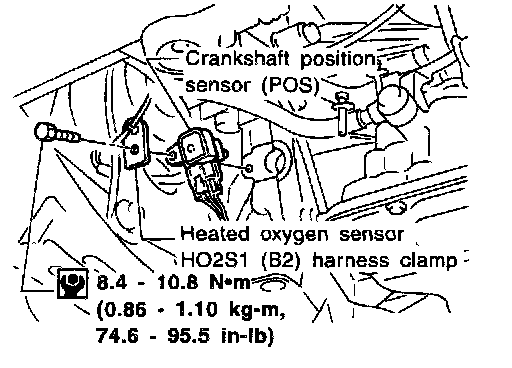

Crankshaft Position Sensor (POS)





1. Disconnect crankshaft position sensor (POS) harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
4. Visually check the sensor for chipping.

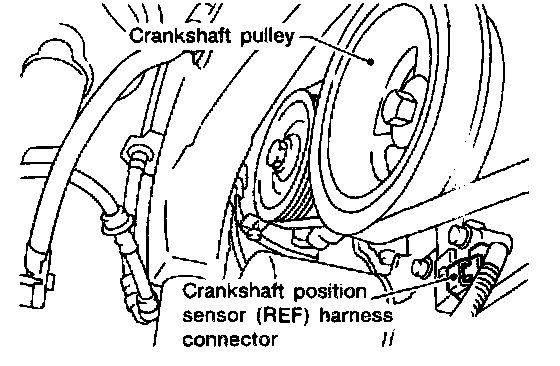

Crankshaft Position Sensor (REF)





1. Disconnect CKPS (REF) harness connector.
2. Loosen the fixing bolts and remove the CKPS (REF).
3. Visually check the CKPS (REF) for chipping.
