Evaporator Temperature Sensor / Switch: Testing and Inspection

COMPONENT DESCRIPTION







Intake Sensor

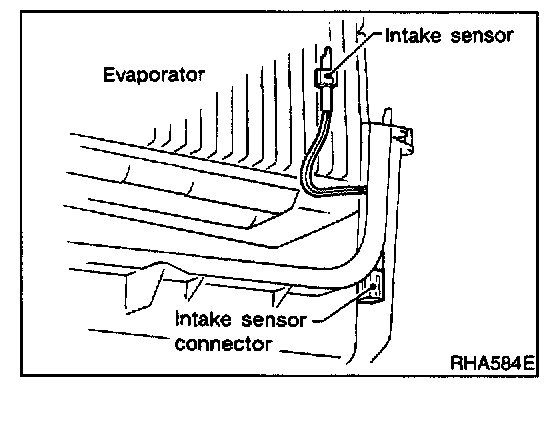

The intake sensor is located on the cooling unit. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the auto amp.

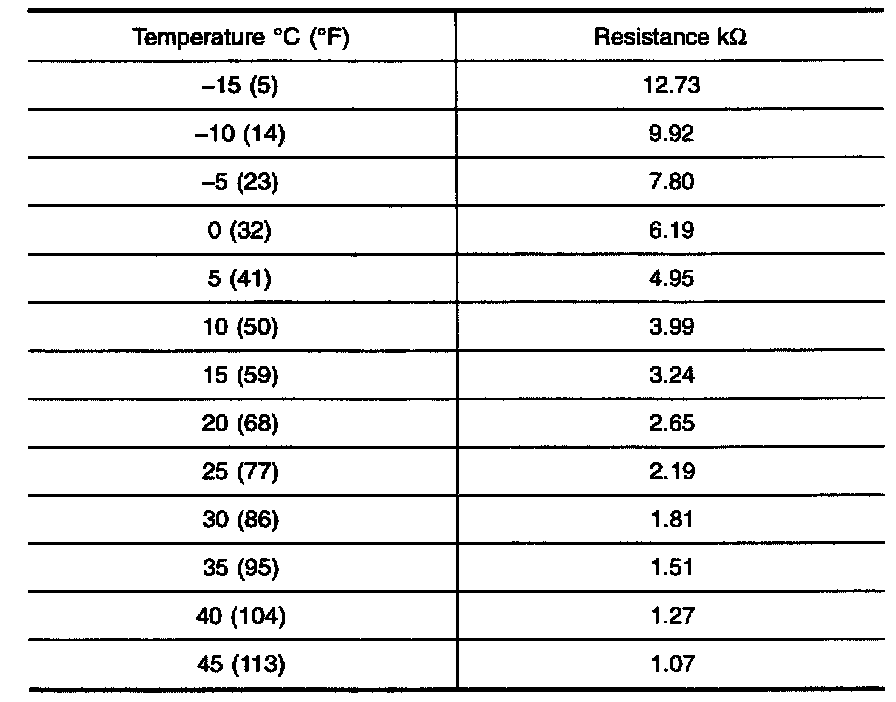

After disconnecting intake sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.
If NG, replace intake sensor.

Step 1:

Step 2:

Step 3:

Step 4:

DIAGNOSTIC PROCEDURE

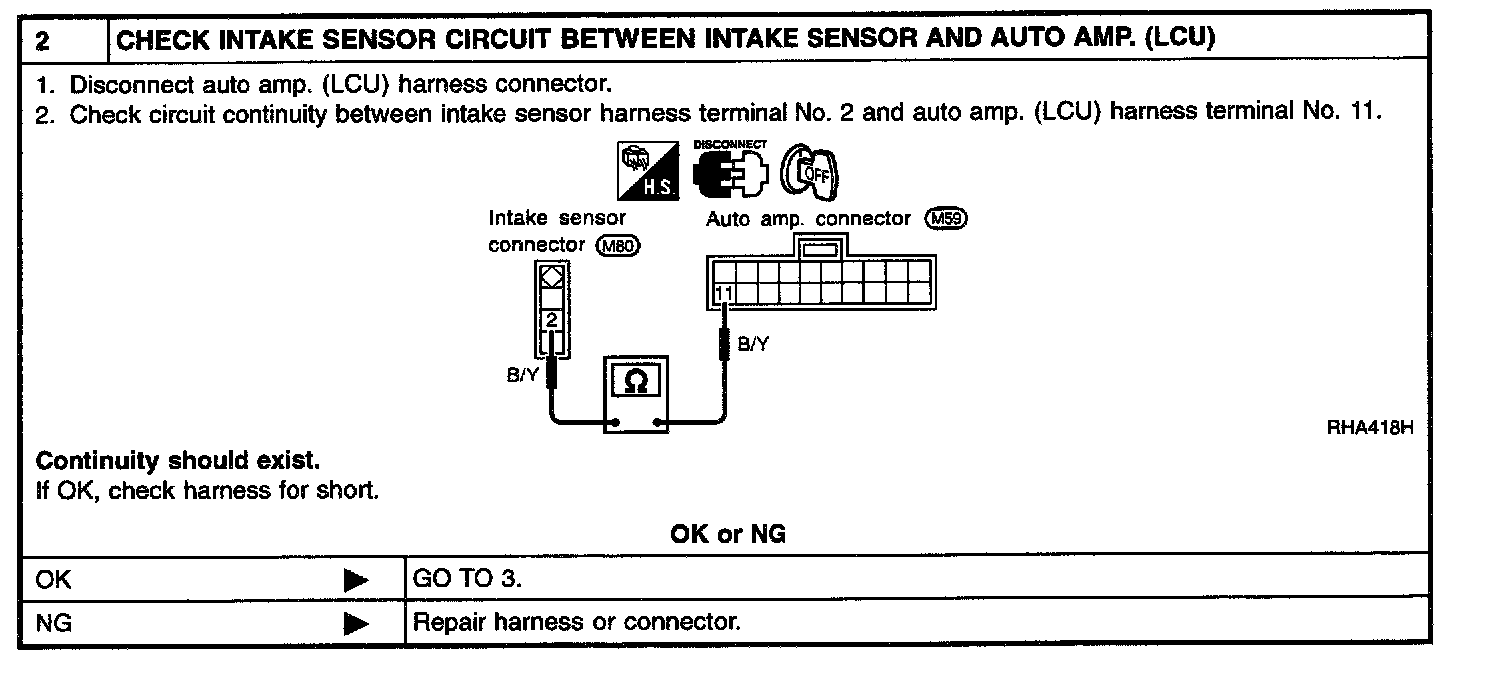

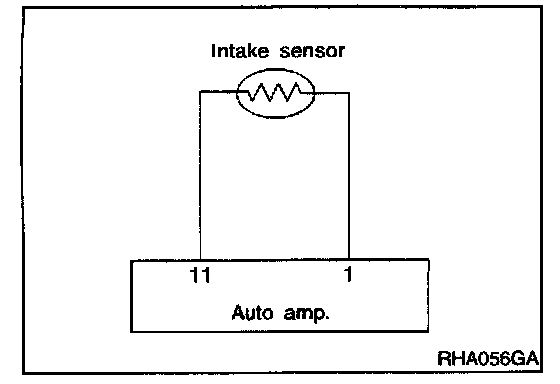

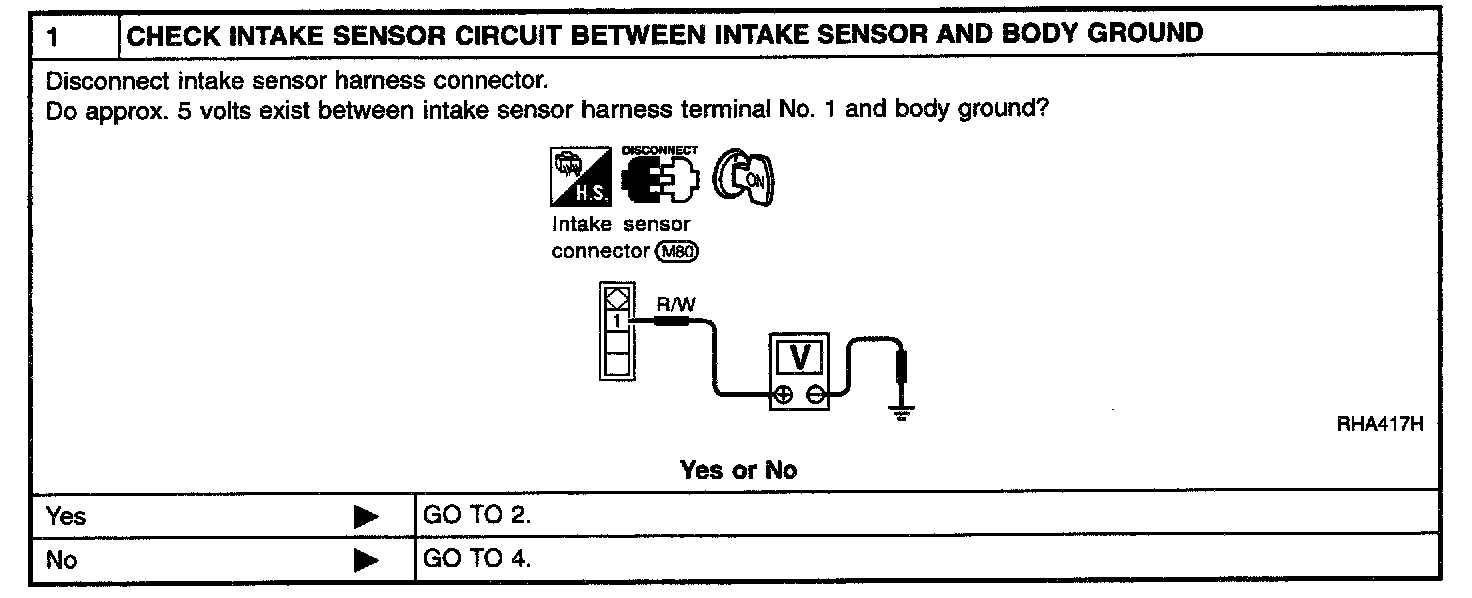

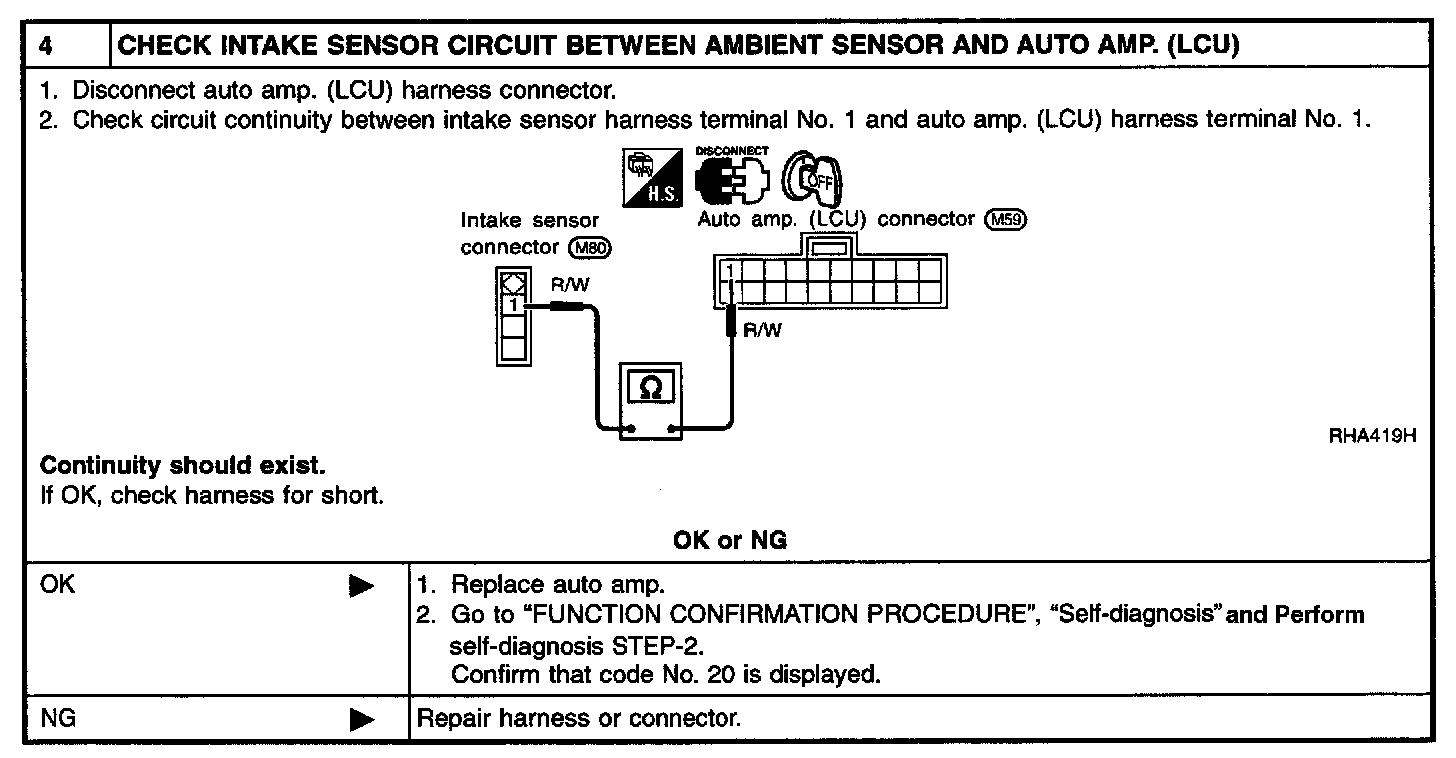

SYMPTOM: Intake sensor circuit is open or shorted. (24 or -24 is indicated on the display as a result of conducting Self-diagnosis STEP 2.)
