Rear Seat Belt

Rear Seat Belt:

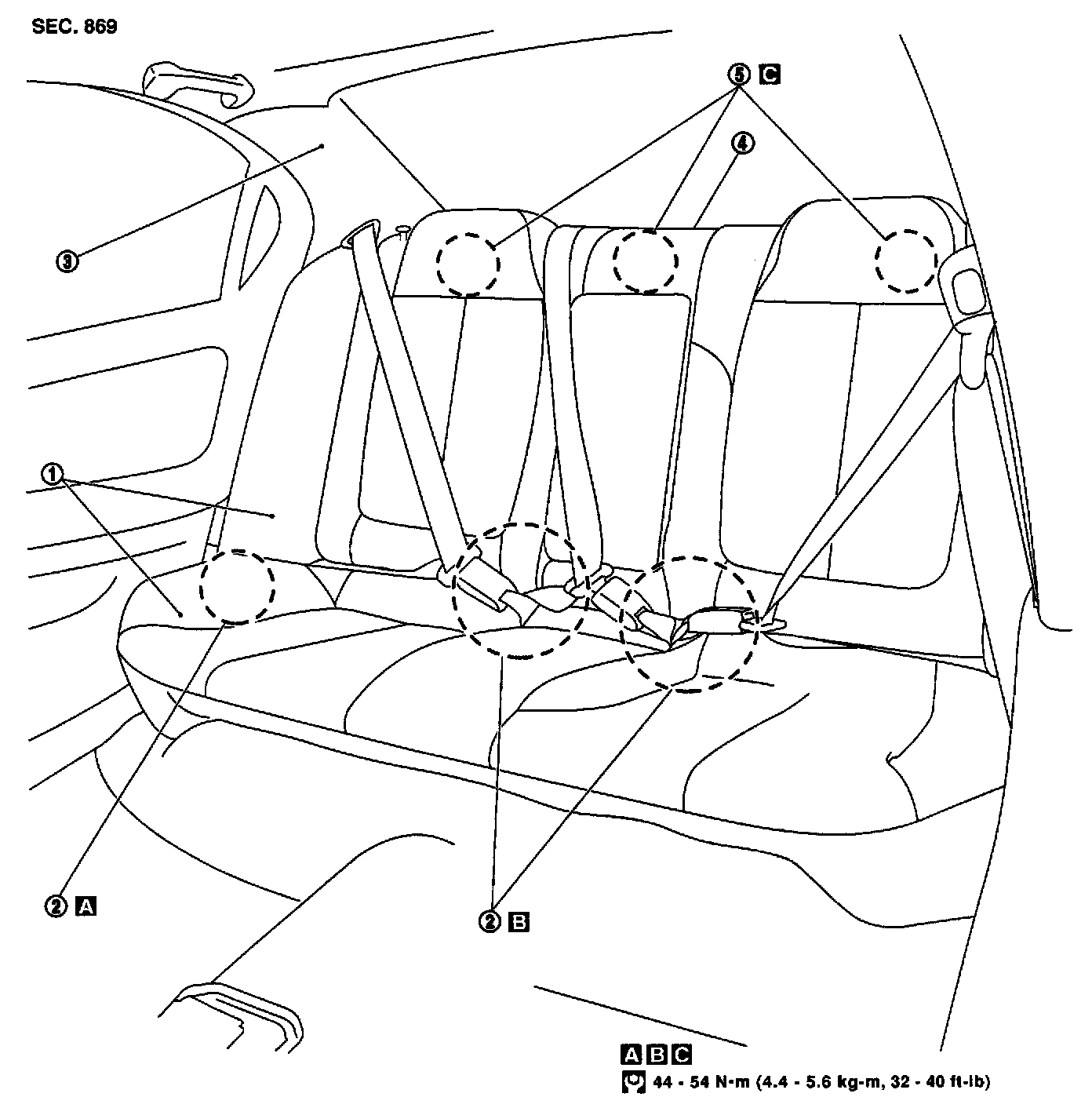

REMOVAL AND INSTALLATION

1. Remove rear seat.

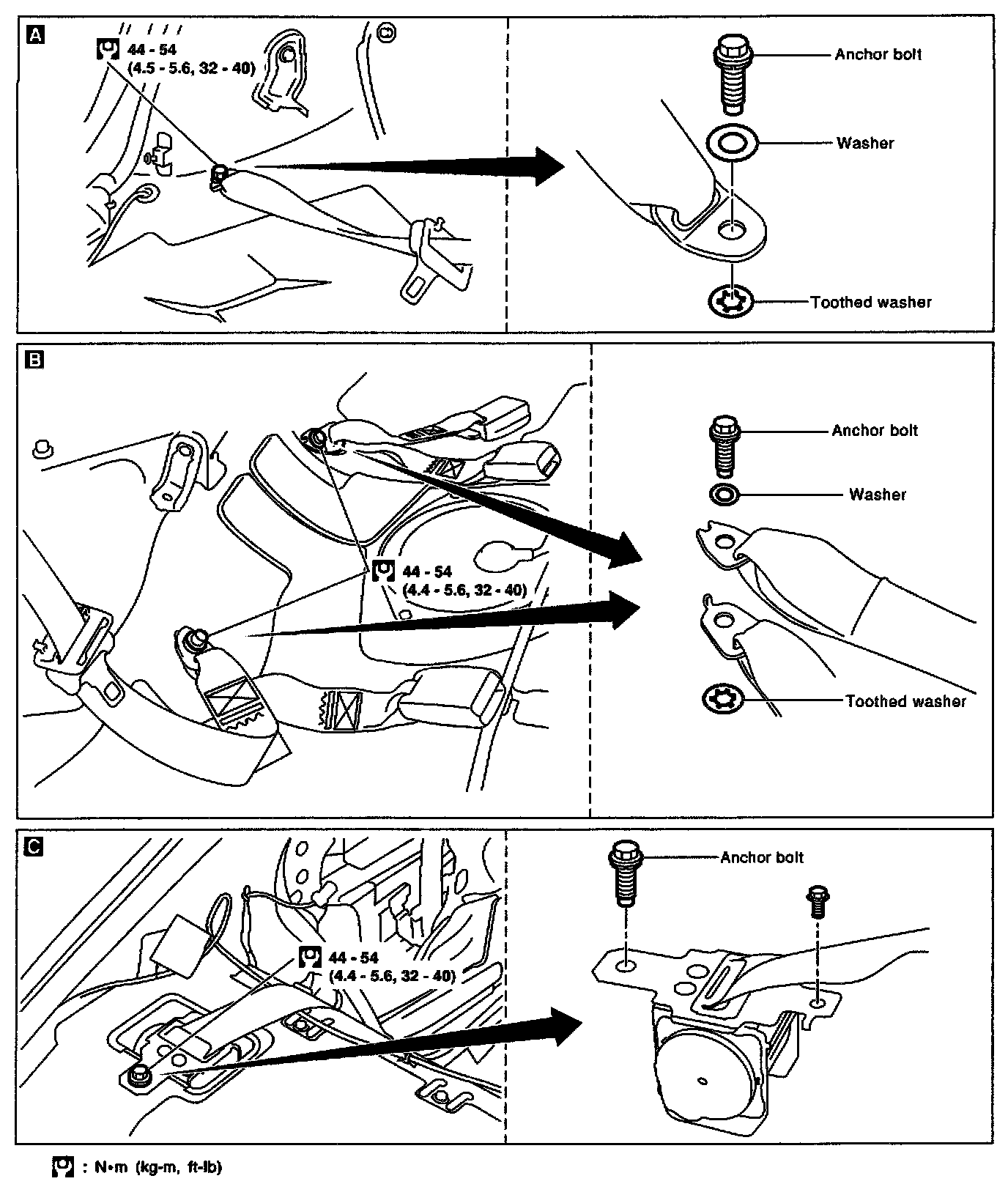

2. Remove outer and floor anchor bolt. A B
3. Remove rear side garnish.
4. Remove rear parcel shelf finisher.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat reactor. C

Reverse procedure to install.
