Removal and Installation

CAUTION:
- Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
- Check seat belt pre-tensioner with load limiter and satellite sensor for proper installation.
- After replacement of seat belt pre-tensioner, check SRS function and perform self-diagnosis for SRS. Refer to "Self-diagnosis" for details.
- Do not attempt to disassemble seat belt pre-tensioner with load limiter.
- Replace seat belt pre-tensioner if it has been dropped or sustained an impact.
- Do not expose seat belt pre-tensioner to temperatures exceeding 80 °C (176 °F).

Front Seat Belt:

Seat Belt Pre-Tensioner:

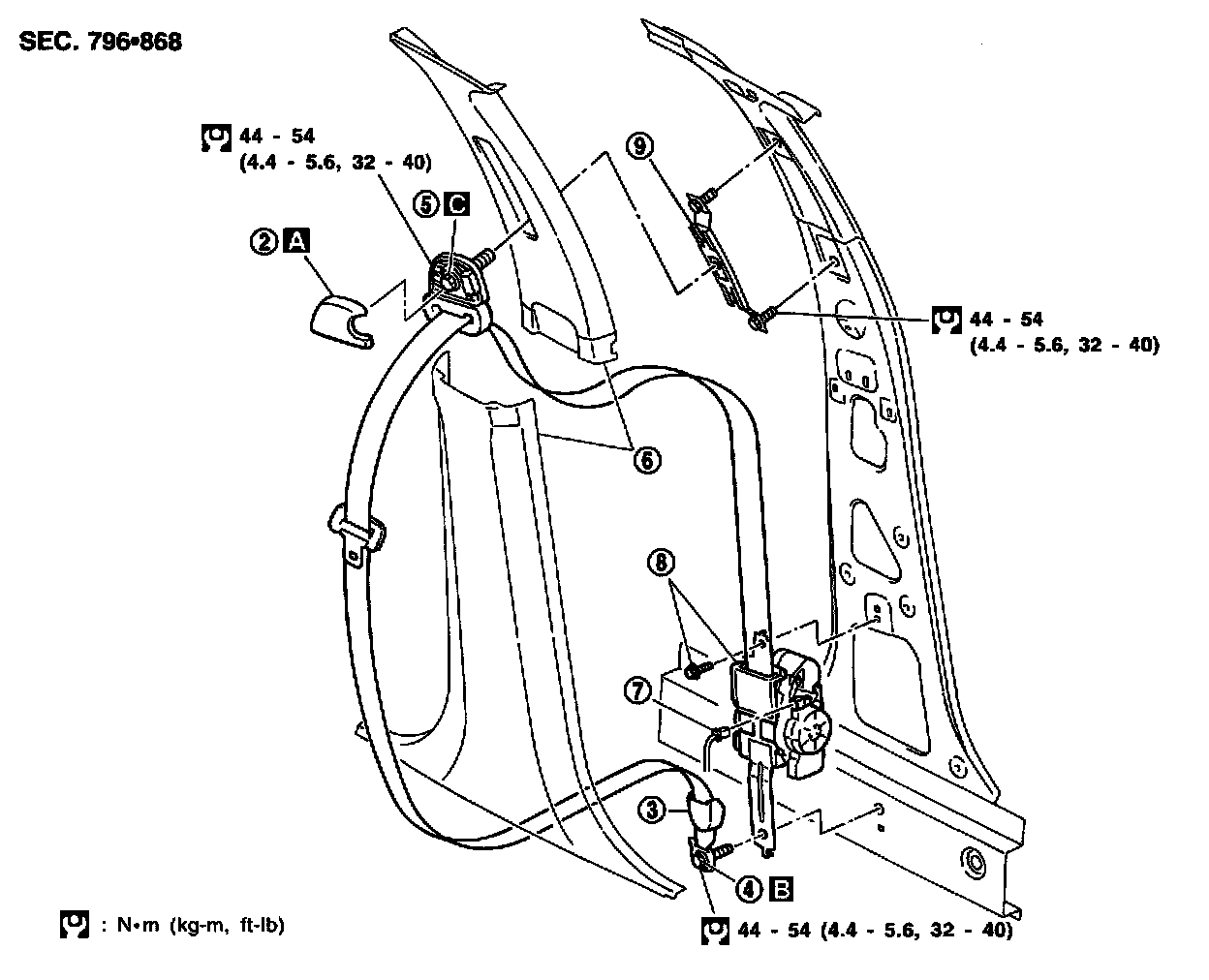

REMOVAL AND INSTALLATION

1. Remove front seat.

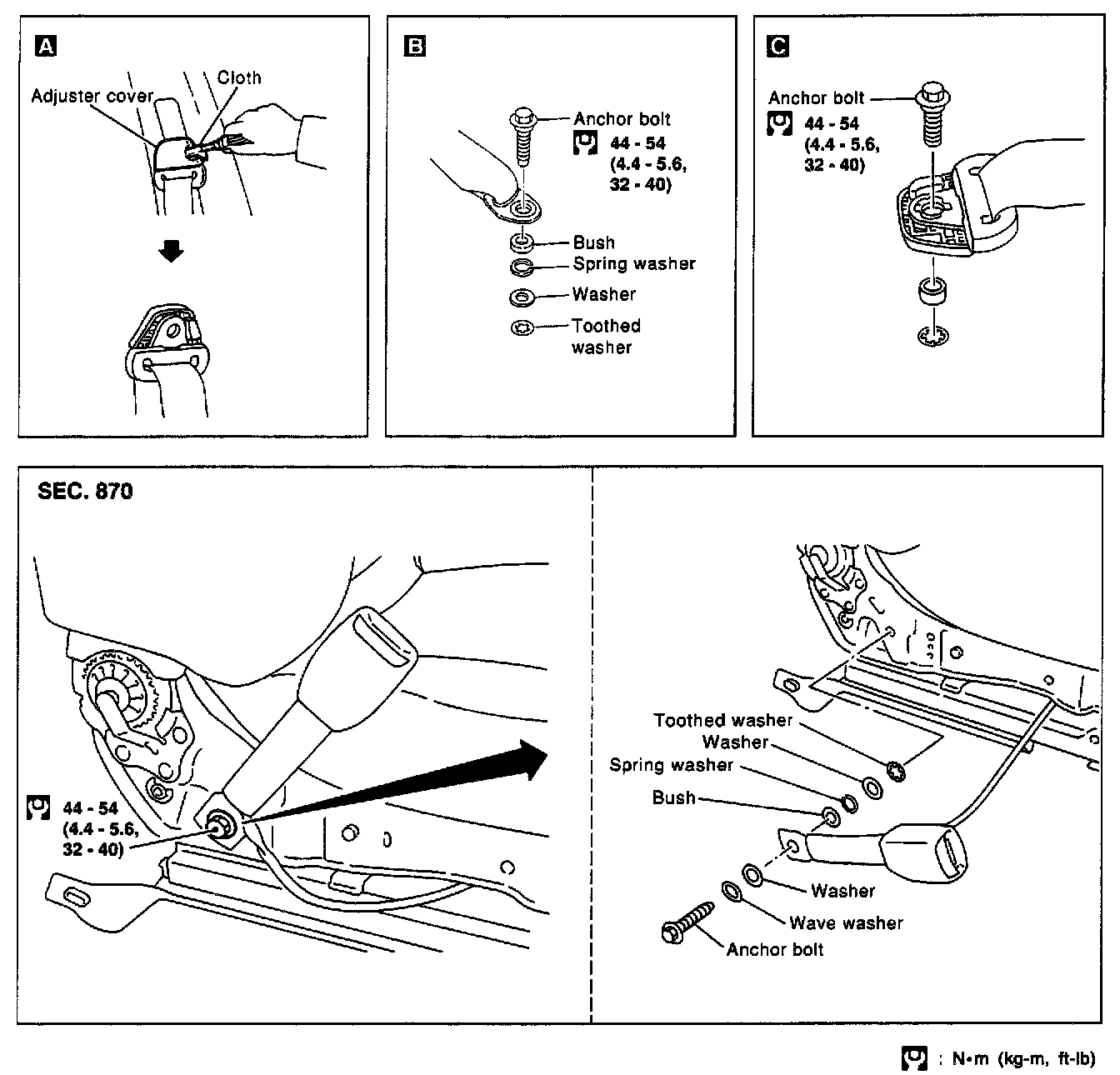

2. Remove adjuster cover. A
3. Slide floor anchor cover.
4. Remove floor anchor bolt. B
5. Remove shoulder anchor bolt. C
6. Remove front and rear kicking plate, then remove center pillar upper and lower garnish.

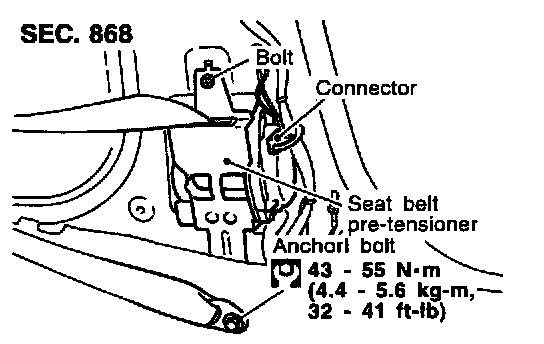

7. Disconnect seat belt pre-tensioner connector.
8. Remove the screw securing seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-tensioner retractor.
9. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

NOTE: To install, reverse the removal procedure sequence.
