Child Seat Tether Attachment: Service and Repair

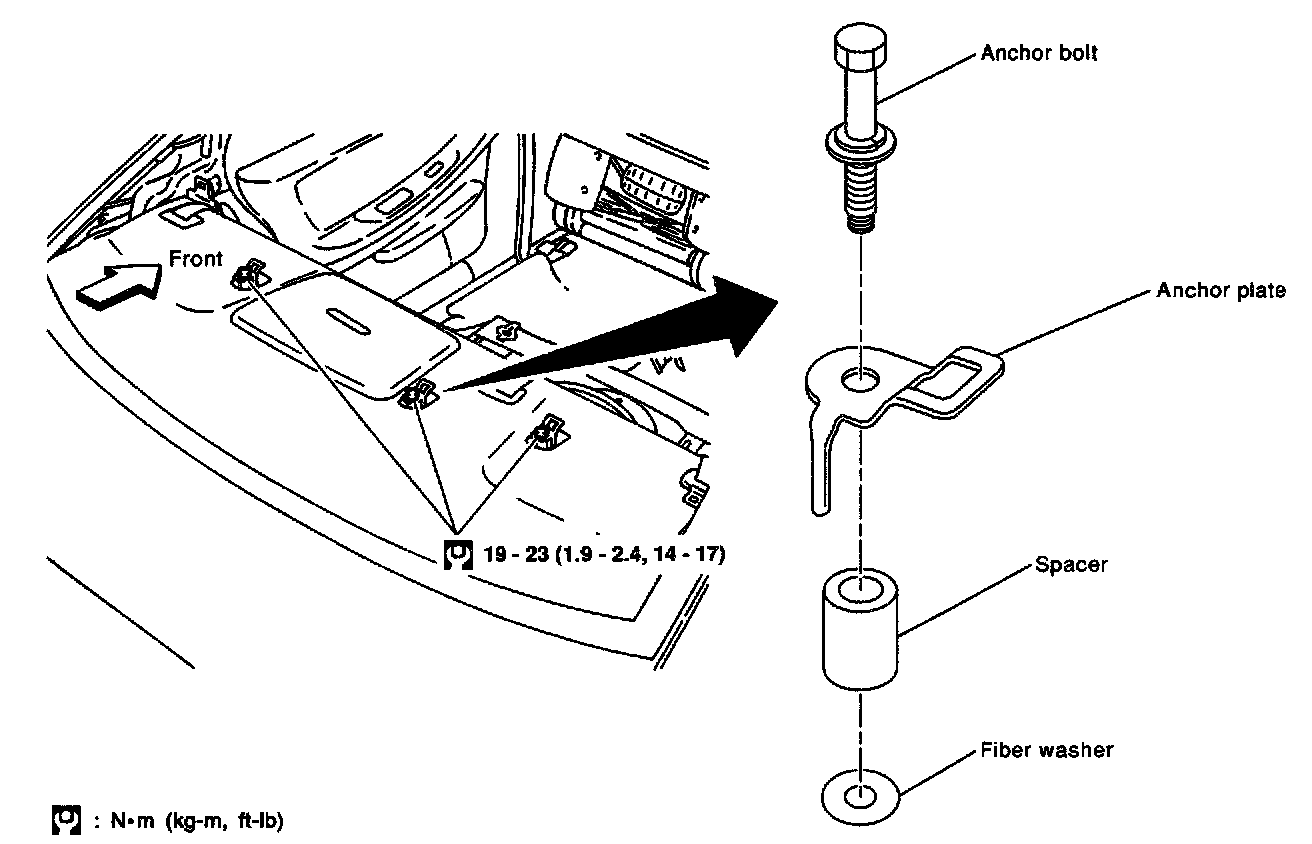

Tether Anchor Plate

CAUTION: Replace anchor bolts if they are deformed or worn out.





REMOVAL AND INSTALLATION
1. Remove tether anchor plate cover.
2. Remove tether anchor plate.

NOTE: To install, reverse the removal procedure sequence.
